GAMDIAS APOLLO-M1 Elite ATX Mid Tower Gaming Case 2 ARGB Fans Installation Guide

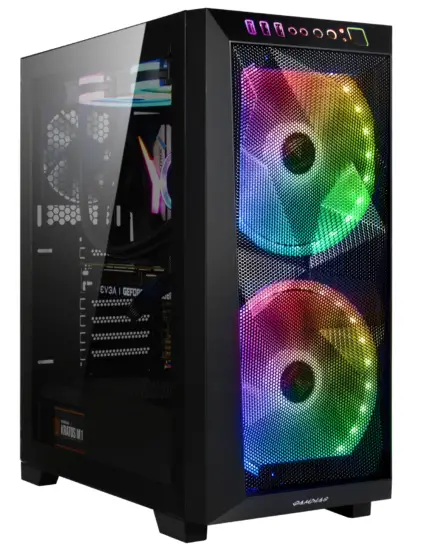

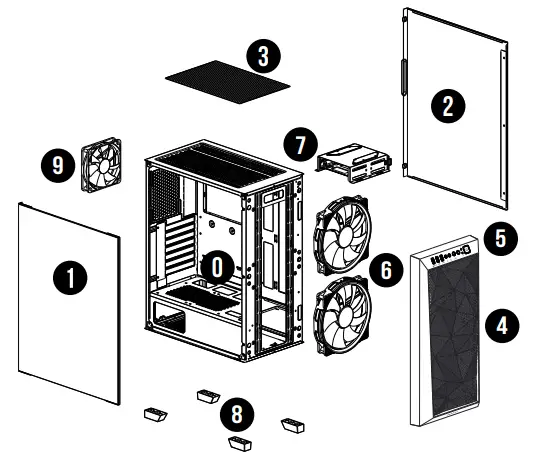

EXPLODED VIEW PARTS

PARTS

0. Chassis Body

1. Tempered Glass Side Panel
2. Right Side Panel
3. Top Dust Filters
4. Mesh Front Panel
5. ARGB IO Port
6. 20CM ARGB FAN
7. HDD Cage
8. Rubber Foot
9. 120 MM Fan

ACCESSORY

Figure	Parts Name	Qty	Used for
	Stand-off 4.75 x 9.5 x 6.5mm	3	Motherboard
	Screw #6 x 6 mm	6	PSU
	Screw #6 x 5 mm	9	HDD
	Screw M3 x 5 mm	18	2.5″ HDD/Motherboard/ODD
	CableTie	5	Cable Management

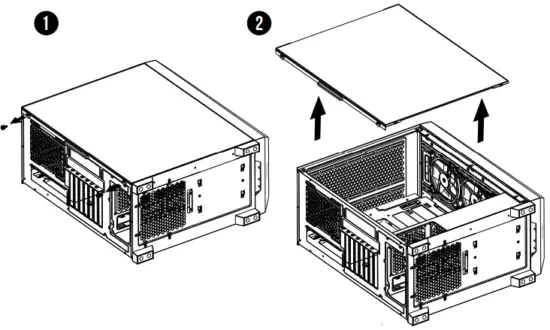

SIDE PANEL REMOVAL

Remove the side panel

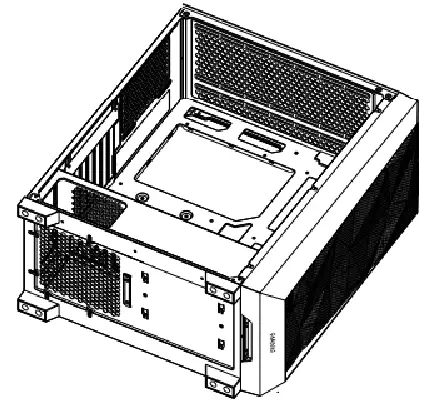

MOTHERBOARD INSTALLATION

PSU INSTALLATION

Place the PSU in proper location

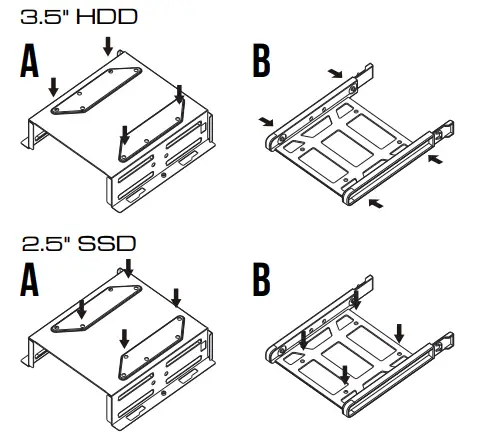

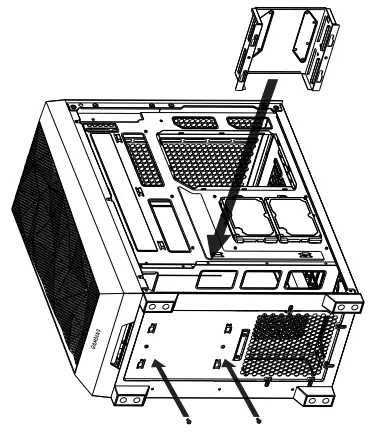

3.5″ 2.5″ HDD INSTALLATION

A. 3.5″ HDD
Align the HDD into the mounting holes and screw in.
B. 2.5″ SSD
Align the SSD into the mounting holes and screw in.

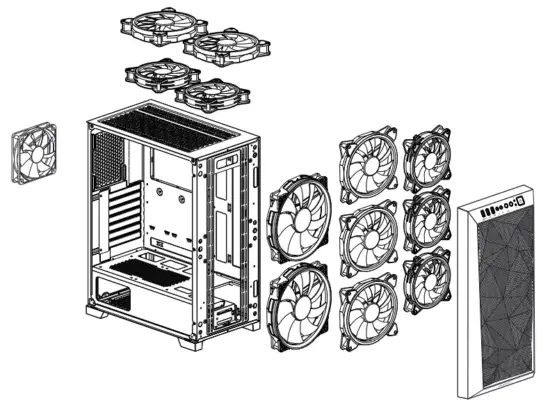

AIR COOLING COMPATIBILITY

• Top: 2 x 120mm or 2 x 140mm
• Front: 3 x 120mm or 3 x 140mm or 2 x 200mm
• Rear: 1 x 120mm

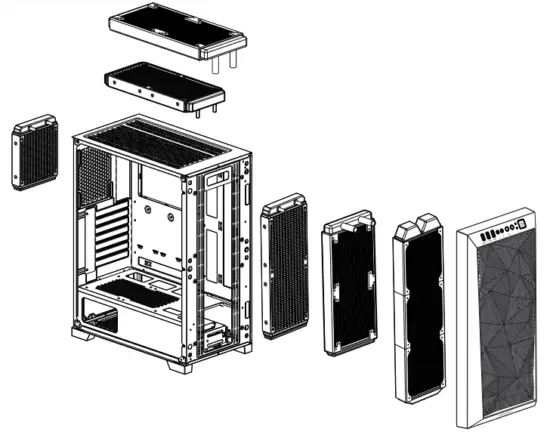

RADIATOR COMPATIBILITY

• Top: 280 mm or 240 mm
• Front: 360 mm or 280 mm or 240 mm
• Rear: 120 mm

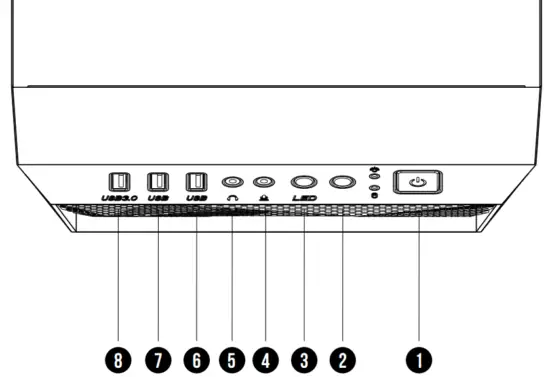

I/O PORTS

1. Power Button
2. Fan Speed Control
3. Fan LED Control
4. MIC
5. Headphone
6. USB 2.0
7. USB 2.0
8. USB 3.0

Sync With Motherboard : Press and Hold the FAN Speed Control Button for 3 Seconds.

Fan LED Off : Press and Hold the FAN LED Control Button for 3 Seconds.

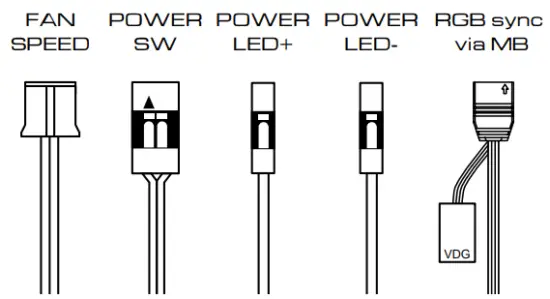

I/O CONNECTORS

See your motherboard’s manual for front panel header locations and pin-outs.

SPECIFICATIONS

• SERIES: 20cm Fans Series
• Product Name: APOLLO M1 Elite
• Case Type: MID Tower
• Dimension (L x W x H): 430 x 220 x 490 mm
  16.9 x 8.6 x 19.2 inch
• Chassis Dimension (L x W x H): 370 x220 x 470 mm
  14.5 x 8.6 x 18.5 inch
• Motherboard Support: ATX, Micro-ATX,Mini-ITX
• Expansion Slots: 7
• Material: SPCC , ABS , Tempered glass
• Window: Front (Mesh) , Left (Tempered Glass)
• Radiator Support: Top: 280 mm, 240mm
  Front: 360 mm , 280 mm , 240 mm
  Rear: 120mm
• Fan Support:  Top: 2 x 120mm , 2 x 140mm
  Front: 3 x 120mm , 3 x 140mm, 2 x 200mm
  Rear: 1 x 120mm
• Pre-installed Fans: Front: 2 x 200mm ARGB Fans
  Rear: 1 x 120mm Fan
• Pre-installed Control BOX: 6 Ports Hub (2 ports are used)
• Motherboard Sync: 5V 3-Pin Addressable Header
• Drive Bays: 2 x 3.5″ or 1 x 2.5″+1 x 3.5″(HDD Cage) 2 x 2.5″
• Clearance: CPU cooler height limitation: 165mm
  VGA length limitation: 350mm
  PSU length limitation: 200mm
• I/O Port: USB 3.0 x1, USB 2.0 x2, HD Audio x1,
  Fan LED Control x1, Fan Speed Control x1
