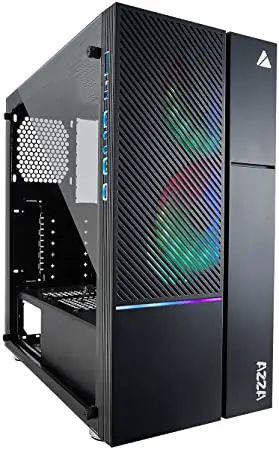

AZZA IRIS 330 Mid Tower PC Case with 2X Digital RGB Fans
Specifications
| Model | |
| Model Name | IRIS 330 |
| Model Number | CSAZ-330 |
| Specifications | |
| Type | ATX Mid Tower |
| Color | Black(exterior)/black(interior) |
| Side Panel Window | Left Side panel: Tempered Glass with rubber mounts |
| Max CPU Cooler Height | UP to 155mm |
| Max Video Card Length | Up to 380mm long video card |
| Power Supply | Not Included |
| Motherboard Compatibility | ATX |
| Expansion | |
| External 5.25″ Drive Bays | 0 |
| Internal 2.5″ Drive Bays | Up to 3 |
| Internal 3.5″ Drive Bays | Up to 2 |
| Expansion Slots | 7 |
| Top Ports | Power button, Reset button, HD Audio, USB 3.0 x 1, USB2.0x2 |
| Physical Specifications | |
| Case Dimension (HxWxD) | 447x216x440mm/17.6 x 8.5 x 17.3 inches |
| Weight | 5.49kg /12.1lbs |
| Features | |
| Tempered Glass Sides Window | High-quality tempered glass side window allows for clear visuals to inner components |
| Addressable RGB Light Effects | Addressable RGB light strips on the front panel and side port location, all controlled by RF Remote (2020 New version) ※Without RF REMOTE before 2020 version, controlled by motherboard. |
|
Available Fan Ports | 3x120mm Fan ports in the front (2x120mm Digital RGB Fan included) 2x120mm Fan ports on the top 1x120mm Fan port in the rear 2x120mm Fan ports on the top of PSU chamber |
| Water Cooling | Supports radiators up to 240/360mm in the Front |
| Dust filters | Removable (magnetic) dustproof net on the top, iron net on bottom of chassis. |
| Power Supply Support | Bottom mounted ATX Power Supply |
| Model | |
| Model Name | IRIS 330S |
| Model Number | CSAZ-330S |
| Specifications | |
| Type | ATX Mid Tower |
| Color | Black(exterior)/black(interior) |
| Side Panel Window | Left Side panel: Tempered Glass with rubber mounts |
| Max CPU Cooler Height | UP to 155mm |
| Max Video Card Length | Up to 340mm long video card |
| Power Supply | Not Included |
| Motherboard Compatibility | ATX |
| Expansion | |
| External 5.25″ Drive Bays | 0 |
| Internal 2.5″ Drive Bays | Up to 4 |
| Internal 3.5″ Drive Bays | Up to 2 |
| Expansion Slots | 7 |
| Top Ports | Power button, Reset button, HD Audio, USB 3.0 x 1, USB2.0x2 |
| Physical Specifications | |
| Case Dimension (HxWxD) | 447x216x402mm/17.6 x 8.5 x 16 inches |
| Weight | 5.16kg /11.4lbs |
| Features | |
| Tempered Glass Sides Window | High-quality tempered glass side window allows for clear visuals to inner components |
| Addressable RGB Light Effects | Addressable RGB light strips on the front panel and side port location, all controlled by RF Remote (2020 New version) ※Without RF REMOTE before 2020 version, controlled by motherboard. |
|
Available Fan Ports | 3x120mm Fan ports in the front (2x120mm Digital RGB Fan included) 2x120mm Fan ports on the top 1x120mm Fan port in the rear |
| Water Cooling | Supports radiators up to 240/360mm in the Front |
| Dust filters | Removable (magnetic) dustproof net on the top, iron net on bottom of chassis. |
| Power Supply Support | Bottom mounted ATX Power Supply |
Chassis Parts

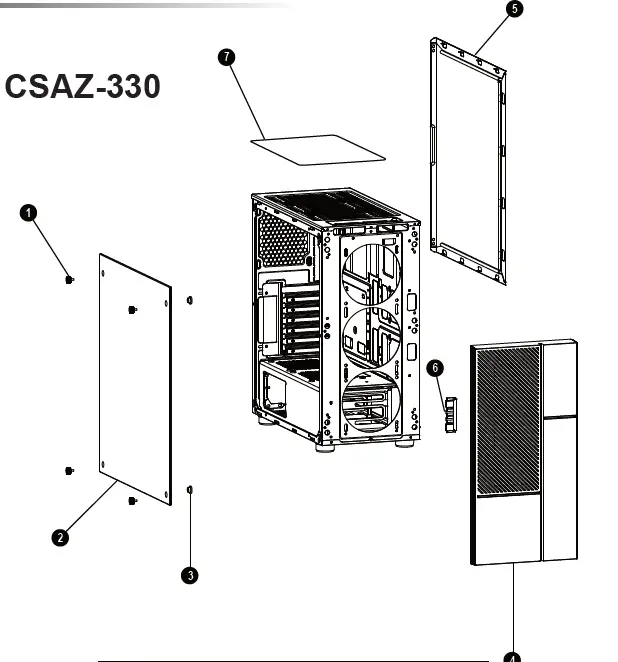

CSAZ-330
| 1 | Hand screws for tempered glass panel x 4 |
| 2 | Left side tempered glass panel |
| 3 | Rubber gasket x 4 |
| 4 | Front panel |
| 5 | Right side metal panel |
| 6 | I/O ports |
| 7 | Removable (magnetic) dust proof net |

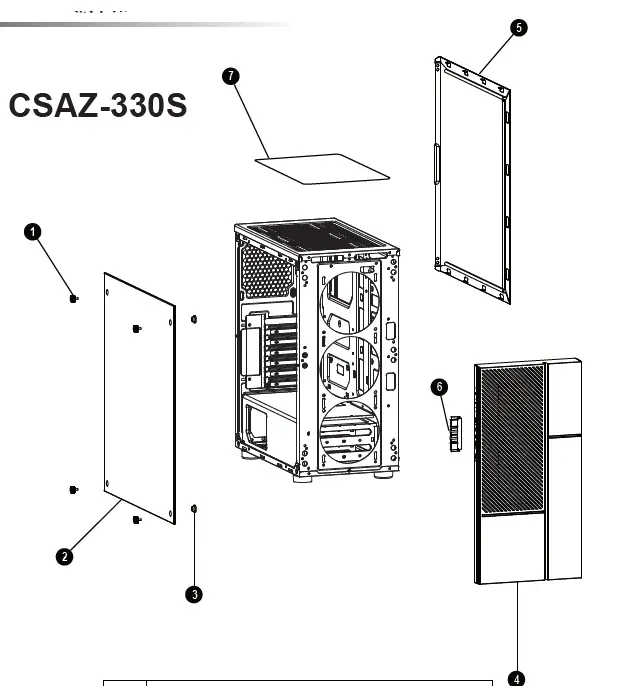

CSAZ-330S
| 1 | Hand screws for tempered glass panel x 4 |
| 2 | Left side tempered glass panel |
| 3 | Rubber gasket x 4 |
| 4 | Front panel |
| 5 | Right side metal panel |
| 6 | I/O ports |
| 7 | Removable (magnetic) dust proof net |

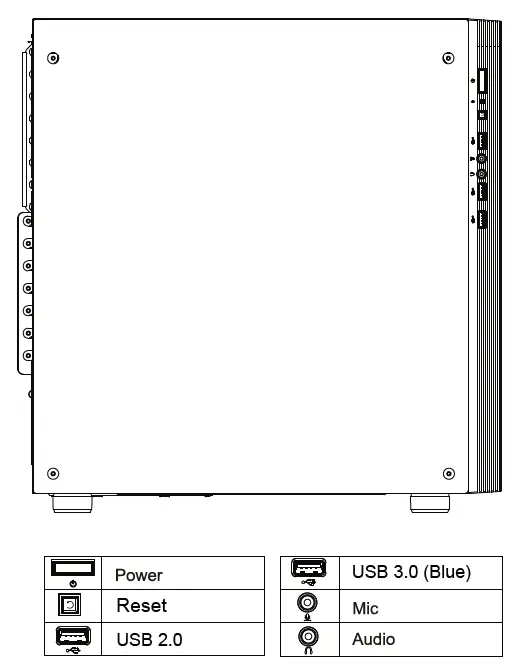

Control Panel Functions
Installation

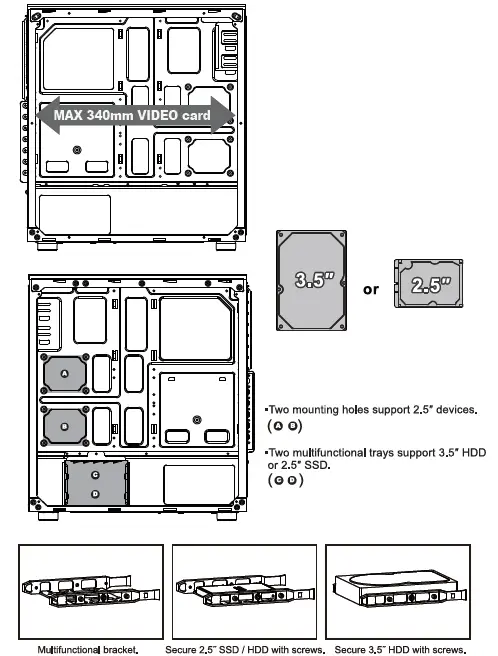

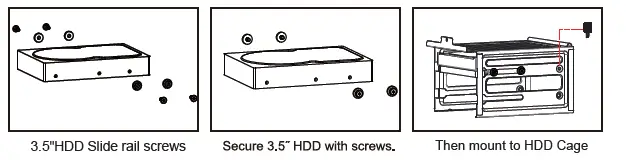

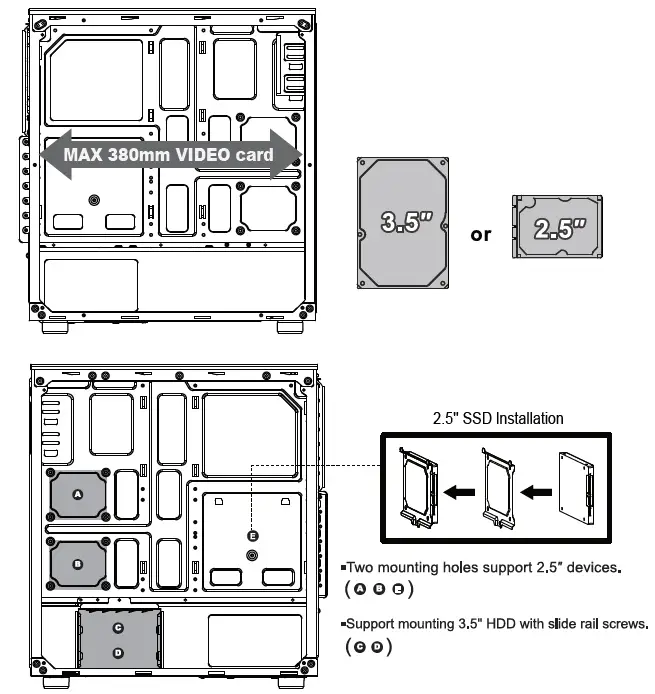

hdd 3.5″ / 2.5″

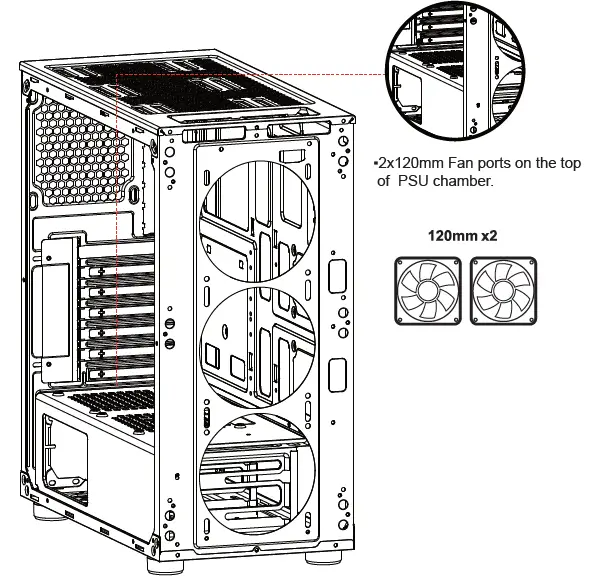

Cooling system Installation

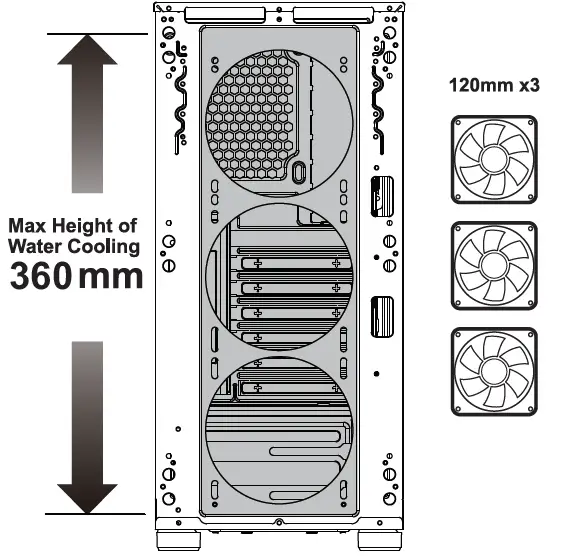

Front

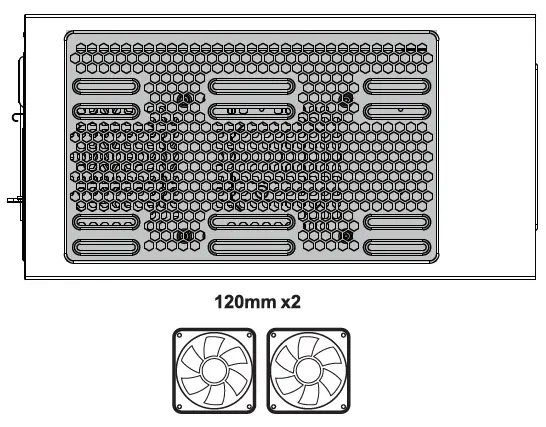

Top

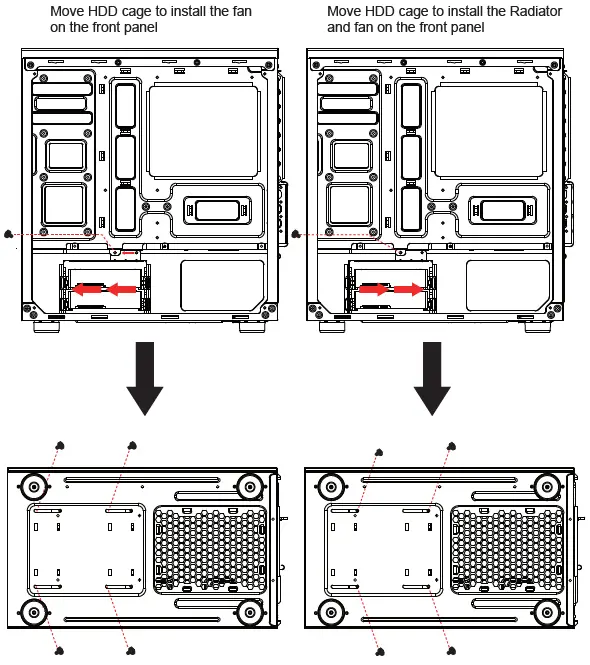

- Move HDD cage to install the fan on the front panel
- Move HDD cage to install the Radiator and fan on the front panel

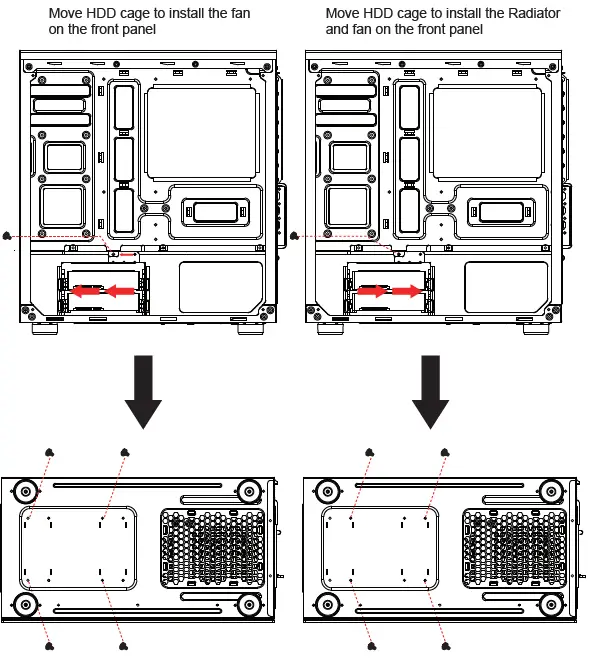

- Move HDD cage to install the fan on the front panel
- Move HDD cage to install the Radiator and fan on the front panel

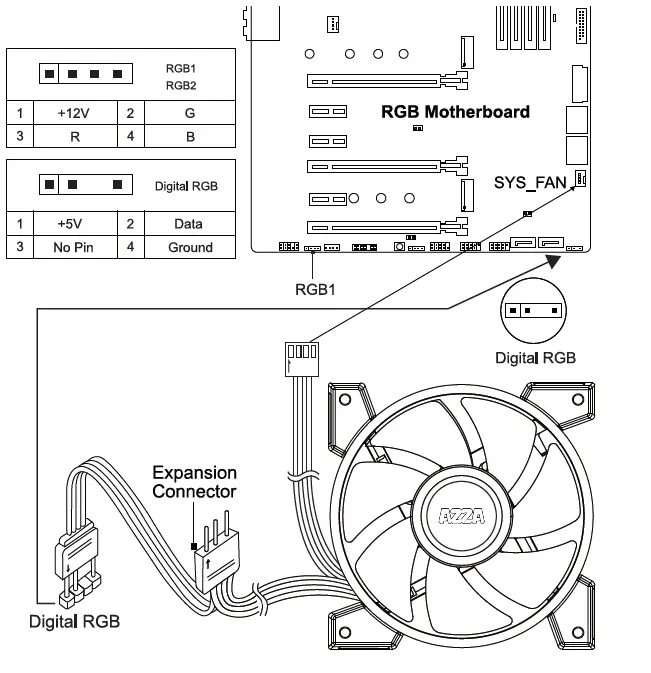

Digital RGB fan installation for motherboard
The addressable RGB fans can connect directly to the 5V addressable RGB headers of compatible motherboards, such as those from MSI™, ASUS™, Gigabyte™ and AsRock™.
Please note: Only 5V addressable headers from compatible motherboards are supported. Please do NOT connect the fan to a 12V non-addressable header.
Please check your motherboard’s specifications before use. Do not go past the motherboard’s allowed limits on power rating and LED count when connecting multiple fans/LED strip

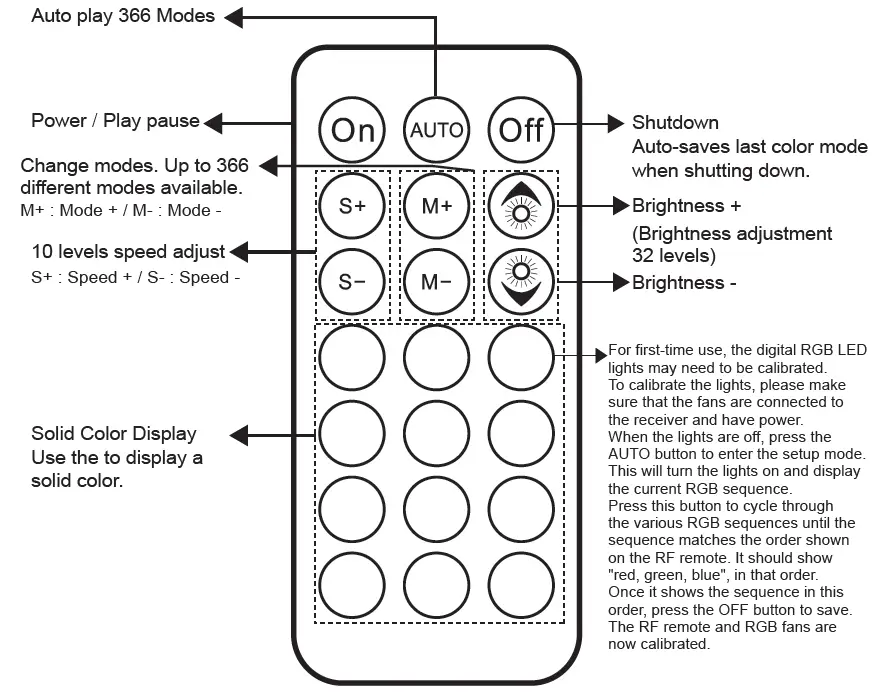

RF Remote
(Model Number: RF-DRGB-I366) ( 2020 New Version )
The first Digital RGB fan is to be connected to the Digital RGB LED RF remote in the chassis, while the rest of them can be daisy chained to the first one with their own male and female plugs.
