THE WORLD’S BEST CPU COOLER WITH
4D PATENTED CORRUGATED FIN DESIGN
ENPS2ox
User’s Manual
Ver. 062121

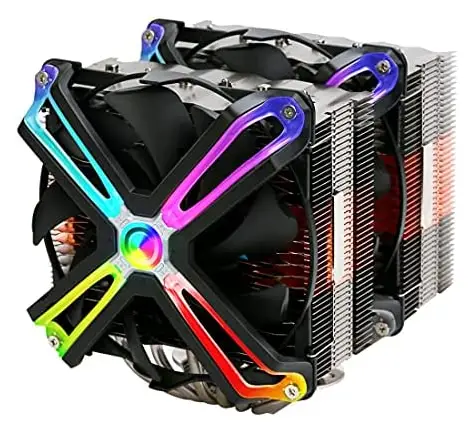

CNPS20X RGB CPU Cooler Dual 140mm Fans – Black
Latest Intel & AMD Compatible
Intel Socket: LGA2066/2011-V3/2011/115X CPUs
AMD Socket: AM4/AM3+/AM3 CPUs
* To ensure safe and easy installation, please read the following precaution.
* Product design and specifications may be revised to improve quality and performance without notice.
Precautions
- Avoid tempering with objects or hands into the fan while it is in operation to prevent product damage and injuries.
- Do not eat the thermal grease, and avoid its contact with skin and eyes. If contact is made with skin, wash off with water. If irritation persists, seek medical attention.
- To prevent possible injuries, gloves must be worn while handling this product.
- Excessive force exerted on the fan may cause damage to the fan and/or system.
- Use and keep products away from the reach of children.
- Check the components list and condition of the product before installation. If any problem is found, contact the retailer to obtain a replacement.
- Our company assumes no responsibility for any problem that occurs due to the use of the product for purposes other than its designated purposes and/or the carelessness of the consumer.
- Zalman Tech Co., Ltd. Is not responsible for any damages due to overclocking CPU such as CPU and system components.
- During the transportation of the system, the cooler must be removed. Zalman Tech Co., Ltd. is not responsible for any damages that occur during the transport of a system.
- Product design and specifications may be changed to improve quality and performance without notice.
| Model | CNPS2OX | |
| Materials | Pure Copper, Pure Aluminum | |

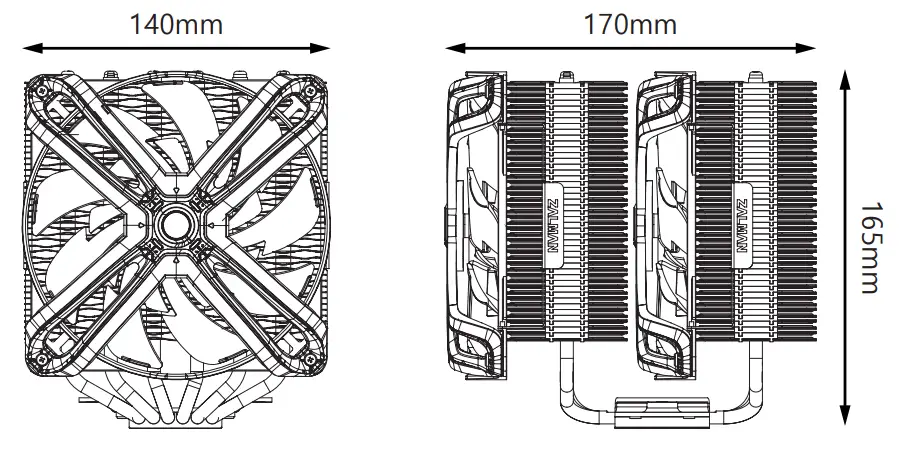

| Dimensions | 140(L) x 170(W) x 165(H)mm | |
| Weight | 1,300g | |
| Heat Dissipation Area | 15,242cm’ | |
| Fan(s) | Dimensions | 140 x 140 x 26(H)mm |
| Bearing Type | FDB(Fluid Dynamic Bearing) | |
| Fan Speed | 800-1,500 RPM ±10% | |
| Max Noise Level | 29 dB(A) ±10% | |
| Max Airflow | 61 CFM | |
| Max Air Pressure | 1.1mmH20 | |
| Rated Voltage | 12 V DC | |
| Thermal Compound (ZM-STC8) | Capacity | 1.5g |
| Temperature Range | -40°C – +150°C (-40°F – +302°F) | |

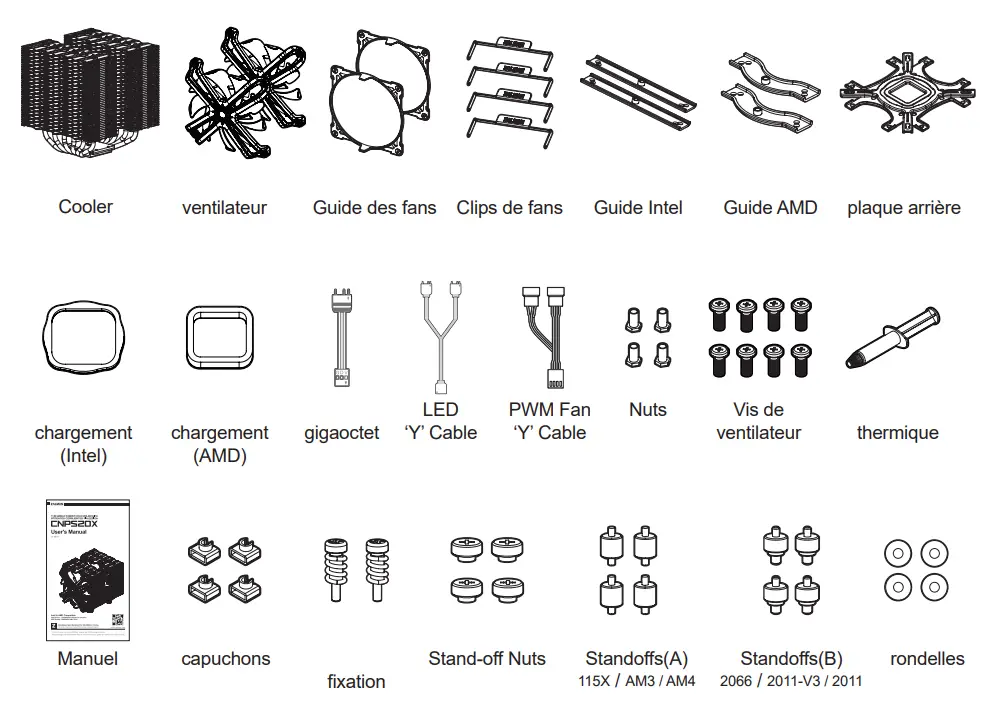

Composants

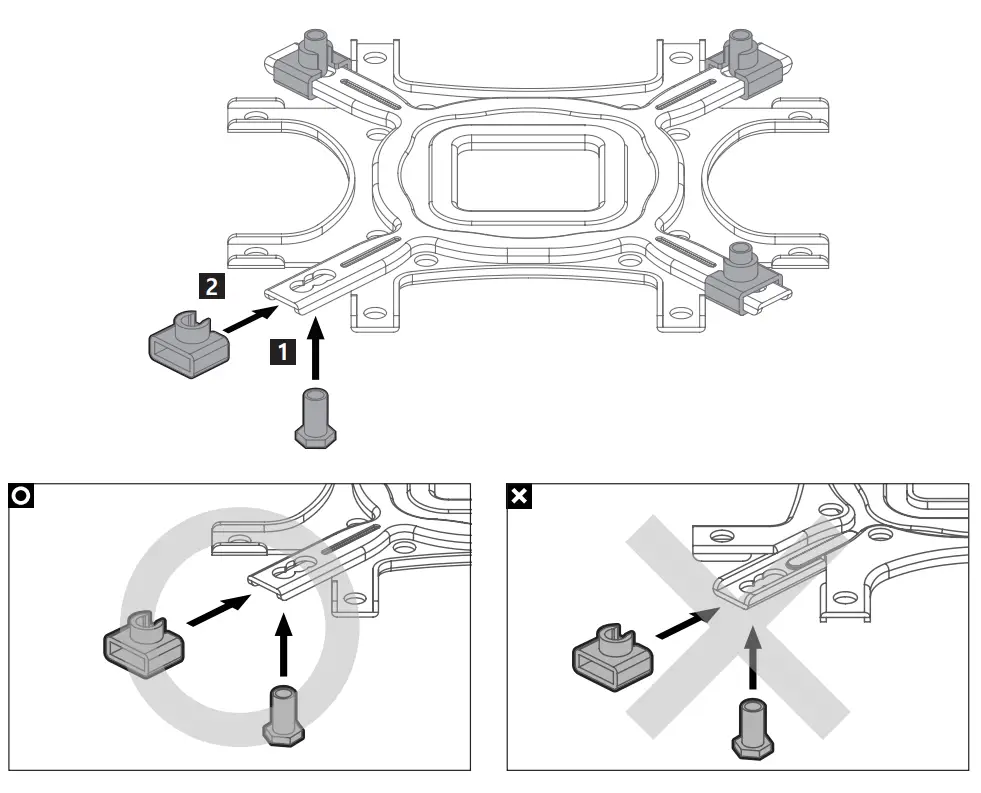

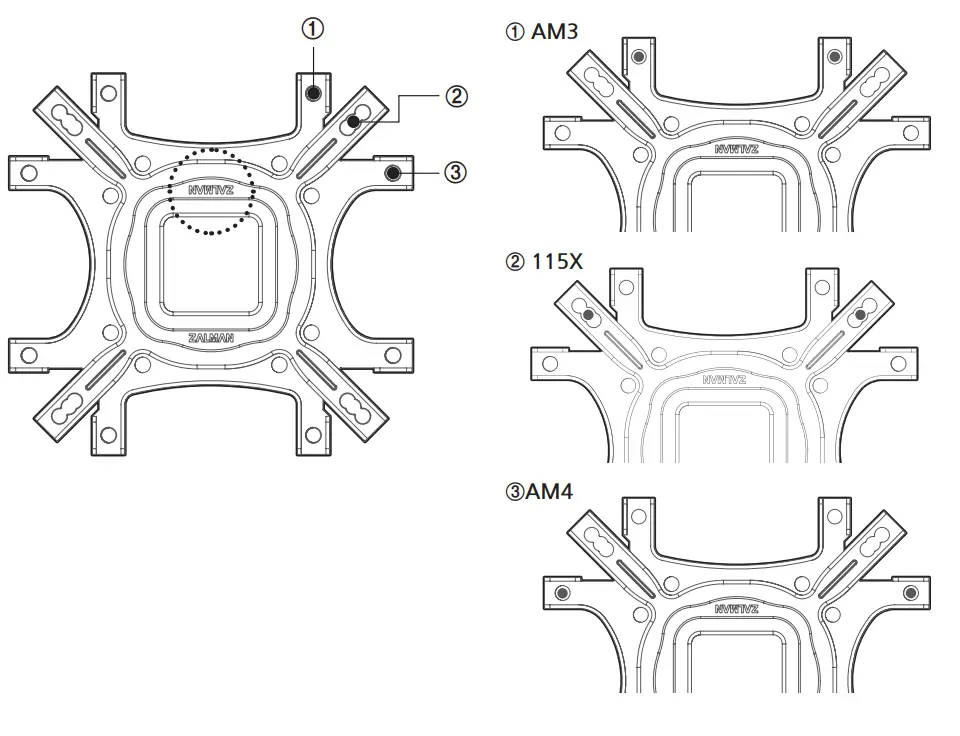

INTEL, AMD Backplate
1) Nuts Position
Attention
Intel LGA2066 / 2011-V-/2011
2) 115X

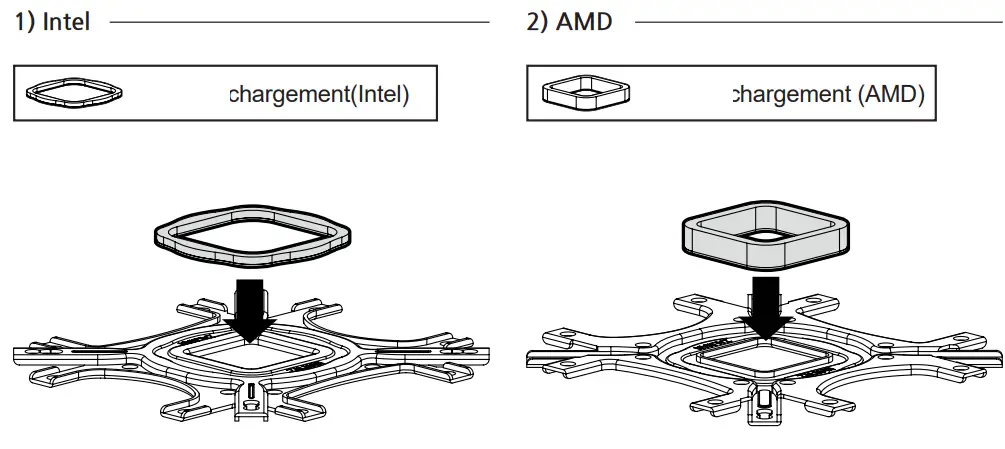

INTEL, AMD Loading Block
Intel Users

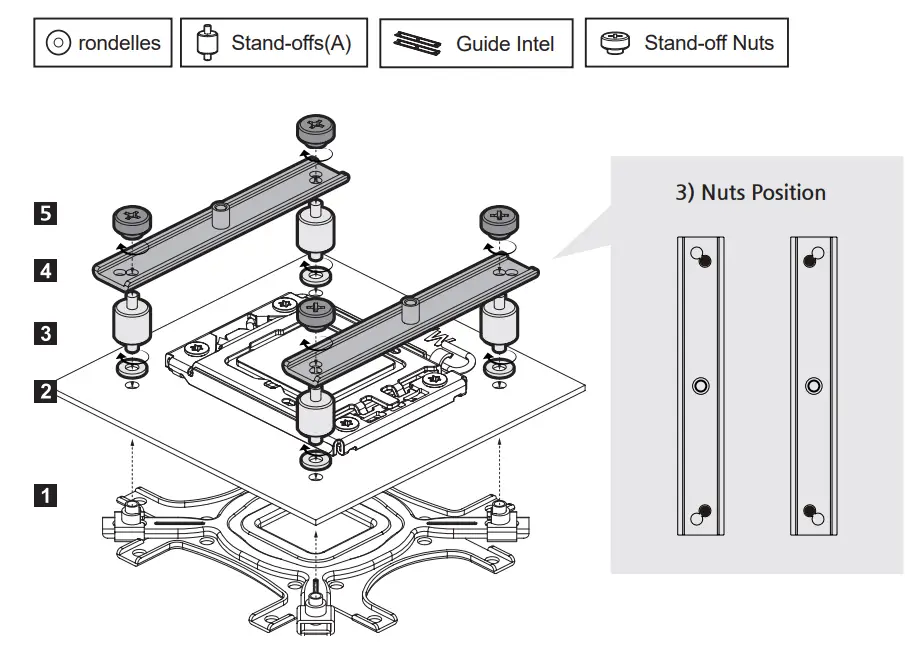

1) LGA2066 / 2011-V3 / 2011

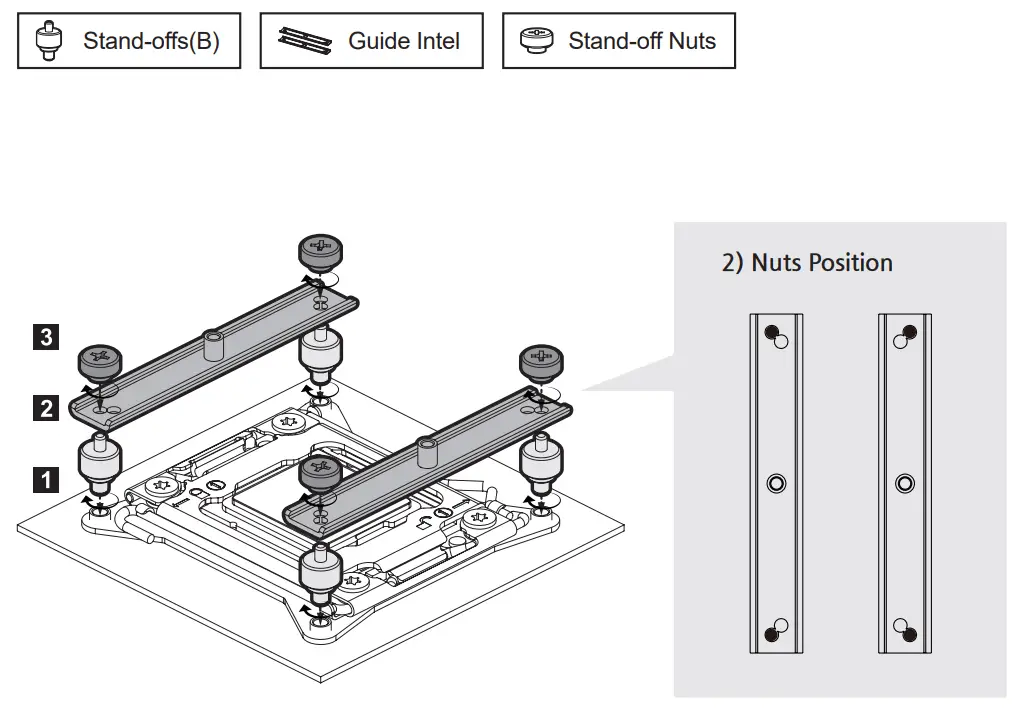

2) LGA115X

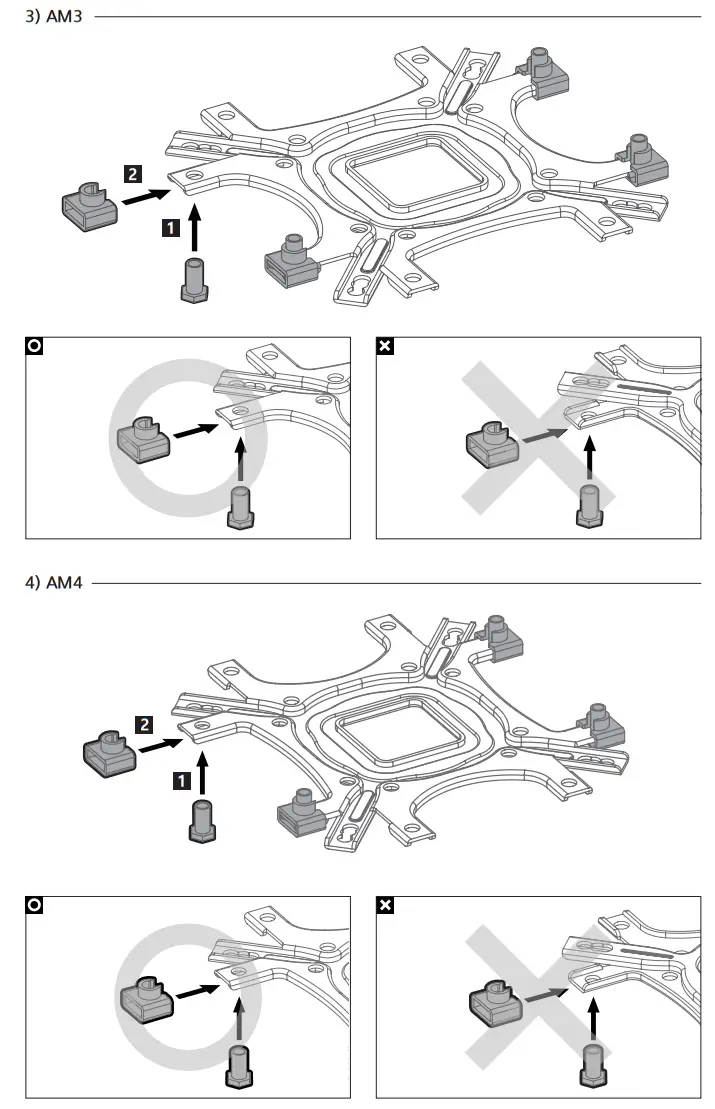

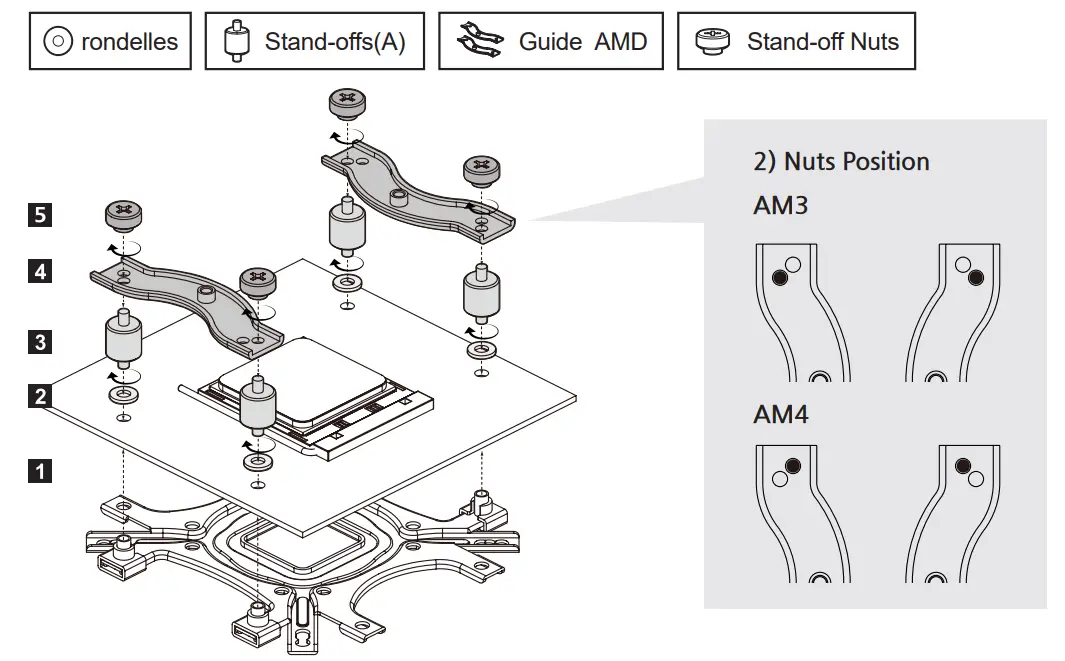

AMD Users
1) AM3 / AM4

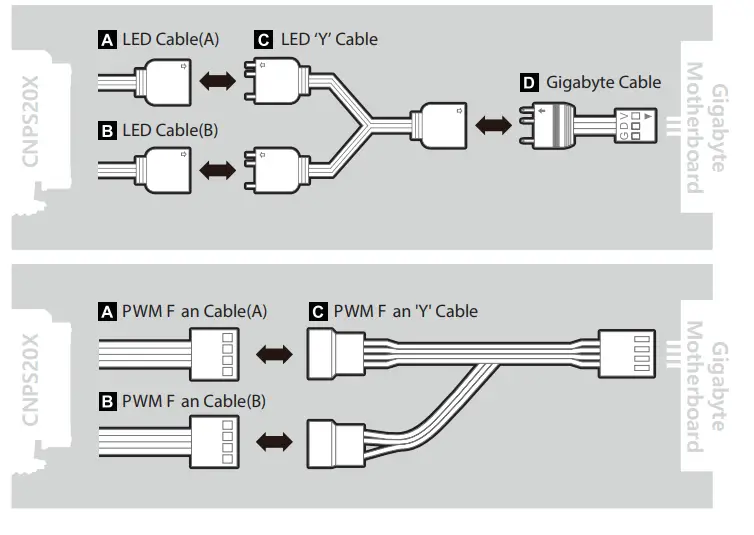

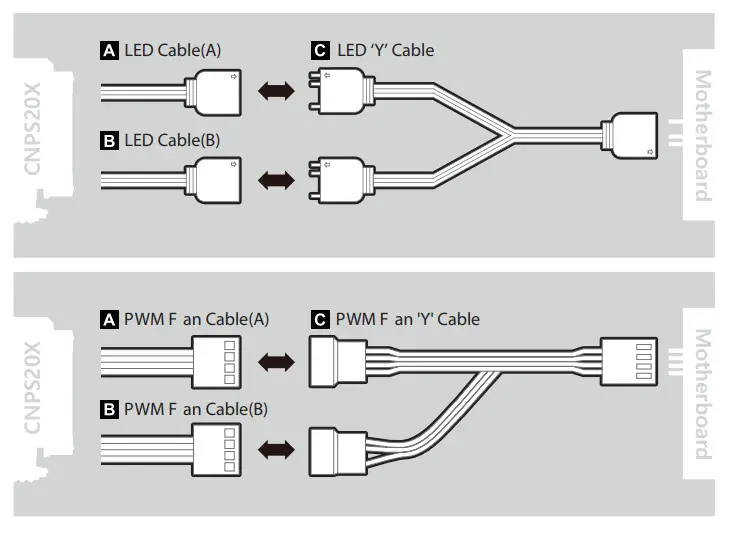

Cable Connection

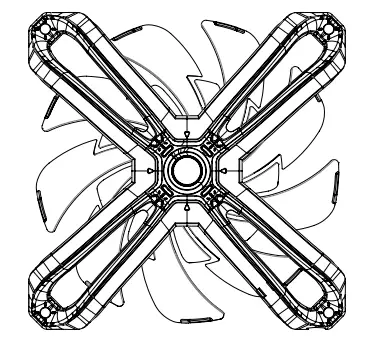

Fan Specifications
Dimensions : 140 x 140 x 26(H)mm
Speed : 800 ~ 1,500 ±10% RPM
Max Noise Level: 29 dB(A) ±10%
Bearing Type: FDB (Fluid Dynamic Bearing)
Max Airflow: 61 CFM ±10%
Pin Connector: 4-Pin (PWM),
3-Pin (Addressable)
Rated Voltage: 5~12 V DC
Certification
This mark, designed by Zalman, indicates product compliance with the European Union’s RoHS (Restriction of Hazardous Substances) Directive.
Disposal of Old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems)
ZALMAIN
COOL INNOVATIONS
www.zalman.com
Developed and designed by ZALMAN in Korea.
This product is protected by ZALMAN’s pending or registered patents.
