ZALMAN CNPS20X CPU Cooler
Precautions
- Avoid tempering with objects or hands into the fan while it is in operation to prevent product damage and injuries.
- Do not eat the thermal grease, and avoid its contact with skin and eyes. If contact is made with skin, wash off with water. If irritation persists, seek medical attention.
- To prevent possible injuries, gloves must be worn while handling this product.
- Excessive force exerted on the fan may cause damage to the fan and/or system.
- Use and keep product away from reach of children.
- Check the components list and condition of the product before installation. If any problem is found, contact the retailer to obtain a replacement.
- Our company assumes no responsibility for any problem that occurs due to the use of the product for purposes other than its designated purposes and/or the carelessness of the consumer.
- Zalman Tech Co., Ltd. Is not responsible for any damages due to overclocking CPU such as, CPU and system components.
- During transportation of the system, the cooler must be removed. Zalman Tech Co., Ltd. is not responsible for any damages that occur during the transport of a system.
- Product design and specifications may be changed to improve quality and performance without notice.

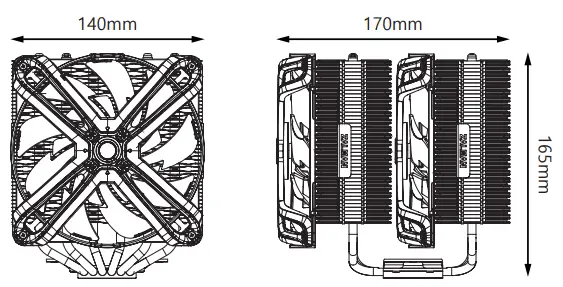

TECHNICAL

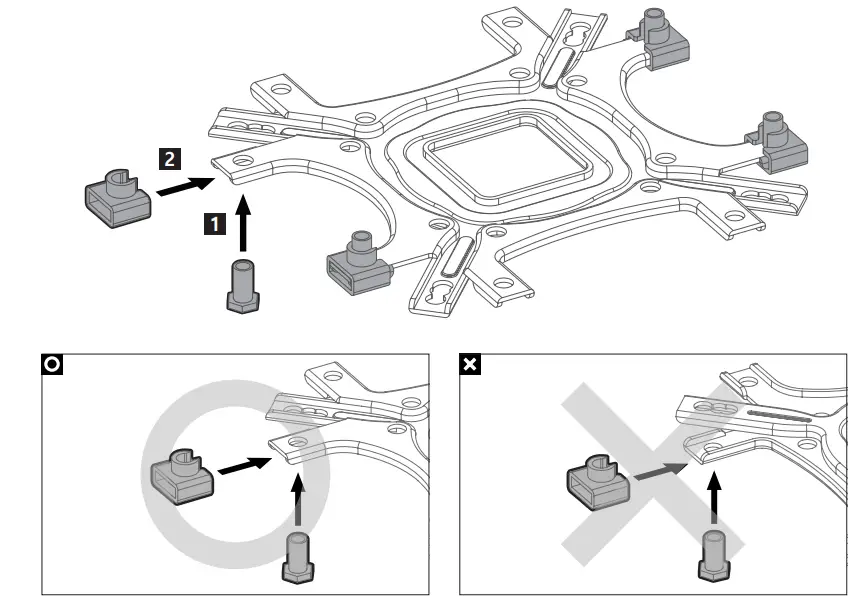

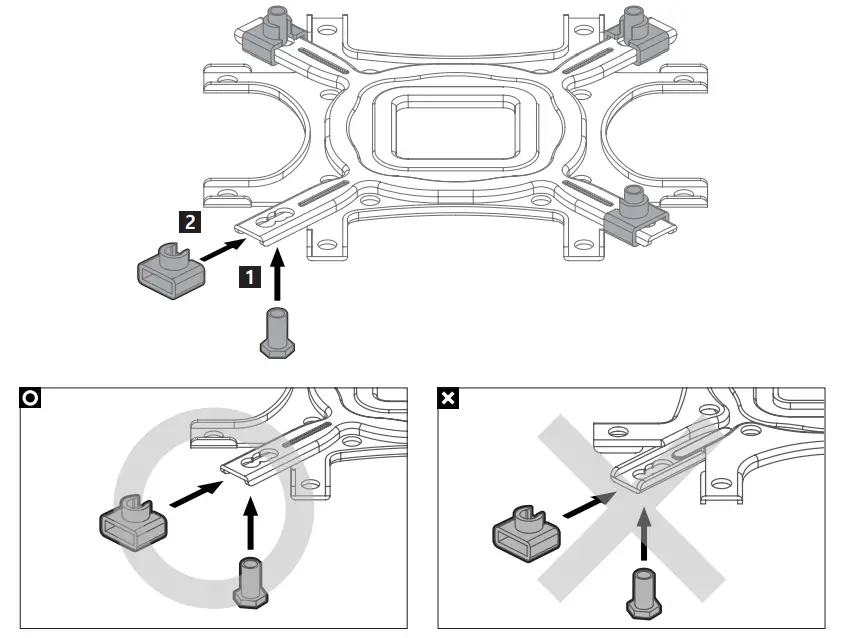

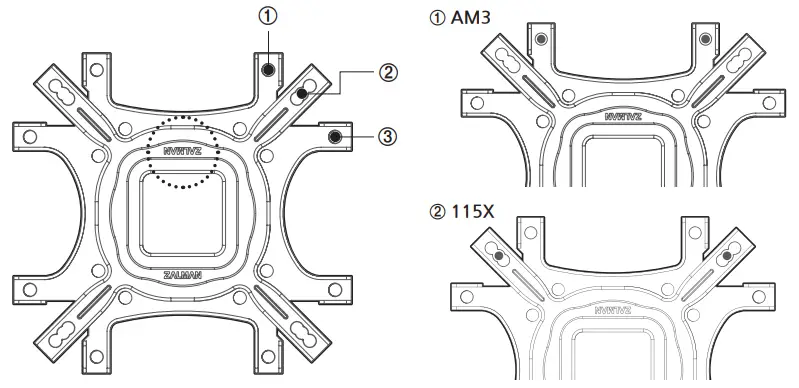

INTEL, AMD Backplate
115X
AM3

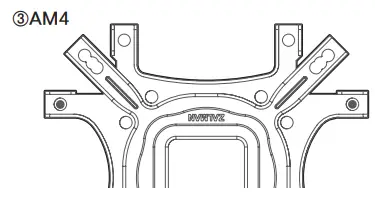

AM4

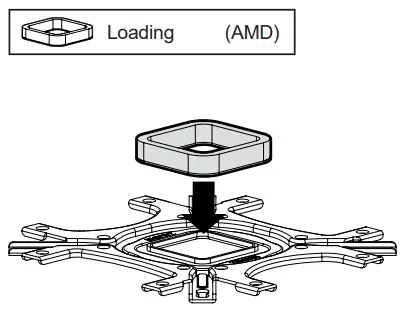

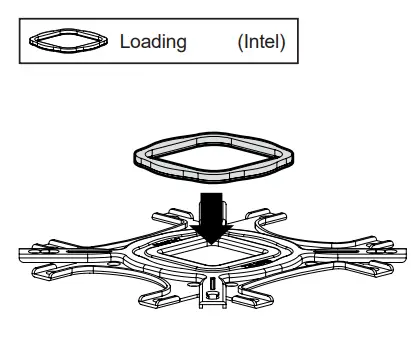

INTEL, AMD Loading Block

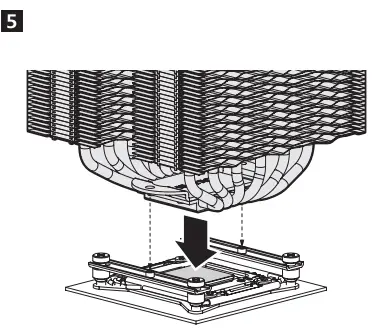

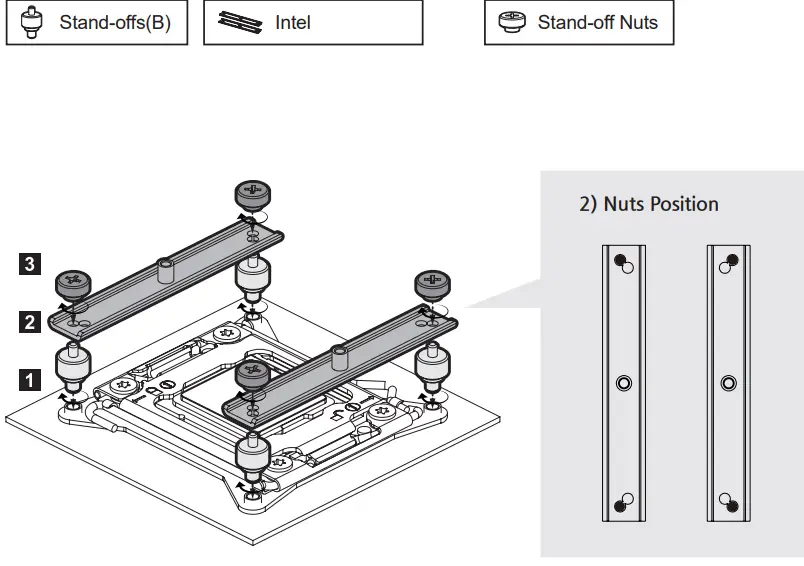

Intel Users
LGA2066 / 2011-V3 / 2011

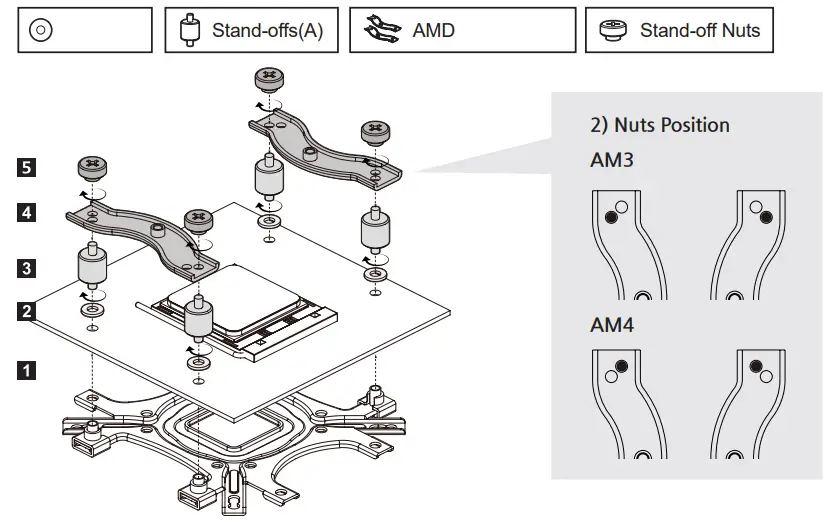

AMD Users
AM3 / AM4

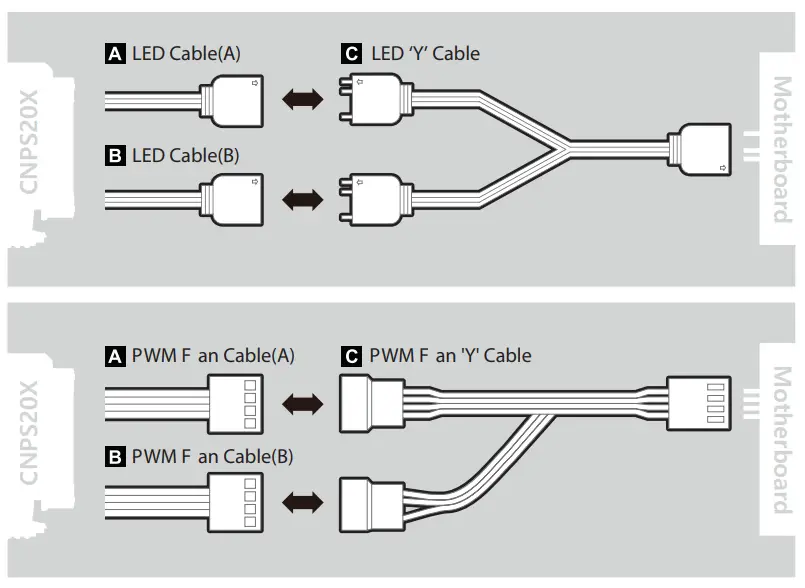

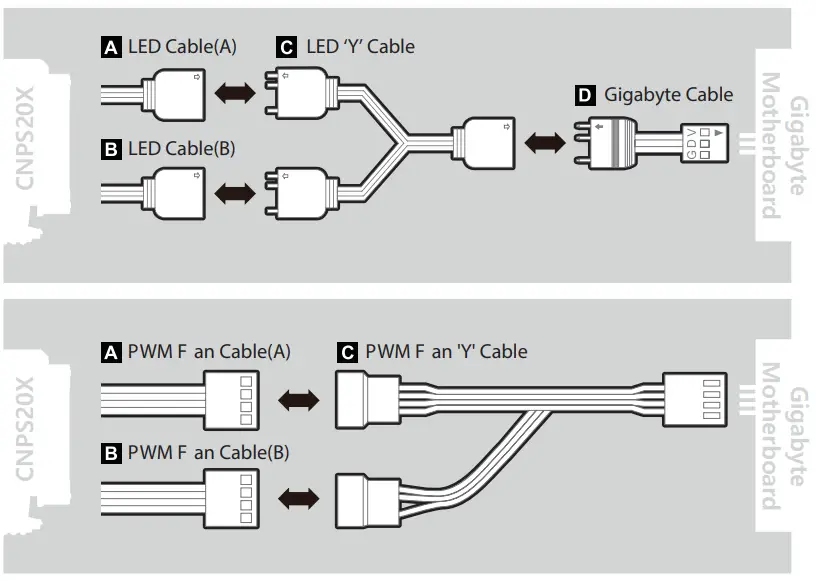

Cable Connection

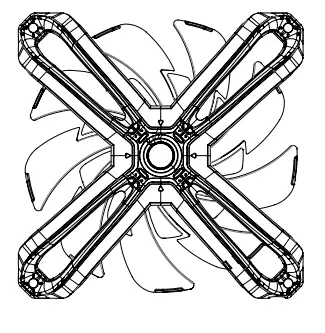

Fan Specifications
- Dimensions : 140 x 140 x 26(H)mm
- Speed : 800 ~ 1,500 ±10% RPM
- Max Noise Level : 29 dB(A) ±10%
- Bearing Type : FDB (Fluid Dynamic Bearing)
- Max Airflow : 61 CFM ±10%
- Pin Connector : 4-Pin (PWM), 3-Pin (Addressable)
- Rated Voltage : 5~12 V DC
Certification
This mark, designed by Zalman, indicates product compliance with the European Union’s RoHS (Restriction of Hazardous Substances) Directive.
Disposal of Old Electrical & Electronic Equipment
(Applicable in the European Union and other European countries with separate collection systems)
Zalman Tech Co.,Ltd.
#2612, Obiztower, 126, Beolmal-ro, Dongan-gu, Anyang-si yeonggi-do, 14057, Korea
