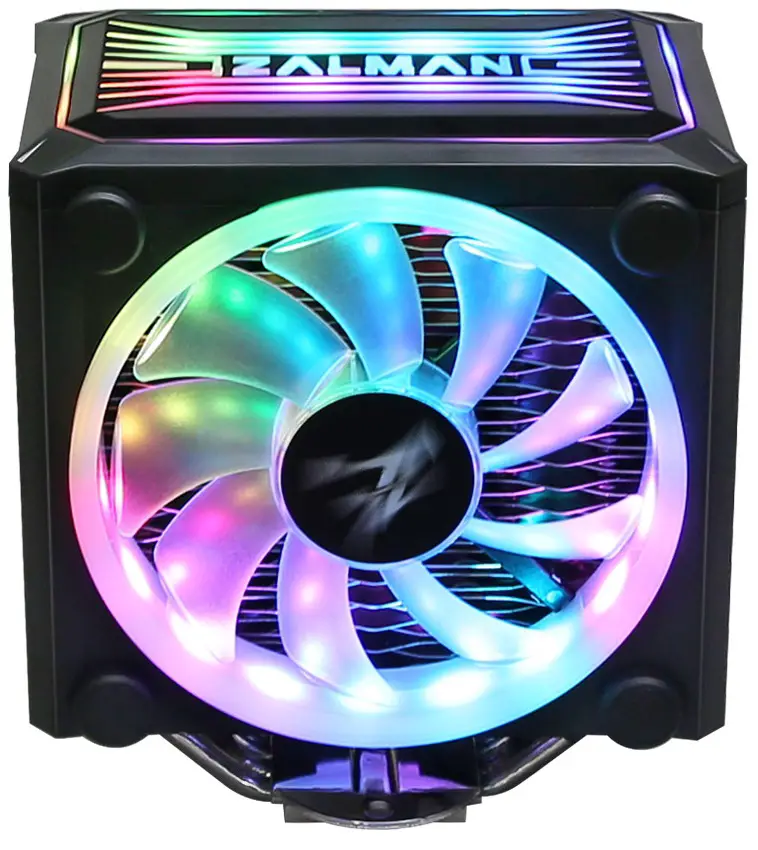

ZALMAN CNPS16X BLACK RGB CPU Cooler User Manual

Contents hide

1 Precautions

2 Specifications

3 Components

4 INTEL, AMD Backplate

5 INTEL, AMD Loading Block

10 Documents / Resources

10.1 References

11 Related Posts

Precautions

Avoid tempering with objects or hands into the fan while it is in operation to prevent product damage and injuries.
Do not eat the thermal grease, and avoid its contact with skin and eyes. If contact is made with skin, wash off with water. If irritation persists, seek medical attention.
To prevent possible injuries, gloves must be worn while handling this product.
Excessive force exerted on the fan may cause damage to the fan and/or system.
Use and keep product away from reach of children.
Check the components list and condition of the product before installation. If any problem is found, contact the retailer to obtain a replacement.
Our company assumes no responsibility for any problem that occurs due to the use of the product for purposes other than its designated purposes and/or the carelessness of the consumer.
Zalman Tech Co., Ltd. Is not responsible for any damages due to overclocking CPU such as, CPU and system components.
During transportation of the system, the cooler must be removed. Zalman Tech Co., Ltd. is not responsible for any damages that occur during the transport of a system.
Product design and specifications may be changed to improve quality and performance without notice.

Specifications

Model		CNPS16X
Materials		Pure Copper, Pure Aluminum, ABS

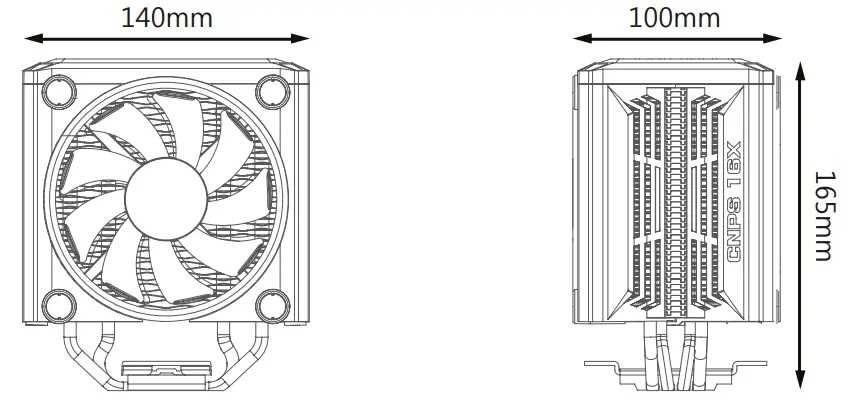

Dimensions		140(L) x 100(W) x 165(H)mm
Weight		880g
Heat Dissipation Area		5,117㎠
Fan(s)	Dimensions	120(L) x 120(W) x 26(H)mm
	Bearing Type	EBR Bearing
	Fan Speed	800~1,500 RPM ±10%
	Max Noise Level	27.0 dB(A) ±10%
	Max Airflow	49 CFM
	Max Air Pressure	1.21mmH2O
	Rated Voltage	12 V DC
	Life Span	50,000 hours
Thermal Compound (ZM-STC8)	Volume / Net Weight	1.5g
Thermal Compound (ZM-STC8)	Temperature Range	-40℃ ~ +150℃ (-40℉ ~ +302℉)

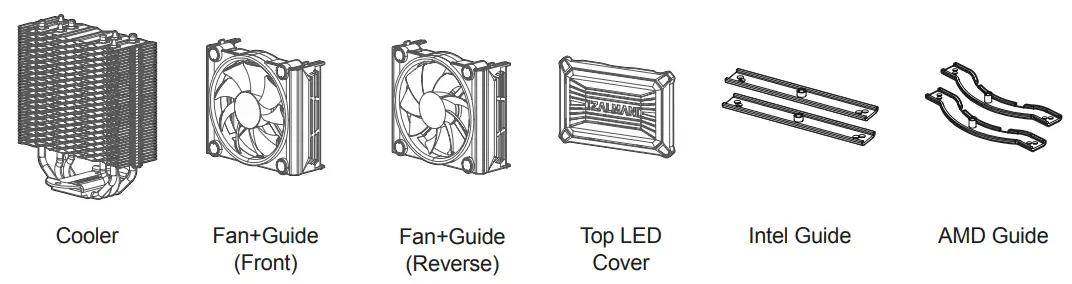

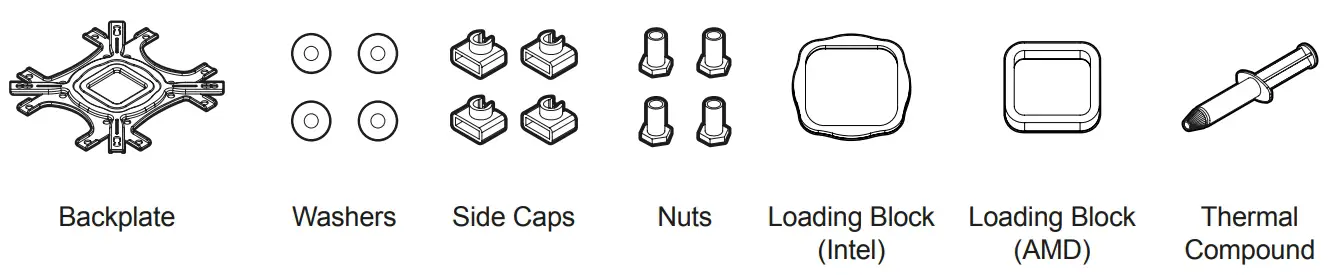

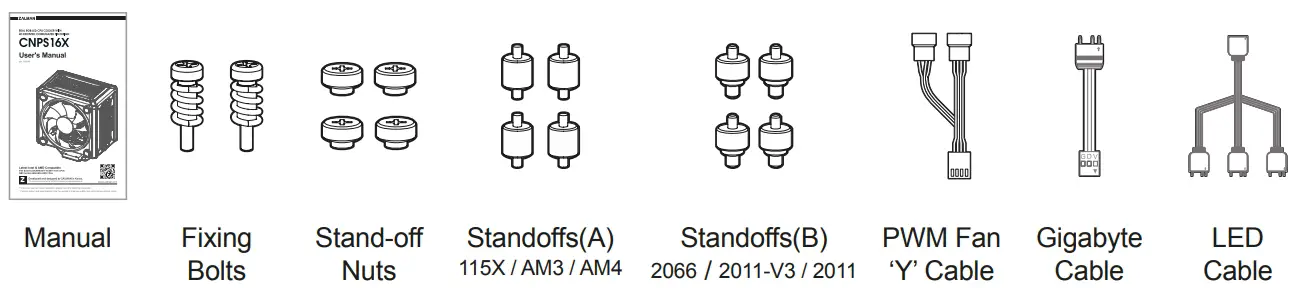

Components

INTEL, AMD Backplate

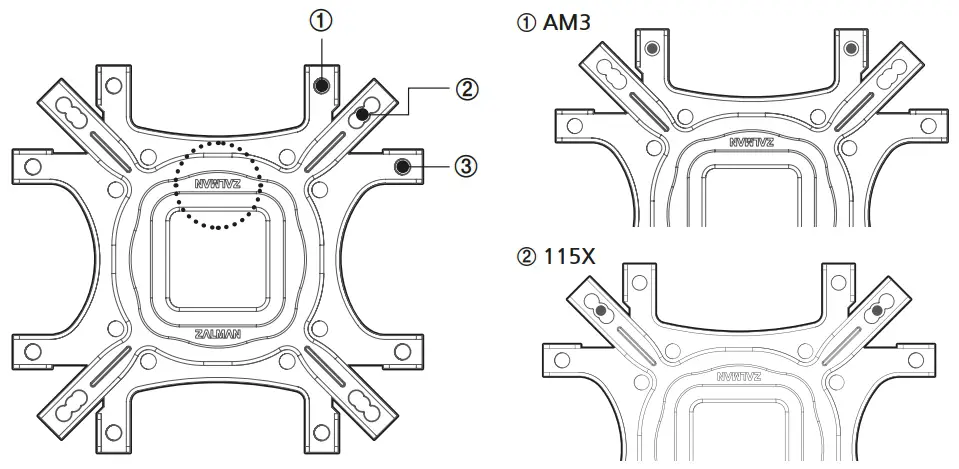

Nuts Position

Caution
Please check the proper ZALMAN logo direction on backplate for each Intel and AMD socket.
No backplate is necessary for Intel LGA2066/2011-V/2011 socket.
115X
AM3

Caution

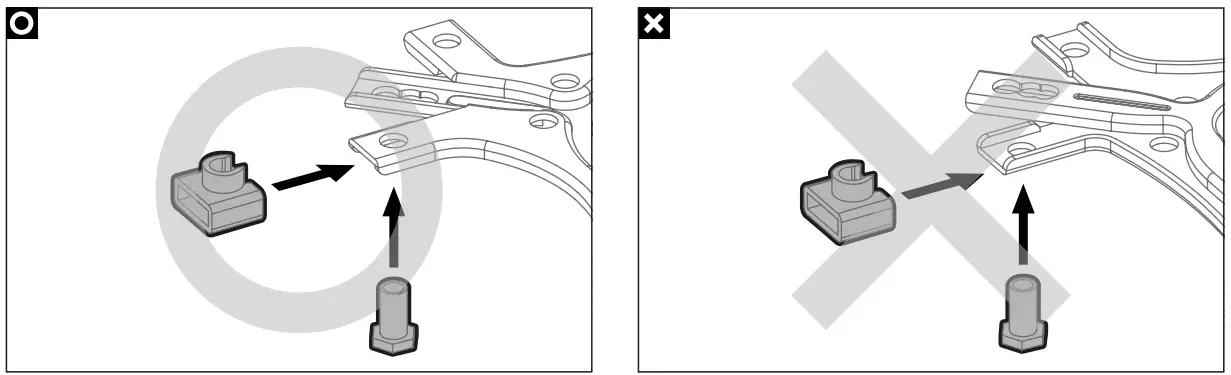

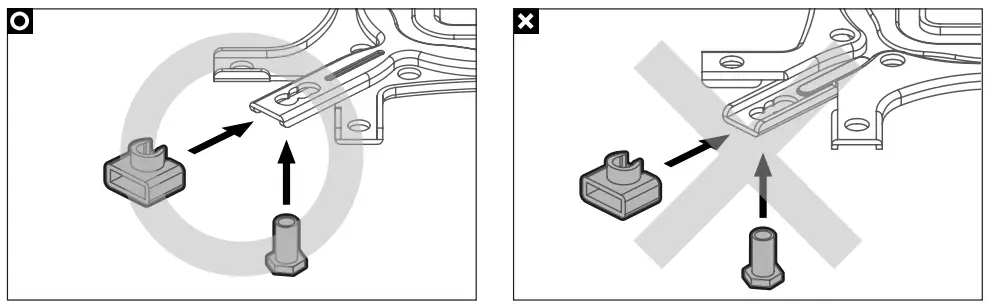

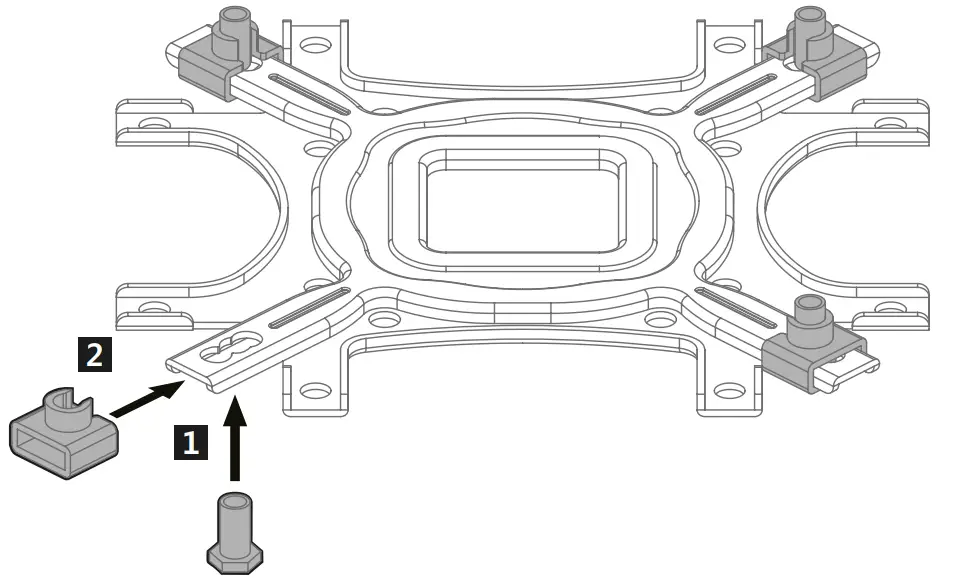

Take note of the orientation of the nuts and the side caps.

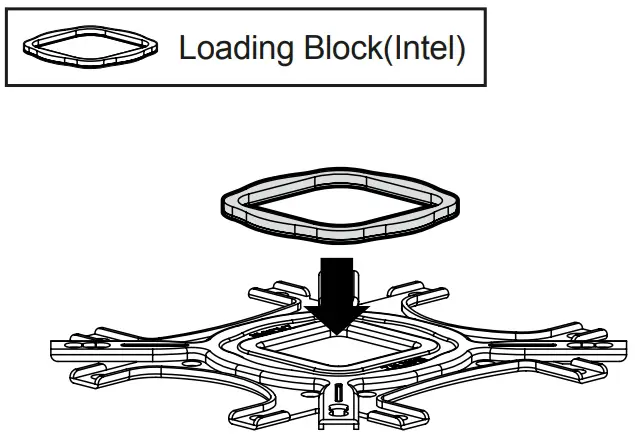

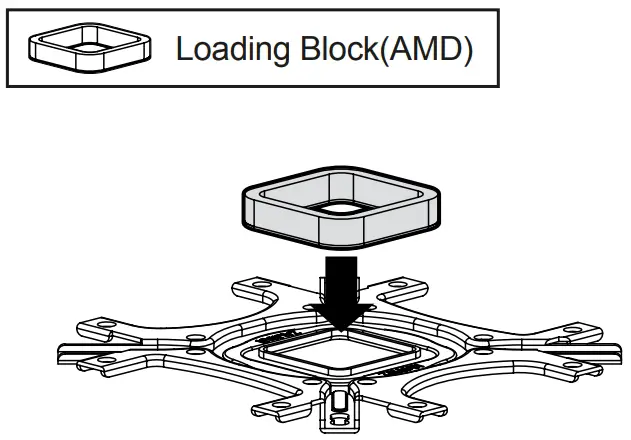

INTEL, AMD Loading Block

Intel
AMD

Caution
Remove the tape cover of loading block and attach it to the backplate.

Intel Users

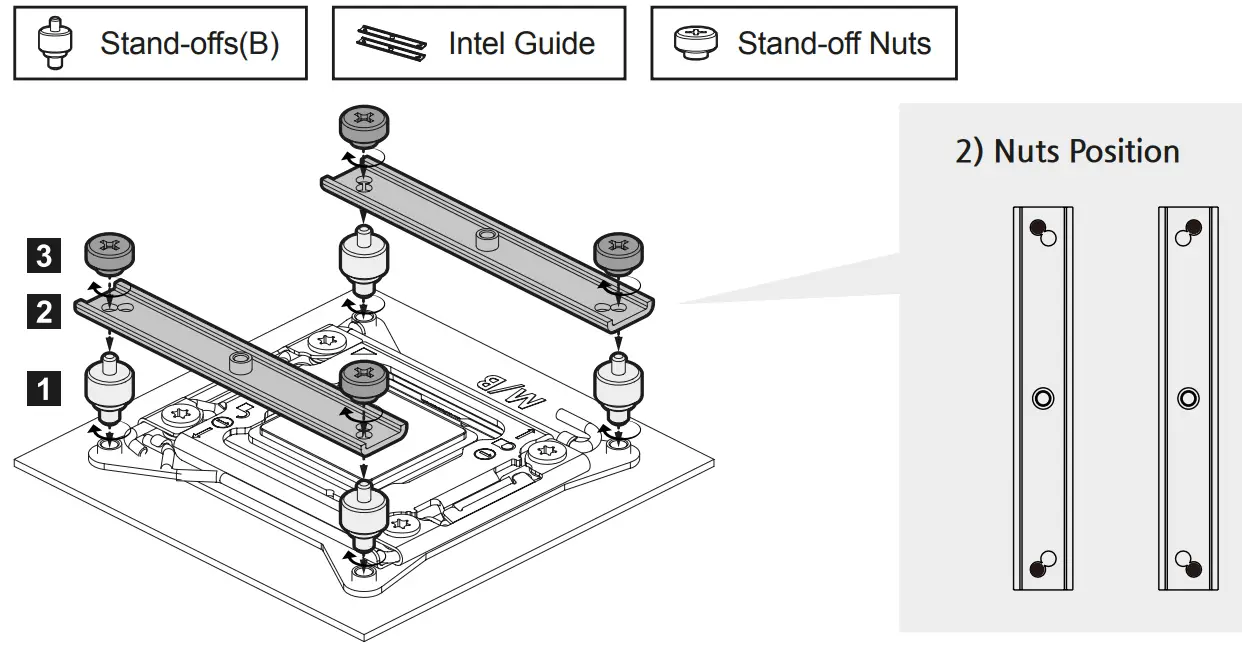

LGA2066 / 2011-V3 / 2011

Caution
Backplate is not needed for LGA2066 / 2011-V3 / 2011 sockets.

Caution

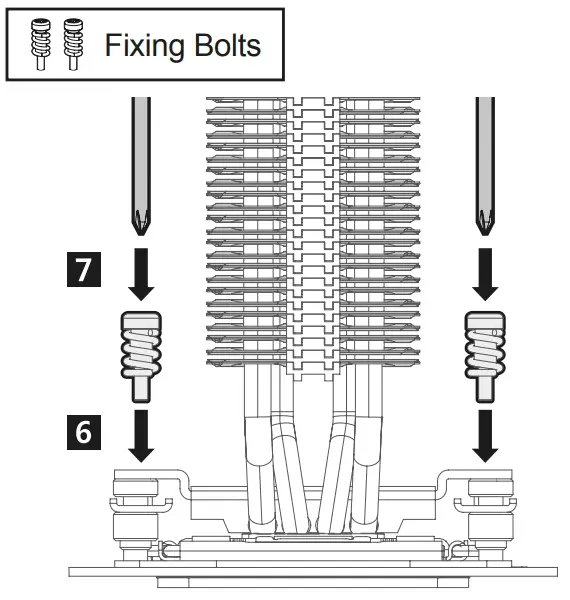

Screw-in both bolts in an alternating fashion until they are completely tightened.

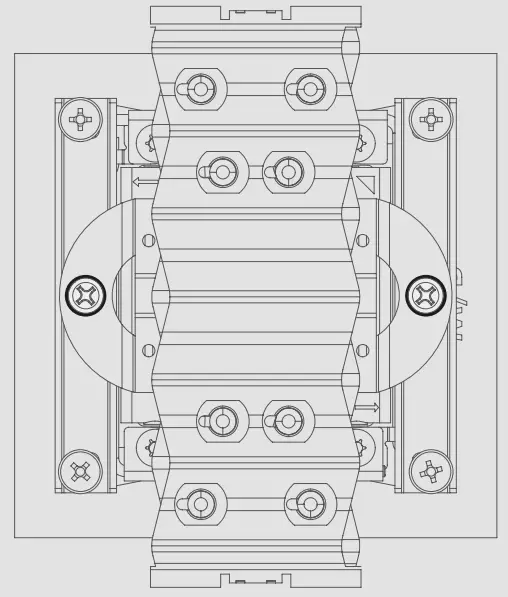

Detail Image

Caution

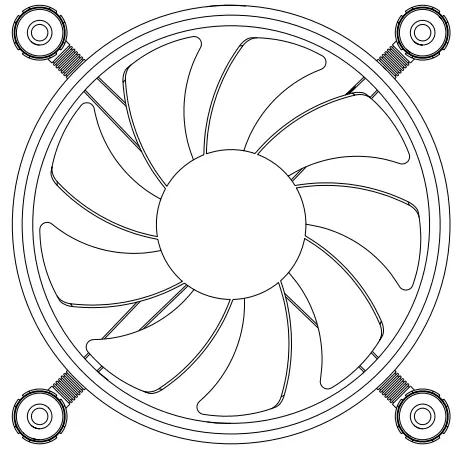

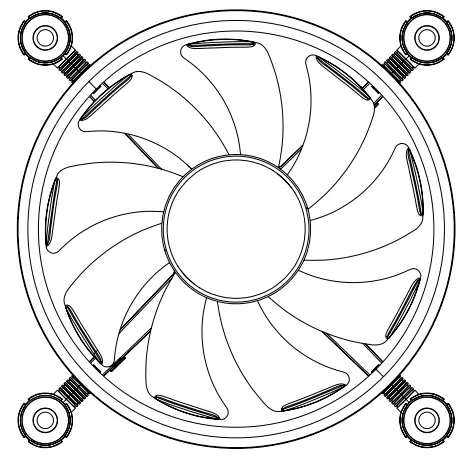

Please check the direction of the fan before installation.

Caution

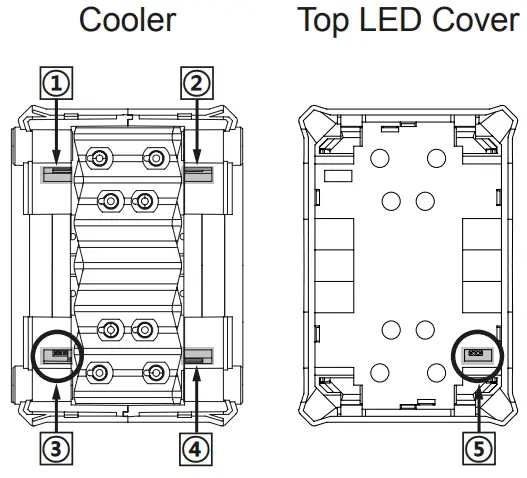

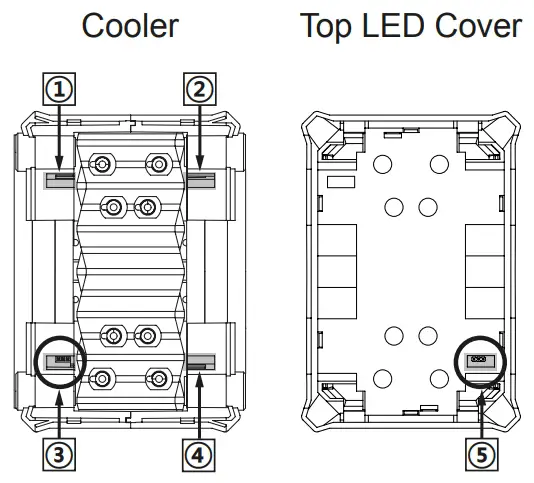

Be sure to connet ⑤ with ③.
※ Placing ⑤ on ①, ② or ④ could cause malfunction & damage the product.

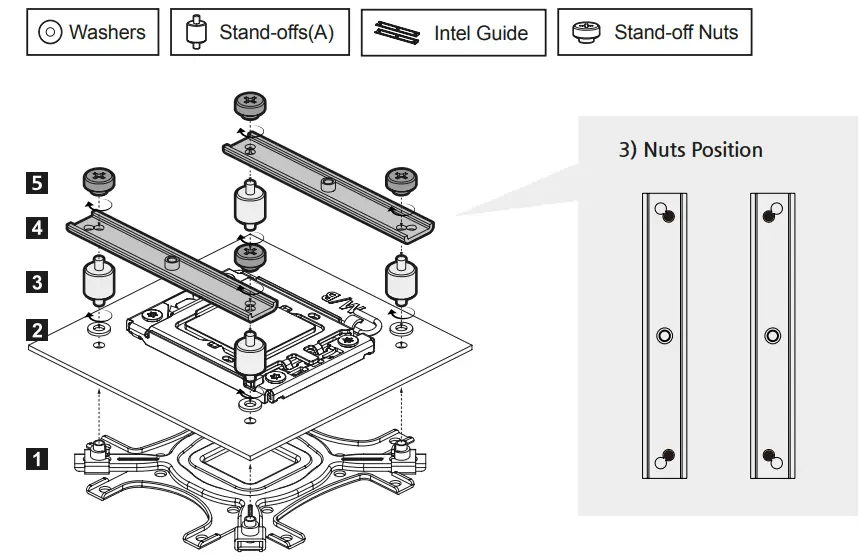

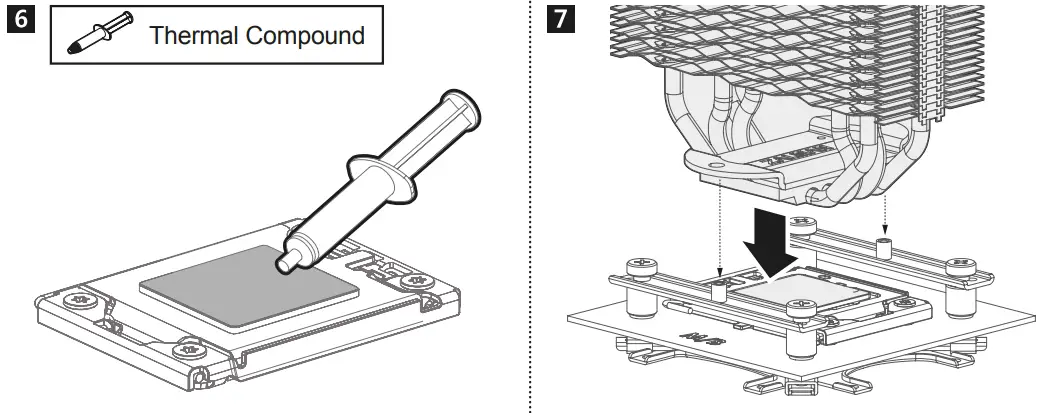

LGA115X

Caution

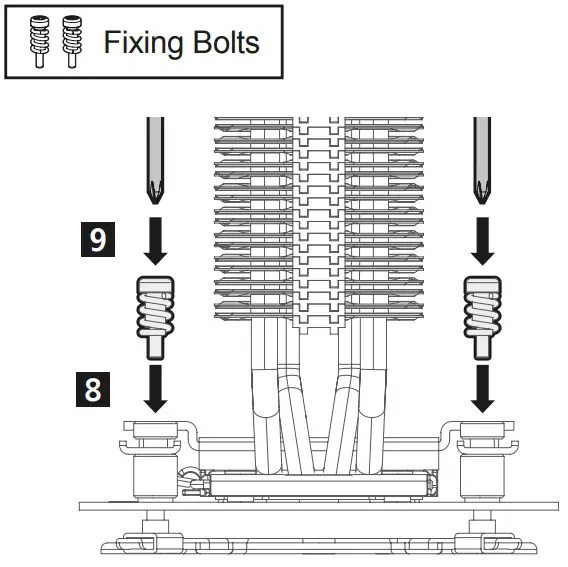

Screw-in both bolts in an alternating fashion until they are completely tightened.
Detail Image

Caution
Please check the direction of the fan before installation.

Caution
Be sure to connet ⑤ with ③.
※ Placing ⑤ on ①, ② or ④ could cause malfunction & damage the product.

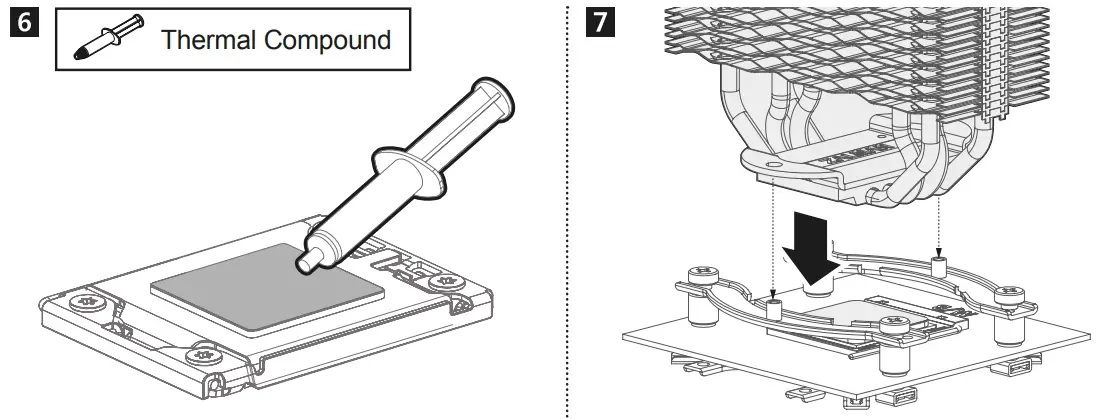

AMD Users

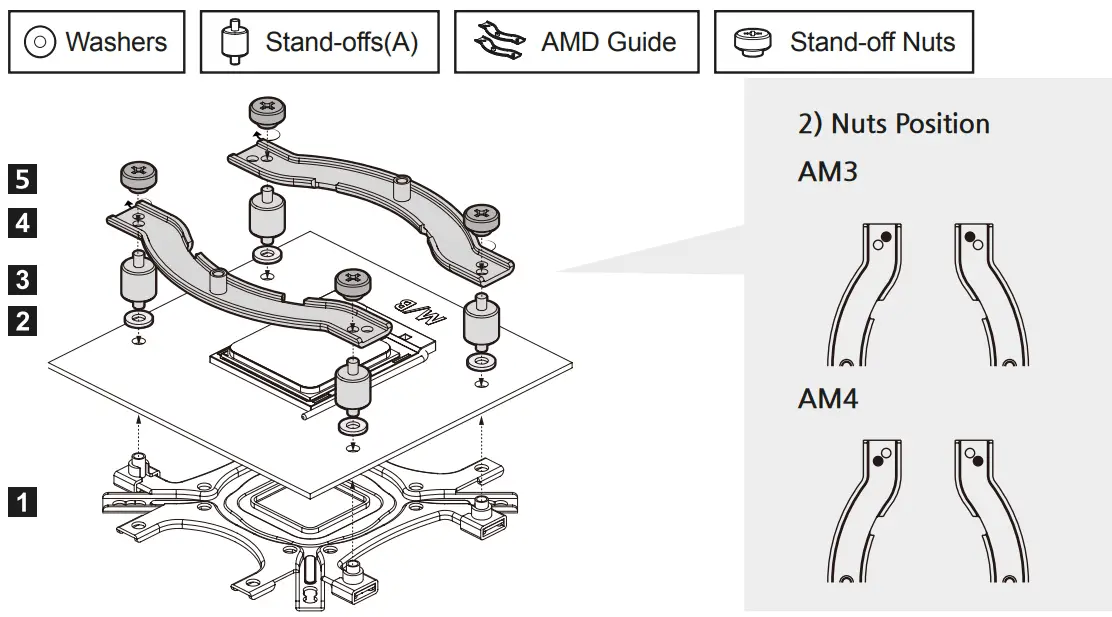

AM3 / AM4

Caution
Please be cautious for the direction of AMD Guide installation.

Caution

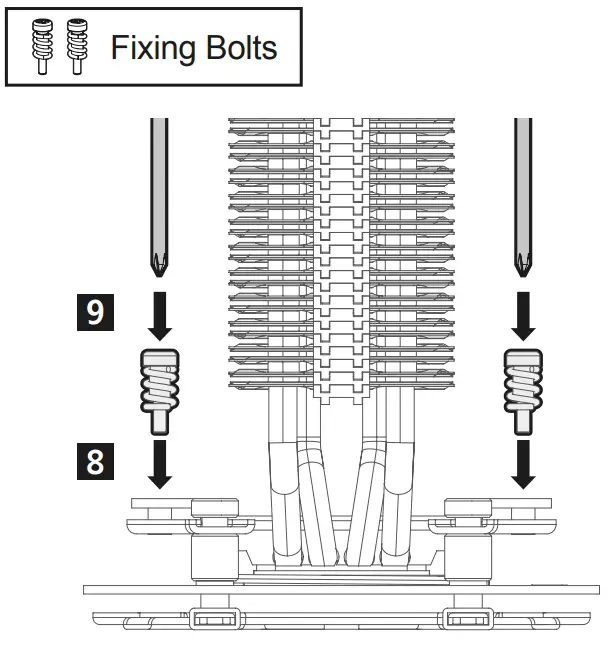

Screw-in both bolts in an alternating fashion until they are completely tightened.

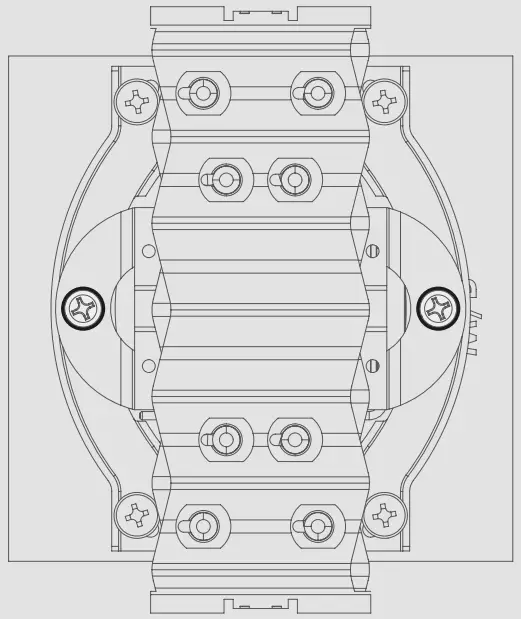

Detail Image

Caution
Please check the direction of the fan before installation

Caution
Be sure to connet ⑤ with ③.
※ Placing ⑤ on ①, ② or ④ could cause malfunction & damage the product.

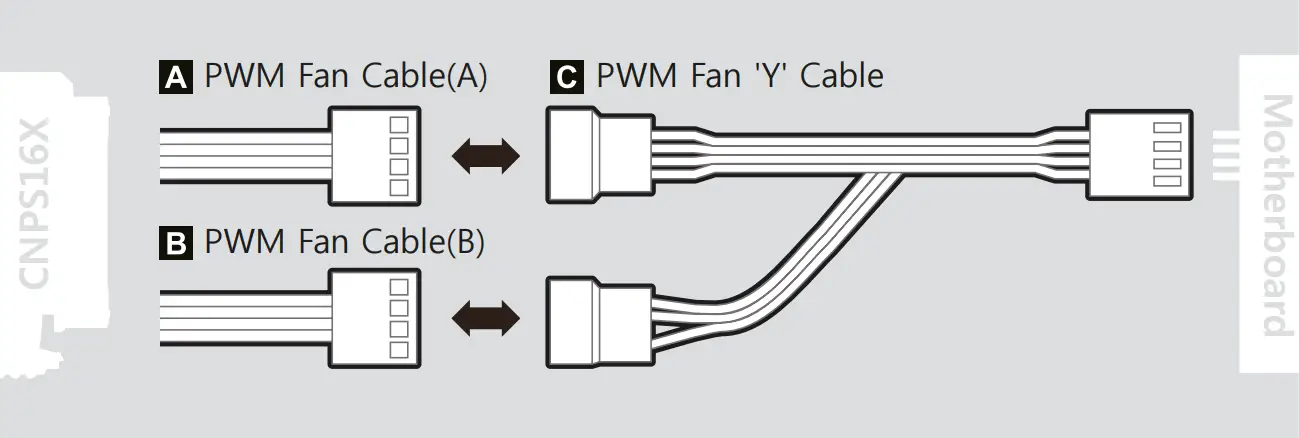

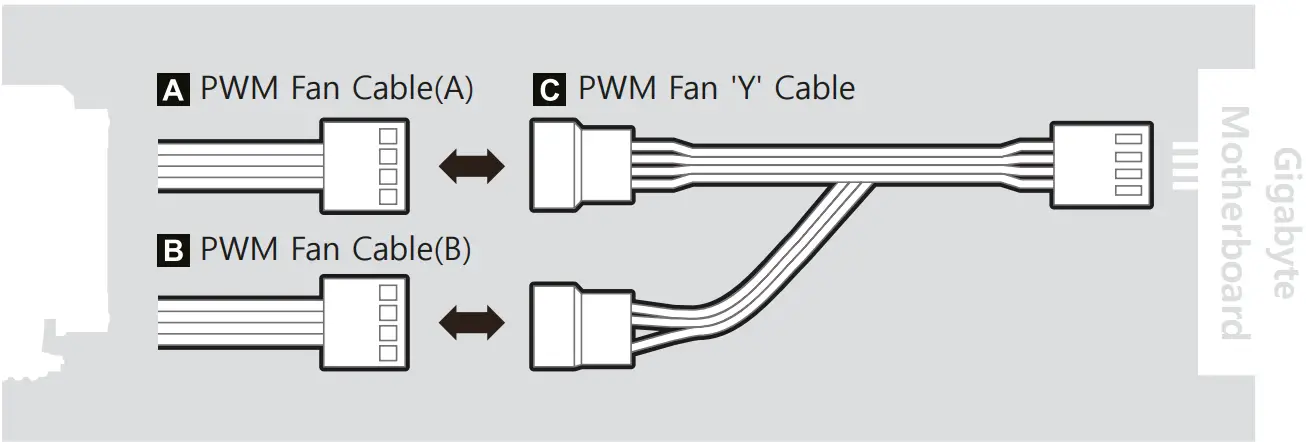

Installation Guide

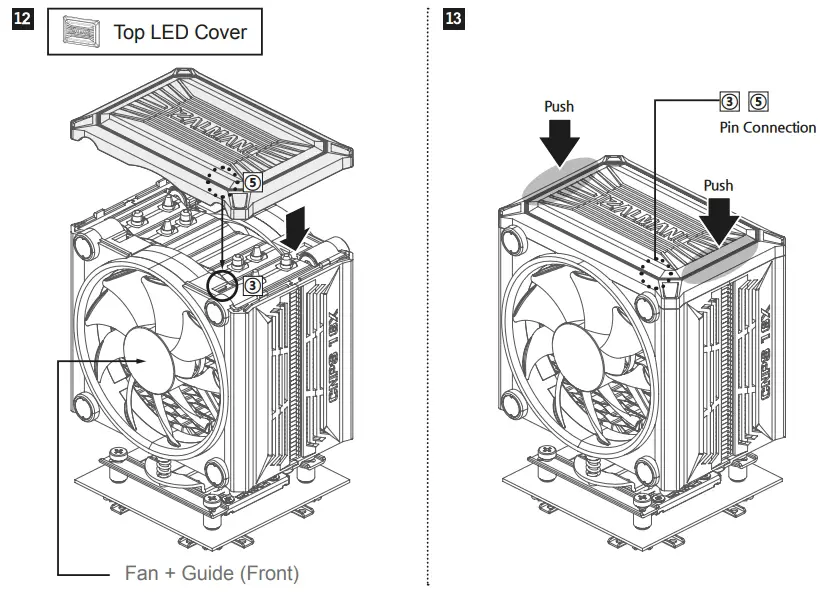

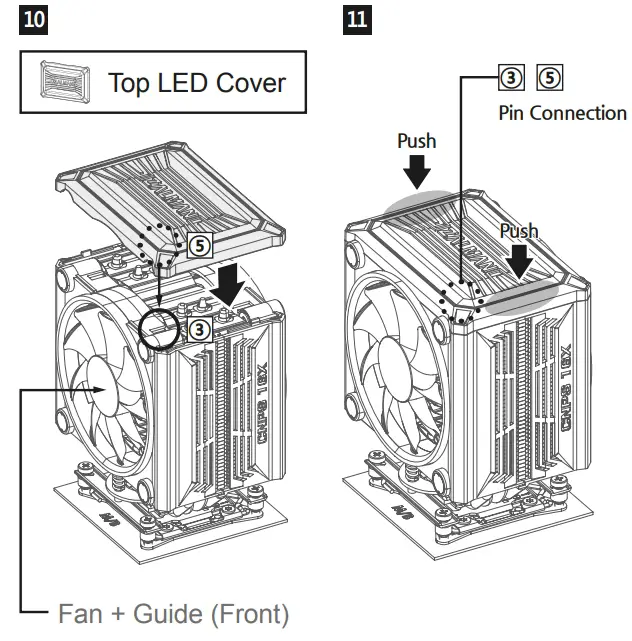

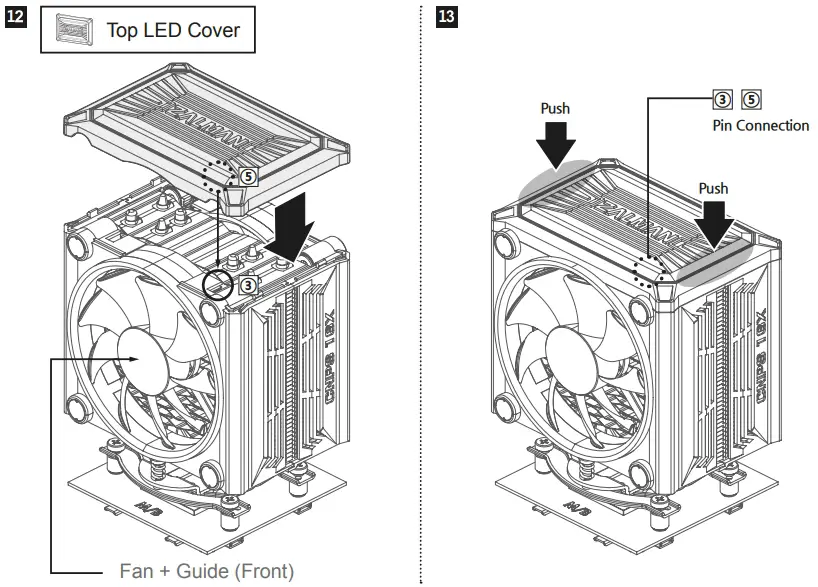

Top LED Cover (Install)

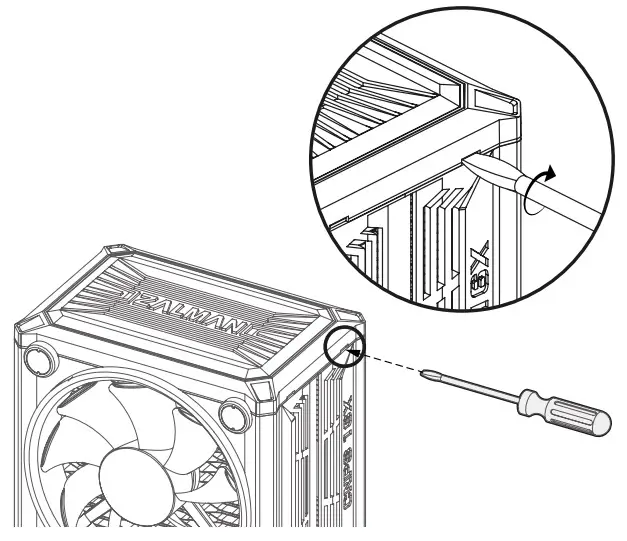

Top LED Cover (Dismantle)

Caution

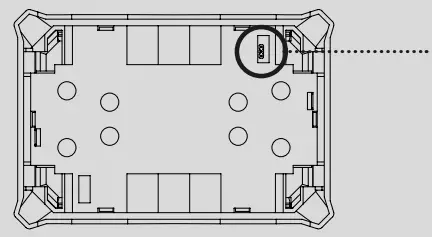

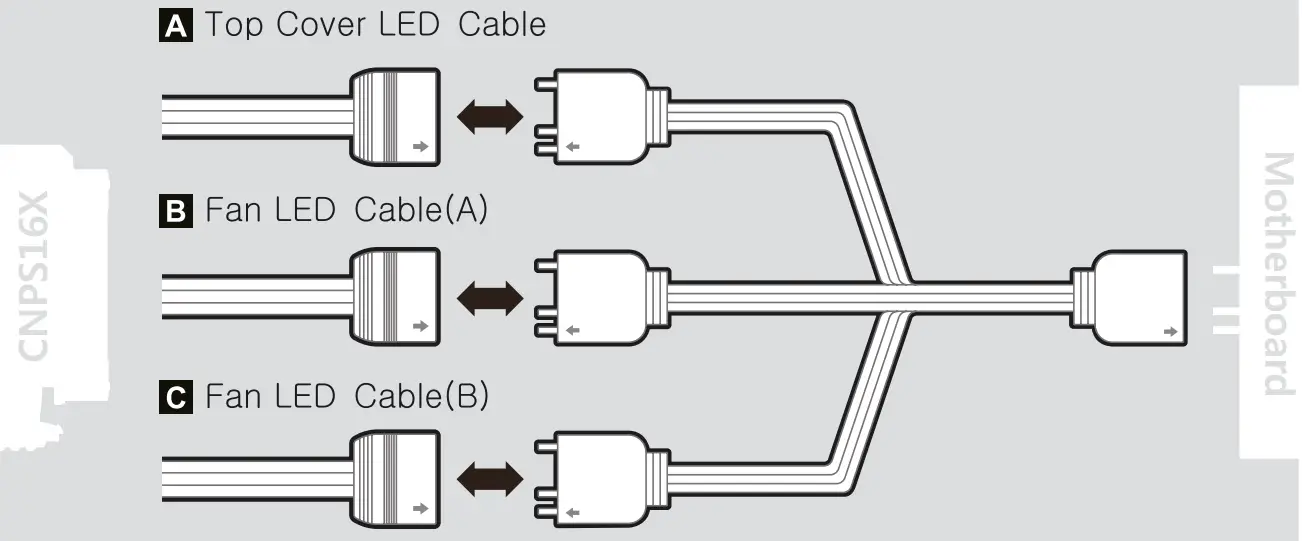

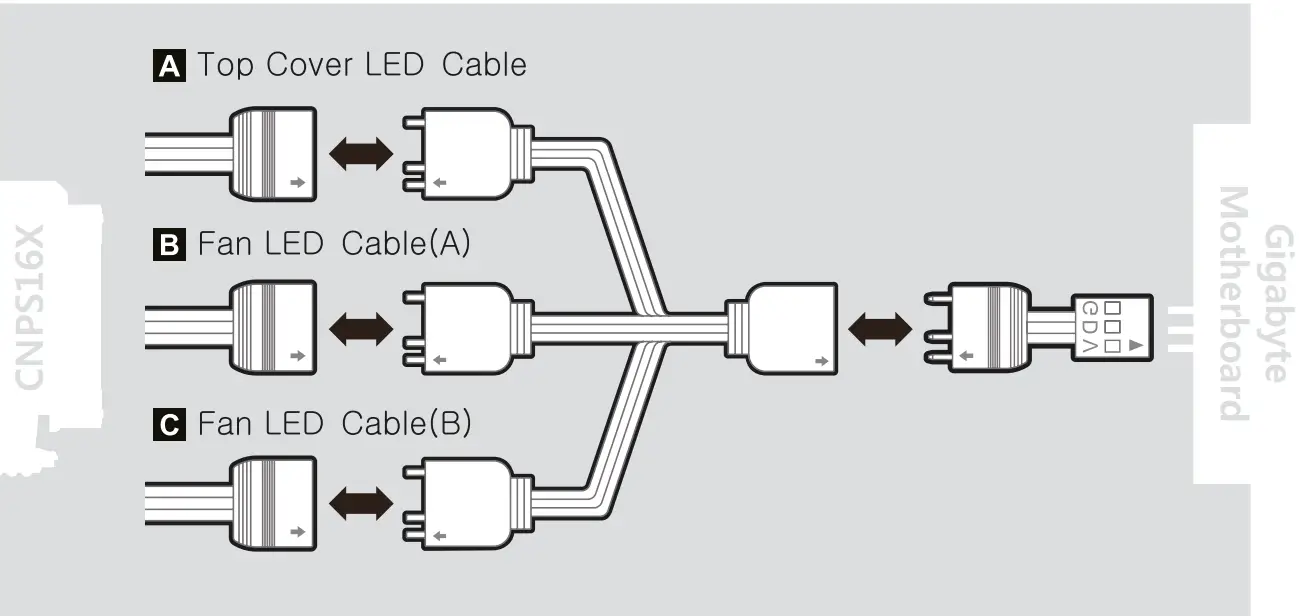

Please be sure to check the RGB pins and its connector before installation.
Please align RGB pins vertically to its connector during installation. (Pins can be bent if your alignment off).

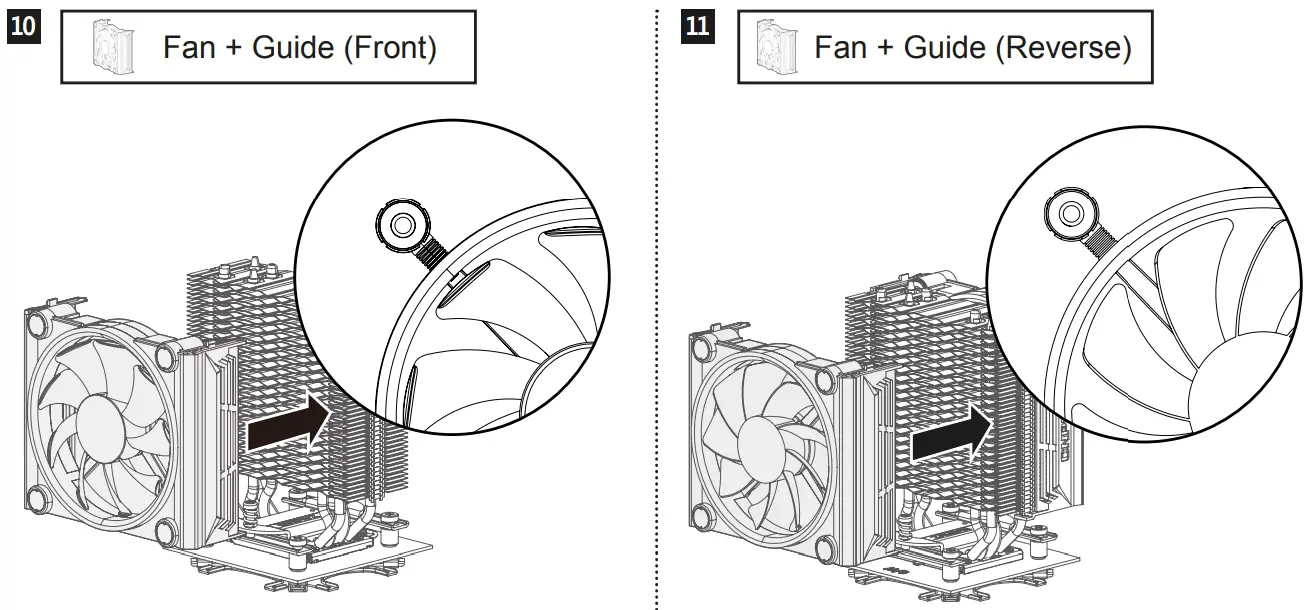

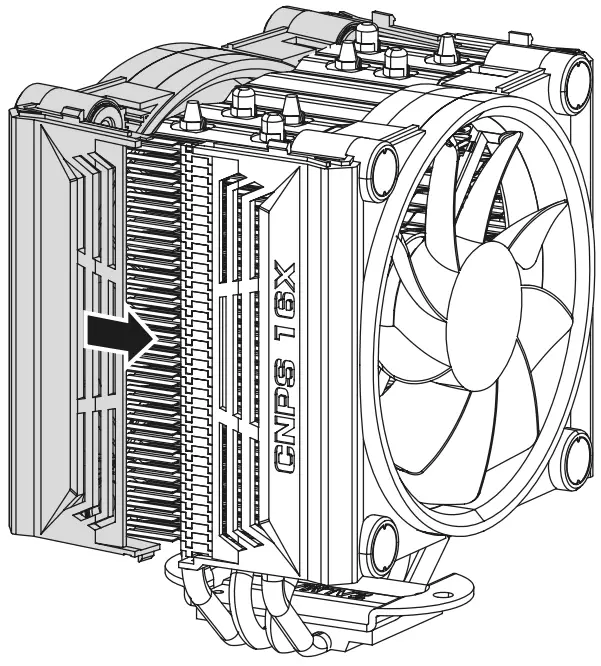

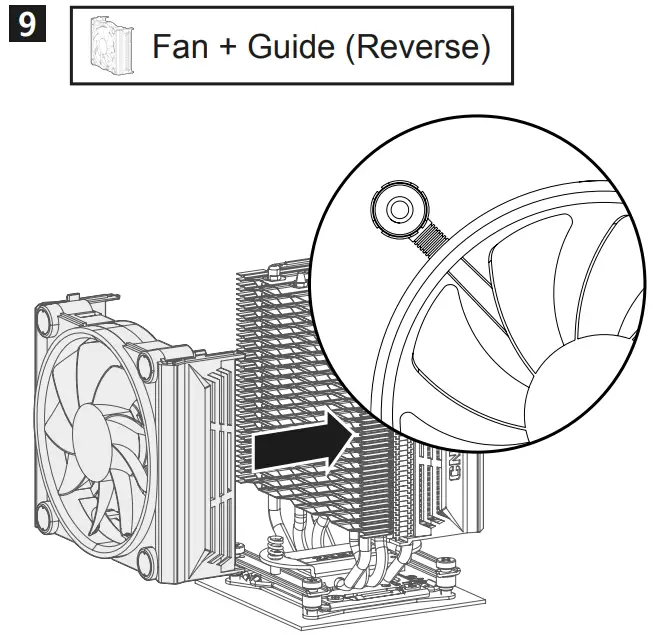

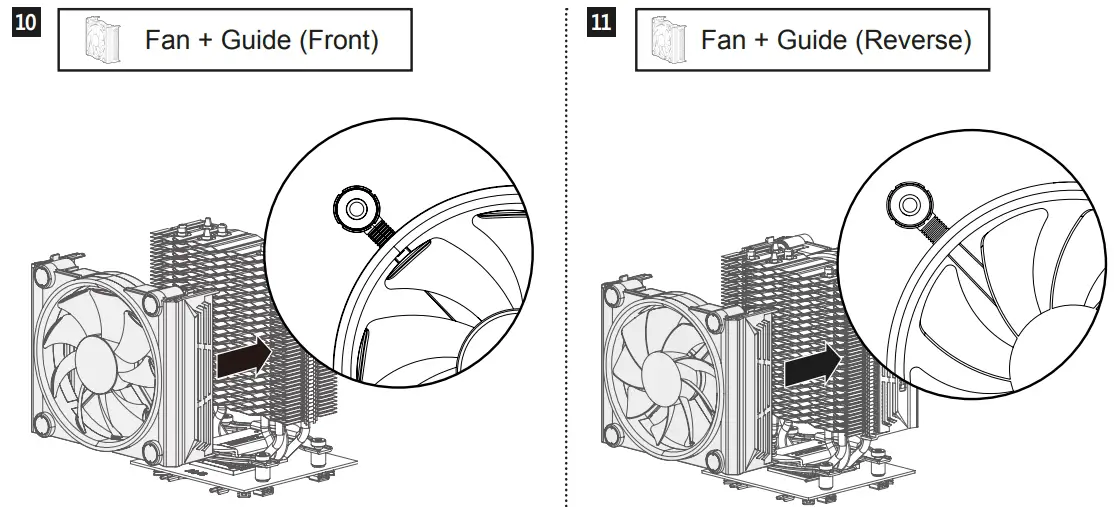

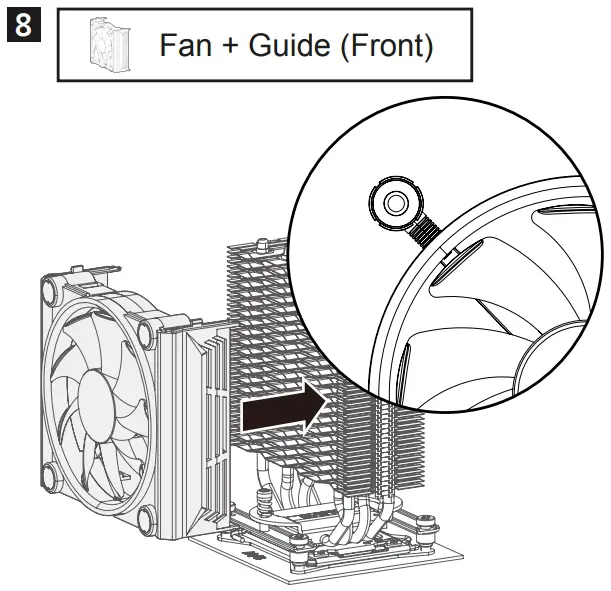

Fan + Guide (Install)

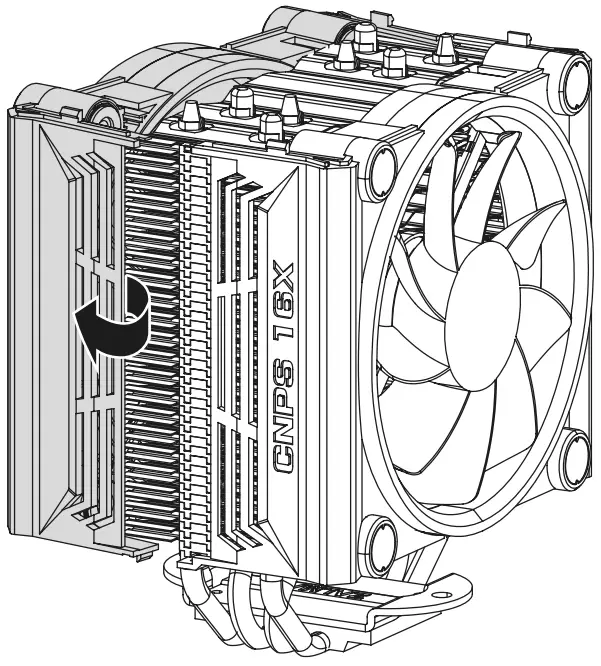

Fan + Guide (Dismantle)

Caution

Installation: align the fan guide on one side of the heatsink and lift the other side and slide it in.
Dismantle: Lift the fan guide’s side cover and pull it carefully.
