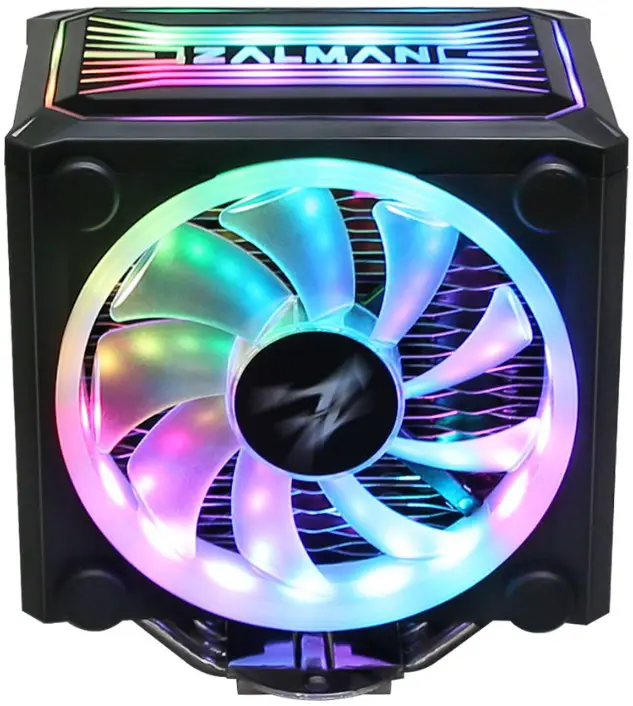

ZALMAN CNPS16X Real RGB LED CPU Cooler with 4D Patented Corrugated Fin Design User Manual

To ensure safe and easy installation, please read the following precaution.
Product design and specifications may be revised to improve quality and performance without notice.

Contents hide

Avoid tempering with objects or hands into the fan while it is in operation to prevent product damage and injuries.
Do not eat the thermal grease, and avoid its contact with skin and eyes. If contact is made with skin, wash off with water. If irritation persists, seek medical attention.
To prevent possible injuries, gloves must be worn while handling this product.
Excessive force exerted on the fan may cause damage to the fan and/or system.
Use and keep product away from reach of children.
Check the components list and condition of the product before installation. If any problem is found, contact the retailer to obtain a replacement.
Our company assumes no responsibility for any problem that occurs due to theuse of the product for purposes other than its designated purposes and/or the carelessness of the consumer.
Zalman Tech Co., Ltd. Is not responsible for any damages due to overclocking CPU such as, CPU and system components.
During transportation of the system, the cooler must be removed. Zalman Tech Co., Ltd. is not responsible for any damages that occur during the transport of a system.
Product design and specifications may be changed to improve quality and performance without notice

Model		CNPS16X
Materials		Pure Copper, Pure Aluminum, ABS
Dimensions		140(L) x 100(W) x 165(H)mm
Weight		880g
Heat Dissipation Area		5,117㎠
TDP		150W

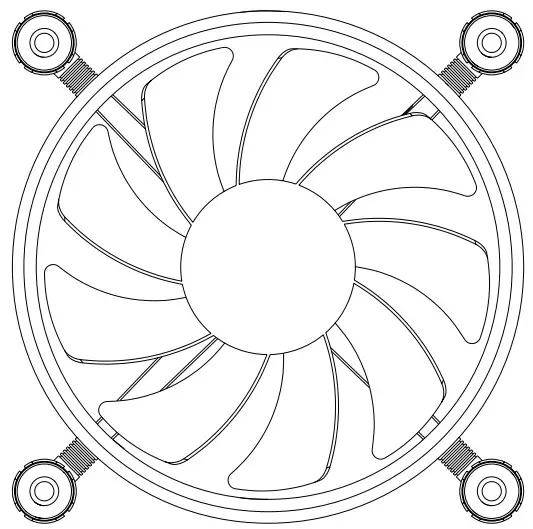

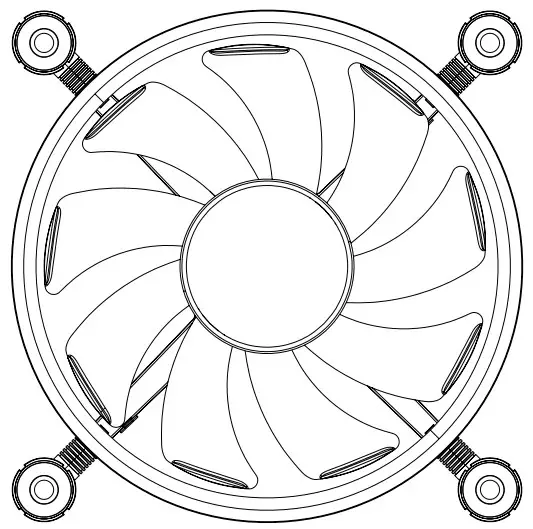

Fan(s)	Dimensions	120(L) x 120(W) x 26(H)mm
	Bearing Type	EBR Bearing
	Fan Speed	800~1,500 RPM ±10%
	Max Noise Level	27.0 dB(A) ±10%
	Max Airflow	49 CFM
	Max Air Pressure	1.21mmH2O
	Rated Voltage	12 V DC
	Life Span	50,000 hours
Thermal Compound (ZM-STC8)	Volume / Net Weight	1.5g
Thermal Compound (ZM-STC8)	Temperature Range	-40℃ ~ +150℃ (-40℉ ~ +302℉)

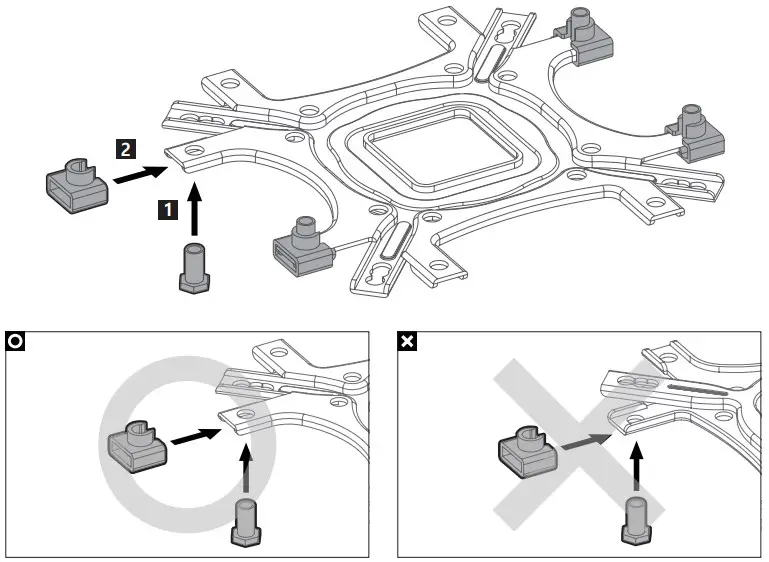

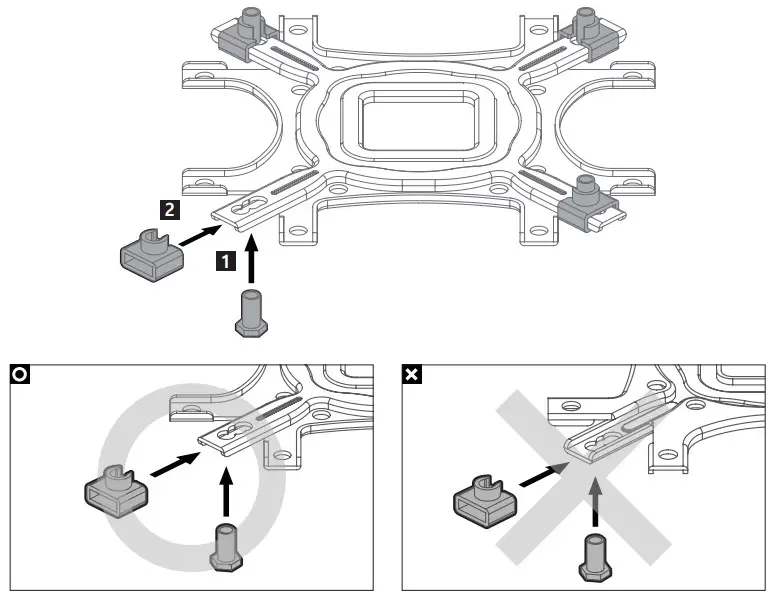

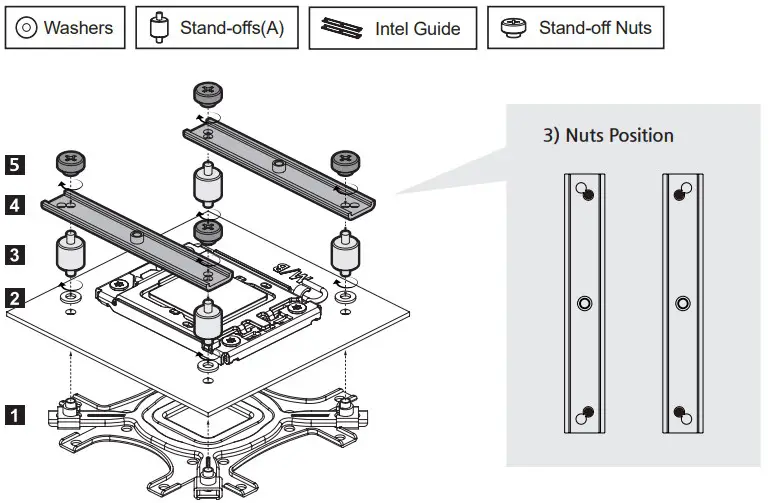

Nuts Position

Caution

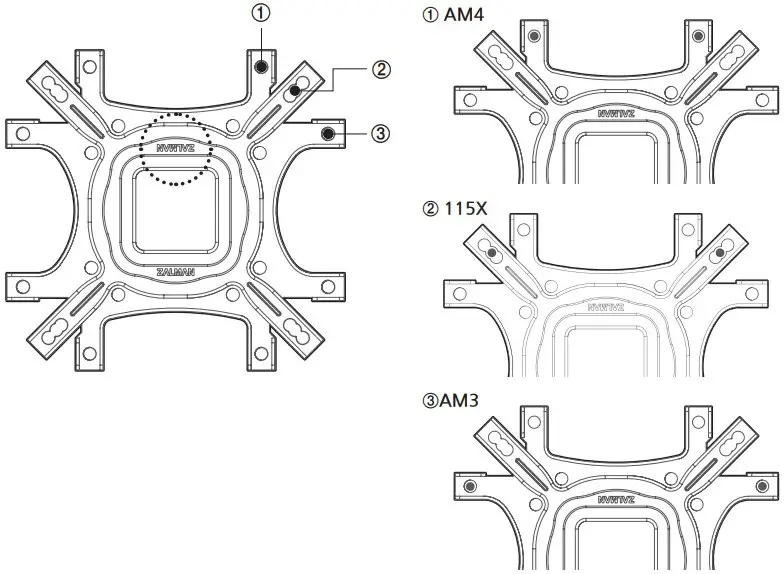

Please check the proper ZALMAN logo direction on backplate for each Intel and AMD socket. No backplate is necessary for Intel LGA2066/2011-V/2011 socket.
115X
AM3
AM4

Caution

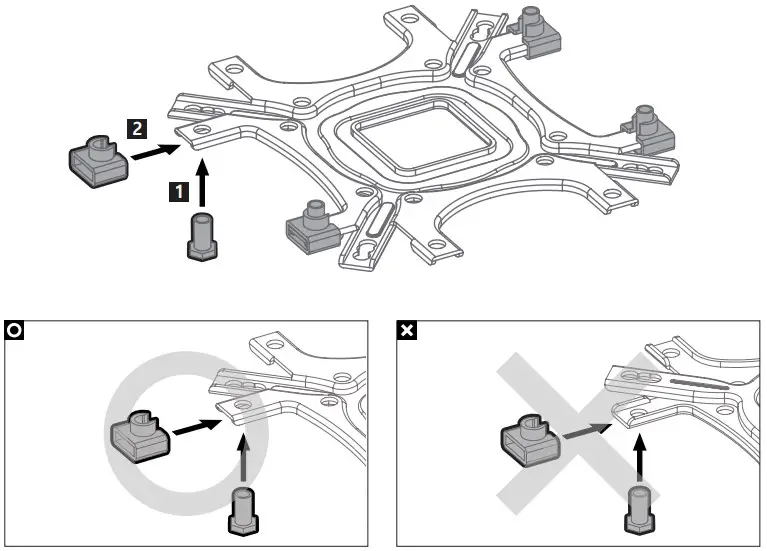

Take note of the orientation of the nuts and the side caps

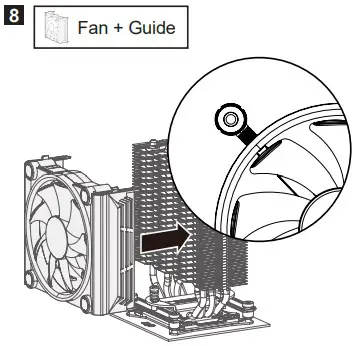

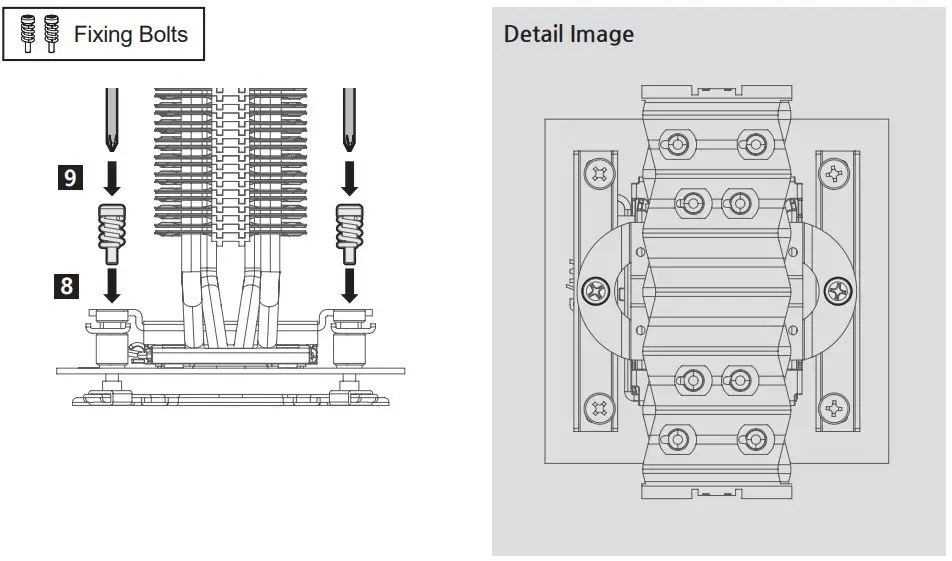

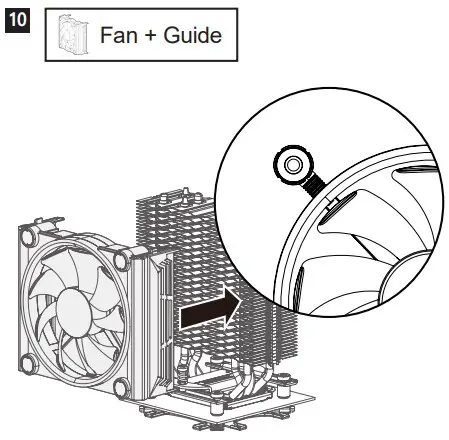

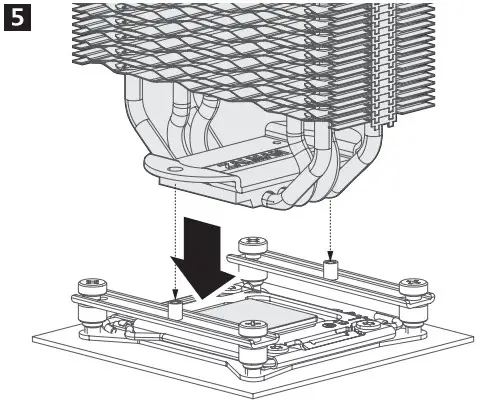

Intel

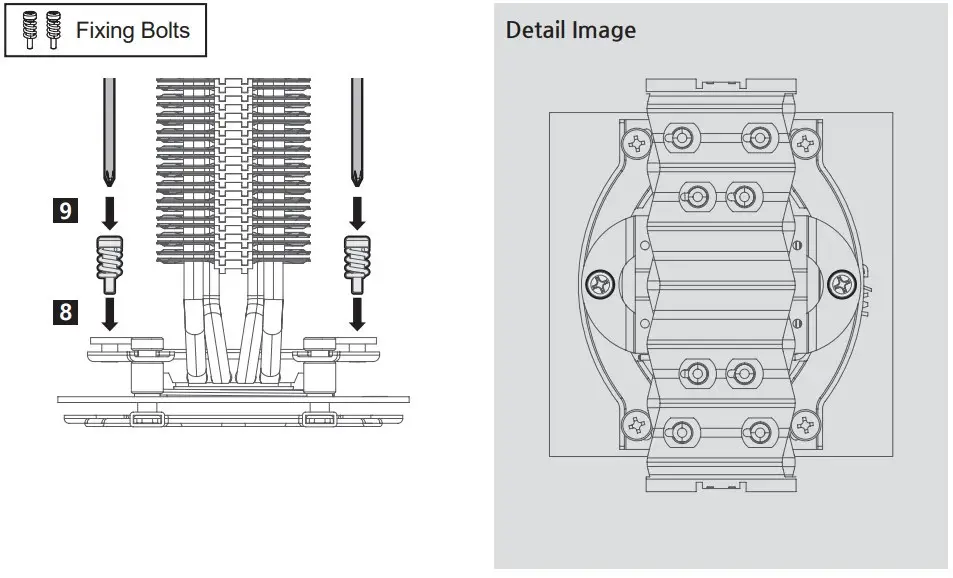

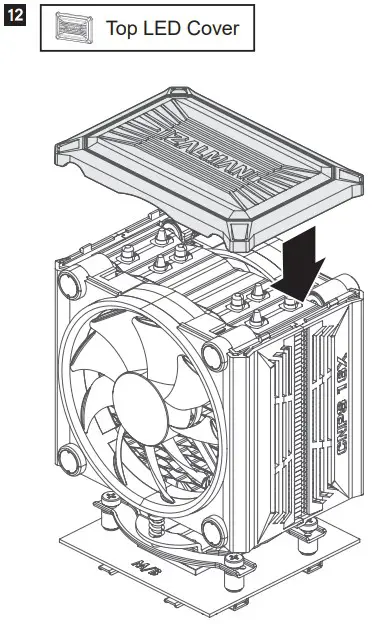

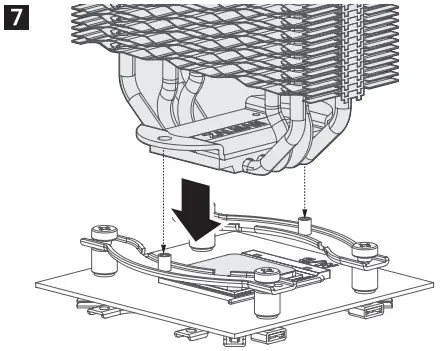

AMD

Caution

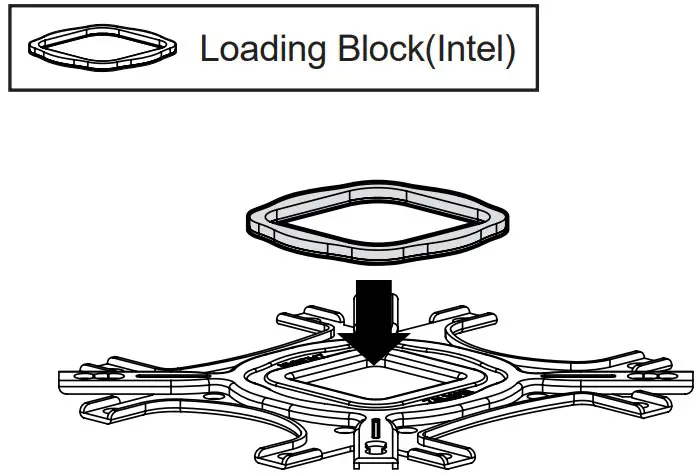

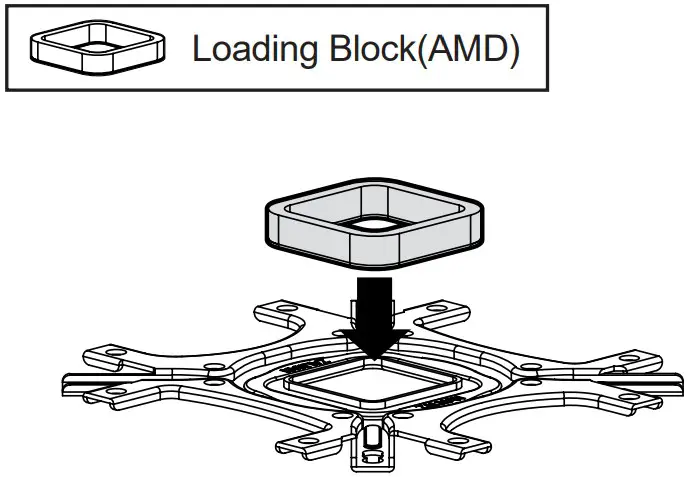

Remove the tape cover of loading block and attach it to the backplate
