ZALMAN CNPS4X CPU Cooler, RGB LED Fans, 2 Heatpipes, 92mm Fan 2000RPM
Precautions
- Avoid tempering with objects or hands into the fan while it is in operation to prevent product damage and injuries.
- Do not eat the thermal grease, and avoid its contact with skin and eyes. If contact is made with the skin, wash it off with water. If irritation persists, seek medical attention.
- To prevent possible injuries, gloves must be worn while handling this product.
- The excessive force exerted on the fan may cause damage to the fan and/or system.
- Use and keep the product away from the reach of children.
- Check the components list and condition of the product before installation. If any problem is found, contact the retailer to obtain a replacement.
- Our company assumes no responsibility for any problem that occurs due to the use of the product for purposes other than its designated purposes and/or the carelessness of the consumer.
- Zalman Tech Co., Ltd. Is not responsible for any damages due to overclocking CPU such as, CPU and system components.
- During the transportation of the system, the cooler must be removed. Zalman Tech Co., Ltd. is not responsible for any damages that occur during the transport of a system.
- Product design and specifications may be changed to improve quality and performance without notice.
Features
| Model | CNPS4X | |
| Dimensions | 95(L) x 65(W) x 132(H)mm | |
| Weight | 360g | |
| Materials | Pure Copper, Pure Aluminum | |
|
Fan | Dimensions | 92 x 92 x 25(H)mm |
| Speed | 1,000 ~ 2,000 RPM ±10% | |
| Max Noise Level | 28.0 dB(A) ±10% | |
| Bearing Type | EBR Bearing | |
| Control Method | PWM Control | |
| Max Airflow | 44 CFM | |
| Connector | 4-Pin | |
| Rated Voltage | 12 V DC | |
| Sockets | Intel | LGA775/115X/1200 CPUs |
| AMD | AM4/AM3+/AM3/FM2+/FM2 CPUs | |

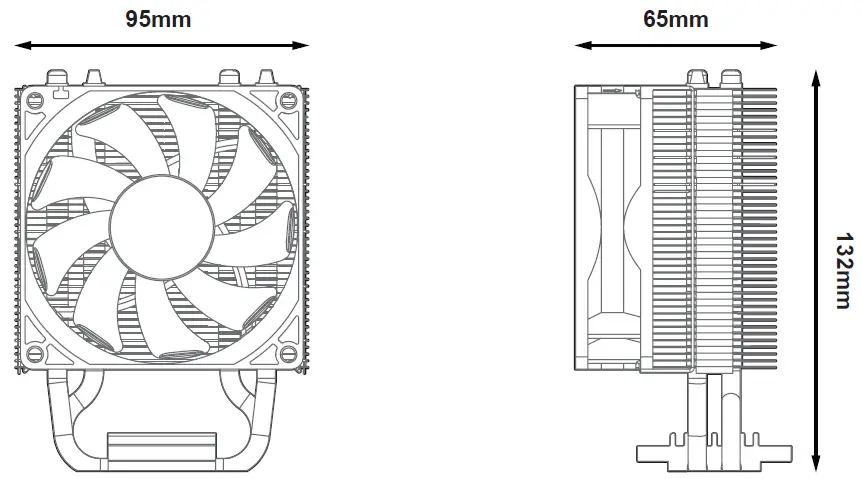

Dimensions

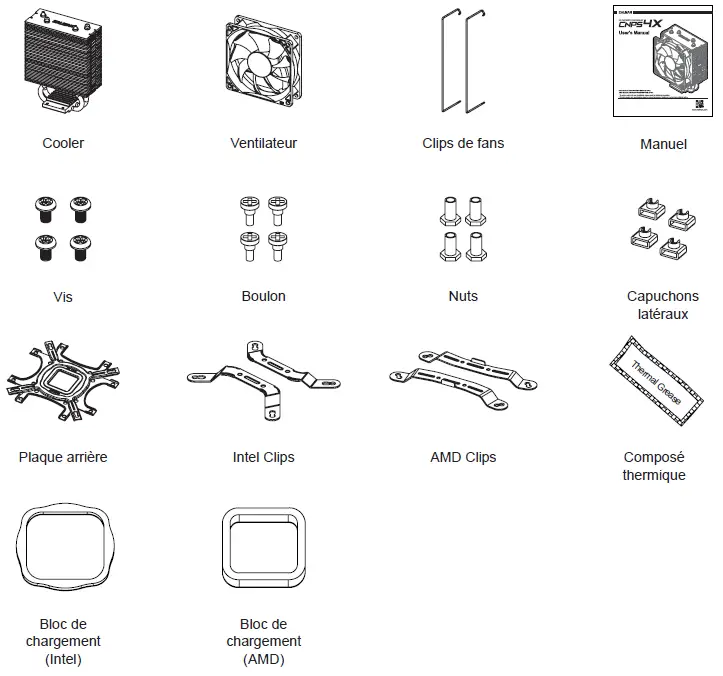

Composants
Common Composants
Installation Requirements
Cooler Space Requirements

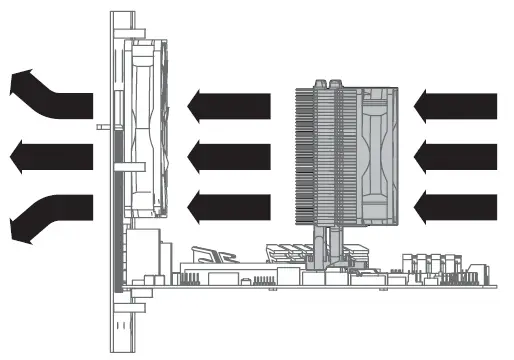

Cooler Orientation
Attention
The recommended orientation of the cooler may differ depending on the motherboard model.

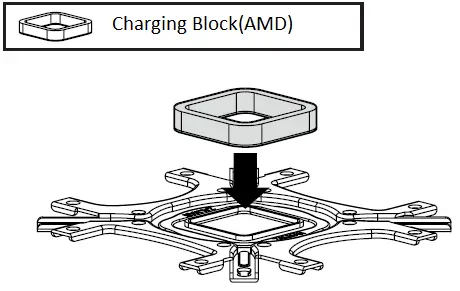

INTEL, AMD Loading Block
Intel
AMD
Attention
Remove the plastic cover from the bracket and attach the bracket to the back plate.

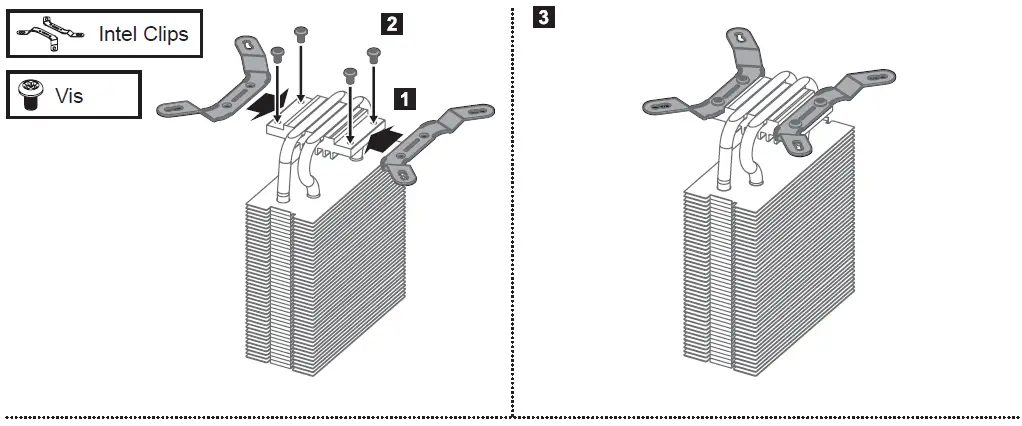

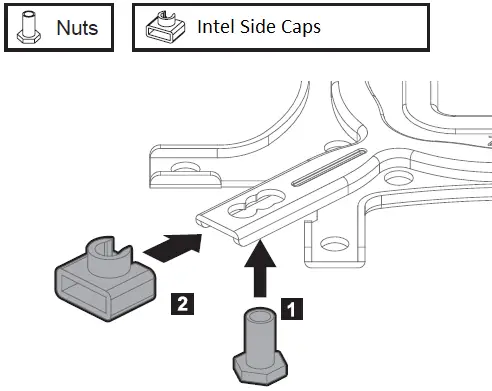

Intel Users
LGA775/115X/1200

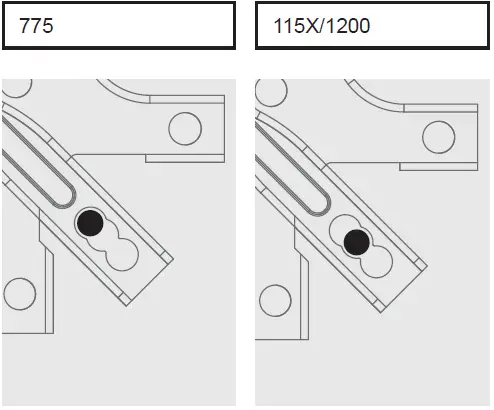

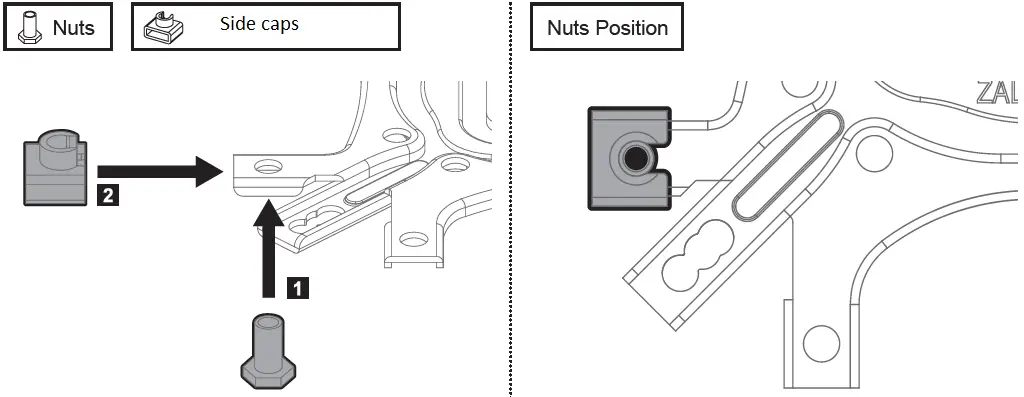

Nuts Position

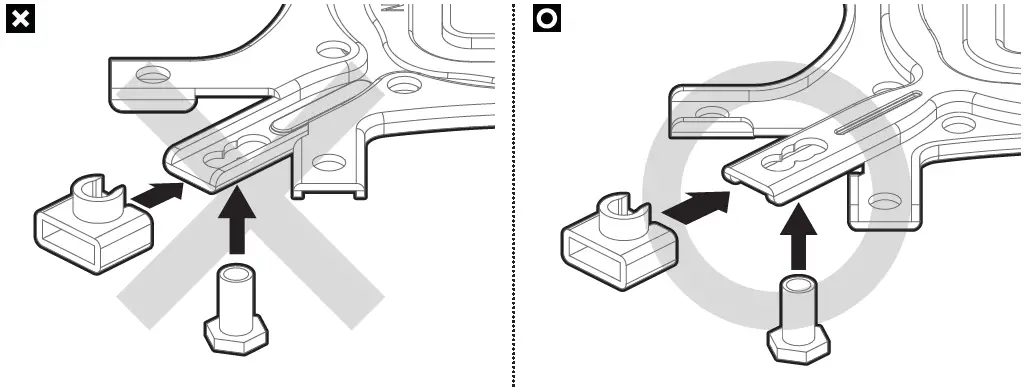

Attention
Pay attention to the orientation of the nuts and side caps.

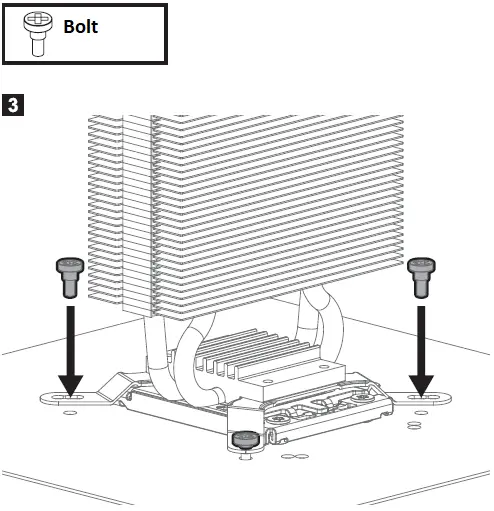

AMD Users
AM4/AM3+/AM3/FM2+/FM2

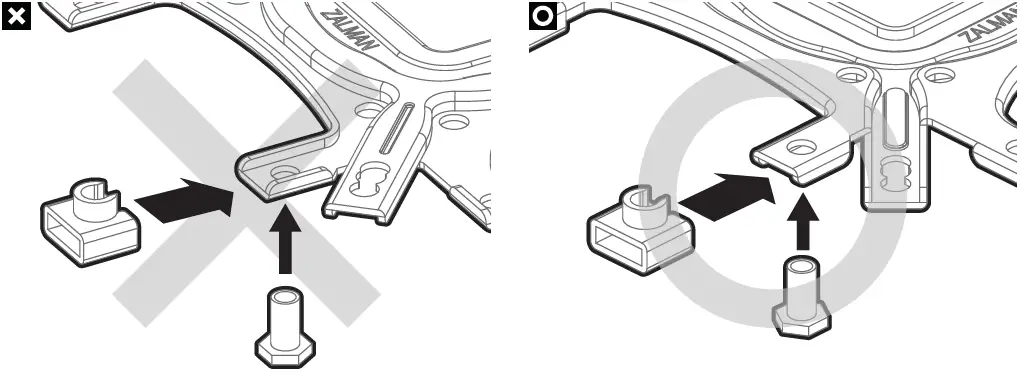

Attention
Pay attention to the orientation of the nuts and side caps.

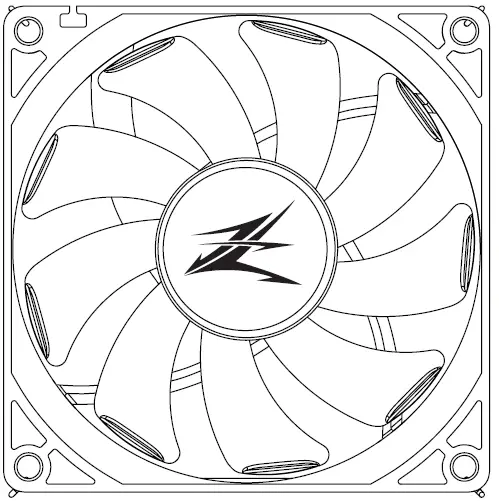

Fan Specifications
- Dimensions: 92 x 92 x 25(H)mm
- Speed: 1,000 ~ 2,000 RPM ±10%
- Max Noise Level: 28.0dB(A) ±10%
- Bearing Type: EBR Bearing
- Control Method: PWM Control
- Max Airflow: 44 CFM
- Connector: 4-Pin
- Rated Voltage: 12V DC
Certifications
This mark, designed by Zalman, indicates product compliance with the European Union’s RoHS (Restriction of Hazardous Substances) Directive.
Disposal of Old Electrical & Electronic Equipment
(Applicable in the European Union and other European countries with separate collection systems).
