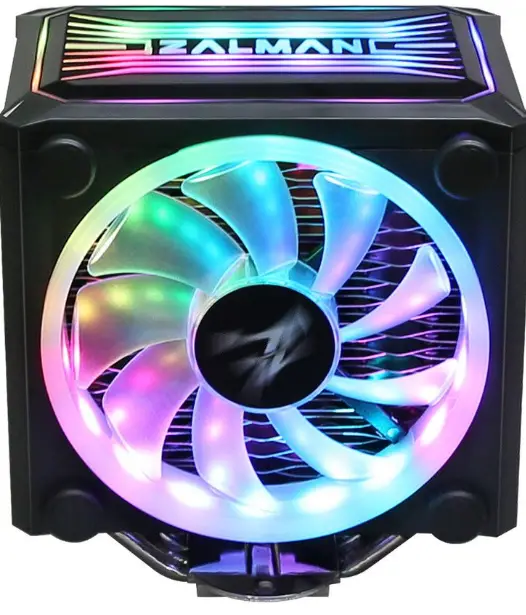

ZALMAN CNPS16X RGB CPU Cooler
IMPORTANT INSTRUCTION
Precautions
- Avoid tempering with objects or hands into the fan while it is in operation to prevent product damage and injuries.
- Do not eat the thermal grease, and avoid its contact with skin and eyes. If contact is made with skin, wash off with water. If irritation persists, seek medical attention.
- To prevent possible injuries, gloves must be worn while handling this product.
- Excessive force exerted on the fan may cause damage to the fan and/or system.
- Use and keep product away from reach of children.
- Check the components list and condition of the product before installation. If any problem is found, contact the retailer to obtain a replacement.
- Our company assumes no responsibility for any problem that occurs due to the use of the product for purposes other than its designated purposes and/or the carelessness of the consumer.
- Zalman Tech Co., Ltd. Is not responsible for any damages due to overclocking CPU such as, CPU and system components.
- During transportation of the system, the cooler must be removed. Zalman Tech Co., Ltd. is not responsible for any damages that occur during the transport of a system.
- Product design and specifications may be changed to improve quality and performance without notice
CHARACTERISTICS
| Model | CNPS16X | |
| Materials | Pure Copper, Pure Aluminum, ABS | |
| Dimensions | 140(L) x 100(W) x 165(H)mm | |
| Weight | 880g | |
| Heat Dissipation Area | 5,117㎠ | |
|
Fan(s) | Dimensions | 120(L) x 120(W) x 26(H)mm |
| Bearing Type | EBR Bearing | |
| Fan Speed | 800~1,500 RPM ±10% | |
| Max Noise Level | 27.0 dB(A) ±10% | |
| Max Airflow | 49 CFM | |
| Max Air Pressure | 1.21mmH2O | |
| Rated Voltage | 12 V DC | |
| Life Span | 50,000 hours | |
| Thermal Compound (ZM-STC8) | Volume / Net Weight | 1.5g |
| Temperature Range | -40℃ ~ +150℃ (-40℉ ~ +302℉) | |

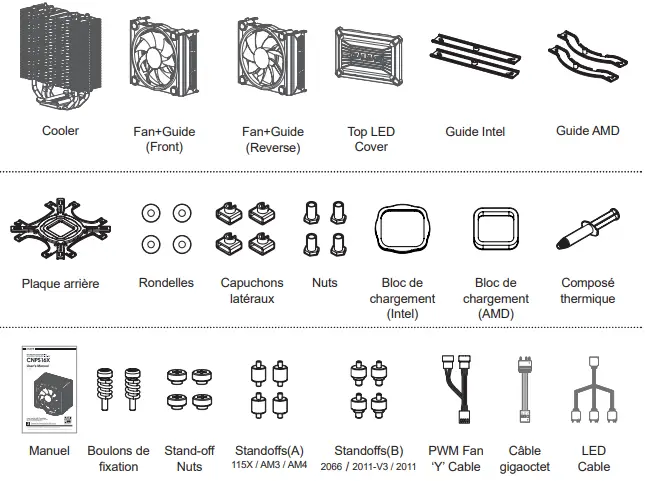

COMPONENTS

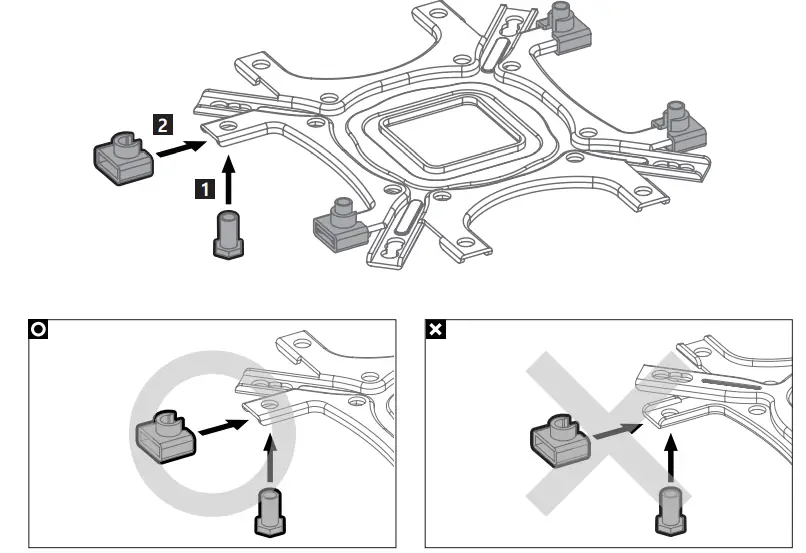

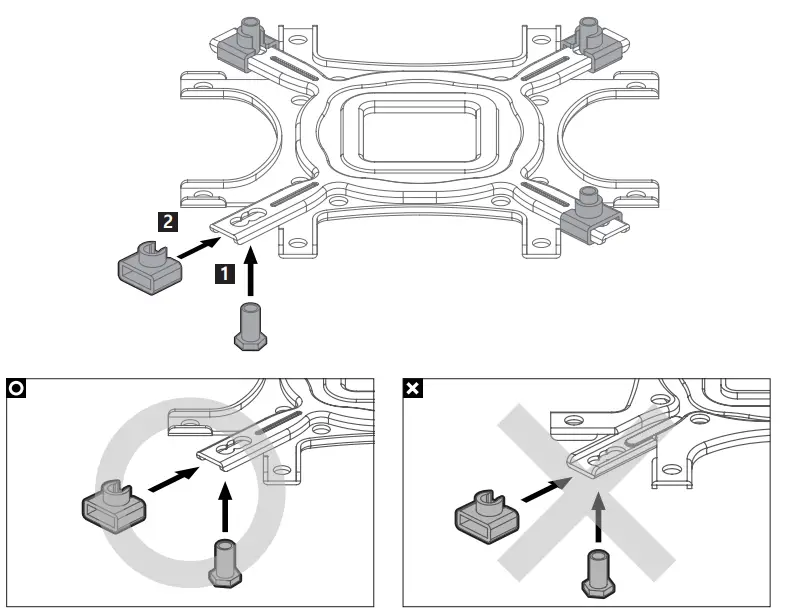

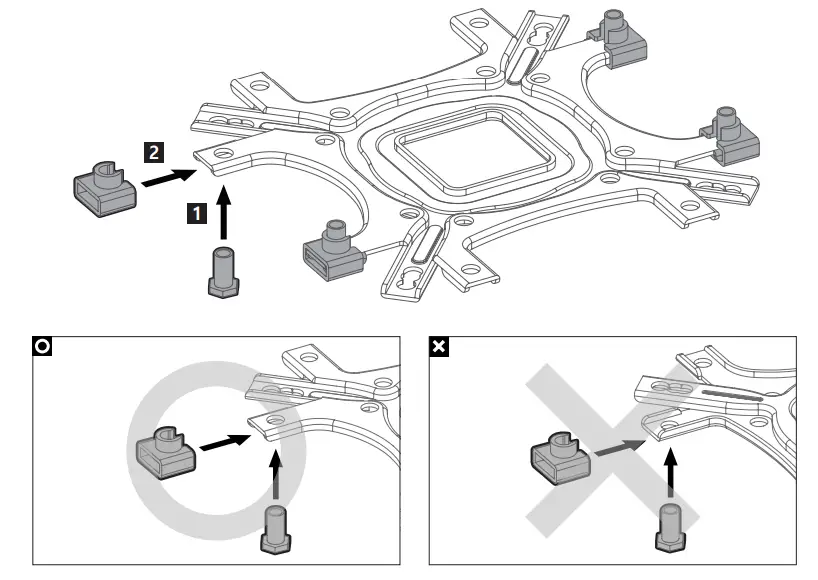

INTEL, AMD Backplate

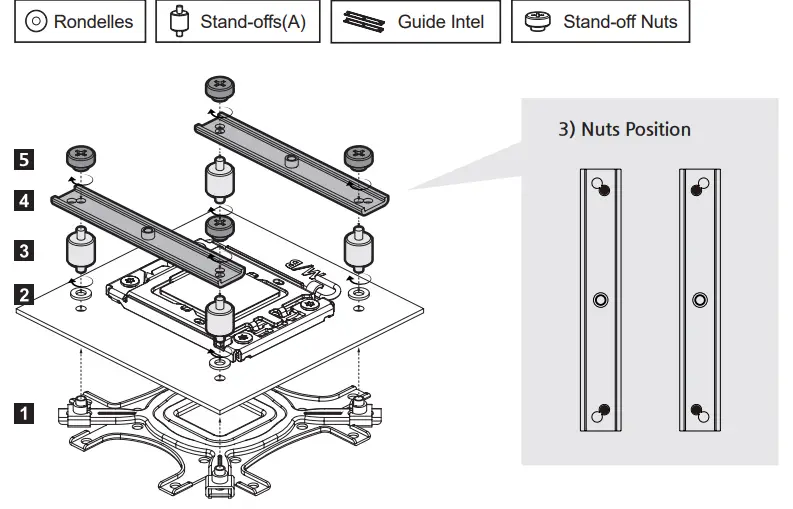

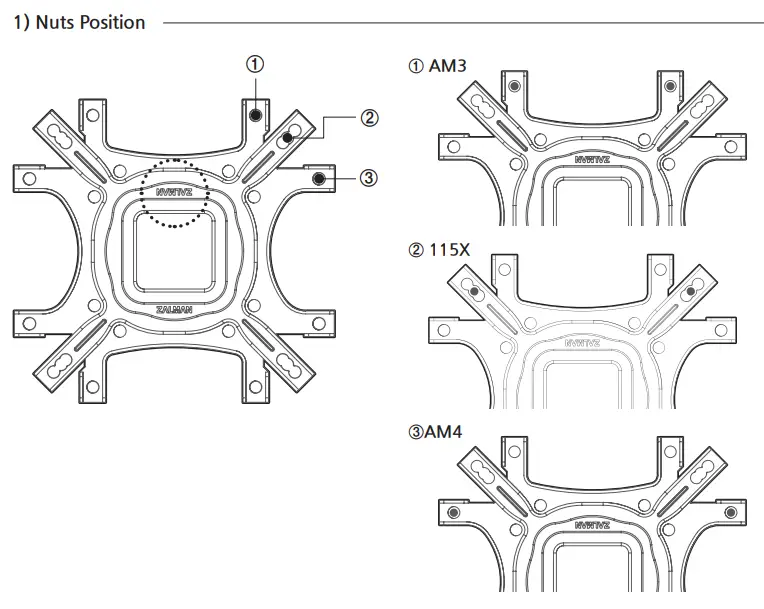

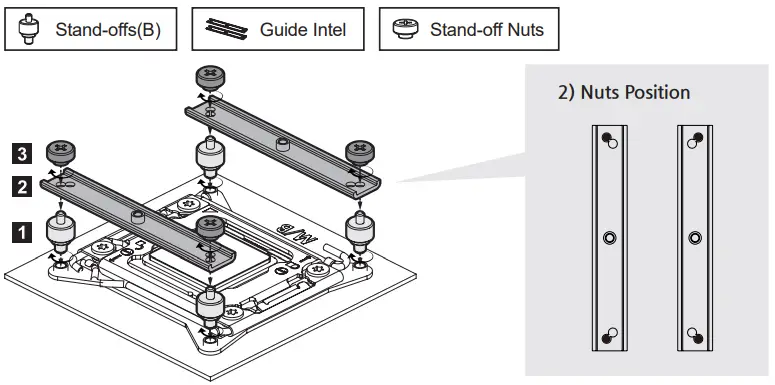

Nuts Position
115X
AM3
AM4
INTEL, AMD Loading Block
Intel Users/AMD
LGA2066 / 2011-V3 / 2011
LGA115X
AMD Users
AM3 / AM4

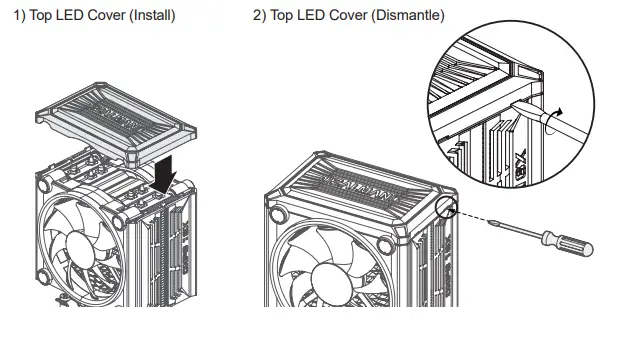

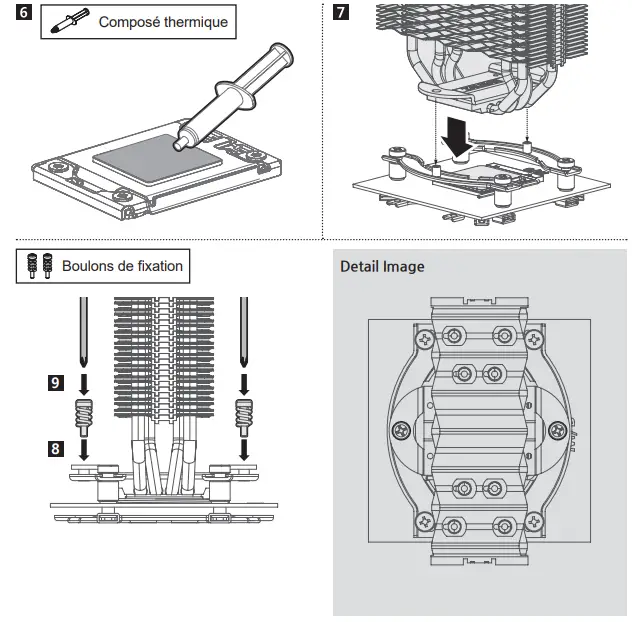

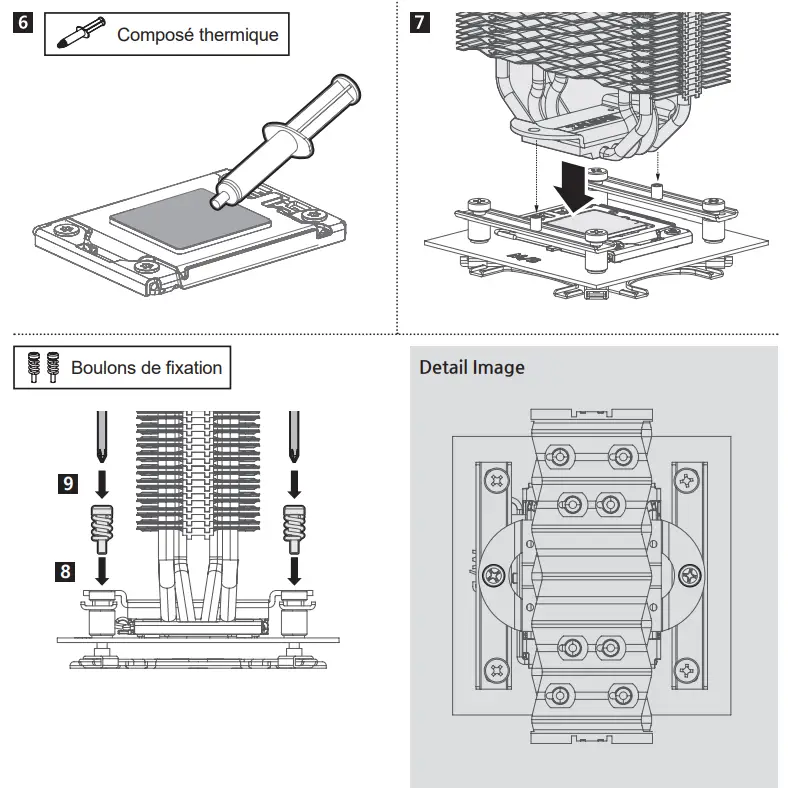

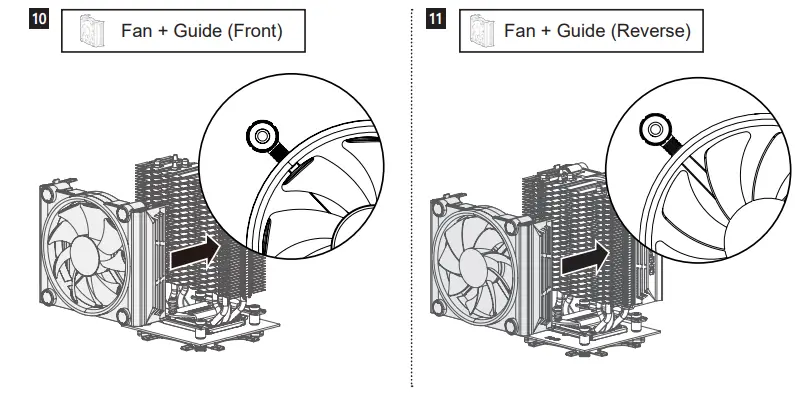

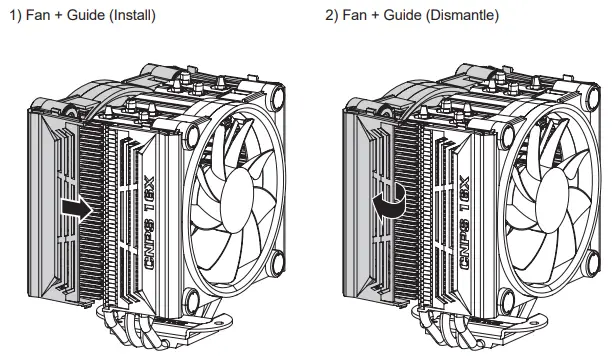

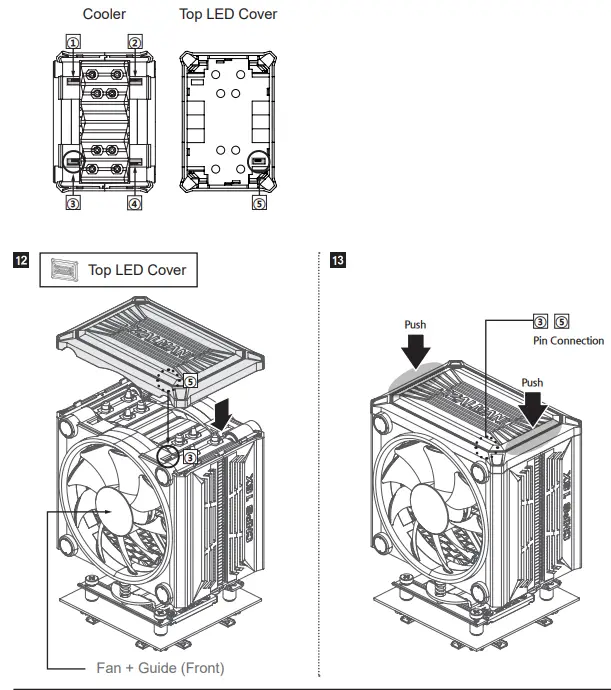

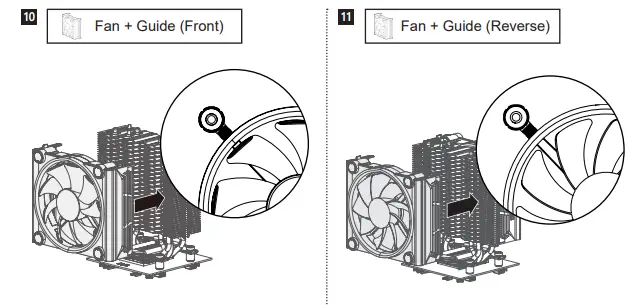

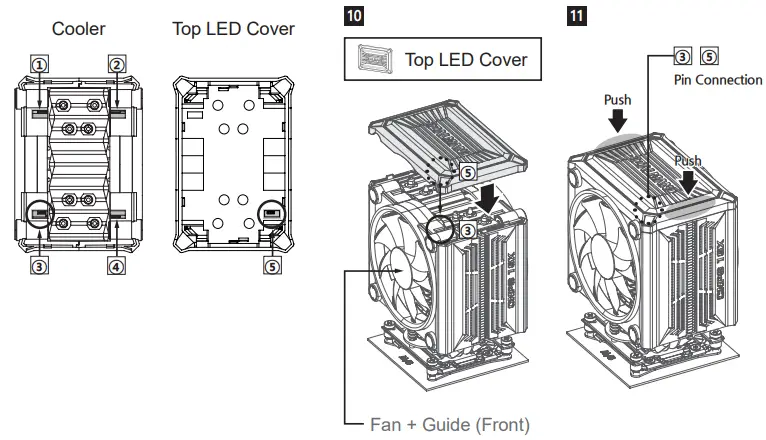

Installation Guide

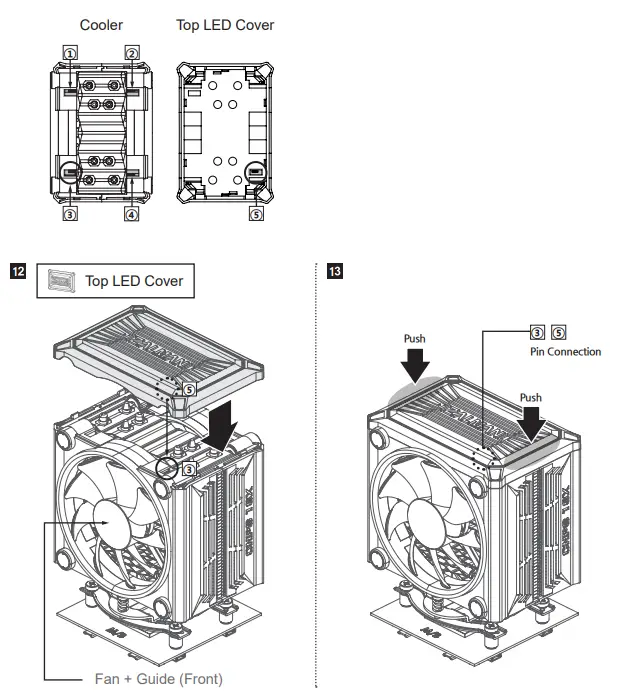

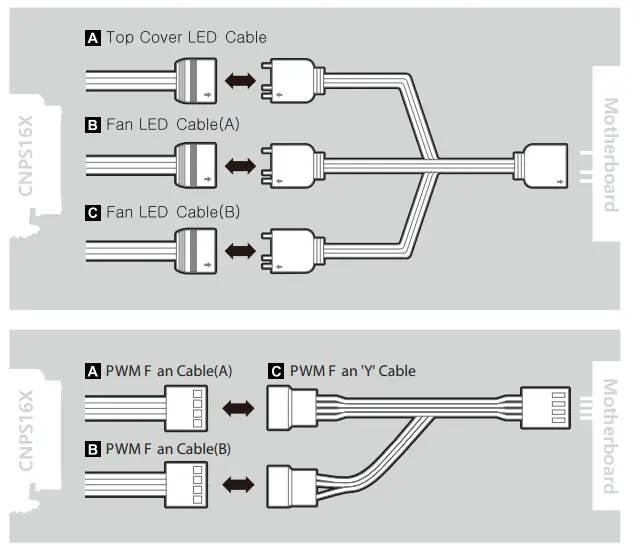

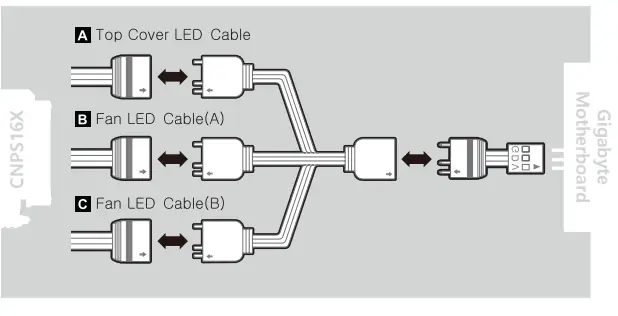

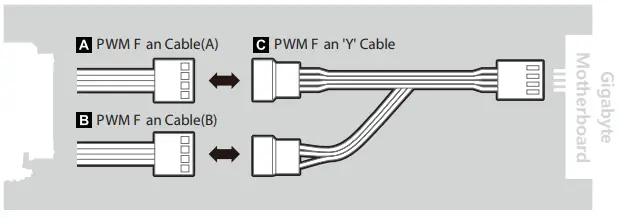

Cable Connection
Fan Specifications
- Model: LF120
- Dimensions : 120 x 120 x 26(H)mm Fan Speed : 800 ~ 1,500 ±10% RPM
- Max Noise Level : 27 dB(A) ±10% Bearing Type : EBR Bearing
- Max Airflow : 49 CFM ±10% Max Air Pressure : 1.21mmH2O Pin Connector : 4-Pin (PWM),
- 3-Pin (Addressable) Rated Voltage : 5~12 V DC
- Life Span : 50,000 hours
- Model : LF120 (Reverse)
- Dimensions : 120 x 120 x 26(H)mm Fan Speed : 800 ~ 1,500 ±10% RPM
- Max Noise Level : 27 dB(A) ±10% Bearing Type : EBR Bearing
- Max Airflow : 49 CFM ±10% Max Air Pressure : 1.21mmH2O Pin Connector : 4-Pin (PWM),
- 3-Pin (Addressable) Rated Voltage : 5~12 V DC
- Life Span : 50,000 hours
Disposal of Old Electrical & Electronic Equipment
(Applicable in the European Union and other European countries with separate collection systems)
