ZALMAN CNPS16X Real RGB LED Cooler with 4D Patented Corrugated
Precautions
- Avoid tempering with objects or hands into the fan while it isin operation to prevent product damage and injuries.
- Do not eat the thermal grease, and avoid its contact with skin and eyes. If contact is made with skin, wash off with water. If irritation persists, seek medical attention.
- To prevent possible injuries, gloves must be worn while handling this product.
- Excessive force exerted on the fan may cause damage to the fan and/or system.
- Use and keep product away from reach of children.
- Check the components list and condition of the product before installation. If any problem is found, contact the retailer to obtain a replacement.
- Our company assumes no responsibility for any problem that occurs due to the use of the product for purposes other than its designated purposes and/or the carelessness of the consumer.
- Zalman Tech Co., Ltd. Is not responsible for any damages due to overclocking CPU such as, CPU and system components.
- During transportation of the system, the cooler must be removed. Zalman Tech Co., Ltd. is not responsible for any damages that occur during the transport of a system.
- Product design and specifications may be changed to improve quality and performance without notice.
Specifications
| Model | CNPS16X | |
| Materials | Pure Copper, Pure Aluminum, ABS | |

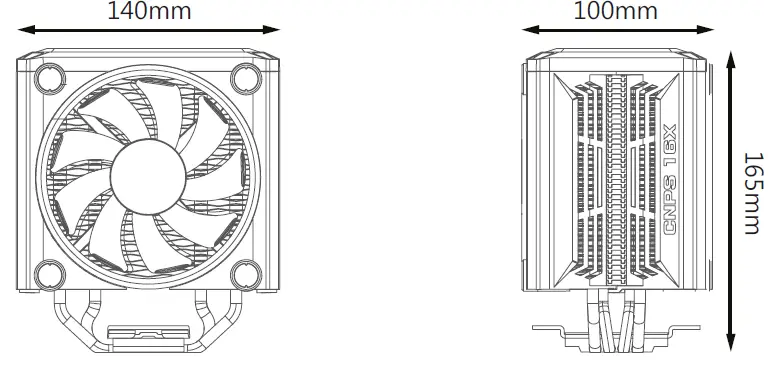

| Dimensions | 140(L) x 100(W) x 165(H)mm | |
| Weight | 880g | |
| Heat Dissipation Area | 5,117㎠ | |
| Fan(s) | Dimensions | 120(L) x 120(W) x 26(H)mm |
| Bearing Type | EBR Bearing | |
| Fan Speed | 800~1,500 RPM ±10% | |
| Max Noise Level | 27.0 dB(A) ±10% | |
| Max Airflow | 49 CFM | |
| Max Air Pressure | 1.21mmH2O | |
| Rated Voltage | 12 V DC | |
| Life Span | 50,000 hours | |
| Thermal Compound (ZM-STC8) | Volume / Net Weight | 1.5g |
| Temperature Range | -40℃ ~ +150℃ (-40℉ ~ +302℉) | |

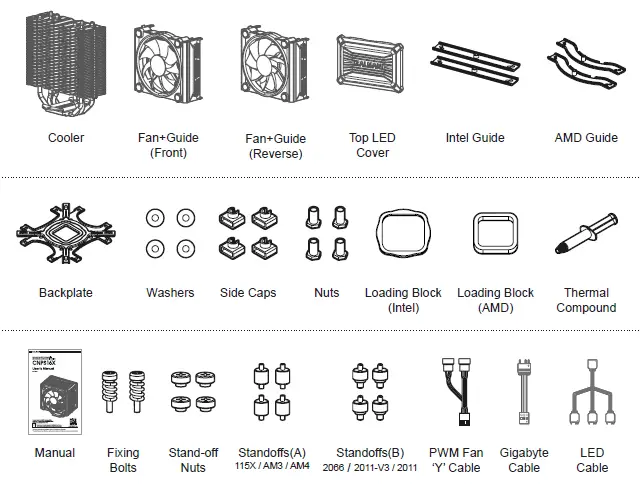

Components

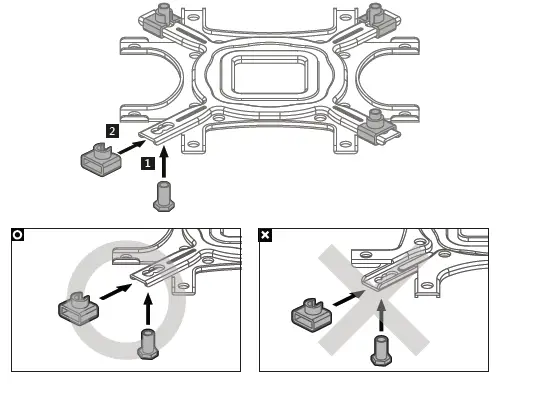

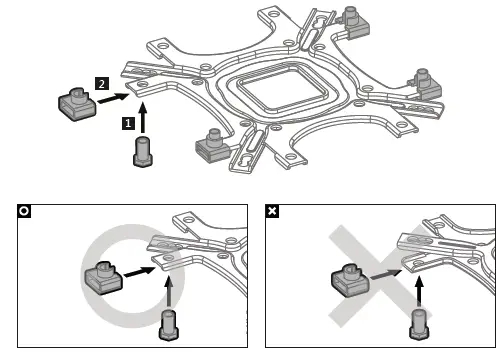

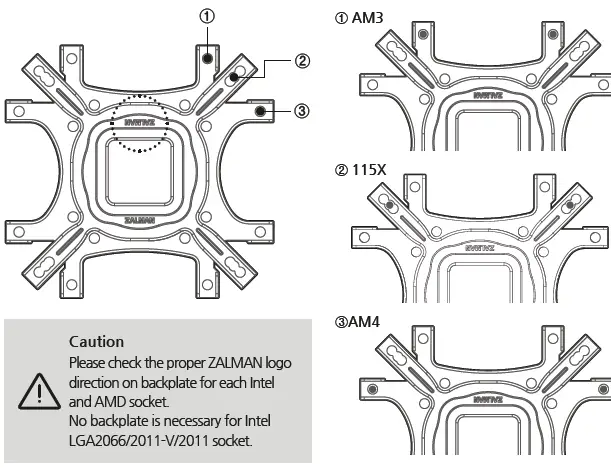

INTEL, AMD Backplate

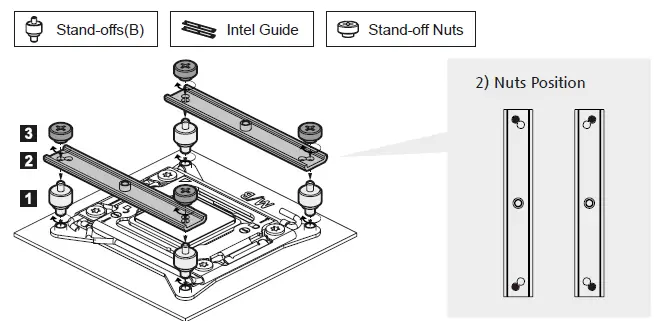

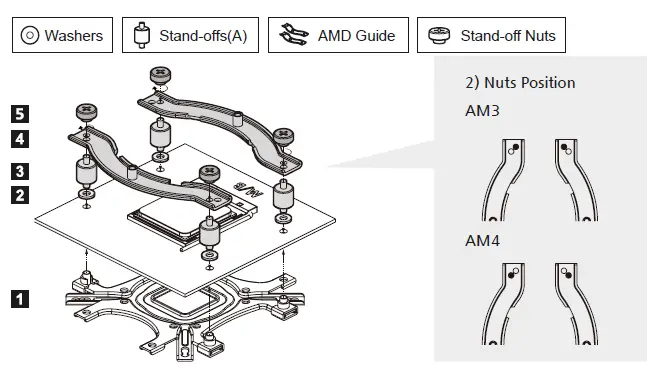

Nuts Position
INTEL, AMD Loading Block
Intel
Caution
Remove the tape cover of loading block and attach it to the backplate.

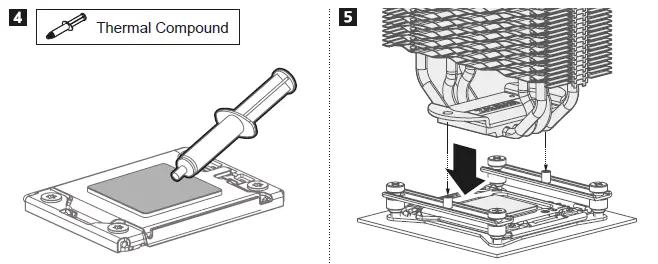

Intel Users

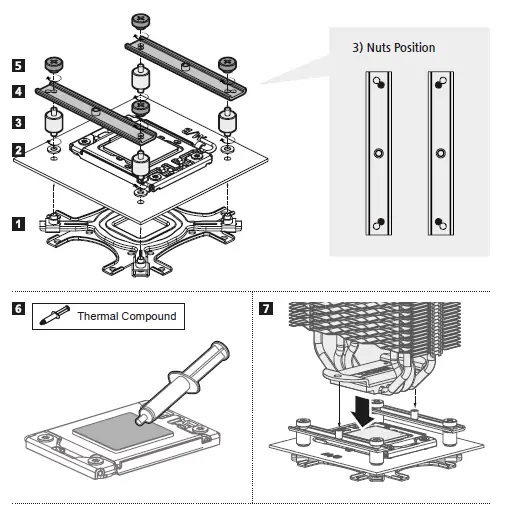

LGA2066 / 2011-V3 / 2011
Caution
Backplate is not needed for LGA2066 / 2011-V3 / 2011 sockets.

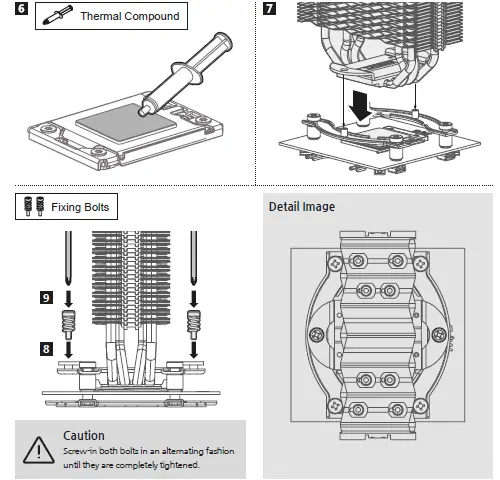

Caution

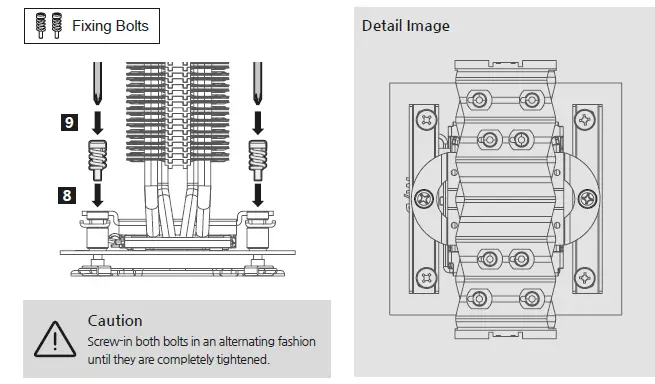

Screw-in both bolts in an alternating fashion until they are completely tightened.
Caution

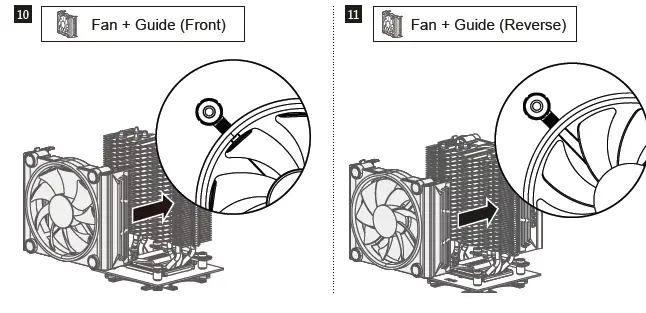

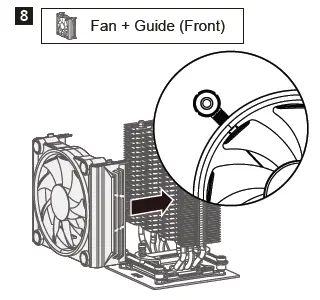

Please check the direction of the fan before installation.

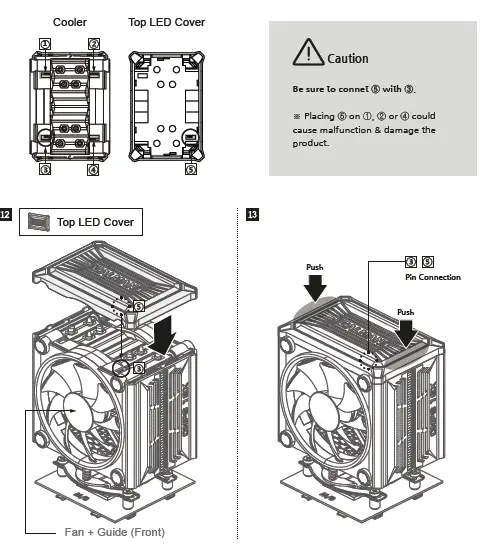

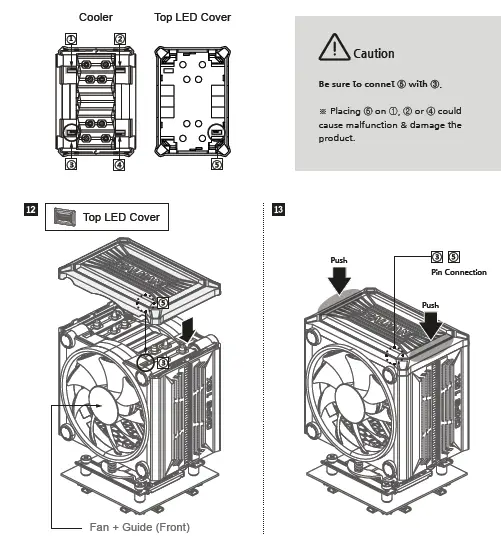

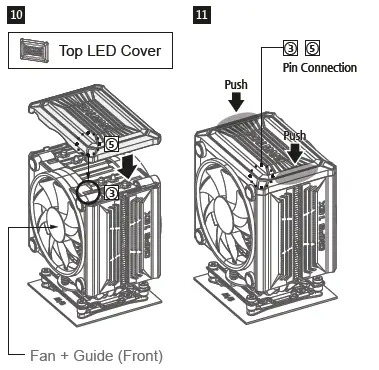

Caution
Be sure to connect could cause malfunction & damage the product.
LGA115X
Caution
Please check the direction of the fan before installation.
Caution
Please be cautious for the direction of AMD Guide installation.
Caution

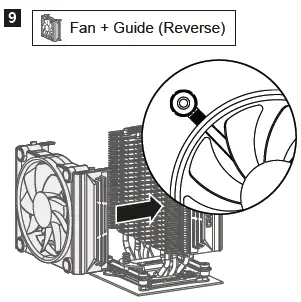

Please check the direction of the fan before installation.

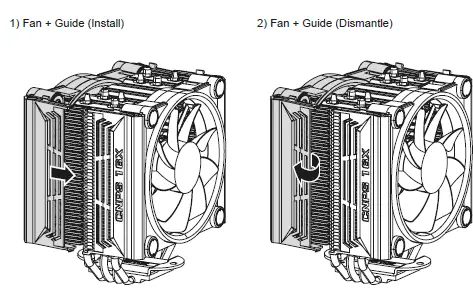

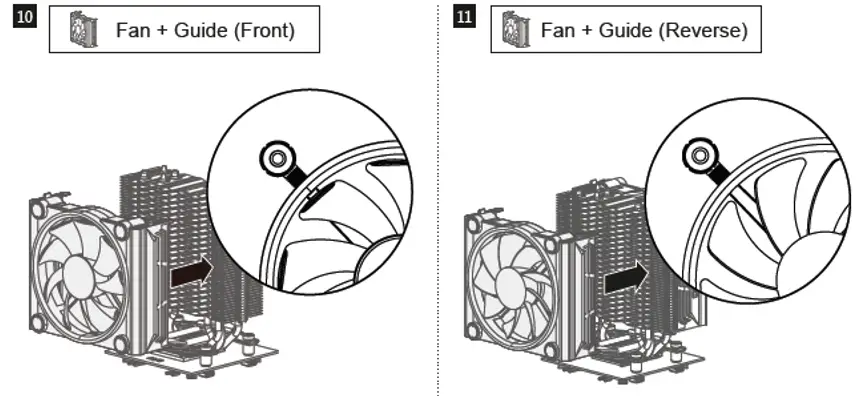

Caution
- Installation: align the fan guide on one side of the heatsink and lift the other side and slide it in.
- Dismantle: Lift the fan guide’s side cover and pull it carefully.

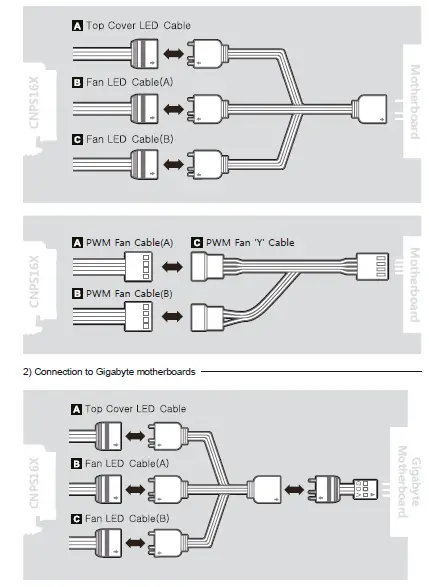

Cable Connection

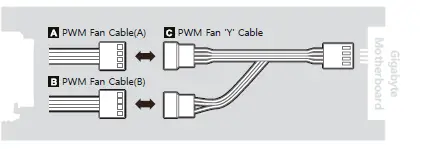

Connection to other motherboards
Fan Specifications
- Model : LF120
- Dimensions : 120 x 120 x 26(H)mm
- Fan Speed : 800 ~ 1,500 ±10% RPM
- Max Noise Level : 27 dB(A) ±10%
- Bearing Type : EBR Bearing
- Max Airflow : 49 CFM ±10%
- Max Air Pressure : 1.21mmH2O
- Pin Connector : 4-Pin (PWM),
- 3-Pin (Addressable)
- Rated Voltage : 5~12 V DC
- Life Span : 50,000 hours
- Model : LF120 (Reverse)
- Dimensions : 120 x 120 x 26(H)mm
- Fan Speed : 800 ~ 1,500 ±10% RPM
- Max Noise Level : 27 dB(A) ±10%
- Bearing Type : EBR Bearing
- Max Airflow : 49 CFM ±10%
- Max Air Pressure : 1.21mmH2O
- Pin Connector : 4-Pin (PWM),
- 3-Pin (Addressable)
- Rated Voltage : 5~12 V DC
- Life Span : 50,000 hours
