User’s Manual
Ver. 062421

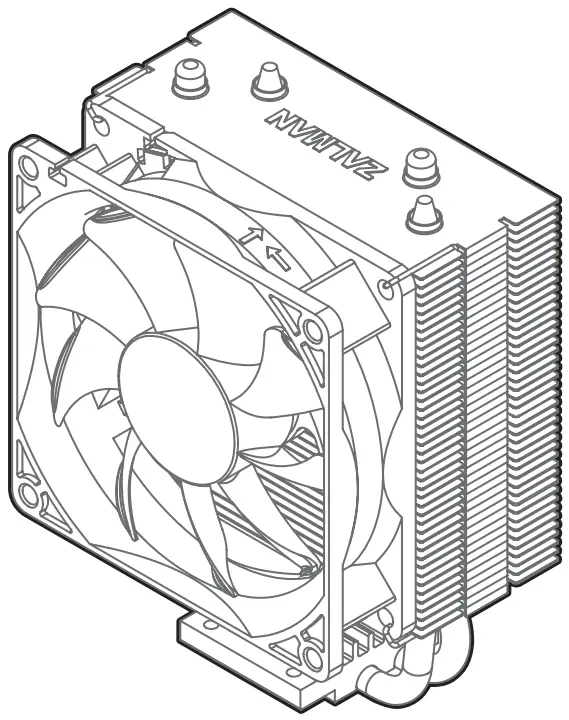

CNPS4X CPU Cooler, RGB LED Fans
Intel Socket LGA775/115X/1200 CPUs
AMD Socket AM4/AM3+/AM3/FM2+/FM2 CPUs
* To ensure safe and easy installation, please read the following precaution.
* Product design and specifications may be revised to improve quality and performance without notice.
Precautions
- Avoid tempering with objects or hands into the fan while it is in operation to prevent product damage and injuries.
- Do not eat the thermal grease, and avoid its contact with skin and eyes. If contact is made with skin, wash off with water. If irritation persists, seek medical attention.
- To prevent possible injuries, gloves must be worn while handling this product.
- Excessive force exerted on the fan may cause damage to the fan and/or system.
- Use and keep products away from the reach of children.
- Check the components list and condition of the product before installation. If any problem is found, contact the retailer to obtain a replacement.
- Our company assumes no responsibility for any problem that occurs due to the use of the product for purposes other than its designated purposes and/or the carelessness of the consumer.
- Zalman Tech Co., Ltd. Is not responsible for any damages due to overclocking CPU such as CPU and system components.
- During the transportation of the system, the cooler must be removed. Zalman Tech Co., Ltd. is not responsible for any damages that occur during the transport of a system.
- Product design and specifications may be changed to improve quality and performance without notice.
Technical characteristics
| Model | CNPS4X | |
| Dimensions | 95(L) x 65(W) x 132(H)mm | |
| Weight | 360g | |
| Materials | Pure Copper, Pure Aluminum | |
| Fan | Dimensions | 92 x 92 x 25(H)mm |
| Speed | 1,000 ∼ 2,000 RPM ±10% | |
| Max Noise Level | 28.0 dB(A) ±10% | |
| Bearing Type | EBR Bearing | |
| Control Method | PWM Control | |
| Max Airflow | 44 CFM | |
| Connector | 4-Pin | |
| Rated Voltage | 12 V DC | |
| Sockets | Intel | LGA775/115X/1200 CPUs |
| AMD | AM4/AM3+/AM3/FM2+/FM2 CPUs | |

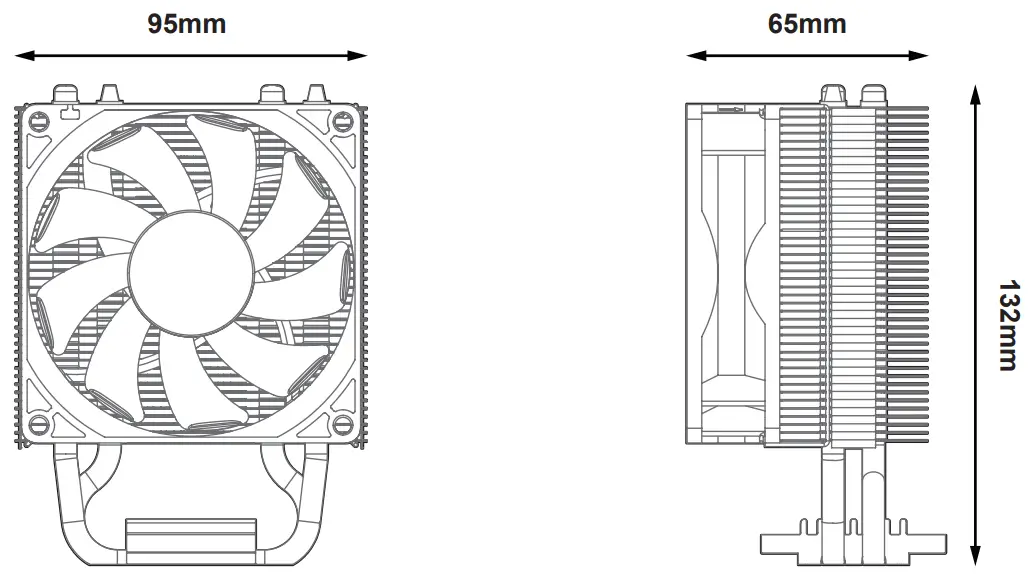

Dimensions

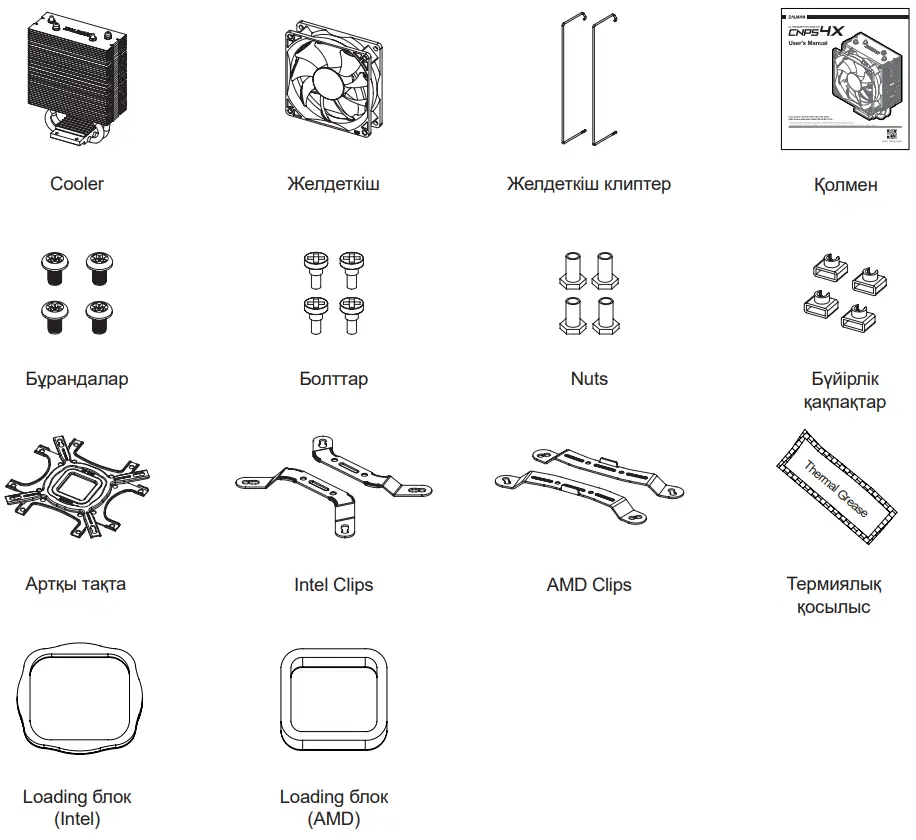

Components
Common Components

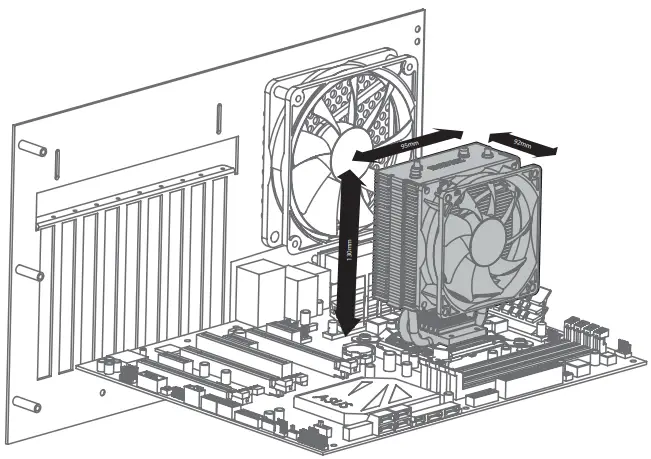

Installation Requirements

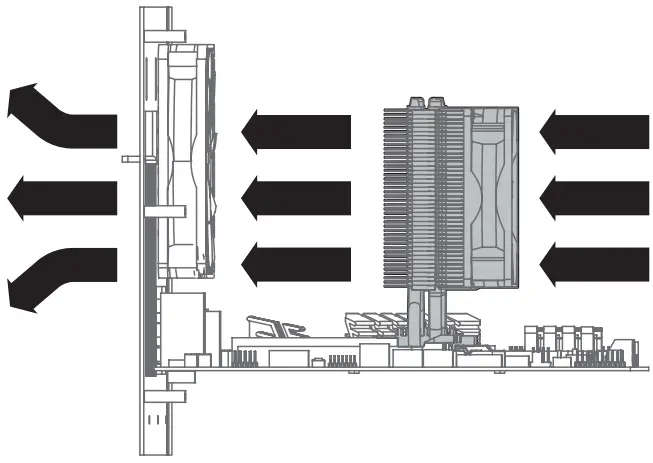

| Cooler Space Requirements | Cooler Orientation |
 |  |
※ Pay attention!
The orientation of the cooler may vary depending on the model of the motherboard.

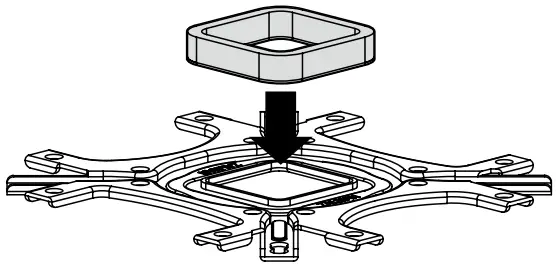

INTEL, AMD Loading Block
| Intel | AMD |
|
|
 |  |
Loading block (Intel)

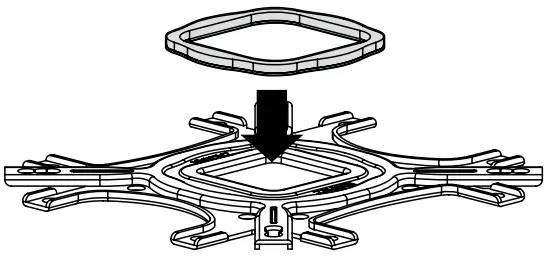

Loading block (AMD)※ Pay attention!
Remove the protective film from the plate before installation

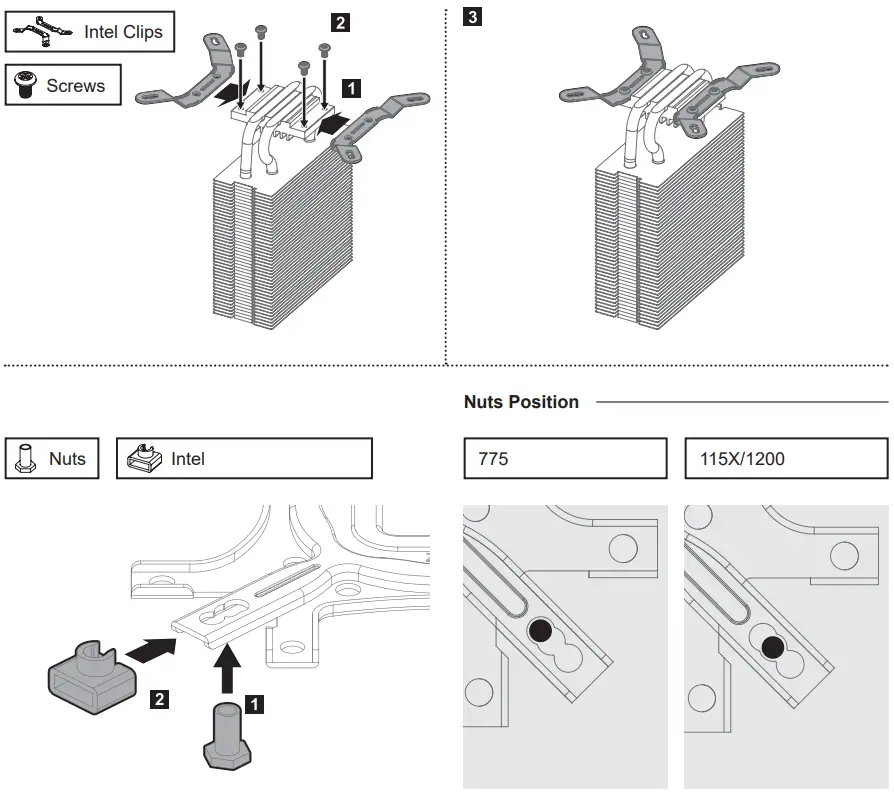

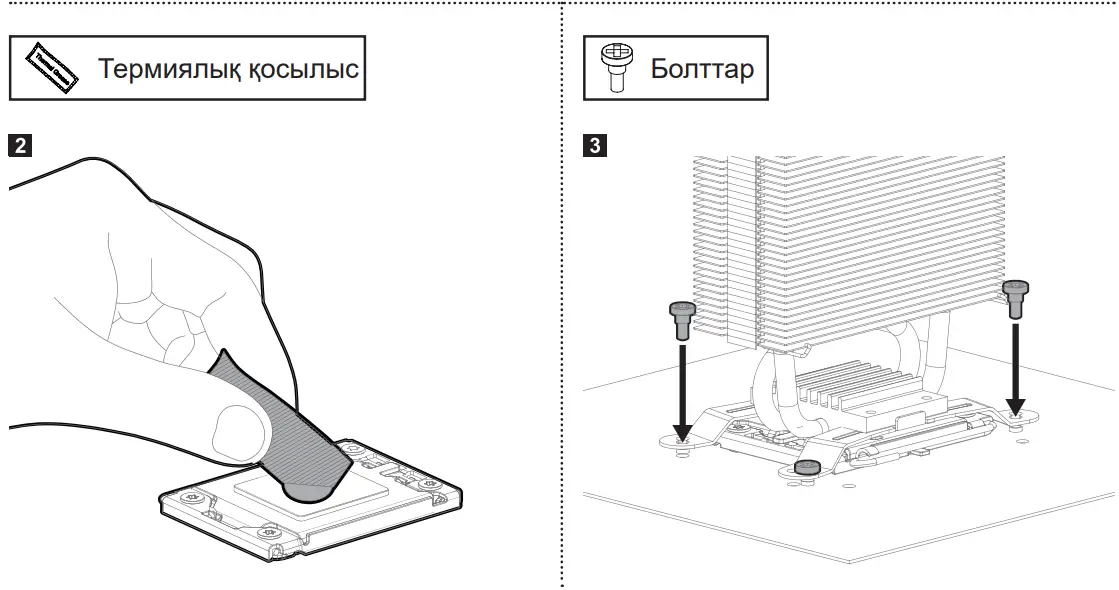

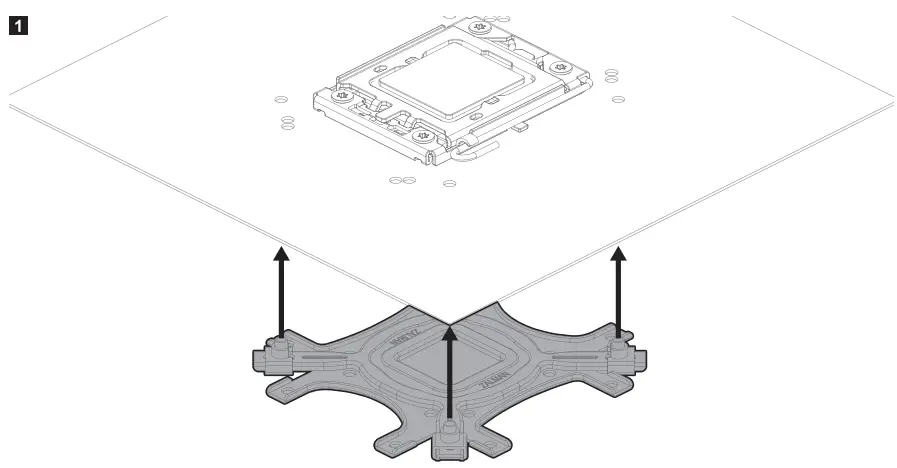

Intel Users
1) LGA775/115X/1200

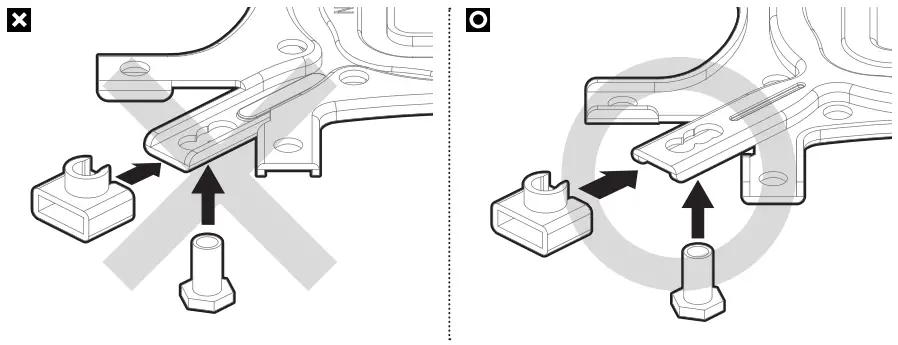

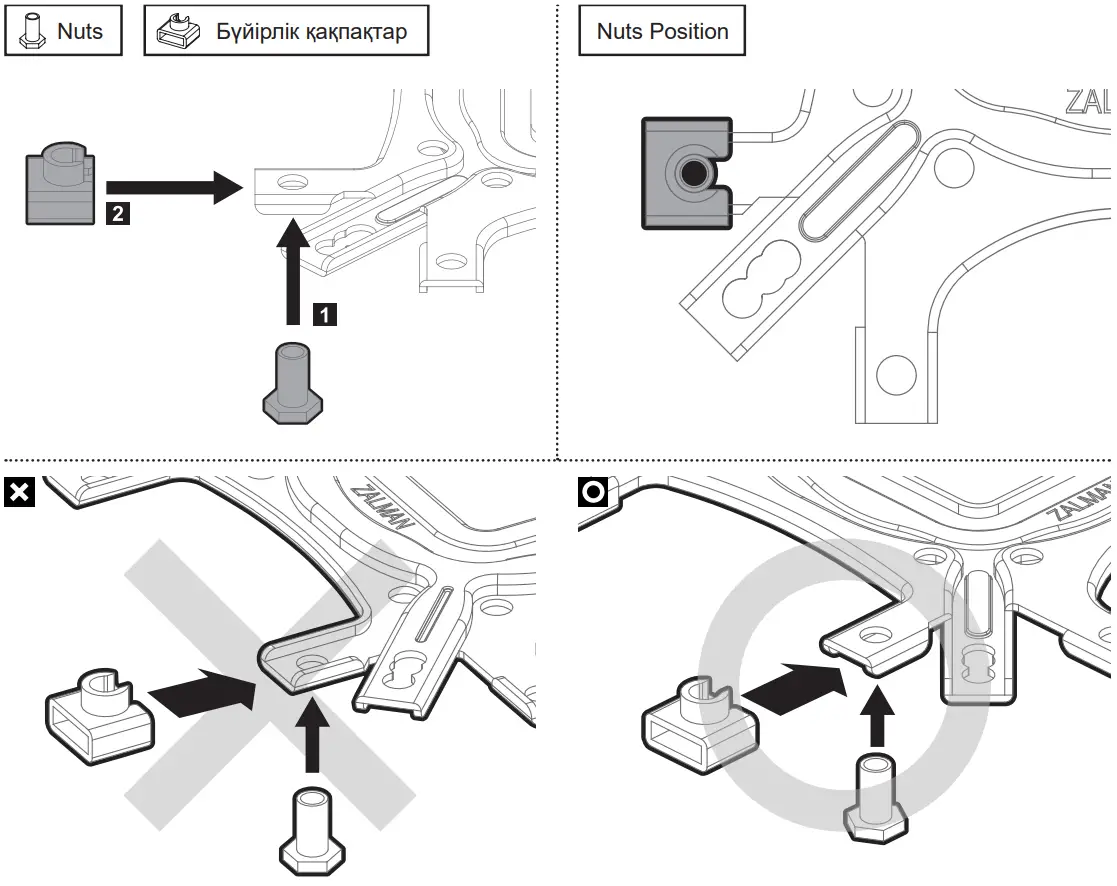

※ Pay attention!
Note the orientation of the lugs and side covers.

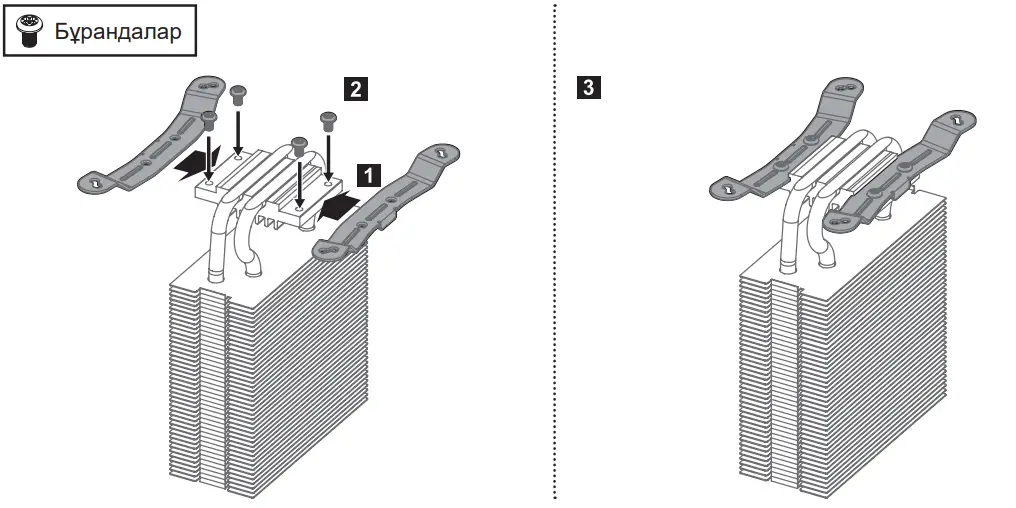

2. AMD Users
1) AM4/AM3+/AM3/FM2+/FM2
※ Pay attention!
Note the orientation of the lugs and side covers.

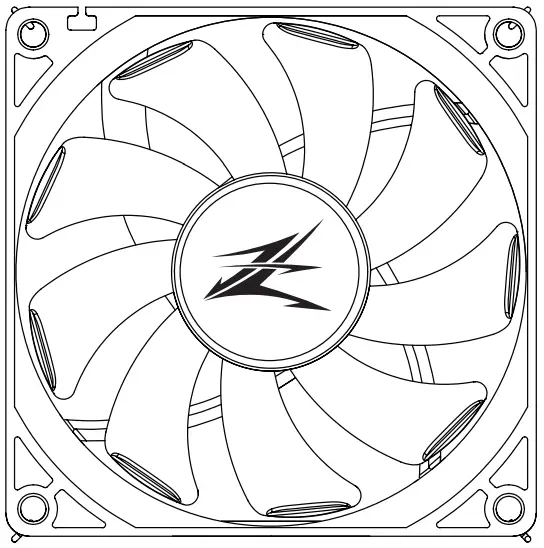

3. Fan Specifications
Dimensions : 92 x 92 x 25(H)mm
Speed : 1,000 ~ 2,000 RPM ±10%
Max Noise Level : 28.0 dB(A) ±10%
Bearing Type: EBR Bearing
Control Method: PWM Control
Max Airflow: 44 CFM
Connector: 4-Pin
Rated Voltage: 12 V DC
This mark, designed by Zalman, indicates product compliance with the European Union’s RoHS (Restriction of Hazardous Substances) Directive.
Disposal of Old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems)
