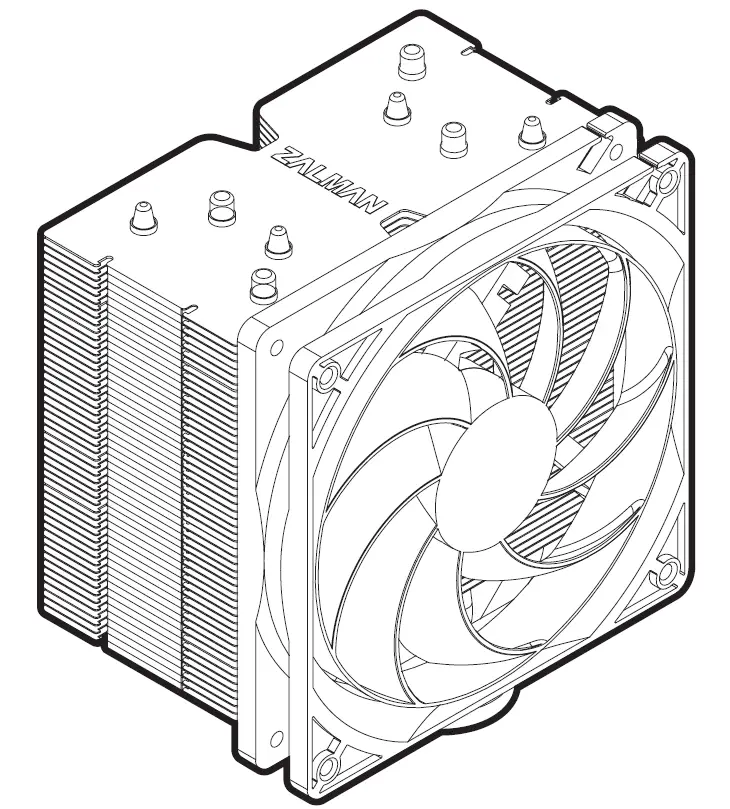

ZALMAN CNPS10X Performa Black, Extreme Performance CPU Cooler
- To ensure safe and easy installation, please read the following precaution.
- Product design and specifications may be revised to improve quality and performance without notice.
Precautions
- Avoid tempering with objects or hands into the fan while it is in operation to prevent product damage and injuries.
- Do not eat the thermal grease, and avoid its contact with skin and eyes. If contact is made with skin, wash off with water. If irritation persists, seek medical attention.
- To prevent possible injuries, gloves must be worn while handling this product.
- Excessive force exerted on the fan may cause damage to the fan and/or system.
- Use and keep product away from reach of children.
- Check the components list and condition of the product before installation. If any problem is found, contact the retailer to obtain a replacement.
- Our company assumes no responsibility for any problem that occurs due to the use of the product for purposes other than its designated purposes and/or the carelessness of the consumer.
- Zalman Tech Co., Ltd. Is not responsible for any damages due to overclocking CPU such as, CPU and system components.
- During transportation of the system, the cooler must be removed. Zalman Tech Co., Ltd. is not responsible for any damages that occur during the transport of a system.
- Product design and specifications may be changed to improve quality and performance without notice.
TECHNICAL DATA
| Model | CNPS10X Performa Black | |
| Materials | Pure Copper, Pure Aluminum | |

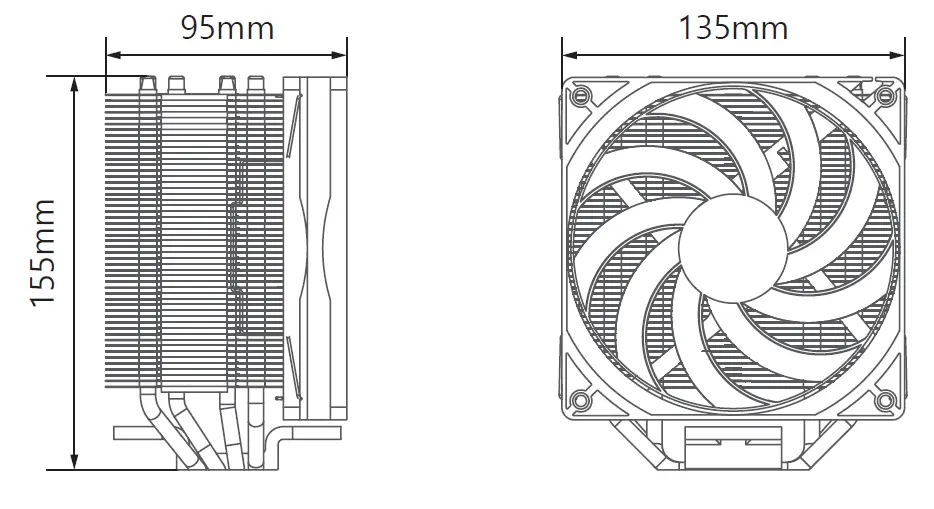

| Dimensions | 135(L) x 95(W) x 155(H)mm | |
| Weight | 860g | |
| Heat Dissipation Area | 9,271㎠ | |
|
Fan(s) | Dimensions | 135 x 135 x 25(H)mm |
| Bearing Type | EBR Bearing | |
| Fan Speed | 700~1,500RPM ±10% | |
| Max Noise Level | 27dB(A) ±10% | |
| Max Airflow | 75.16CFM | |
| Max Air Pressure | 1.35mmH2O | |
| Rated Voltage | 12V DC | |
| Thermal Compound (ZM-STC8) | Volume / Net Weight | 1g |
| Temperature Range | -40℃ ~ +150℃ (-40℉ ~ +302℉) | |

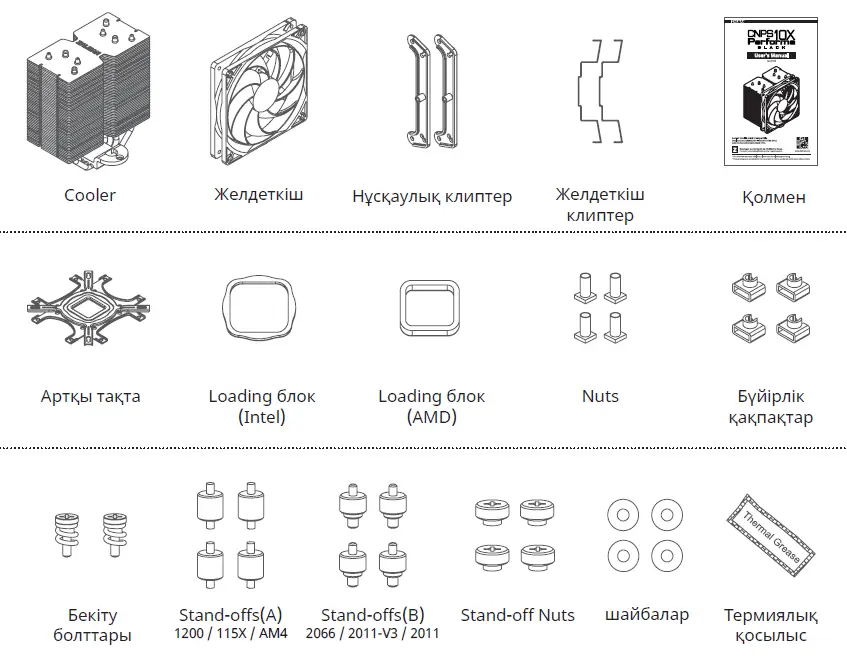

IN THE BOX

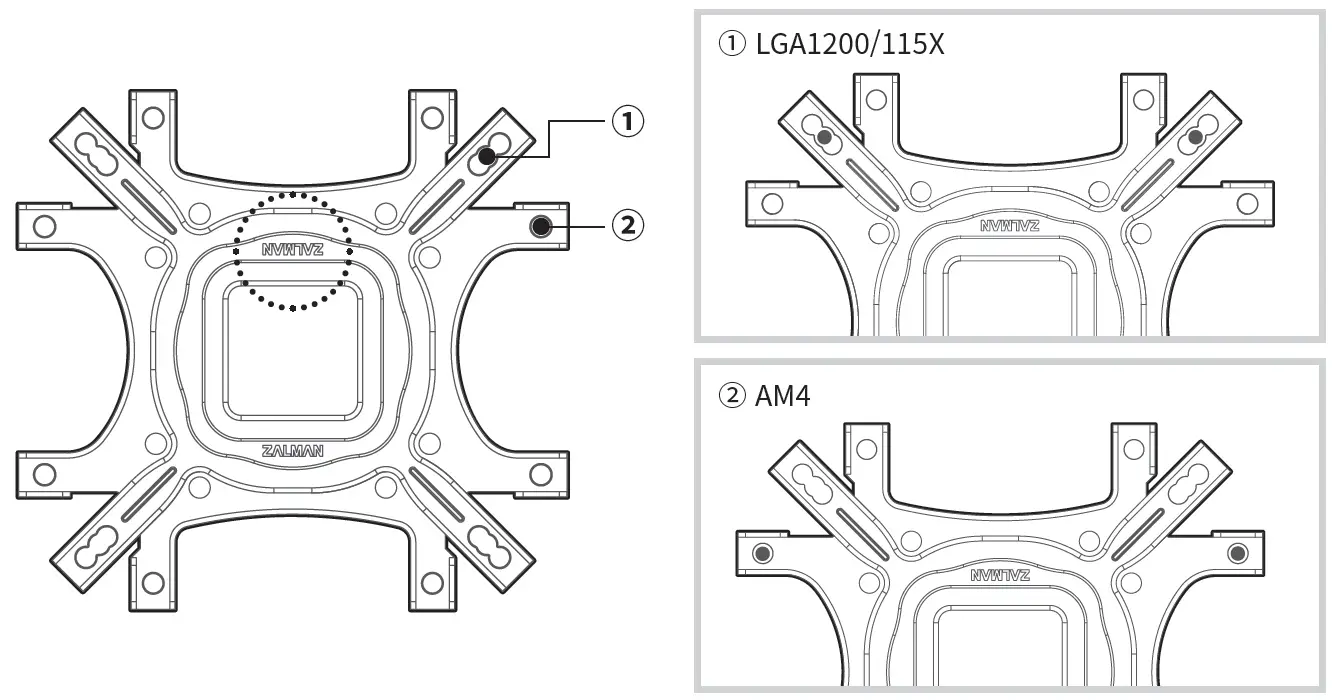

INTEL, AMD Backplate

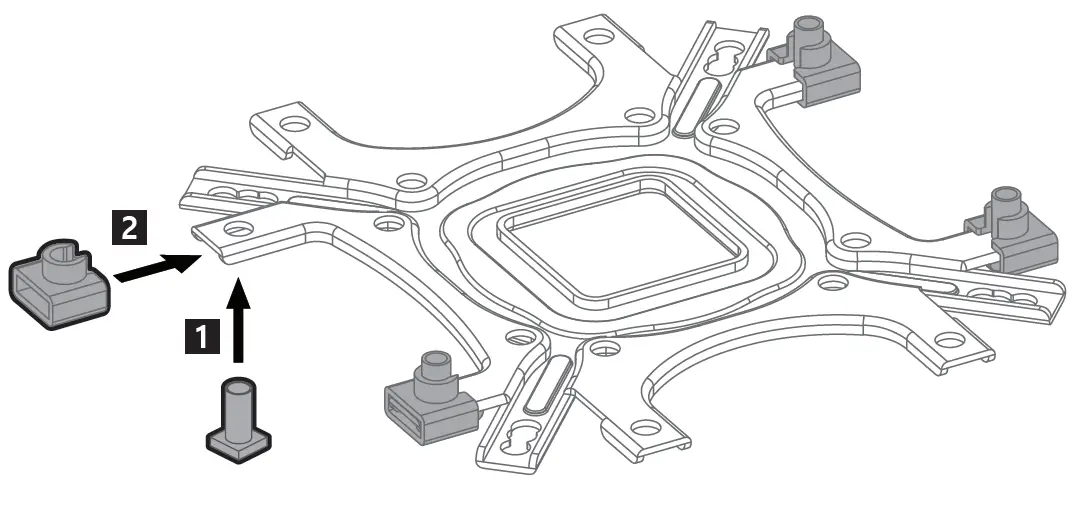

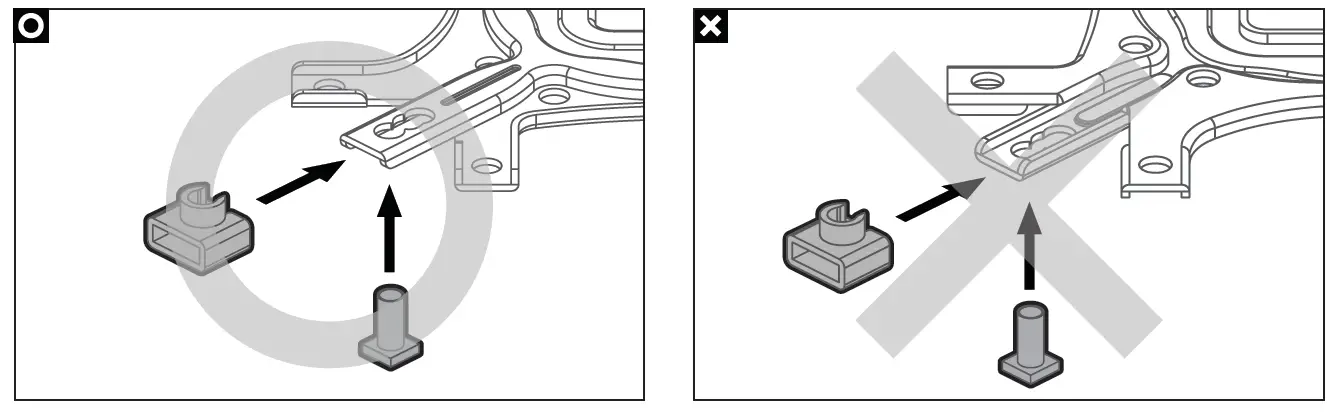

Nuts Position
AM4

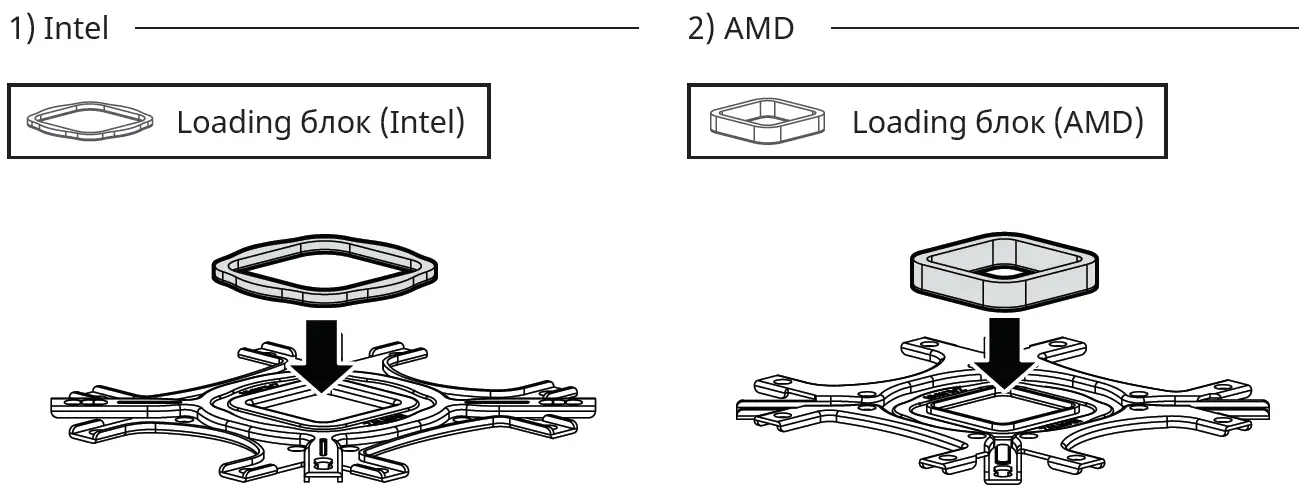

INTEL, AMD Loading Block
Intel Users

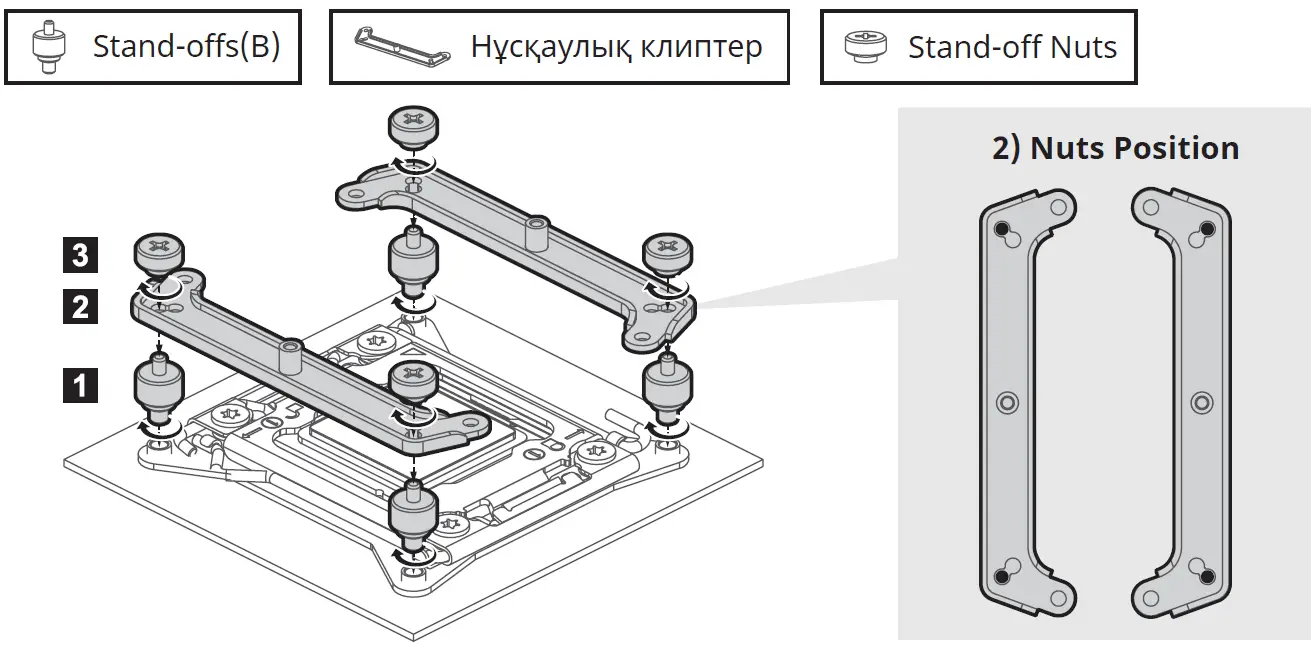

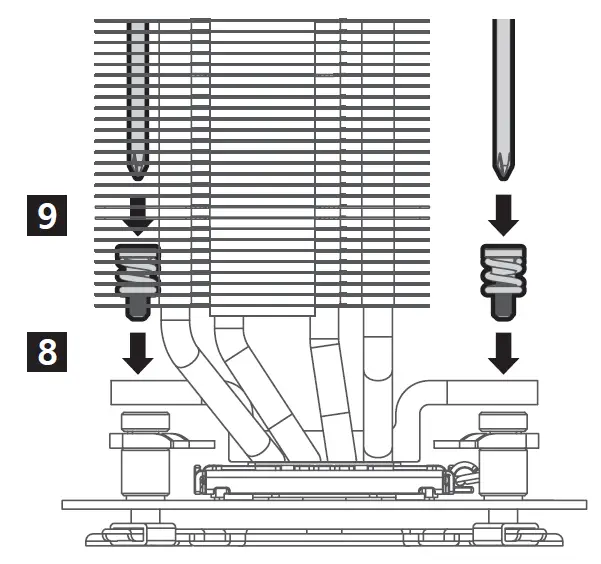

LGA2066 / 2011-V3 / 2011

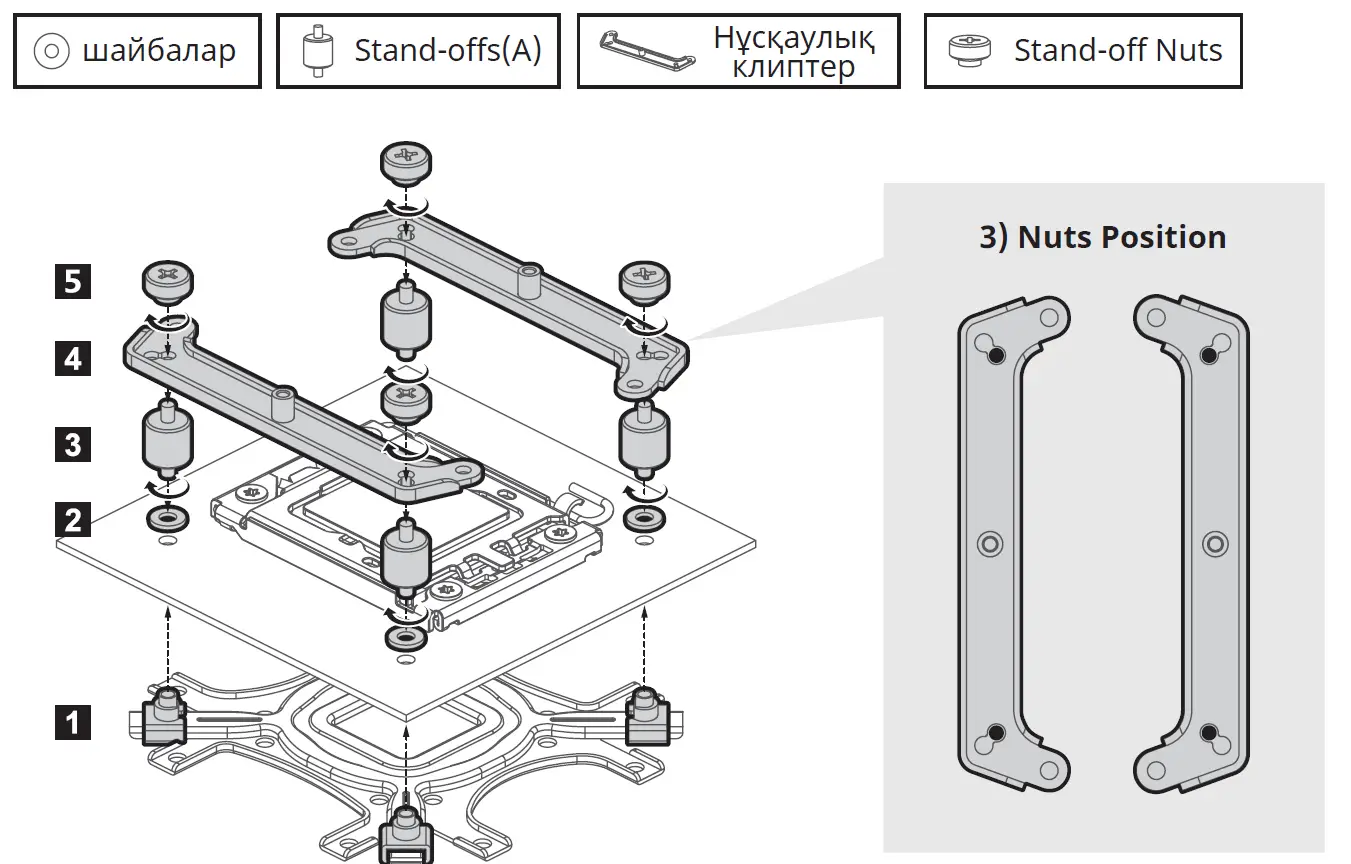

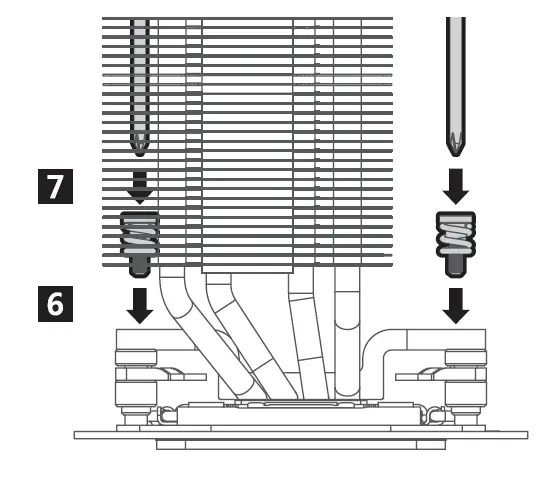

LGA1200/115X
AMD Users

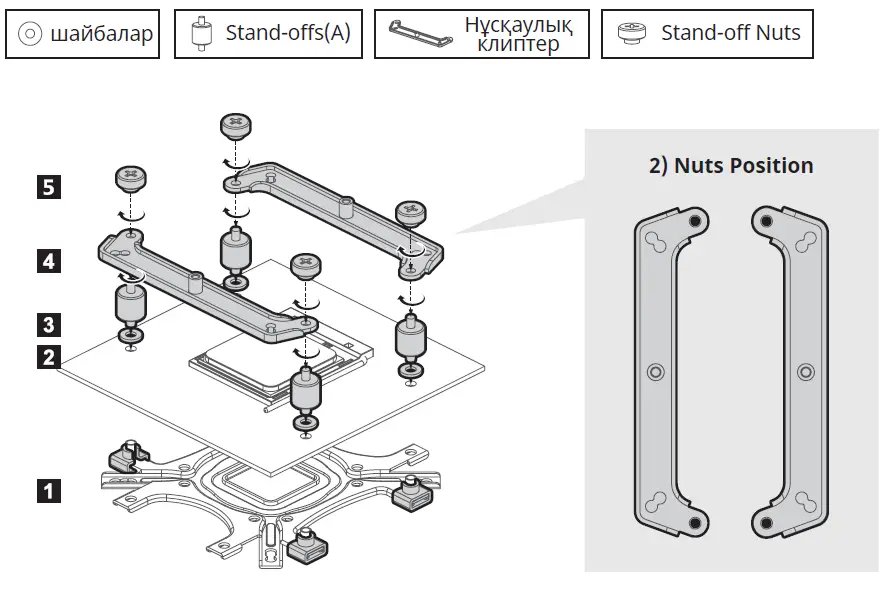

AM4

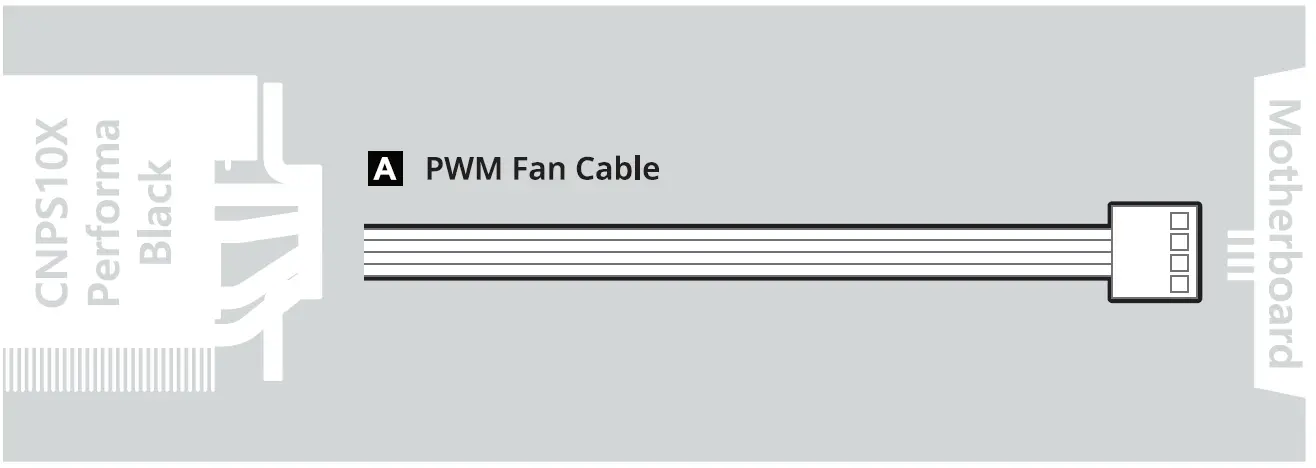

Cable Connection

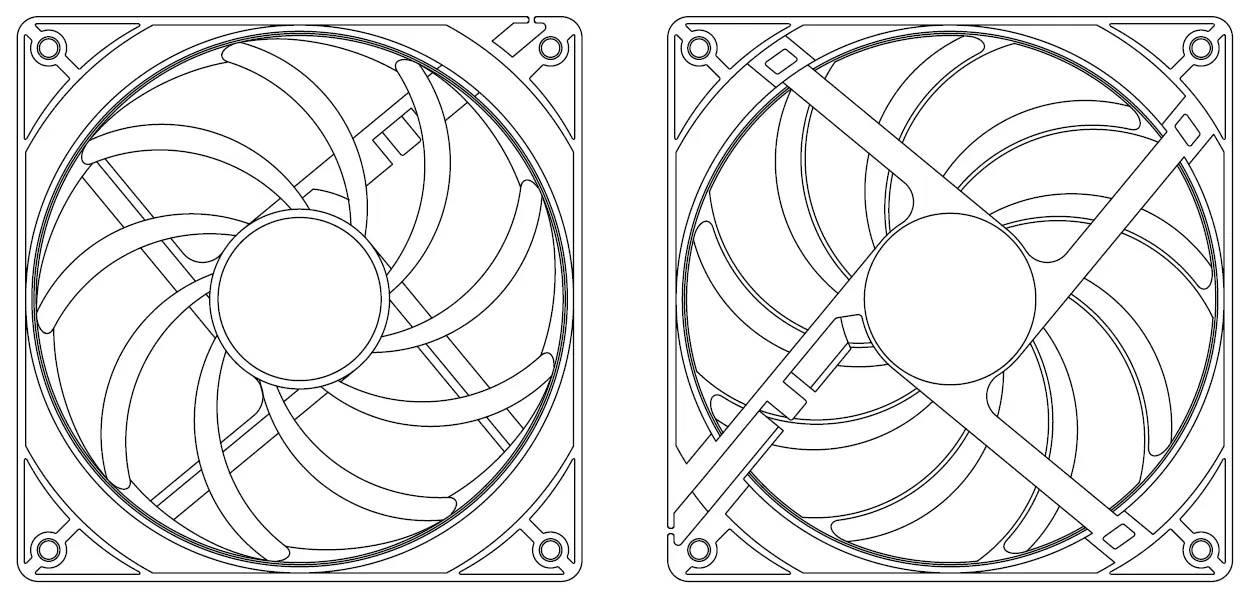

Fan Specifications
| Dimensions | 135 x 135 x 25(H)mm |
| Bearing Type | EBR Bearing |
| Speed | 700~1,500RPM ±10% |
| Max. Noise Level | 27dB(A) ±10% |
| Max. Air Flow | 75.16CFM |
| Max. Air Pressure | 1.35mmH2O |
| Control Method | PWM Control |
| Life Span | 50,000 hours |
