ZALMAN ZM-NS3000 High Performance Laptop Cooling Stand User Manual
Precautions
- Check the components list and condition of the product before use.
If any problem is found, contact the retailer to obtain a replacement. - Zalman Tech Co.,Ltd. Is not responsible for any damages due to improper product use.
- Excessive force exerted on the product may cause critical damage to the product and/or system.
- To prevent damages, do not allow objects to obstruct fan rotation.
- To prevent shorting and/or damage of the fans, do not spill liquids on the unit.
- Do not obstruct the air inlets.
- Use on a flat and vibration – free surface.
- Do not use in a humid or dusty environment, under direct sunlight, or other heat sources.
- Please seal the unit airtight when storing for prolonged periods to prevent build up in the inlets.
- Product designs and specifications may be revised without prior notification to improve quality and performance.
Specifications
| Model | ZM-NS3000 | |
| Weight | 0.9 kg | |
| Dimensions | 375 x 283 x 56(H)mm | |
| Compatible Size | Up to 17” | |
| Material | Plastic, Steel, Rubber | |
| USB Port | USB 2.0 Hub 3EA, USB Type-C DATA 1EA, Power 1EA | |
| Input Voltage | 5V(USB Powered) | |
| Fan | Bearing Type | Sleeve Bearing |
| Size | 200mm | |
| Speed | 760rpm±10% | |
| Controller | 3 Level Speed/LED Control | |

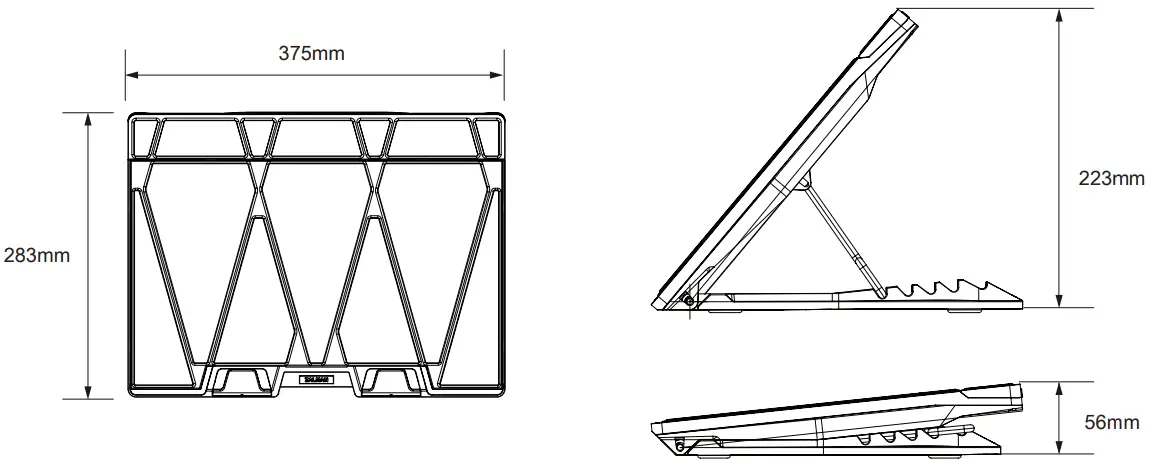

Dimension

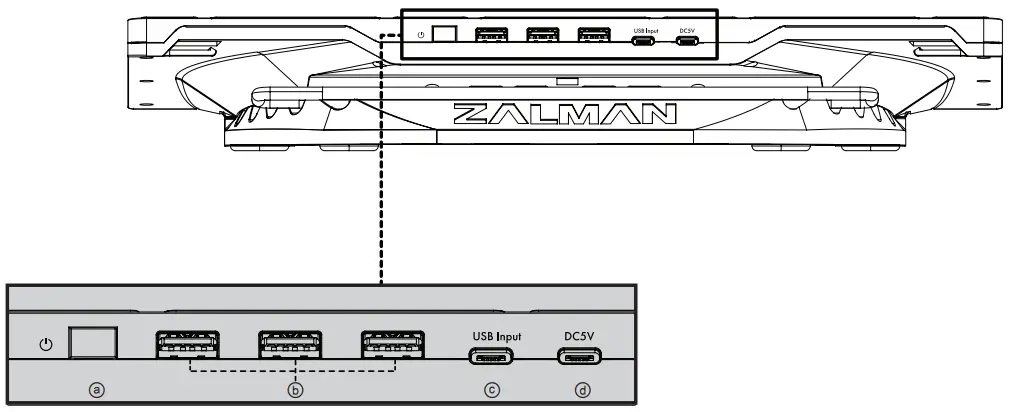

Controls and Features
| ⓐ | Power / Fan Controller |
| ⓑ | USB Hub |
| ⓒ | DATA Input |
| ⓓ | Support Power |
Components

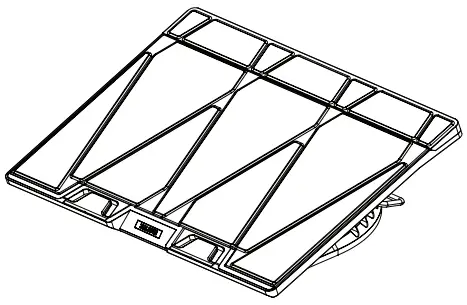

- NS3000
- Manual

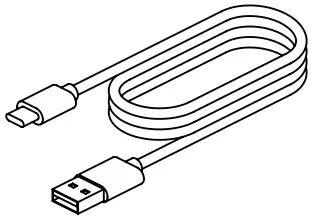

- USB C to A DATA Cable

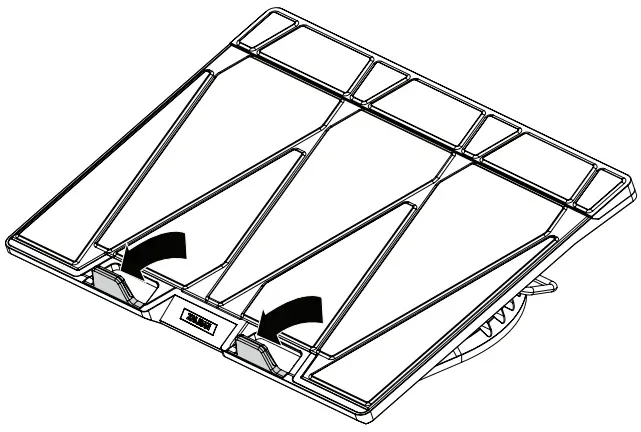

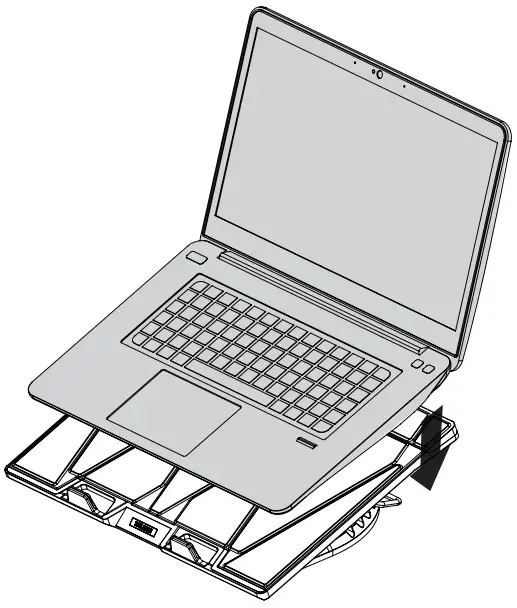

Product Detail

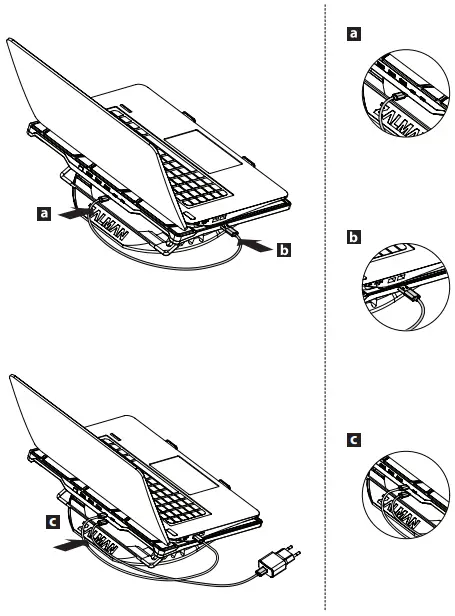

Cable Holder
Certification
Developed and designed by ZALMAN in koera
The product is protected by ZALMAN’s pending or registered parents.
- To ensure safe and easy installation, please read the following precaution.
- Product design and specifications may be revised to improve quality and performance without notice.
Zalman Tech Co.,Ltd.
#2612, Obiztower, 126, Beolmal-ro, Dongan-gu, Anyang-si,
Gyeonggi-do,14057, Korea
zalman.com
zalmansvc.com
