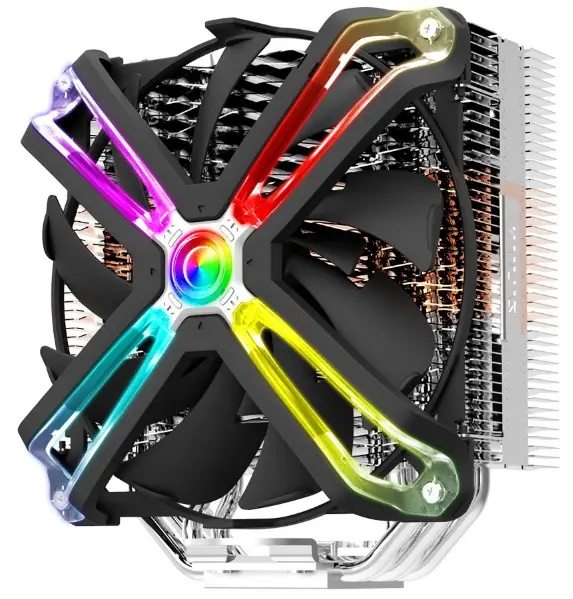

ZALMAN CNPS17X High Performance CPU Cooler
Developed and designed by ZALMAN in Korea.
This product is protected by ZALMAN’s pending or registered patents.
- To ensure safe and easy installation, please read the following precaution.
- Product design and specifications may be revised to improve quality and performance without notice.
Precautions
- Avoid tempering with objects or hands into the fan while it is in operation to prevent product damage and injuries.
- Do not eat the thermal grease, and avoid its contact with skin and eyes. If contact is made with skin, wash off with water. If irritation persists, seek medical attention.
- To prevent possible injuries, gloves must be worn while handling this product.
- The excessive force exerted on the fan may cause damage to the fan and/or system.
- Use and keep product away from reach of children.
- Check the components list and condition of the product before installation. If any problem is found, contact the retailer to obtain a replacement.
- Our company assumes no responsibility for any problem that occurs due to the use of the product for purposes other than its designated purposes and/or the carelessness of the consumer.
- Zalman Tech Co., Ltd. Is not responsible for any damages due to overclocking CPU such as, CPU and system components.
- During transportation of the system, the cooler must be removed. Zalman Tech Co., Ltd. is not responsible for any damages that occur during the transport of a system.
- Product design and specifications may be changed to improve quality and performance without notice.
CHARACTERS
| Model | CNPS17X | |
| Materials | Pure Copper, Pure Aluminum | |
| Dimensions | 140(L) x 100(W) x 160(H)mm | |
| Weight | 700g | |
| Heat Dissipation Area | 6,243㎠ | |
| Fan(s) | Dimensions | 140 x 140 x 26(H)mm |
| Bearing Type | FDB(Fluid Dynamic Bearing) | |
| Fan Speed | 800~1,500 RPM ±10% | |
| Max Noise Level | 29 dB(A) ±10% | |
| Max Airflow | 61 CFM | |
| Max Air Pressure | 1.1mmH2O | |
| Rated Voltage | 12 V DC | |
| Thermal Compound (ZM-STC8) | Capacity | 1.5g |
| Temperature Range | -40℃ ~ +150℃ (-40℉ ~ +302℉) | |
DIMENSION

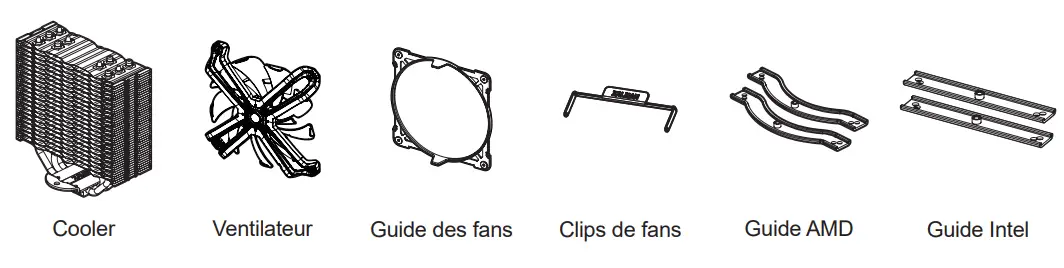

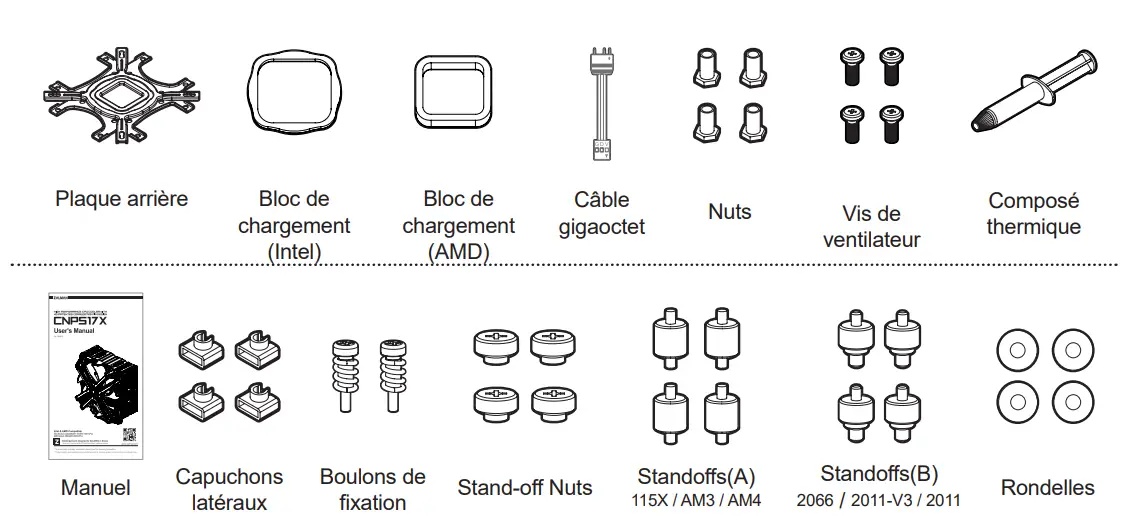

Composants

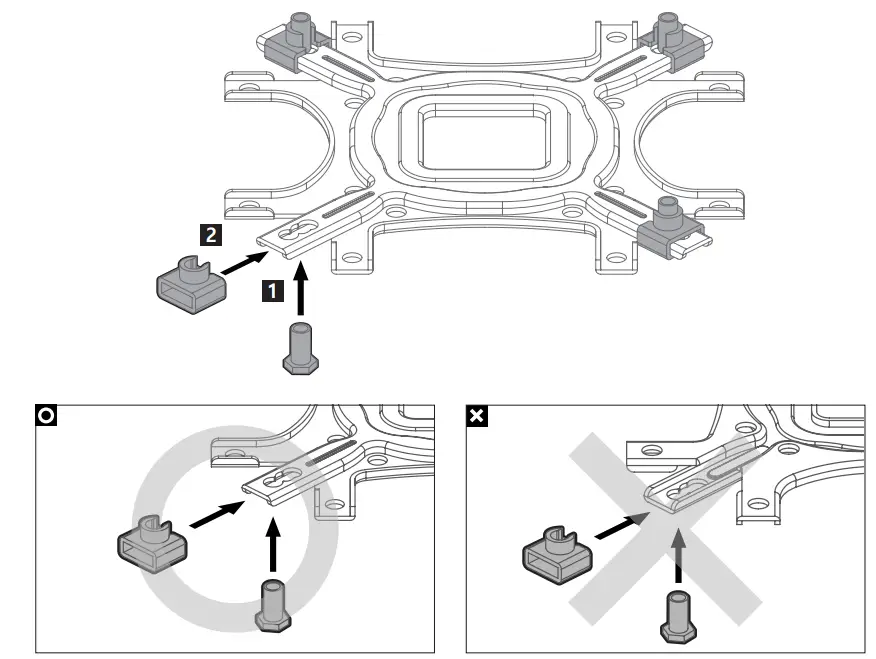

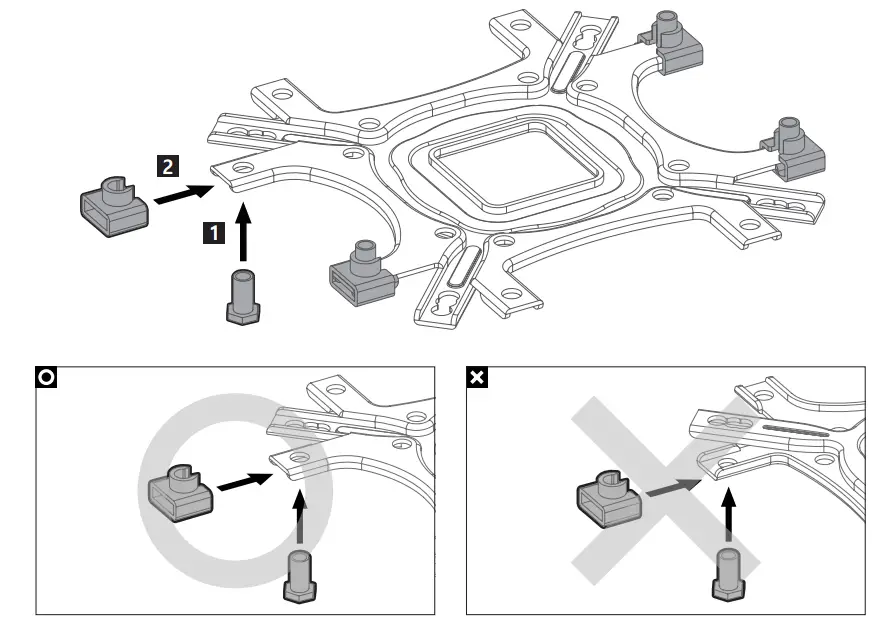

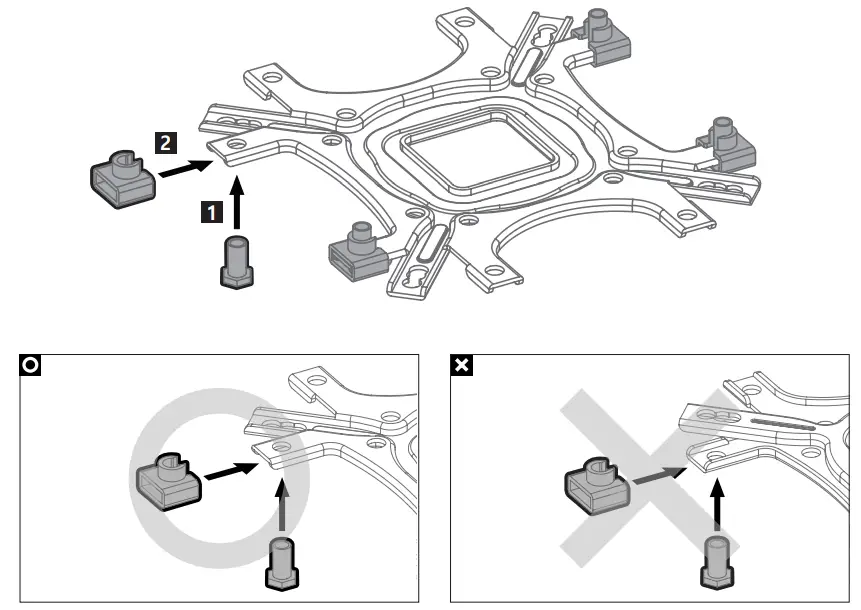

INTEL, AMD Backplate

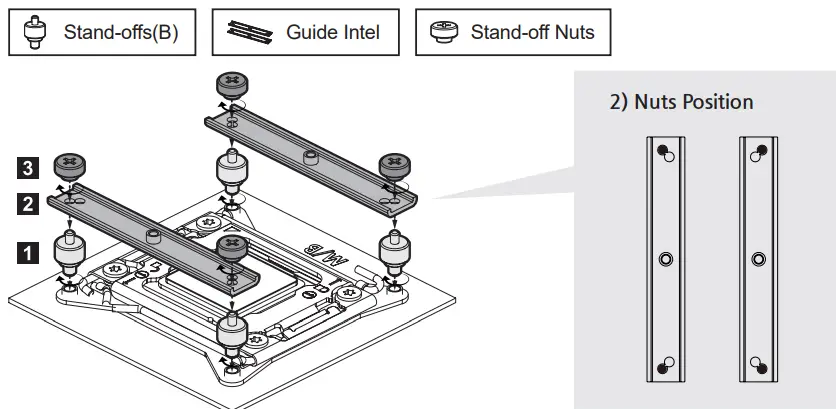

Nuts Position
115X
AM3

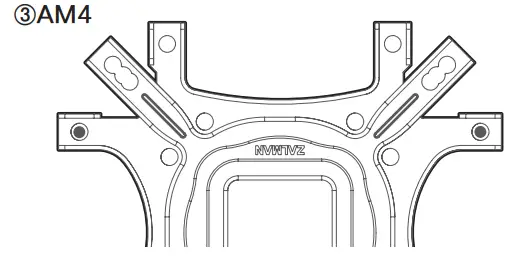

AM4
INTEL, AMD Loading Block
Intel
AMD

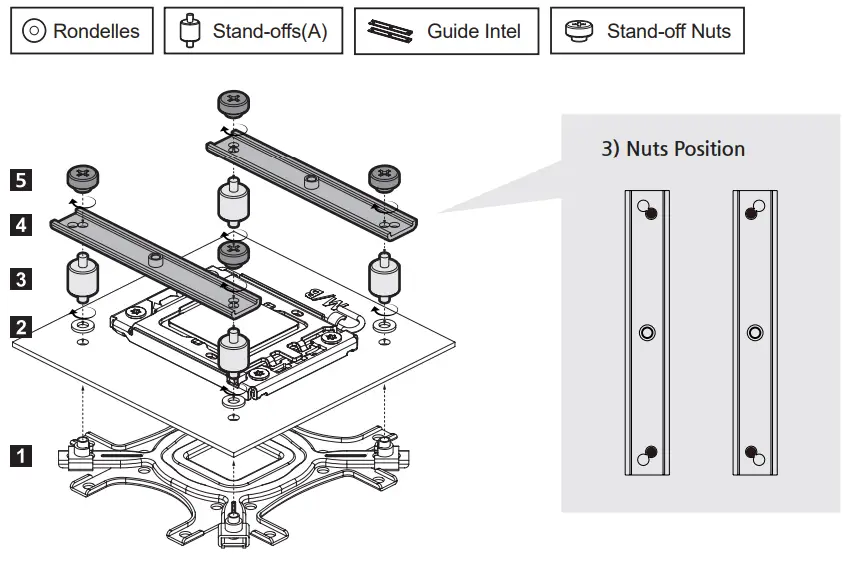

Intel Users
LGA2066 / 2011-V3 / 2011
115X

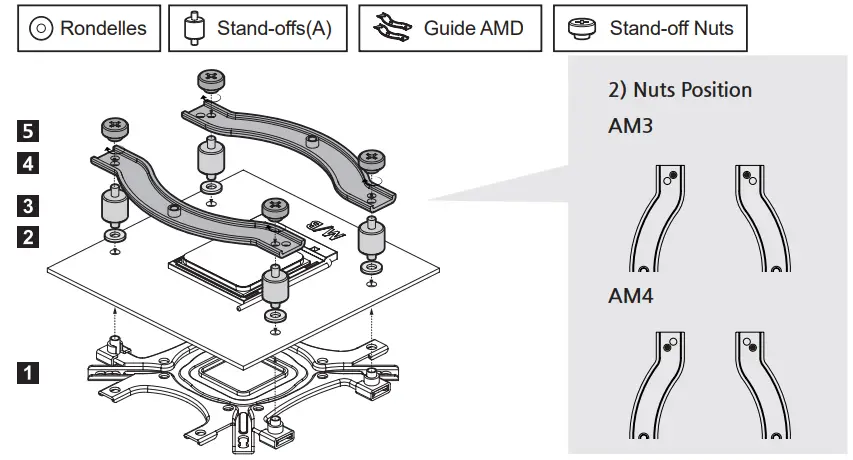

AMD Users
AM3 / AM4

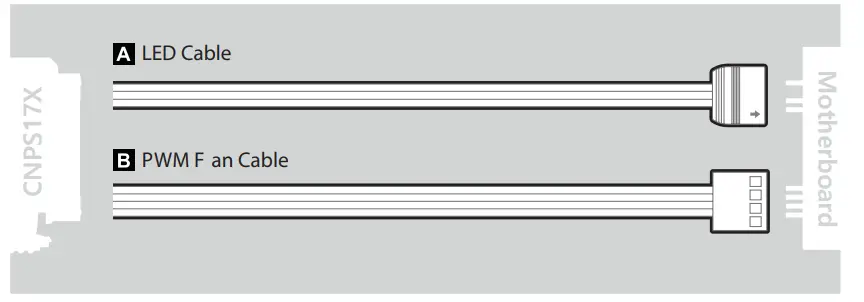

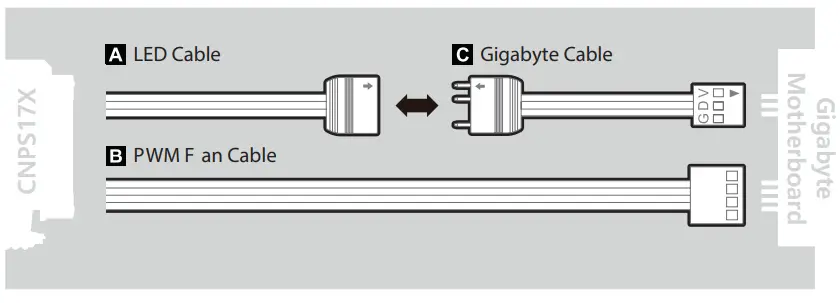

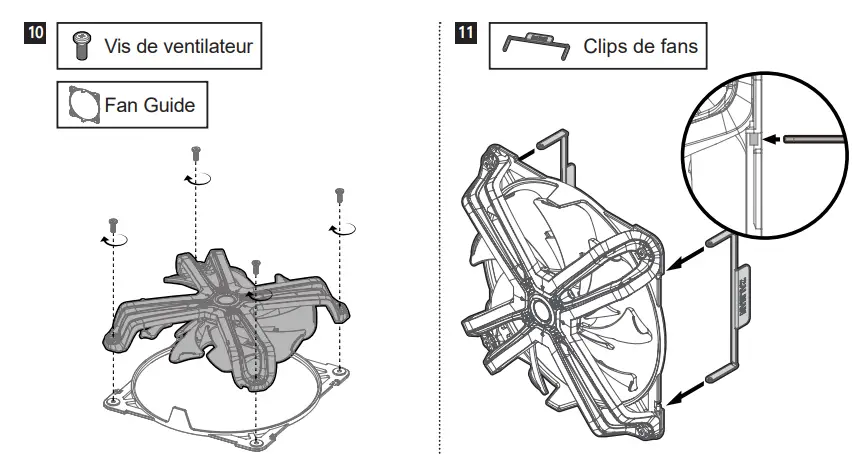

Cable Connection

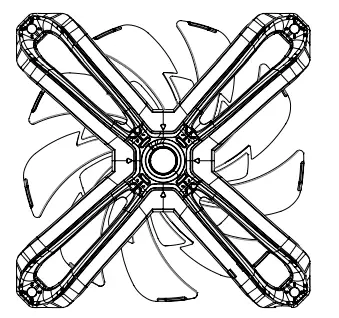

Fan Specifications
- Dimensions : 140 x 140 x 26(H)mm
- Speed : 800 ~ 1,500 ±10% RPM
- Max Noise Level: 29 dB(A) ±10%
- Bearing Type: FDB (Fluid Dynamic Bearing)
Max Airflow: 61 CFM ±10% - Pin Connector: 4-Pin (PWM), 3-Pin (Addressable)
- Rated Voltage: 5~12 V DC
Certification
This mark, designed by Zalman, indicates product compliance with the European Union’s RoHS Restriction of Hazardous Substances) Directive.
Disposal of Old Electrical & Electronic Equipment
(Applicable in the European Union and other European countries with separate collection systems)
