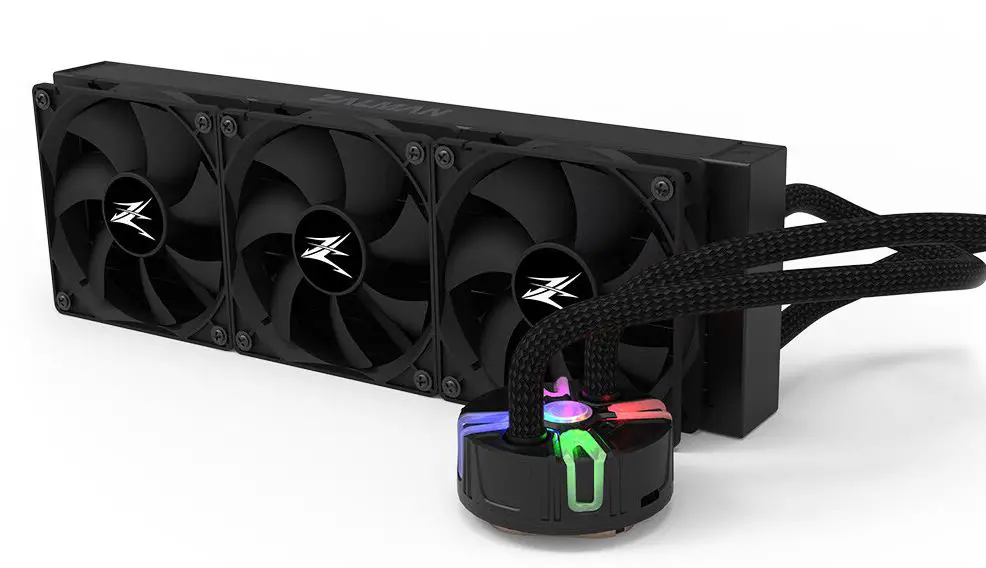

ZALMAN Z24 Reserator5 All-in-One Liquid CPU Cooler
- To ensure safe and easy installation, please read the following precaution.
- Product design and specifications may be revised to improve quality and performance without notice.
Precautions
- Avoid tampering with objects or hands into the fan while it is in operation to prevent product damage and injuries.
- Do not eat the thermal grease, and avoid its contact with skin and eyes. If contact is made with skin, wash off with water. If irritation persists, seek medical attention.
- To prevent possible injuries, gloves must be worn while handling this product.
- The excessive force exerted on the fan may cause damage to the fan and/or system.
- Use and keep products away from the reach of children.
- Check the components list and condition of the product before installation. If any problem is found, contact the retailer to obtain a replacement.
- Our company assumes no responsibility for any problem that occurs due to the use of the product for purposes other than its designated purposes and/or the carelessness of the consumer.
- Zalman Tech Co., Ltd. Is not responsible for any damages due to overclocking CPU such as, CPU and system components.
- During the transportation of the system, the cooler must be removed. Zalman Tech Co., Ltd. is not responsible for any damages that occur during the transport of a system.
- Product design and specifications may be changed to improve quality and performance without notice.
Specifications
| Model | Reserator 5 (Z24/Z36) | ||
|
Pump | Material | PPS, PC, Pure Copper | |
| Dimensions | 82(L) x 82(W) x 40(H)mm | ||
| Speed | 1,000~2,100RPM±10% | ||
| Control Method | PWM Control LED : Addressable RGB (3-Pin 5V ) | ||
| Radiator | Materials | Aluminum | |
| Dimensions | Z24 | 120 X 278 X 27(H)mm | |
| Z36 | 120 X 397 X 27(H)mm | ||
|
Fan | Dimensions | 120 X 120 X 25(H)mm | |
| Bearing Type | EBR Bearing | ||
| Speed | 800~2,000RPM±10% | ||
| Max. Noise Level | 37dB(A)±10% | ||
| Max. Air Flow | 77.37CFM | ||
| Max. Air Pressure | 2.92mmH₂O | ||
| Control Method | PWM Control | ||
| Life span | 50,000hours | ||
| Thermal compound (ZM-STC8) | Volume/Net Weight | 1.5g | |
| Temperature Range | -40℃ ~ +150℃ (-40℉ ~ +302℉) | ||

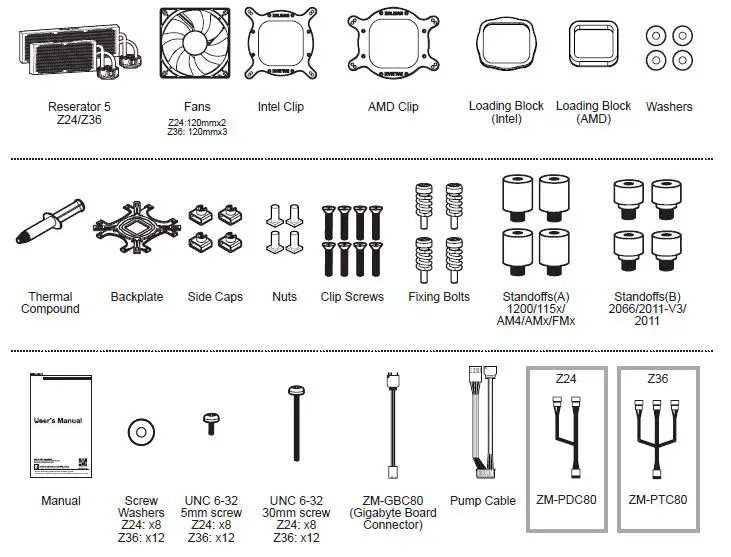

Components

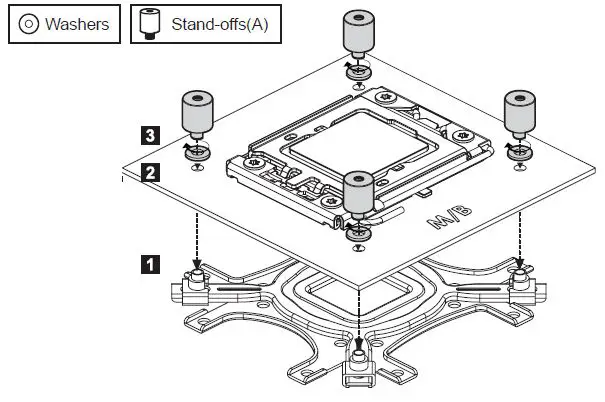

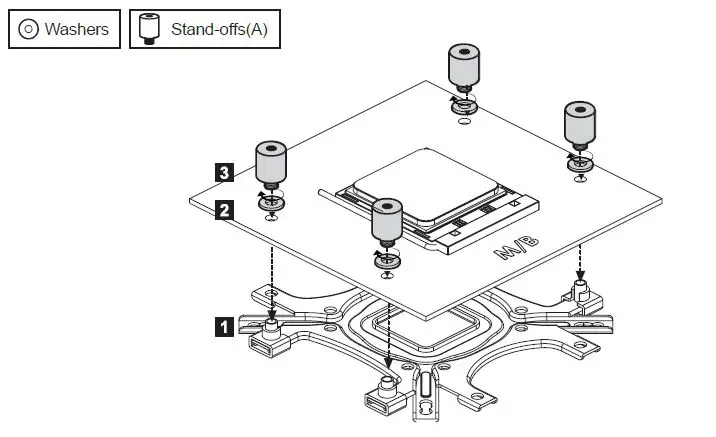

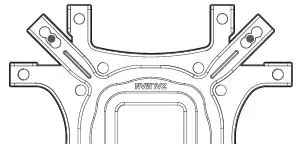

INTEL, AMD Backplate

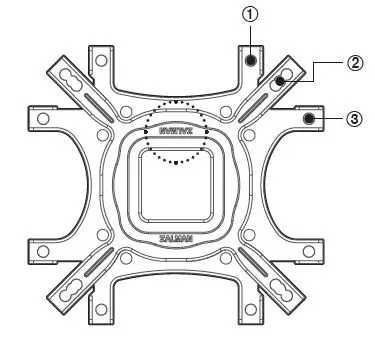

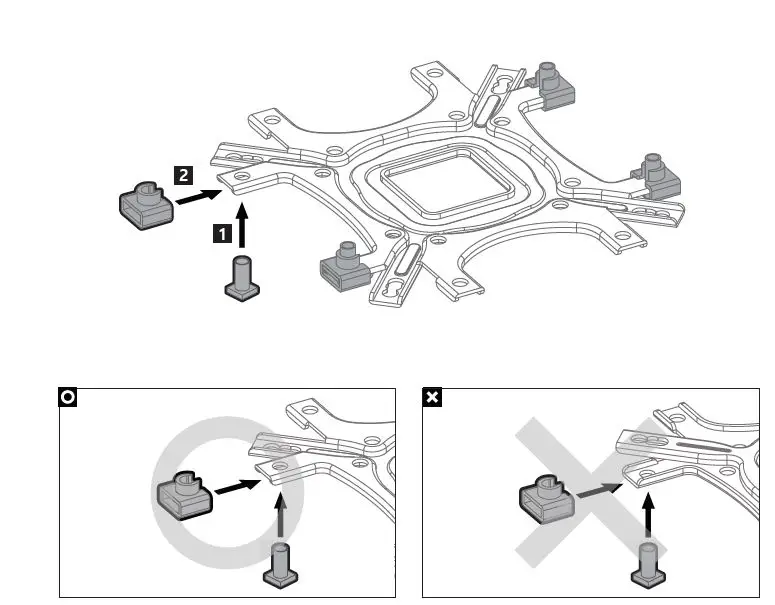

Nuts Position
AM3
LGA1200 / 115x
AM4

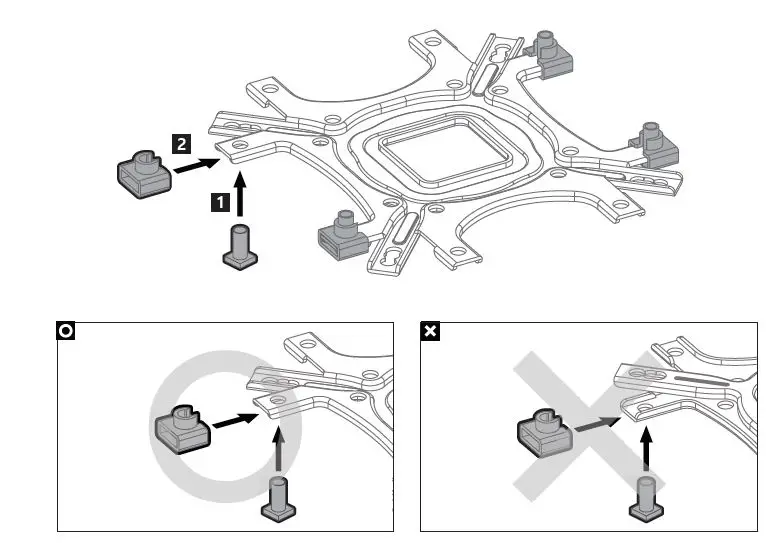

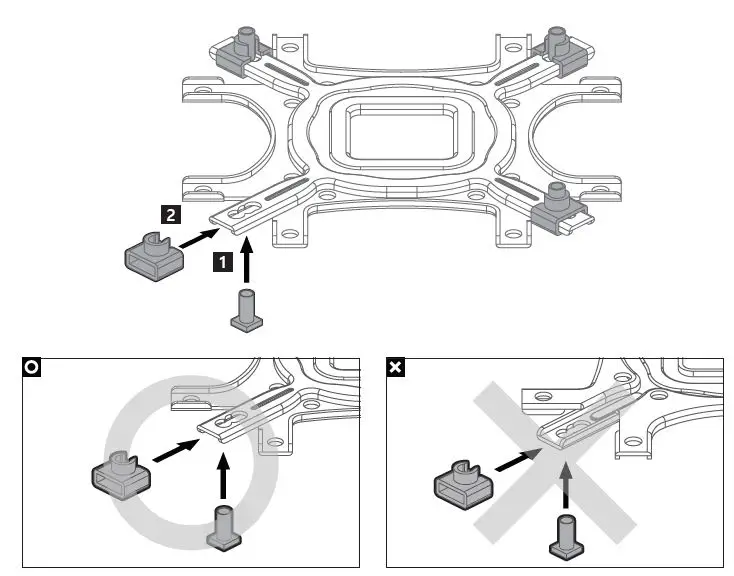

Caution: Please check the proper ZALMAN logo direction on backplate for each Intel and AMD socket. No backplate is necessary for Intel LGA2066 /2011-V/2011 socket.
LGA1200/115x
AM3
AM4

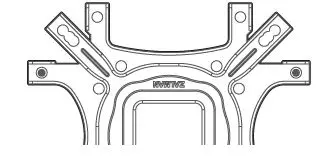

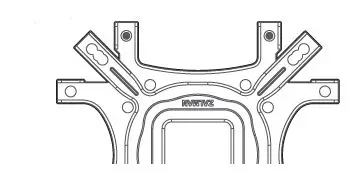

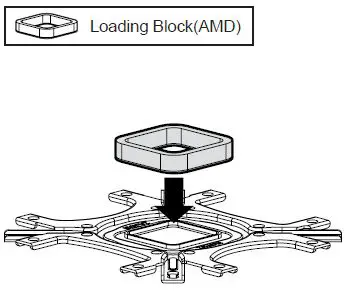

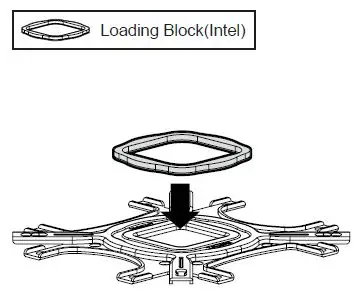

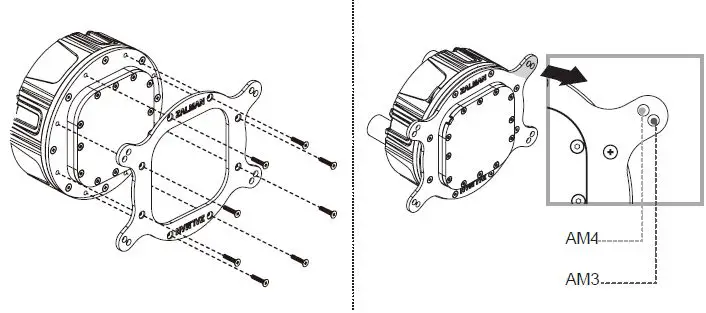

INTEL, AMD Loading Block
Intel
AMD

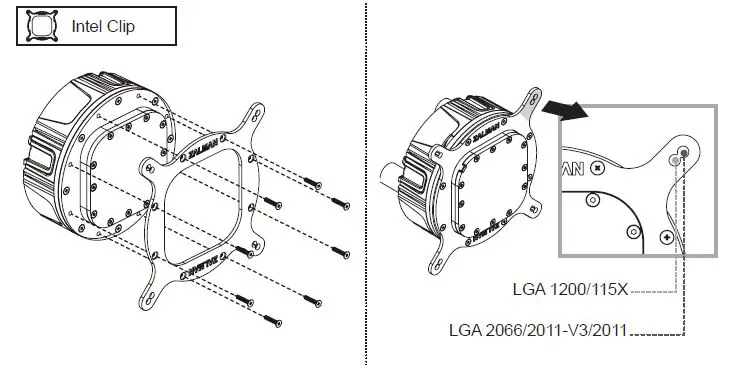

INTEL, AMD Clip
Intel
AMD

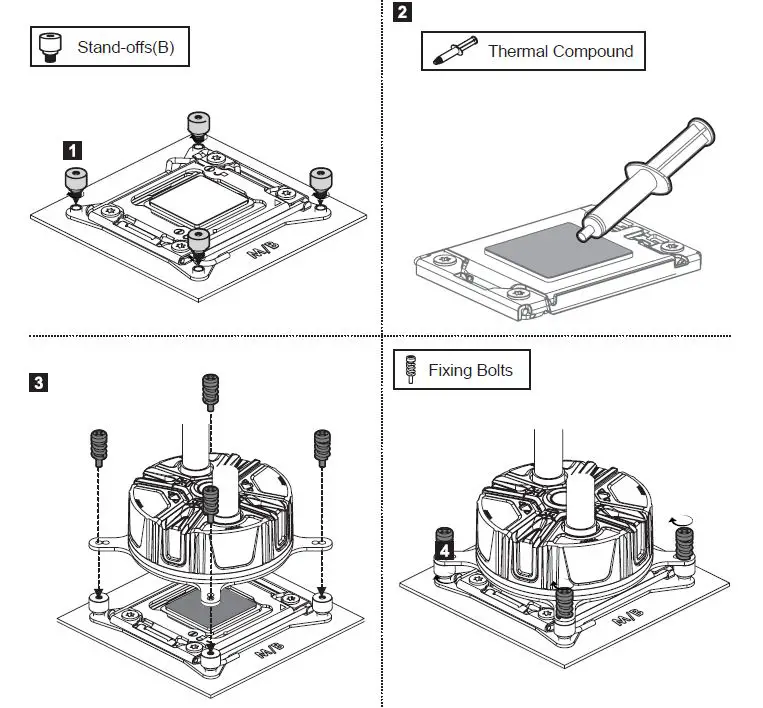

Intel Users
LGA2066/2011-V3/2011

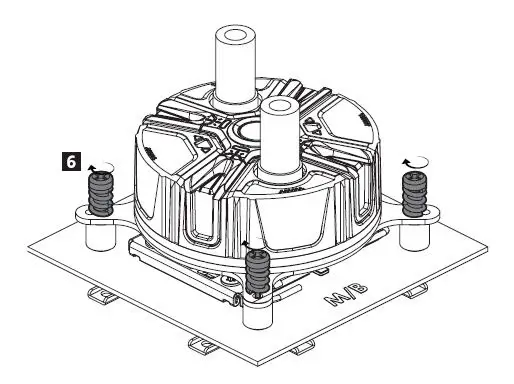

LGA1200/115x

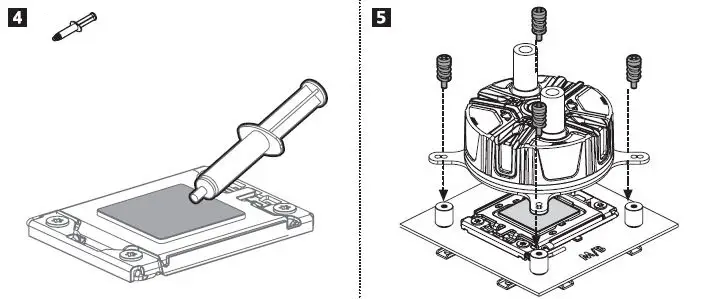

Thermal Compound
Fixing Bolts

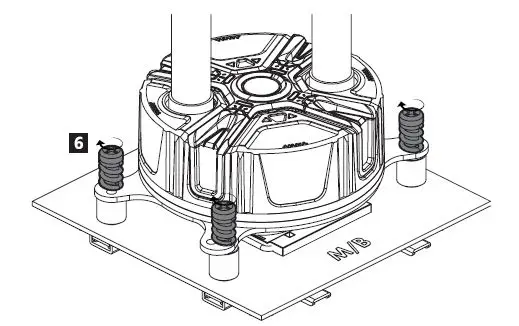

AMD Users
AM3/AM4
Thermal Compound
Fixing Bolts

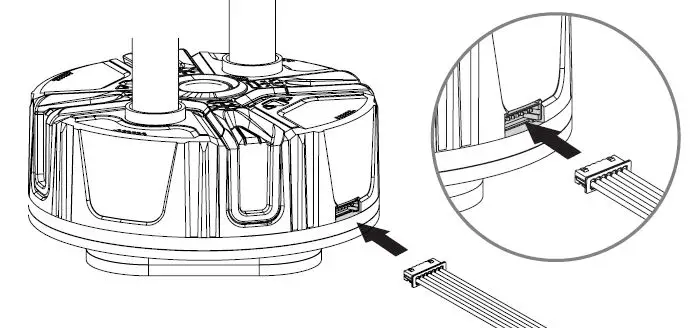

Caution: Be sure to check the direction of the connector pin of the pump and cable to fit the groove.

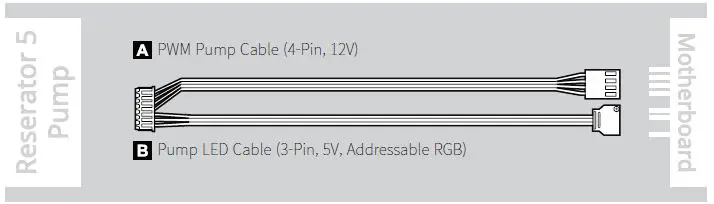

Pump Cable
- Pump Connector
- Cable Connector

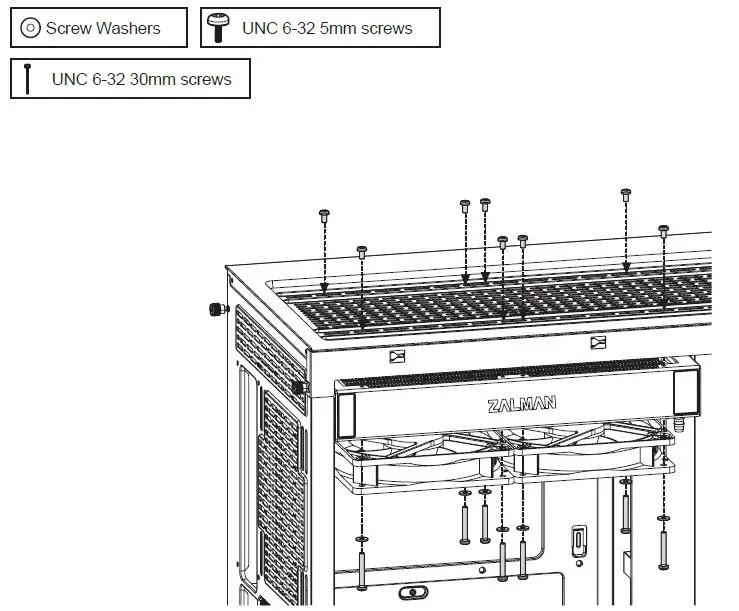

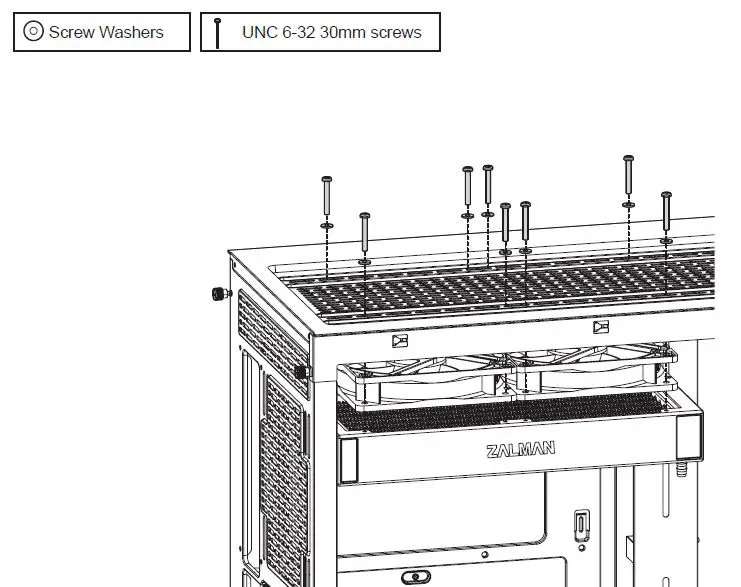

Screw Washers
Cable Connection

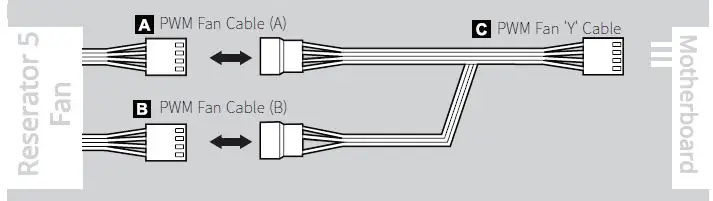

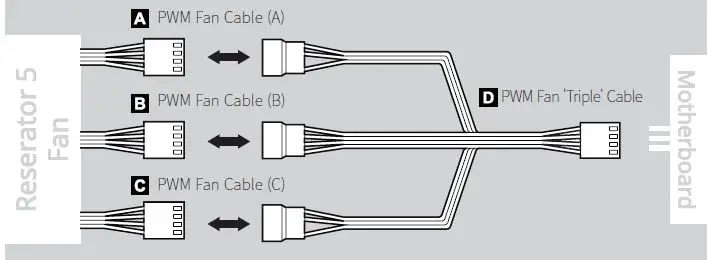

Connection to other motherboards (Z24/Z36)
Reserator 5 (Z24)
Reserator 5 (Z36)

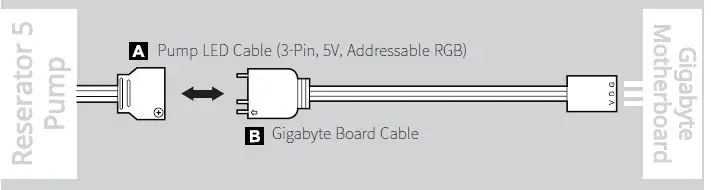

Connection to Gigabyte motherboards

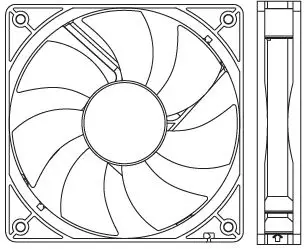

Fan Specifications
| Model | Reserator 5 Z24/Z36 | ||
| Dimensions | 120 x 120 x 25(H)mm | Bearing Type | EBR Bearing |
| Speed | 800 ~ 2,000 RPM±10% | ||
| Max Noise Level | 37 dB(A) ±10% | ||
| Max Air Flow | 77.37 CFM ±10% | Max Air Pressure | 2.92mmH₂O |
| Control Method | PWM Control | Life Span | 50,000hours |
Certification
- This mark, designed by Zalman, indicates product compliance with the European Union’s RoHS (Restriction of Hazardous Substances) Directive.
Disposal of Old Electrical & Electronic Equipment
- (Applicable in the European Union and other European countries with separate collection systems).
