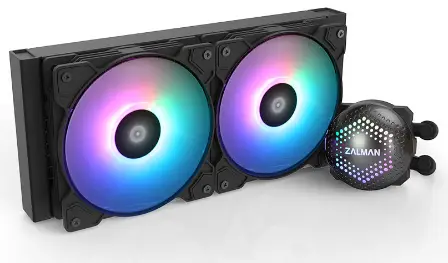

ZALMAN ALPHA24 Alpha Series CPU Liquid Cooler
Latest Intel & AMD Compatibility
Intel Socket : LGA2066/2011-V3/2011/1700/1200/115X CPUs
AMD Socket : AM4/AM3 CPUs
- To ensure safe and easy installation, please read the following precaution.
- Product design and specifications may be revised to improve quality and performance without notice.1
Precautions
- Avoid tempering with objects or hands into the fan while it is in operation to prevent product damage and injuries.
- Do not eat the thermal grease, and avoid its contact with skin and eyes. If contact is made with skin, wash off with water. If irritation persists, seek medical attention.
- To prevent possible injuries, gloves must be worn while handling this product.
- Excessive force exerted on the fan may cause damage to the fan and/or system.
- Use and keep product away from reach of children.
- Check the components list and condition of the product before installation. If any problem is found, contact the retailer to obtain a replacement.
- Our company assumes no responsibility for any problem that occurs due to the use of the product for purposes other than its designated purposes and/or the carelessness of the consumer.
- Zalman Tech Co., Ltd. Is not responsible for any damages due to overclocking CPU such as, CPU and system components.
- During transportation of the system, the cooler must be removed. Zalman Tech Co., Ltd. is not responsible for any damages that occur during the transport of a system.
- Product design and specifications may be changed to improve quality and performance without notice.
Specifications
| Model | Alpha 24/28/36 | |||
|
Pump | Materials | ABS, PC, PPS, Pure Copper | ||
| Dimensions | 68(L) x 68(W) x 62(H)mm | |||
| Speed | 3,200RPM±10% | |||
| Bearing Type | Ceramic Bearing | |||
| Water Flow | 0.83L/min | |||
| Control Method | LED : Addressable RGB (3-Pin 5V ) | |||
| Radiator | Material | Pure Aluminum | ||
| Alpha 24 | Alpha 28 | Alpha 36 | ||
| Dimensions | 120 x 276 x 27(H)mm | 140 x 316 x 27(H)mm | 120 x 397 x 27(H)mm | |
|
Fan | Dimensions | 120 x 120 x 25(H)mm | 140 x 140 x 25(H)mm | 120 x 120 x 25(H)mm |
| Bearing Type | Long Life Bearing | |||
| Speed | 500~1800±200RPM | 500~1600±200RPM | 500~1800±200RPM | |
| Max. Noise Level | 33dB(A)±10% | 34dB(A)±10% | 33dB(A)±10% | |
| Max. Air Flow | 71.1CFM±10% | 83.07CFM±10% | 71.1CFM±10% | |
| Max. Static Pressure | 1.9mmH₂O±10% | 1.7mmH₂O±10% | 1.9mmH₂O±10% | |
| Control Method | PWM Control / LED : Addressable RGB | |||
| Life Span | 40,000 hours | |||
| Rated Volatage | 12V / LED : 5V | |||
| Connector Type | 4-Pin / LED : 3-Pin | |||

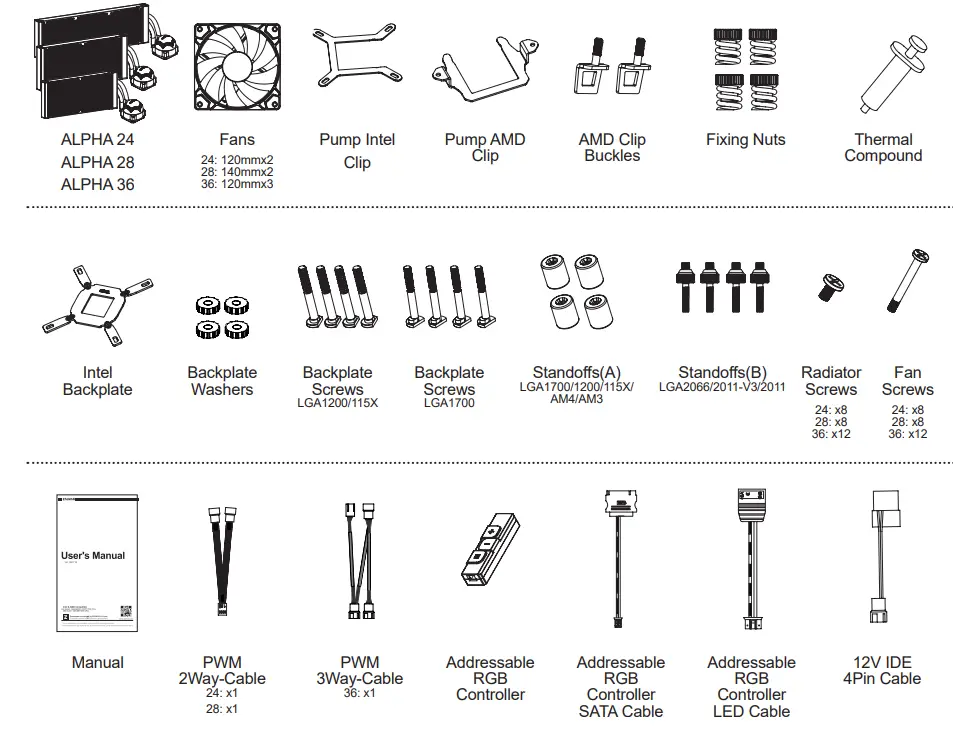

Components

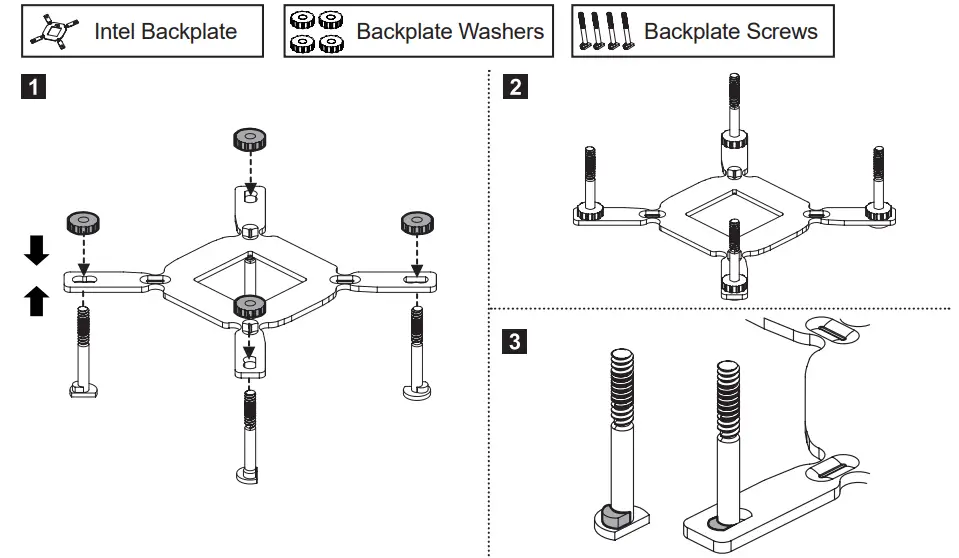

INTEL, AMD Backplate

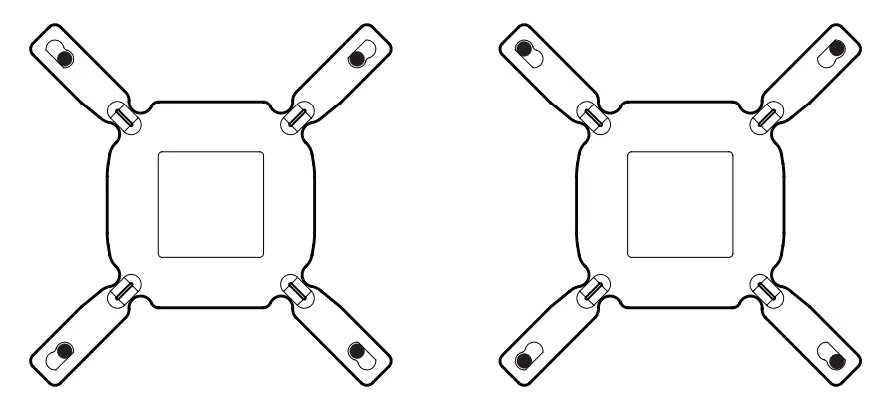

Screws Position
- LGA1200/115X
- LGA1700

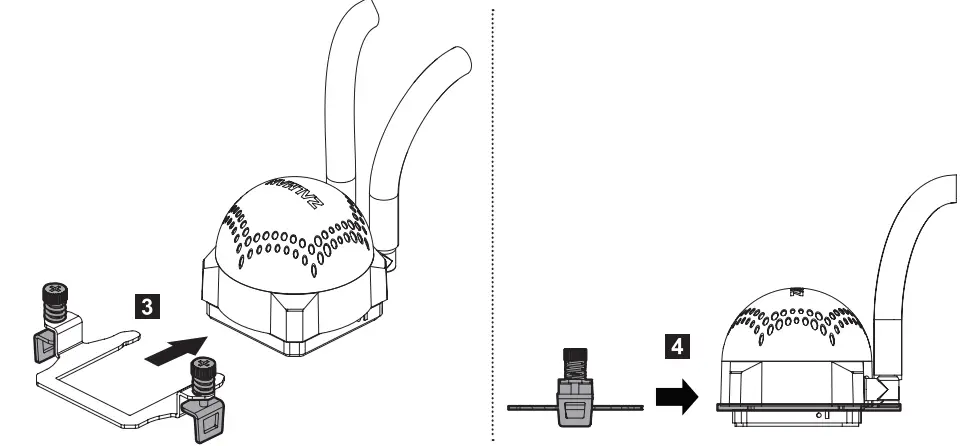

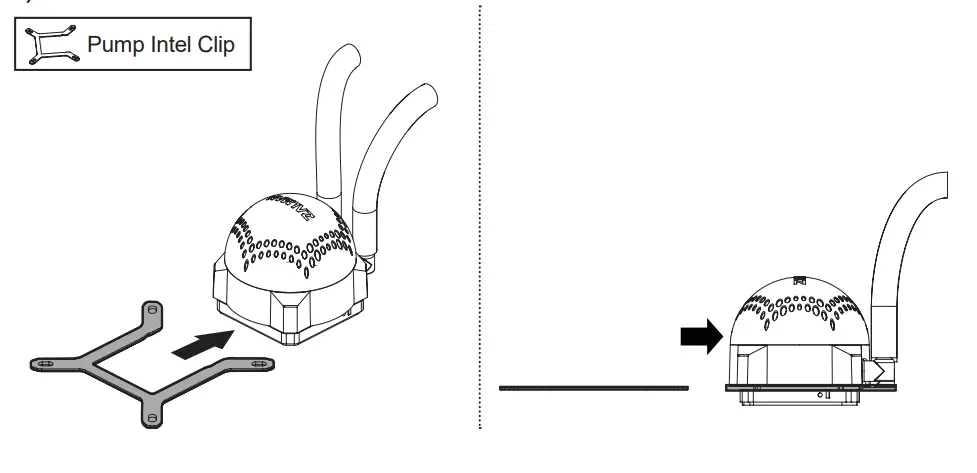

INTEL, AMD Clip

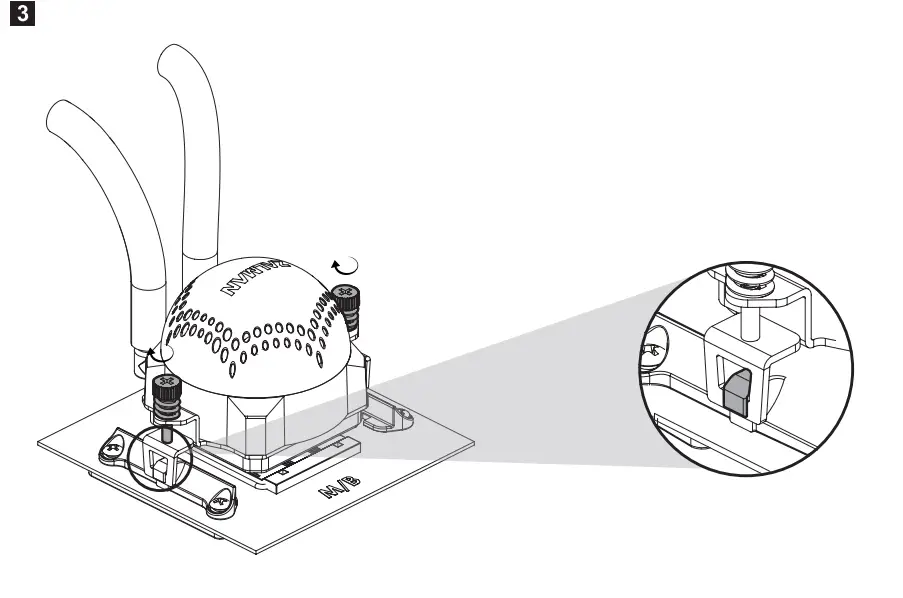

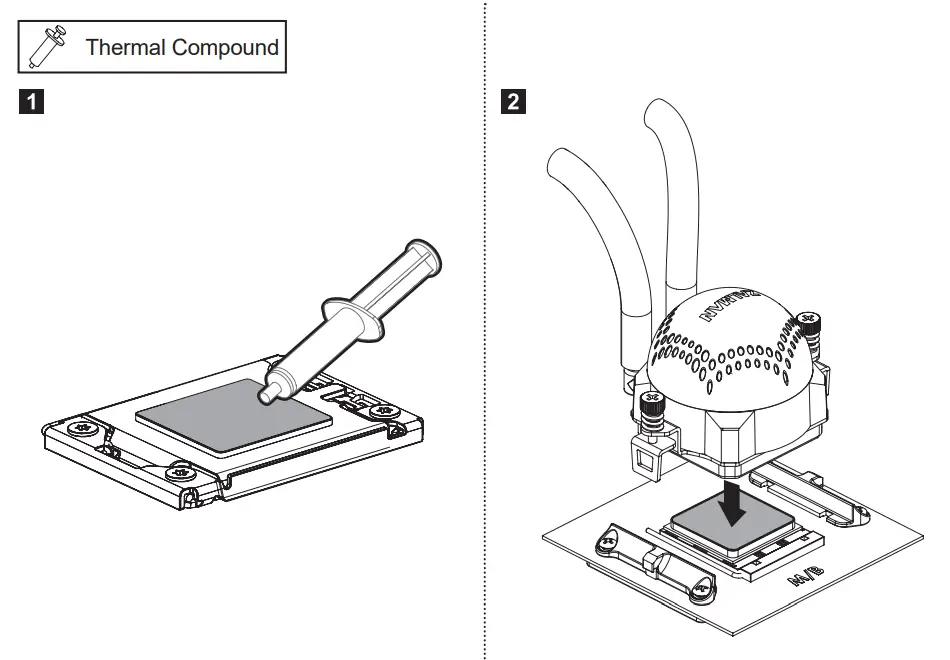

Intel

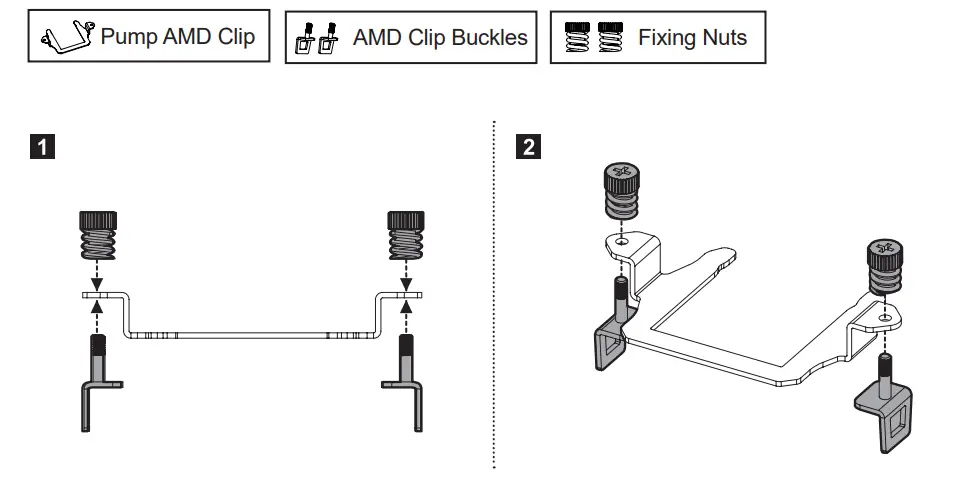

AMD

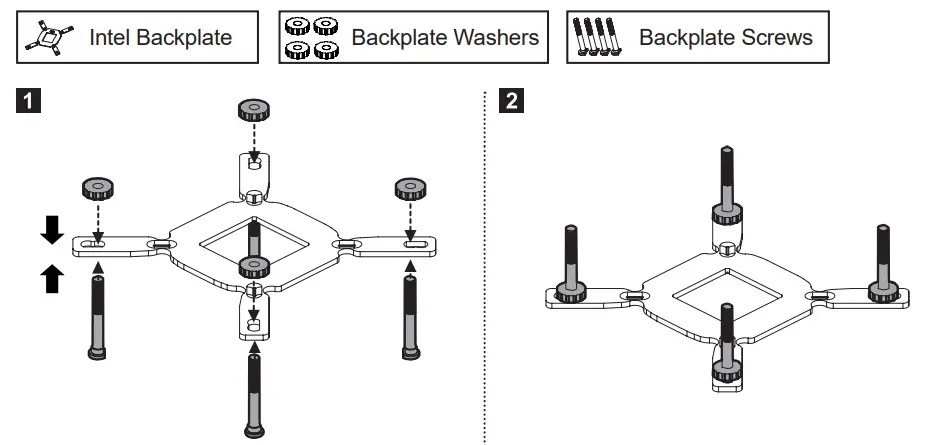

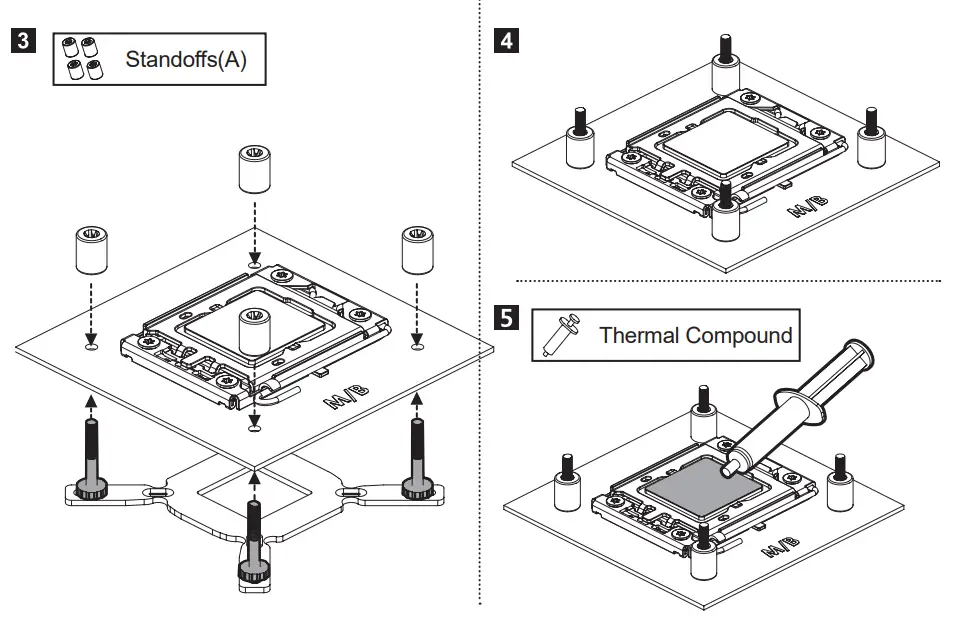

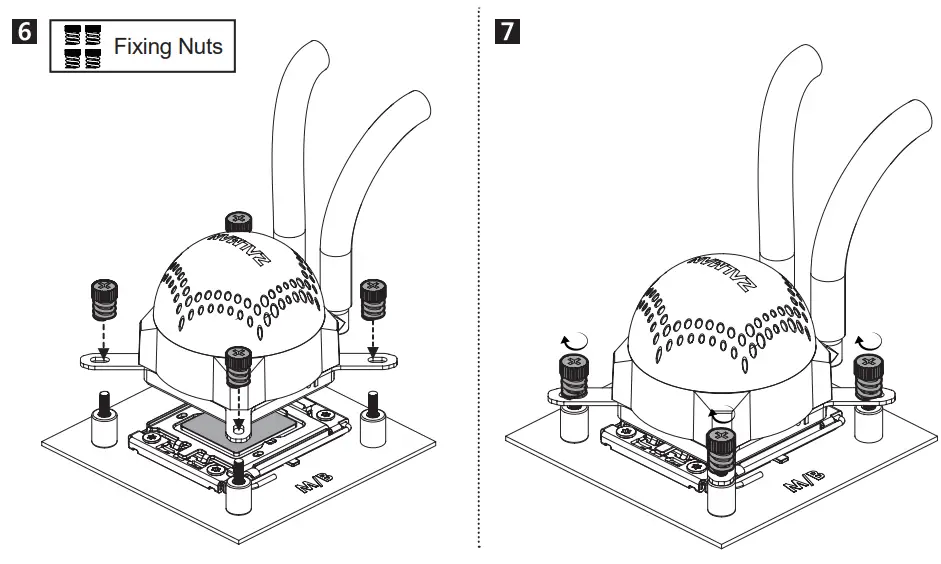

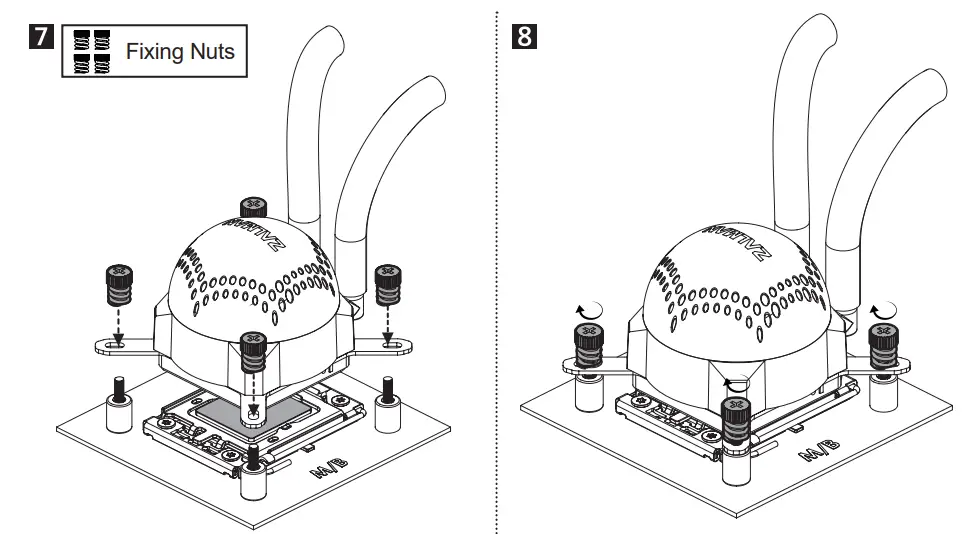

Intel Users

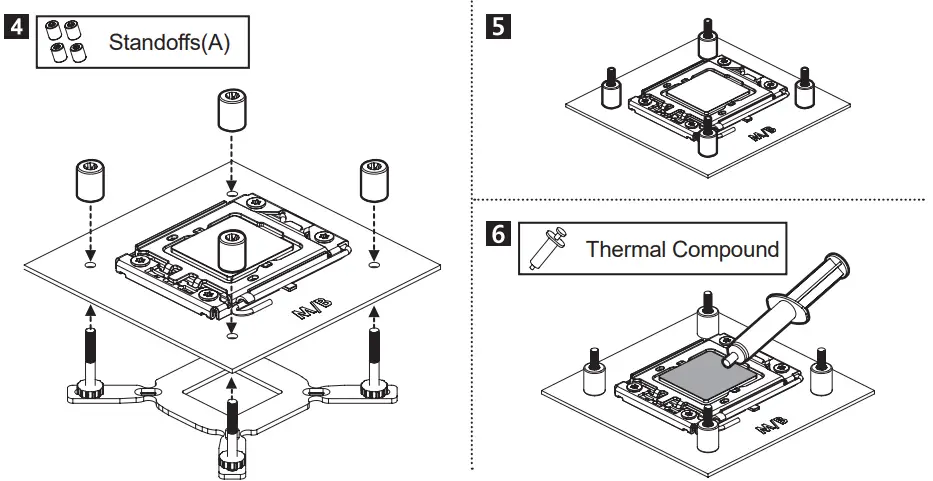

LGA1200/115X
LGA1700

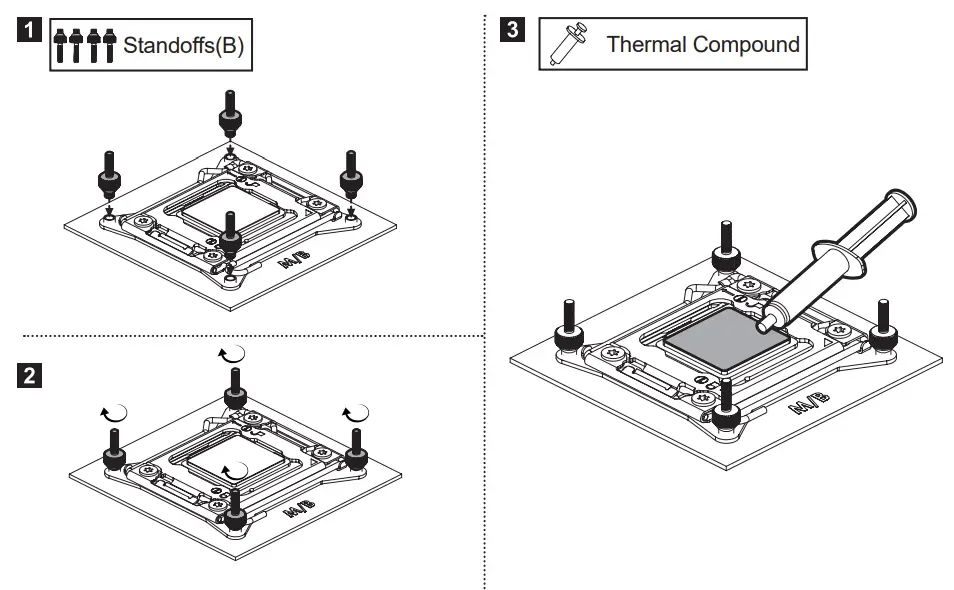

LGA2066/2011-V3/2011
AMD Users
AM4/AM3

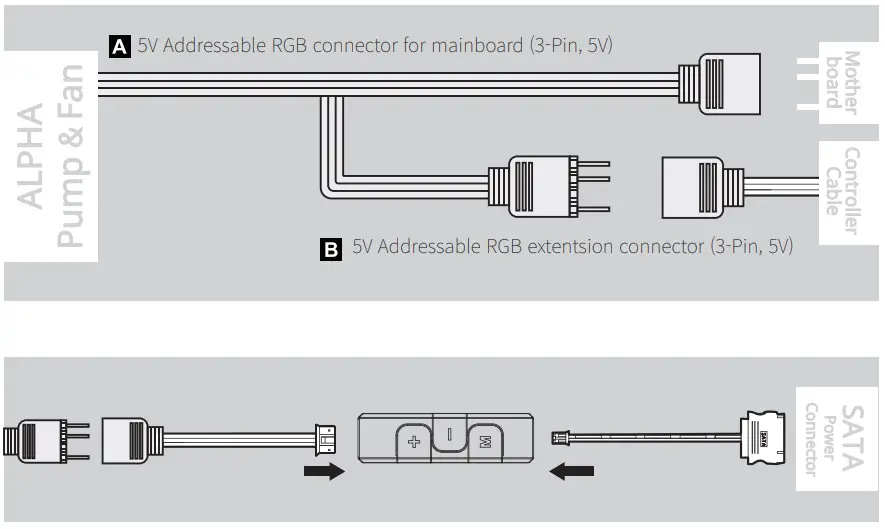

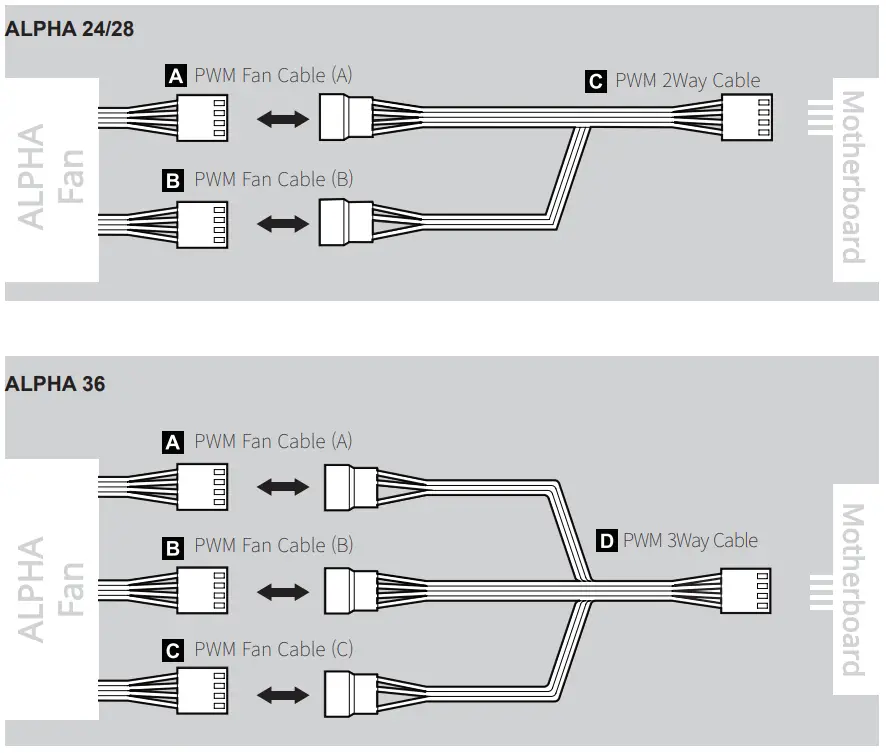

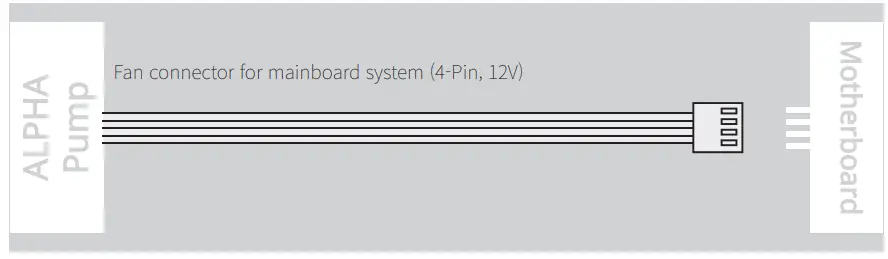

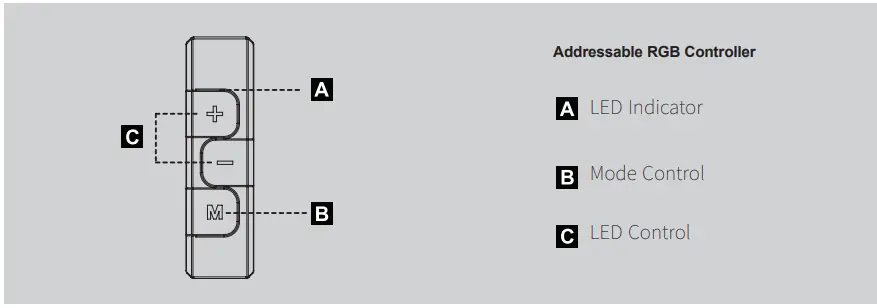

Cable Connection
Connection to other motherboards
Fan Specifications
| Model | ALPHA 24/36 | ||
| Dimensions | 120 x 120 x 25(H)mm | Bearing Type | Long Life Bearing |
| Speed | 500 ~ 1,800 RPM±200RPM | ||
| Max Noise Level | 33dB(A)±10% | ||
| Max Air Flow | 71.1 CFM±10% | Max Air Pressure | 1.9mmH₂O±10% |
| Control Method | PWM Control | LED | Addressable RGB |
| Model | ALPHA 28 | ||
| Dimensions | 140 x 140 x 25(H)mm | Bearing Type | Long Life Bearing |
| Speed | 500 ~ 1,600 RPM±200RPM | ||
| Max Noise Level | 34dB(A)±10% | ||
| Max Air Flow | 83.07 CFM±10% | Max Air Pressure | 1.7mmH₂O±10% |
| Control Method | PWM Control | LED | Addressable RGB |
QR SCAN
Certification: This mark, designed by Zalman, indicates product compliance with the European Union’s RoHS (Restriction of Hazardous Substances) Directive.
Disposal of Old Electrical & Electronic Equipment
(Applicable in the European Union and other European countries with separate collection systems)
