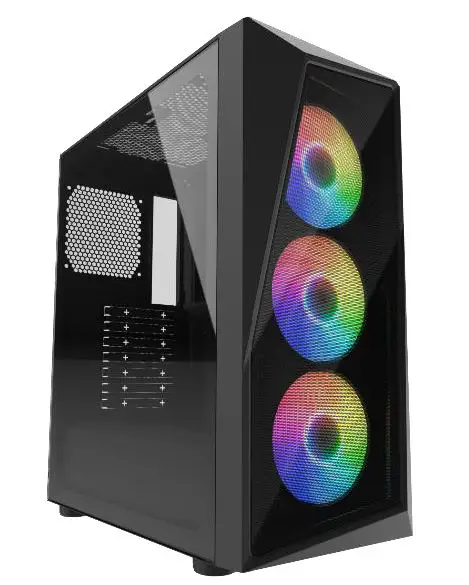

COOLER MASTER CMP 520 ARGB ATX PC Case
COOLER MASTER CMP 520 ARGB ATX PC Case FEATURES
Three CF120 ARGB Fans Included – Pre-installed with three CF120 ARGB fans, CMP 320 ensures stunning aesthetics, eye-catching design, and thermal excellence. Featuring a built in ARGB hub for streamlined cable management, users can also connect the hub to the motherboard for advanced lighting customization.
Mesh Geode Front Panel – Inspired by clean-cut, asymmetrical crystal formations, the mesh front panel offers generous intake as well as efficient dust filtration.
Versatile Cooling Options – Support for up to six fans and front, top, and rear radiator support ensure that performance is not compromised.
Full Black Coating & PSU Cover – Let your system stand out with an all-black background and a PSU cover to hide cables.
Breathable Power Supply Shroud – The PSU cover is ventilated on top of the power supply location, this allows actively cooled units to be installed either with the fan facing the top or bottom, also with the possibility of installing passively cooled power supplies.
Room For Upgrades – Support for up to a 350mm graphics card, a 161mm CPU cooler, and multiple fans/radiators locations provides room for upgrades to stay ahead of the game.
PACKING INFORMATION
| EAN code | 4719512127216 | ||
| UPC code | 884102099533 | ||
| Net weight | 6KG | ||
| Gross weight | 7KG | ||
| Carton dimension (L x W x H) | 520*267*505mm | ||
| Cont. | W/ Pallet | Carton/ Pallet | W/O Pallet |
| 20’ | 320 | 32 | 394 |
| 40’ | 704 | 32 | 807 |
| 40 HQ | 792 | 36 | 898 |
Let it glow.
Like a geode cradling glistening crystals within, CMP 520’s asymmetrical front panel design frames the preinstalled three CF120 ARGB fans as unique centerpieces on the build.
Ample mesh provides generous intake for efficient cooling as well as dust filtration, extending the lifespan of installed components while allowing them to operate at maximum capacity.
Users may tailor lighting effects and color in depth to match the theme of their build or gaming environment by simply connecting the built in ARGB hub to the motherboard.
The perforated power supply shroud accommodates both active and passively cooled PSUs, while keeping cables neatly tucked away for a tastefully sleek build.
SPECIFICATIONS
| Product Name | CMP 520 | |
| Product Number | CP520-KGNN-S00 | |
| Exterior Color | Black | |
| Materials | Exterior | Steel, Plastic |
| Left Side Panel | Tempered Glass | |
| Dimensions (L x W x H) | Incl. Protrusions | 439 x 204 x 463mm |
| Excl. Protrusions | 432 x 204 x 448mm | |
| Volume (Liters Excl. Protrusions) | 41.34L | |
| Motherboard Support | Mini-ITX, Micro-ATX, ATX | |
| Expansion Slots | 7 | |
|
Drive Bays | 5.25“ ODD | 0 |
| 2.5” / 3.5” HDD | 2 | |
| 2.5” SSD | 2 | |
| I/O Panel | USB Ports | 1 x USB 3.2 Gen 1 Type A,1 x USB2.0 |
| Audio In / Out | 1 x 3.5mm Headset Jack (Audio + Mic) | |
| ARGB Controller | ARGB Fans Hub | |
|
Pre-installed Fan(s) | Top | N/A |
| Front | 3xCF120 ARGB | |
| Rear | N/A | |
|
Fan Support | Top | 2 x 120mm, 2 x 140mm |
| Front | 3x 120mm, 2 x 140mm | |
| Rear | 1 x 120mm | |
|
Radiator Support | Top | 120mm/240mm* (*RAM height below 35mm) |
| Front | 120mm/240mm/140mm/280mm | |
| Rear | 120mm | |
|
Clearances | CPU Cooler | 161mm |
| Power Supply | 160mm | |
| Graphics Card | 350mm(w/o front fans & radiator) | |
| Cable Routing | Behind MB Tray | 18.5mm |
| Dust Filters | Top, Bottom | |
| Power Supply Support | Bottom Mount, ATX | |
| Warranty | 2 Years | |
Three CF120 ARGB Fans Included
Pre-installed with two CF120 ARGB fans, CMP 320 ensures stunning aesthetics, eye-catching design, and thermal excellence. Featuring a built in ARGB hub for streamlined cable management, users can also connect the hub to the motherboard for advanced lighting customization.
Mesh Geode Front Panel
Inspired by clean-cut, asymmetrical crystal formations, the mesh front panel offers generous intake as well as efficient dust filtration.
Versatile Cooling Options
Support for up to six fans and front, top, and rear radiator support ensure that performance is not compromised.
Full Black Coating & PSU Cover
Let your system stand out with an all-black background and a PSU cover to hide cables.
The PSU cover is ventilated on top of the power supply location, this allows actively cooled units to be installed either with the fan facing the top or bottom, also with the possibility of installing passively cooled power supplies.
