STEP by STEP
INSTALLATION GUIDE

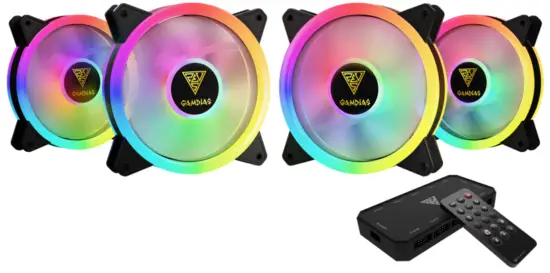

Aeolus M2 1204R Case and Radiator Fan

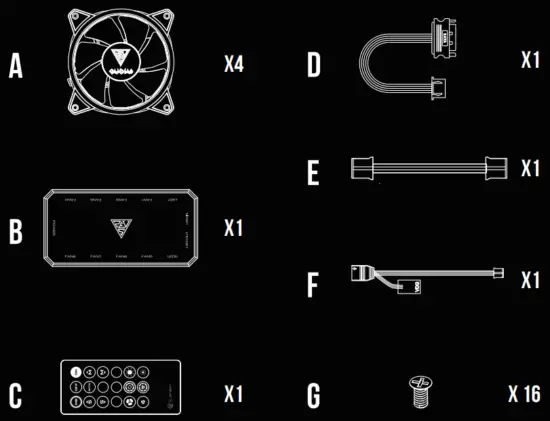

Package Contents

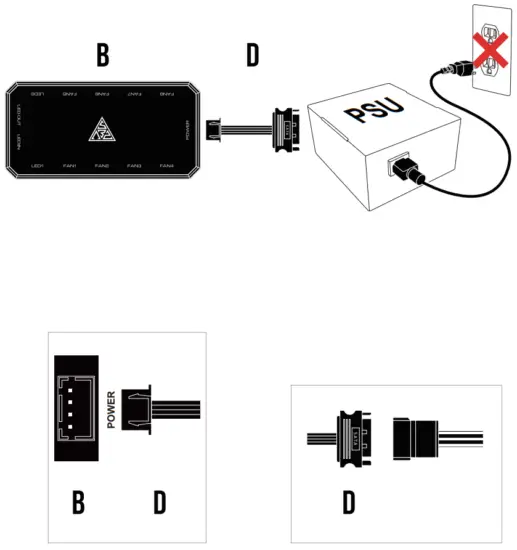

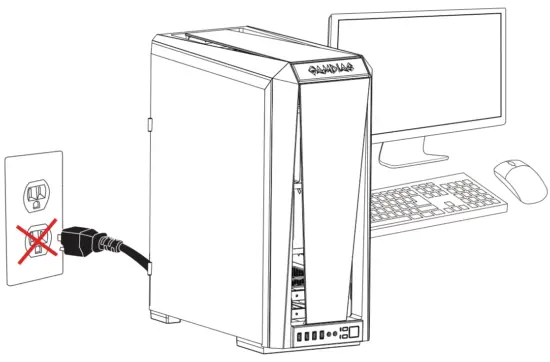

- Turn off the computer before installing

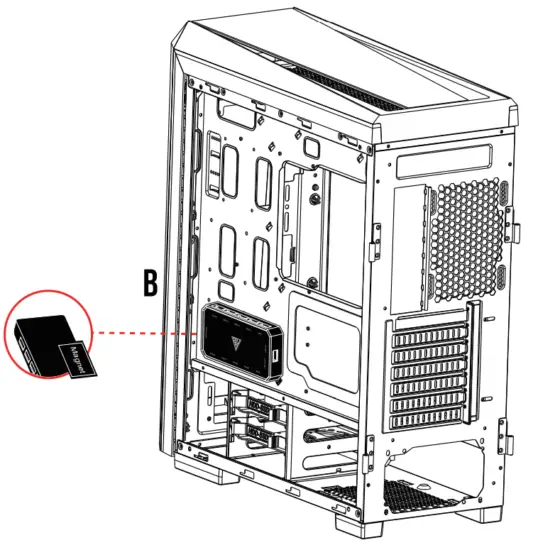

- AEOLUS Box attaches to the computer case via magnet

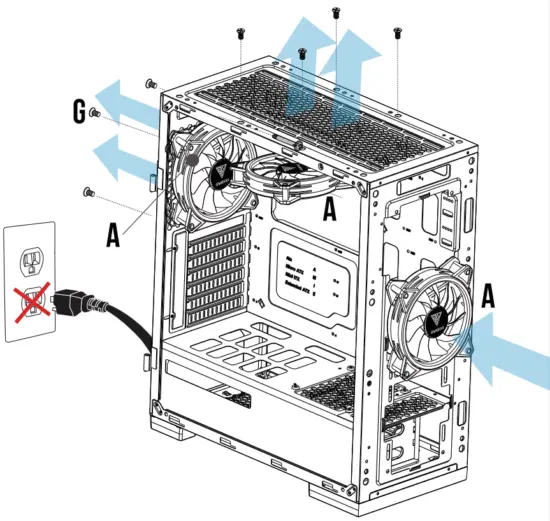

- ◆ Fans must start at “1” and continue in the series. FAN1 → FAN2 → FAN3 → FAN4 → FAN5 → FAN6 → FAN7 → FAN8
◆ Any fan not connected in series will break communication and the RGB lighting function will not work.

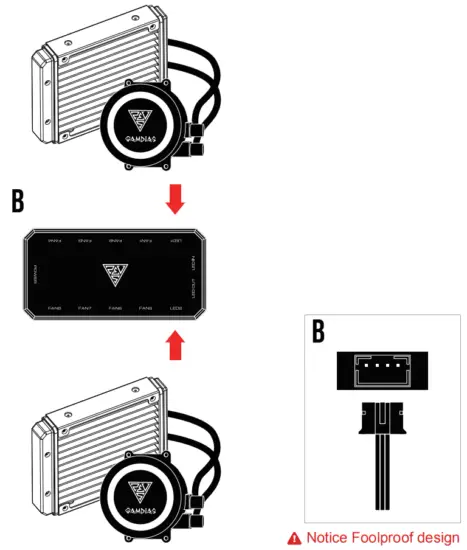

- AEOLUS Box also supports the following liquid cooler
● CHIONE P2-360R ● CHIONE P1A-360R
● CHIONE M1A-280R ● CHIONE M2-240R
● CHIONE M1A-240R ● CHIONE E2-120R
● CHIONE E1A-120R

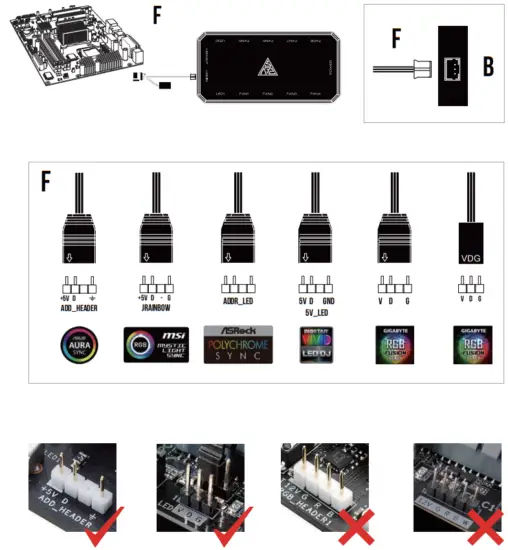

- If your motherboard has 5V 3-Pin addressable (digital) RGB header, you can customize RGB lighting via motherboard manufacture sync software

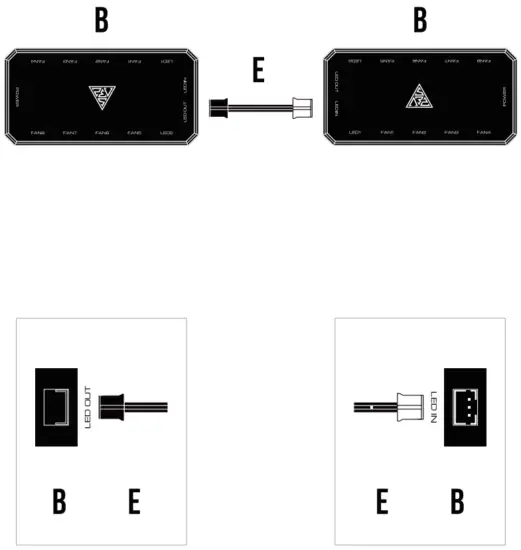

AEOLUS M2-1204R only supports a 5V addressable (digital) RGB header - Daisy chain another AEOLUS Box for more lighting effects

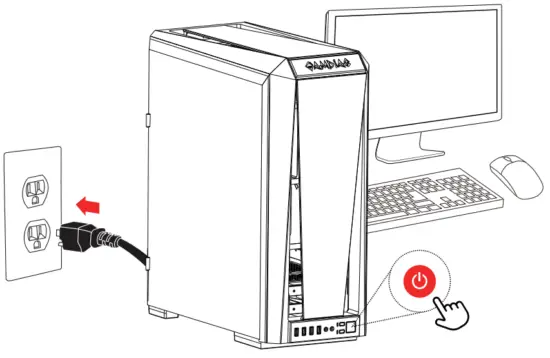

- Turn on the computer after installing

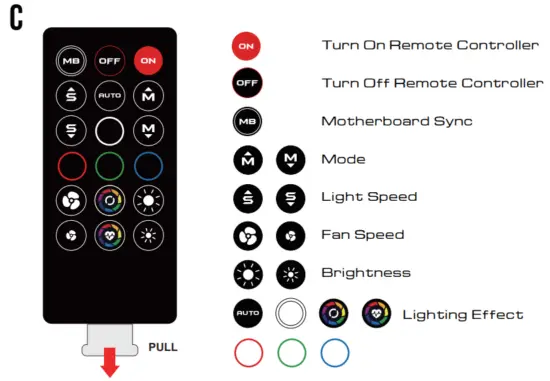

- When pressing the “OFF” button, the remote controller will be automatically disabled.
Please press the “ON” button to activate. - Press the “MB” button to switch to motherboard sync mode.

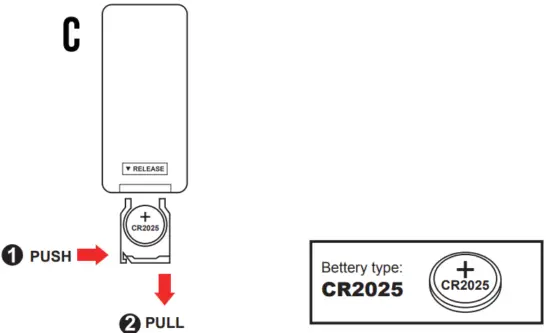

How to Change the Battery
