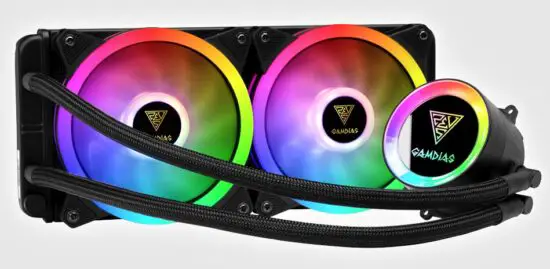

Gamdias Chione M2-240 Lite Cpu Liquid Cooler Installation Guide

GAMDIAS CHIONE M2-240 LITE CPU Liquid Cooler Installation Guide

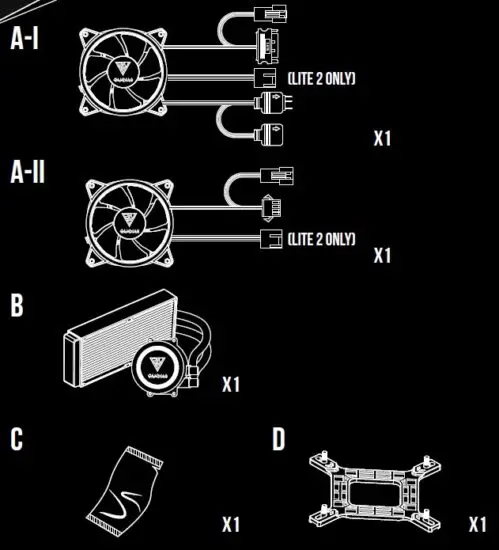

Package Contents

Package Contents

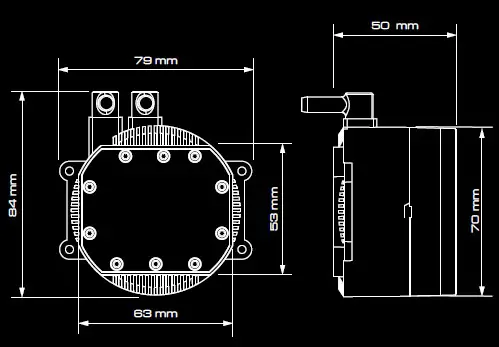

Pump Dimensions

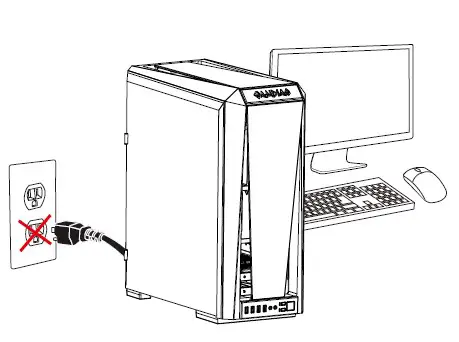

1. Turn off the computer before installing

2. Intel / AMD

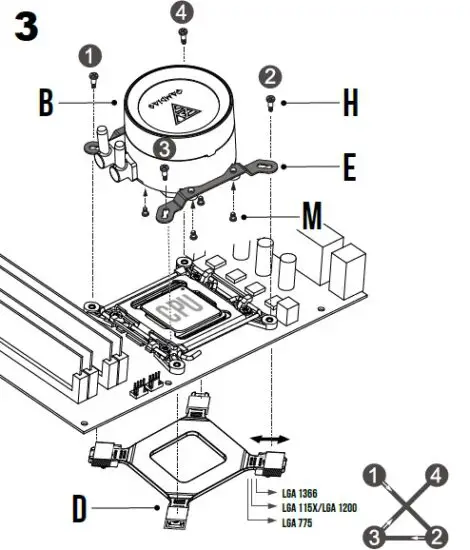

3. Intel ( LGA1366/115X/1200/775 )

   Please tighten the screws in a diagonal sequence to spread the tension properly.

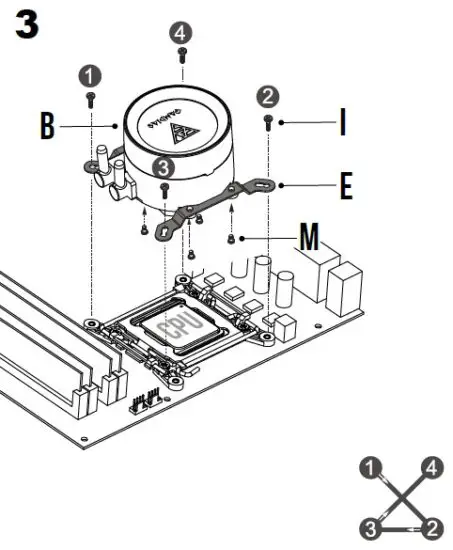

4. Intel ( LGA2066/2011/2011-3 )

5. AMD(AM4/AM3+/AM3/AM2+/AM2/FM2+/FM2/FM1)

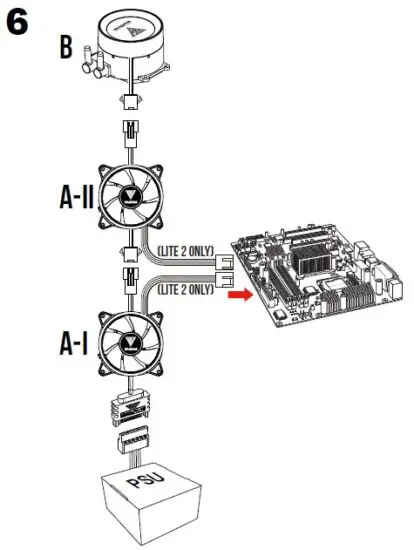

6. Intel / AMD

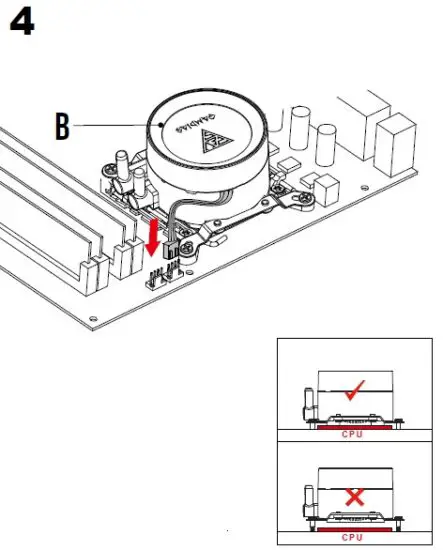

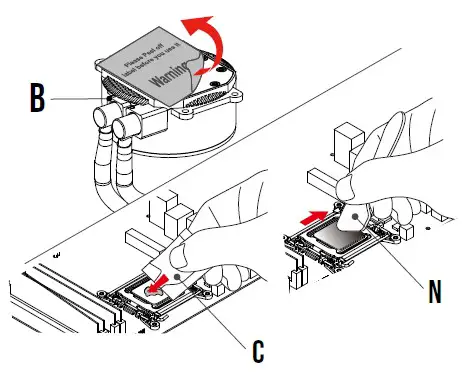

   Make sure pump firmly touch CPU
7. Intel / AMD

8. Intel / AMD

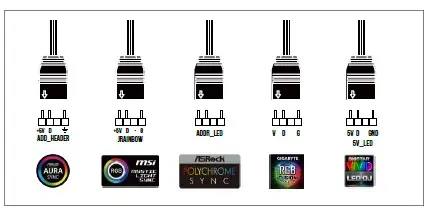

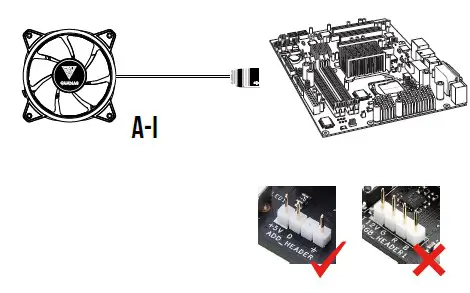

9. If your motherboard has 5V 3-Pin addressable (digital) RGB header, you can customize RGB lighting via motherboard manufacture sync software

   CHIONE M2-240 LITE only support 5V addressable (digital) RGB header

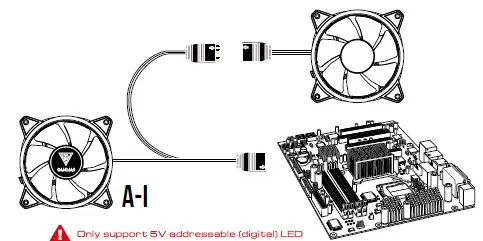

10. The design of male and female motherboard sync connectors to deal with insufficient 5V socket

    Only support 5V addressable (digital) LED

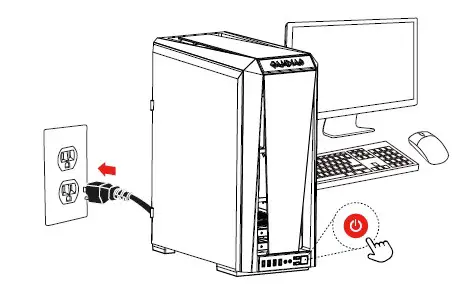

11. Turn on the computer after installing
