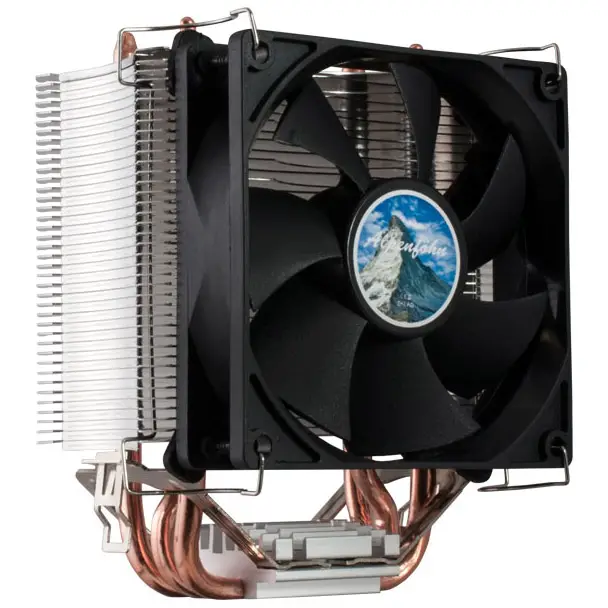

Alpenfhn 84000000053 Sella CPU Cooler Installation Guide

CAUTION

All specifications subject to change without notice.
Under no condition shall Alpenfohn be liable for any indirect, incidental or consequential damages arising from any defect or error in this manual or product.
Please ask for professional help if you are not sure of safe installation.
Please read the safety instructions on our website before you install the product: info.ekl.eu

Contents hide

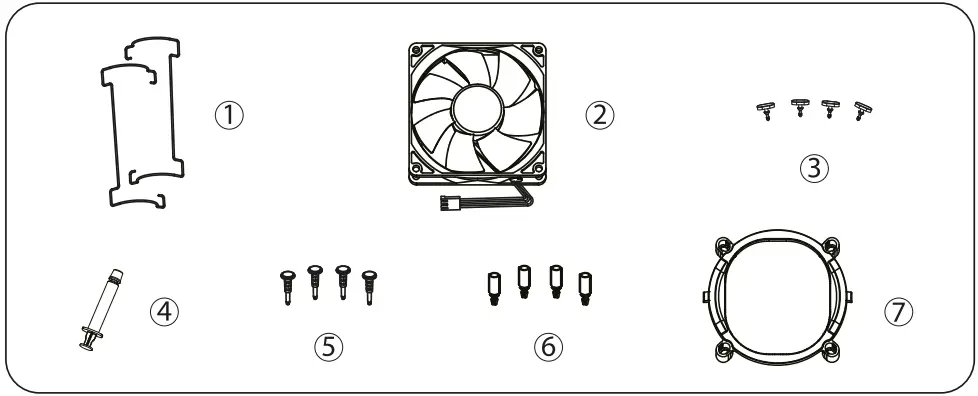

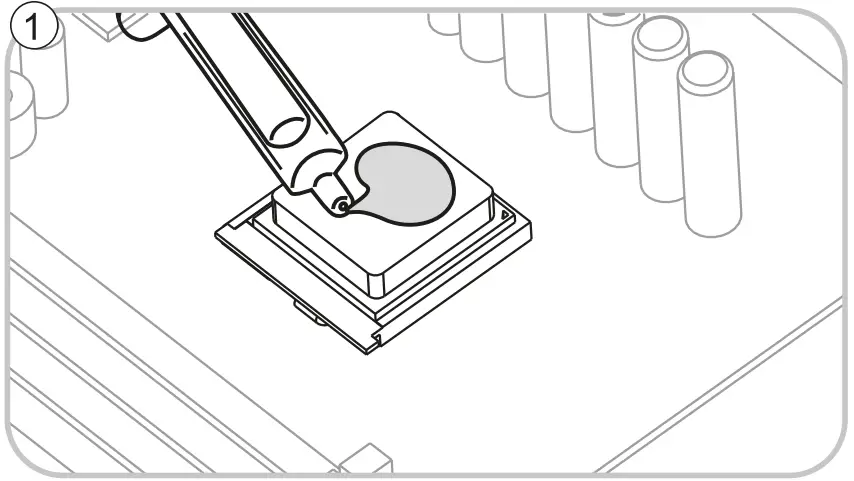

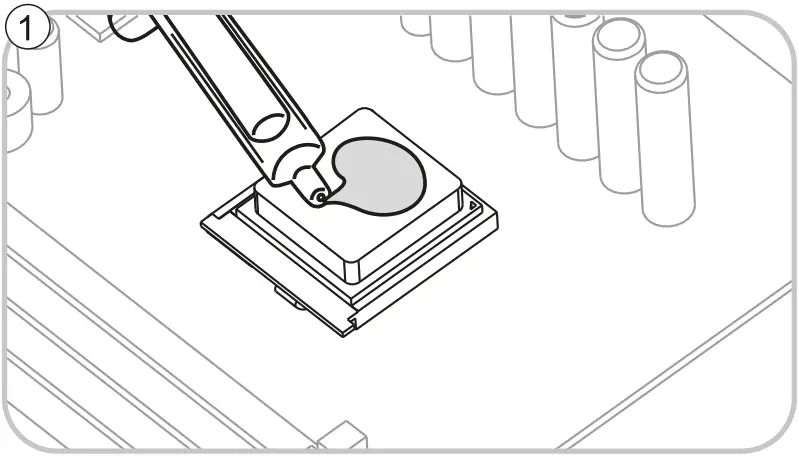

Evenly apply a thin layer of thermal grease onto the processor.

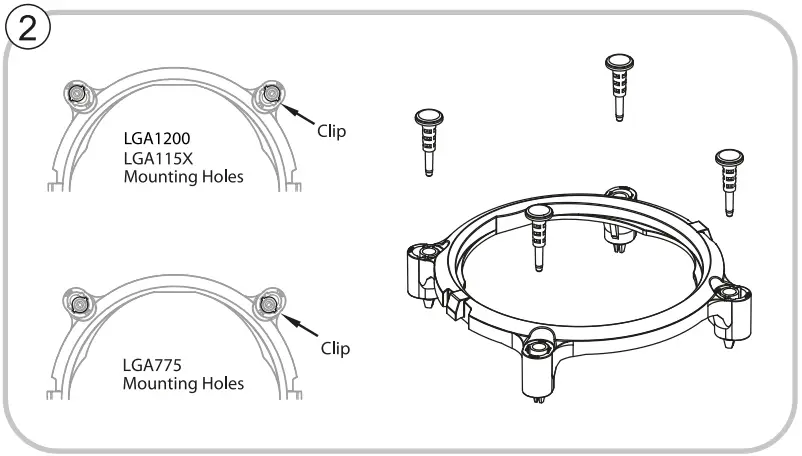

As illustrated, insert the clips into the mounting bracket according to the socket type.
Put the mounting bracket on the motherboard with the clips in the motherboard mounting holes.

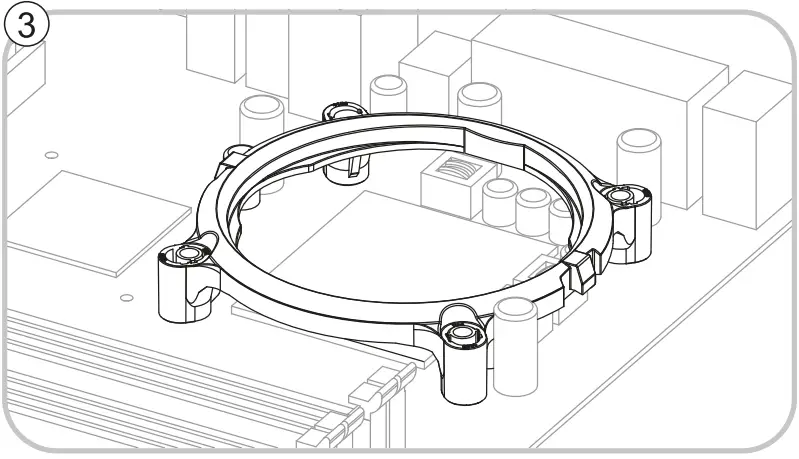

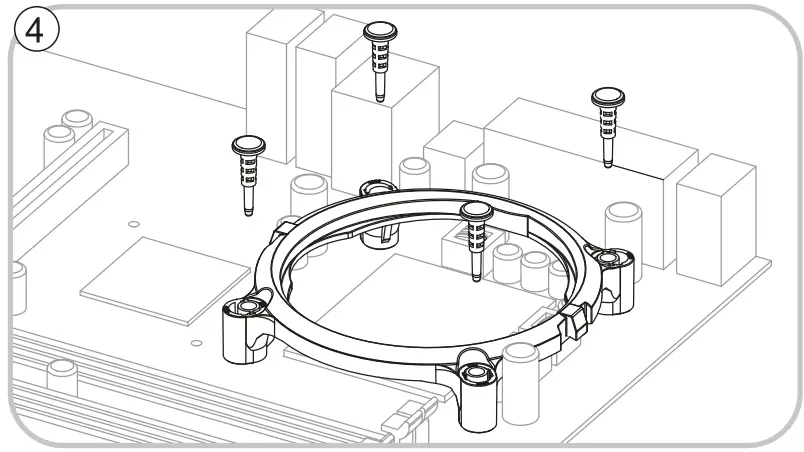

Insert the push-pins into the clips, push them tight until the mounting brackets are safely installed on the motherboard.

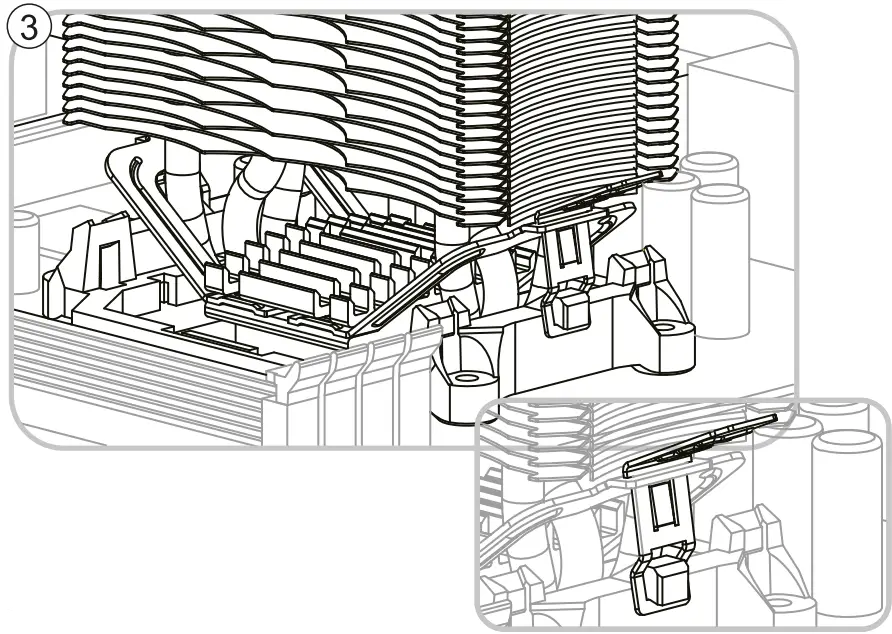

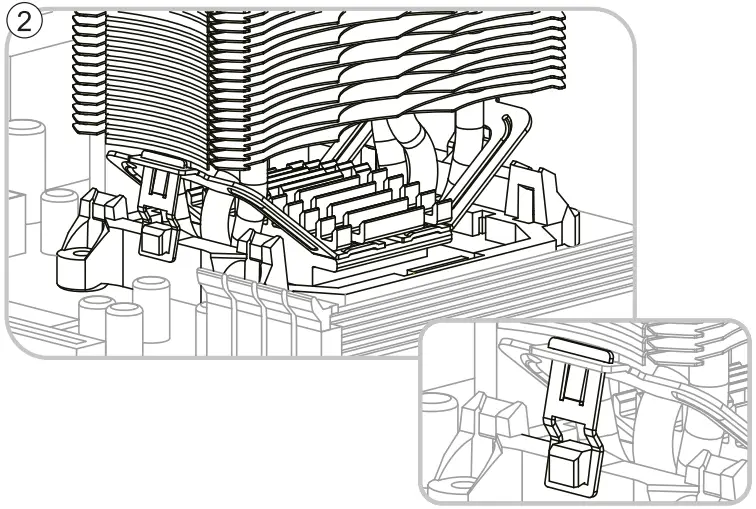

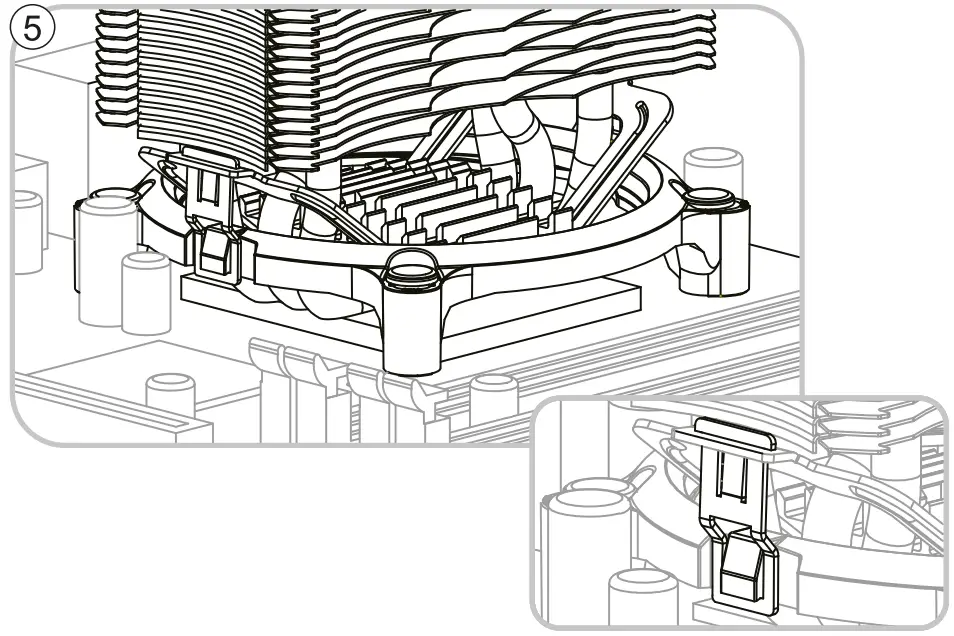

As illustrated, put the heatsink onto the processor and hook the vertical clip onto the retention frame tab.

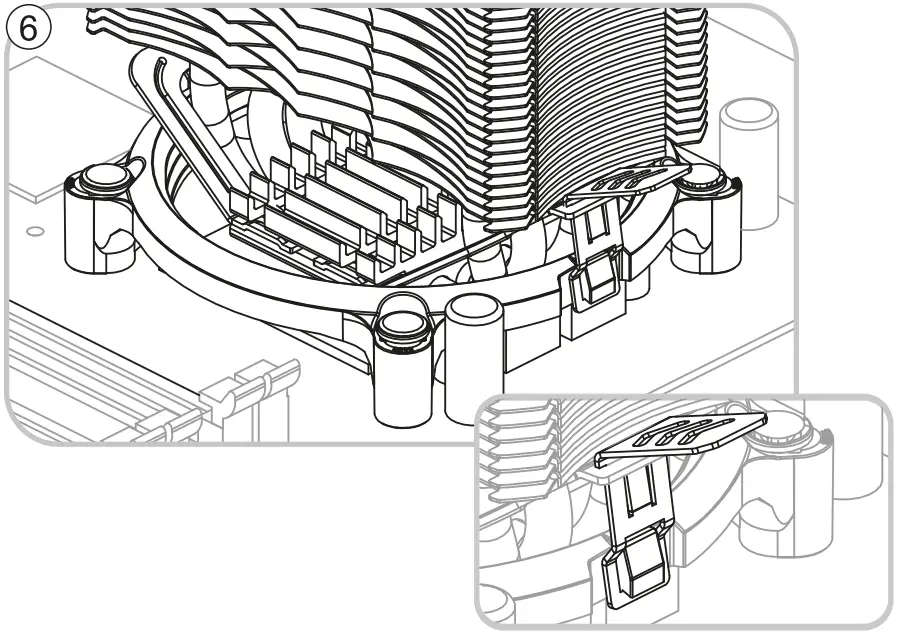

Press down the other side clip and hook it onto the tab, too. Please ensure perfect contact between the heatsink base and the CPU surface during installation.

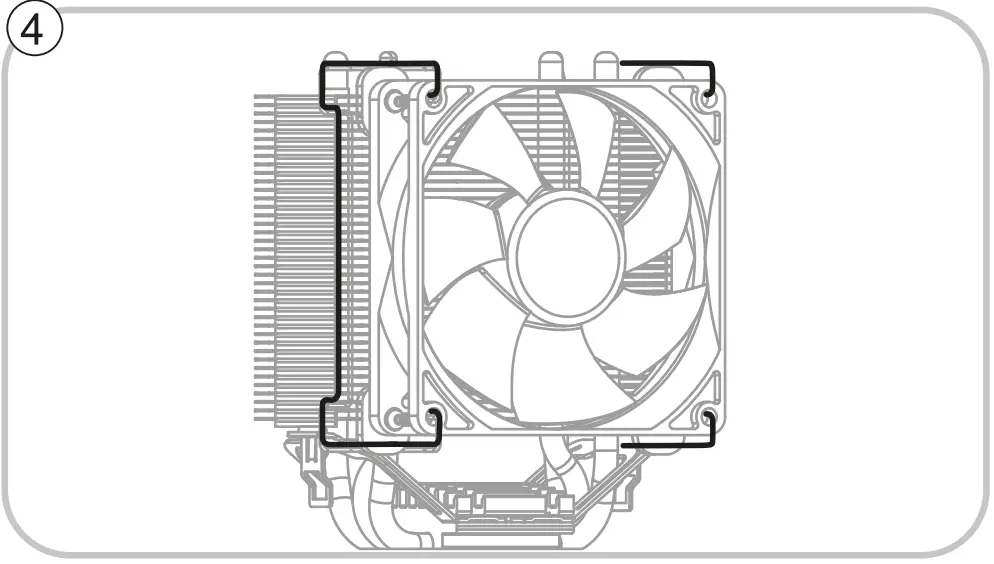

Attach the fan which is already assembled with De-vibration buffer to the heatsink with wire clips.

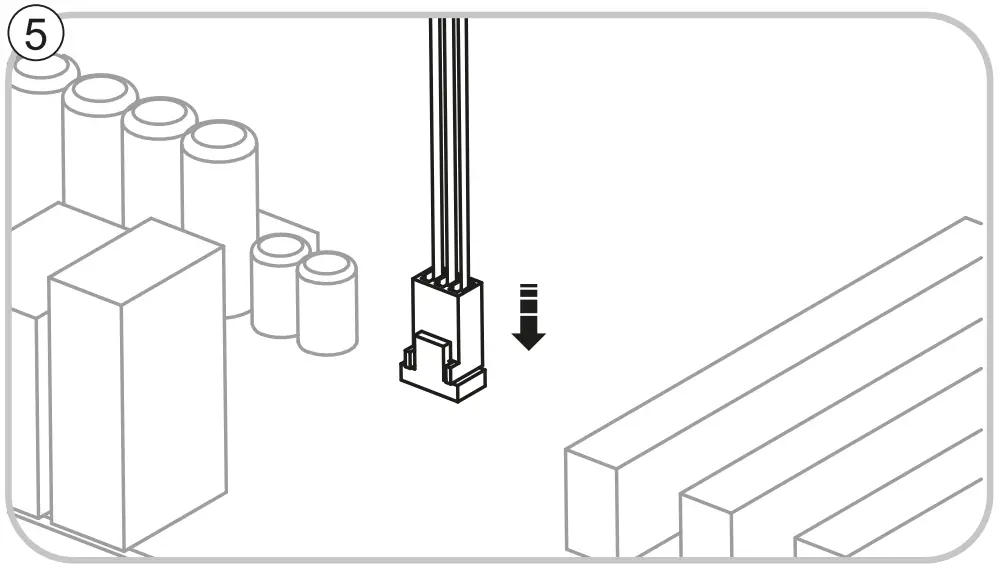

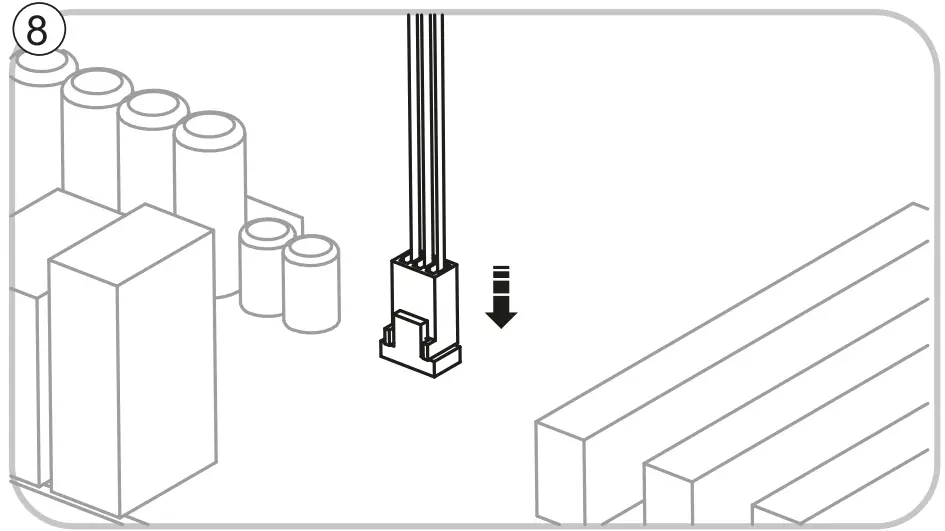

Finish the installation by connecting the fan cable to the motherboard.

Evenly apply a thin layer of thermal grease onto the processor.
As illustrated, put the heatsink onto the
processor and hook the vertical clip onto
the retention frame tab.
Press down the other side clip and hook it onto the tab,too.Please tl ensure perfect contact between the heatsink base and the CPU surface during installation.

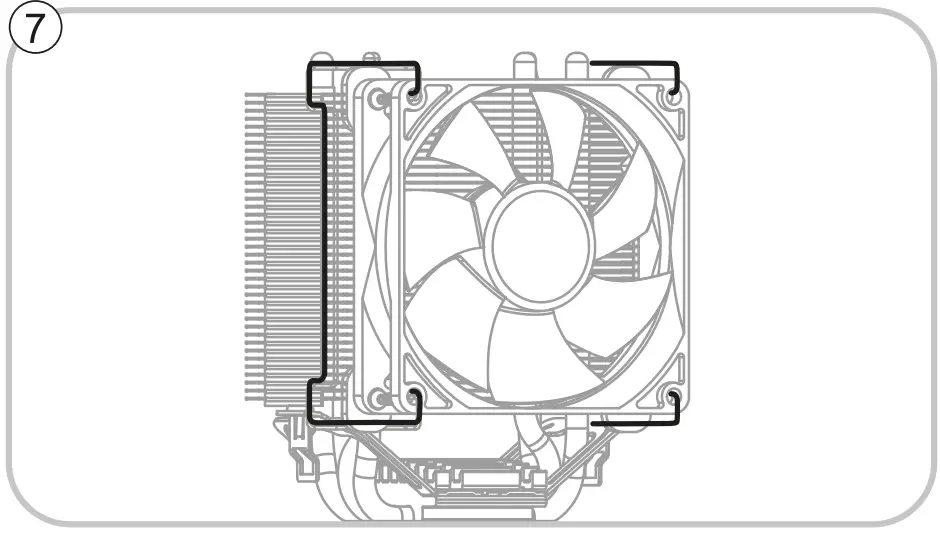

Attach the fan which is already assembled with De-vibration buffer to the heatsink with wire clips.
Finish the installation by connecting the fan cable to the
motherboard.
