GIGABYTE C301G ATX Mid-Tower PC Case

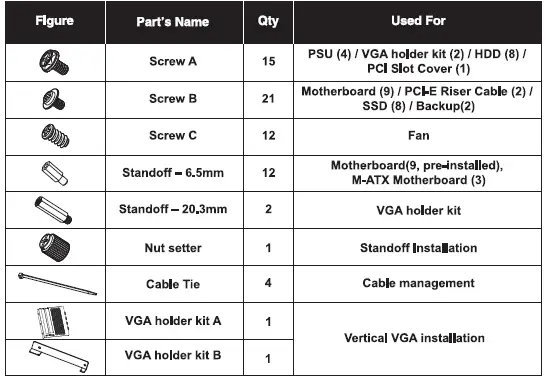

FITTING PACK

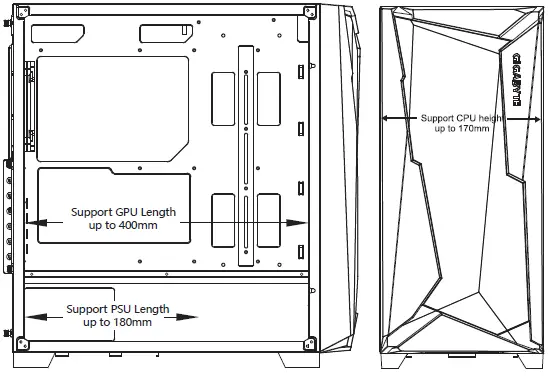

Max CPU Height: 170mm Max GPU Length: 400mm Max PSU Length: 180mm

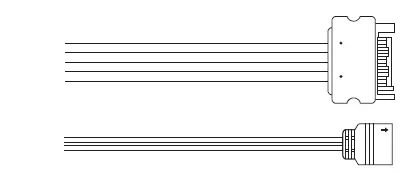

THE I/O CONNECTORS AND RGB LIGHTING POWER

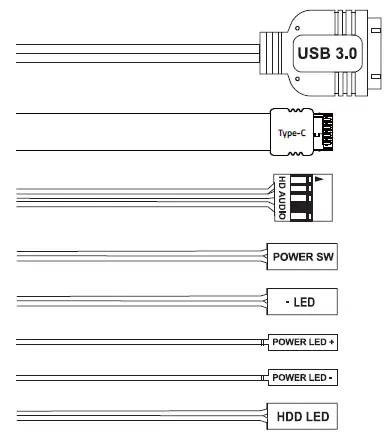

1/O Connectors
RGB Lighting

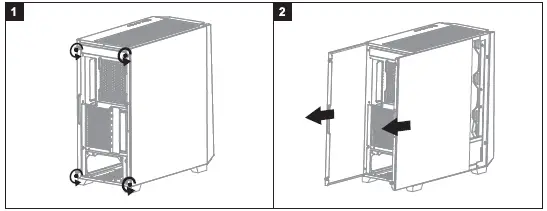

Remove both side panels

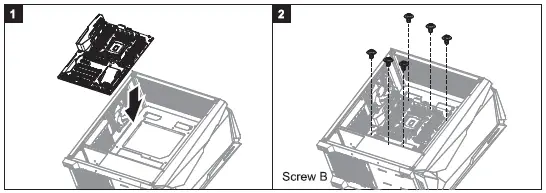

Install the motherboard
The quantity of standoff 6.5mm depends on motherboard’s type.

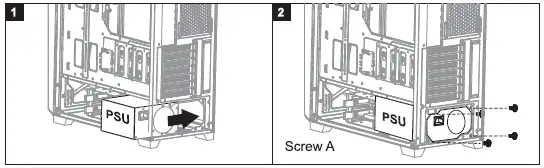

Install the power supply
Install the add-on cards

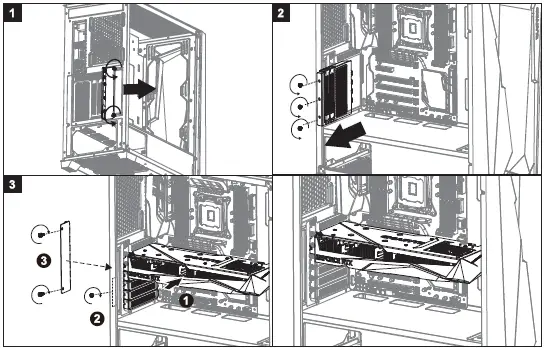

Horizontal VGA card installation

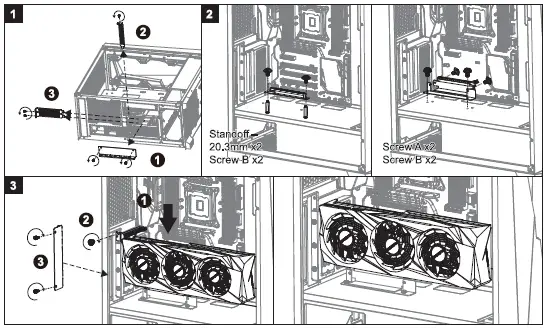

Vertical VGA card installation (requires optional PCI-E x16 riser cable)

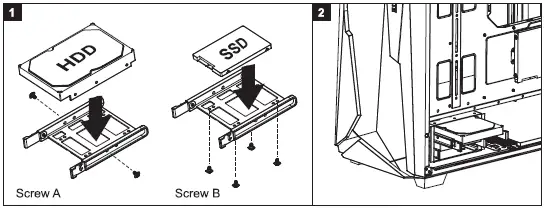

Install the hard drive
5.1 For 3.5″ cage

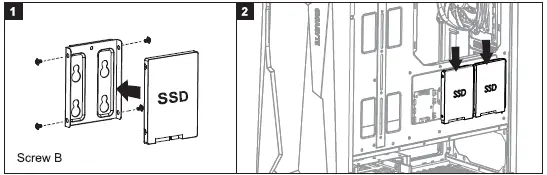

5.2 For 2.5″ cage

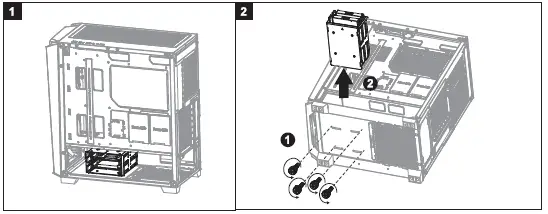

Remove the 3.5″ Cage
The 3.5″cage can be disassembled when the users need more space for installing the PSU.

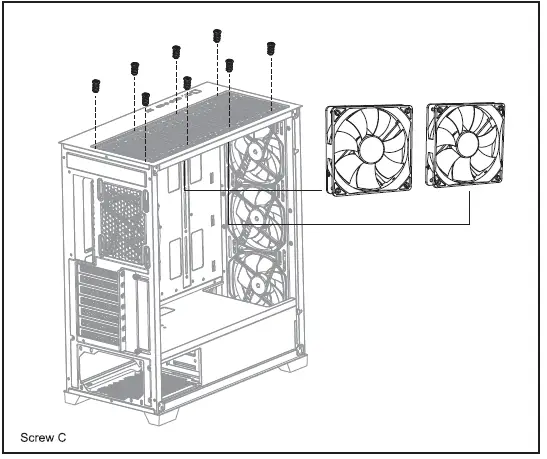

Install the additional system fan(not included)
Cooling System Support
- Rear : 120mm x1
- Top : 120mm x3 / 140mm x2
- Front: 120mm x3 / 140mm x3
- Rear : 120mm x1
- Top : 120mm x3 / 140mm x2 / 240mm x1 / 280mm x1 / 360mm x1
- Front: 120mm x3 / 140mm x2 / 240mm x1 / 280mm x1 / 360mm x1
Warranty
Gigabyte provides limited product warranty. For the latest and current terms of the Limited Product Warranty, please visit http://www.gigabyte.com/support-downloads/customer-service.aspx.
WEEE Information
This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed at the end of its life separately from your household waste. There are separate collection systems for recycling in the EU. For more information, please contact the local authority or your retailer where you purchased the product.
