Fsp Cmt580w Mid Tower Pc Case User Guide

CMT580W Mid Tower PC Case

FSP CMT580B/W Mid Tower

Product Specifications

• Model: CMT580B/W
• Type: E-ATX Mid Tower
• Color: Black, White
• Materials: 0.8mm SPCC
• Dimensions (D x W x H): Product – 450 x 220 x 408mm, Carton –
  500 x 288 x 488mm
• Weight: NW – 8.4kg, GW – 9.6kg
• Motherboard Support: E-ATX, ATX, Micro ATX, Mini-ITX
• External I/O port: USB3.0 x 2, Type-C, HD Audio
• Maximum CPU Cooler Height: 160mm
• VGA Card Length: 325mm
• Expansion Slots: 7
• Power Supply Type: 170mm ATX

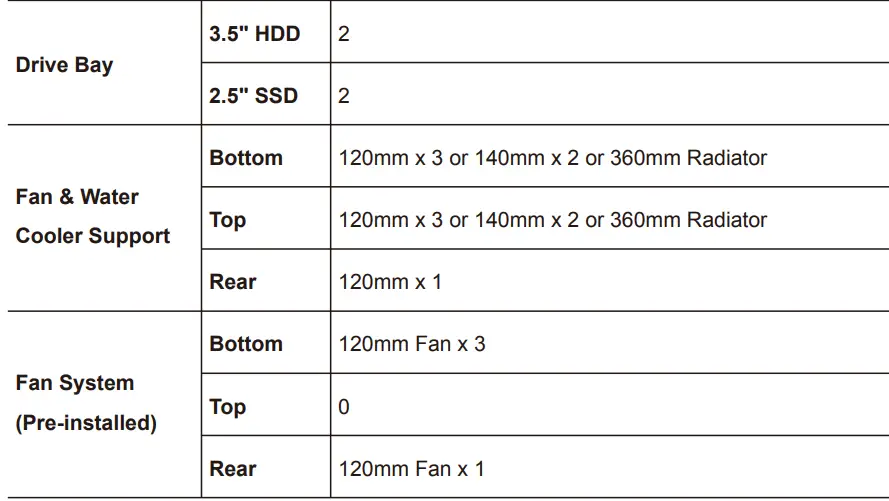

• Drive Bay:
  • 3.5 HDD – 2
  • 2.5 SSD – 2
• Fan & Water Cooler Support:
  • Bottom – 120mm x 3 or 140mm x 2 or 360mm Radiator
  • Top – 120mm x 3 or 140mm x 2 or 360mm Radiator
  • Rear – 120mm x 1 (pre-installed)

Product Usage Instructions

1. Power Supply Unit(PSU) Installation:
   1. Open the front panel of the case.
   2. Place the power supply in the designated area.
   3. Lock the screws to secure the power supply.
2. 3.5 HDD & 2.5 SSD Installation:
   1. HDD/SSD*2 can be installed on the back of the motherboard.
   2. SSD*2 can be installed on the side of the PSU cover.
3. Fan & Radiator Support:
   1. Bottom – Supports 120mm x 3 or 140mm x 2 or 360mm
      Radiator.
   2. Top – Supports 120mm x 3 or 140mm x 2 or 360mm Radiator.
   3. Rear – Supports 120mm x 1 (pre-installed).
4. Side Panel Disassembly:
   1. Remove the screws of the upper cover.
   2. The front and side panel can now be opened.

Warranty Policy

FSP warrants that the product will be free of defects in material and workmanship for the duration of the warranty period identified on the product package from the power supply on the date of purchase. The warranty policy may vary in certain regions.
Please contact your local authorized FSP reseller where the product was purchased for more information.

Specifications

• Model: CMT580B/W
• Type: E-ATX Mid Tower
• Color: Black, White
• Materials: 0.8mm SPCC
• Dimensions: (D x Wx H)
  Product: 450 x 220 x 408mm
  Carton: 500 x 288 x 488mm
• Weight NW: 8.4kg; GW: 9.6kg
• Mother Board Support: E-ATX, ATX, Micro ATX, Mini-1TX
• External l/O port: USB3.0 x 2, Type-C, HD Audio
• Maximum CPU Cooler Height: 160mm
• VGA Card Length: 325mm
• Expansion Slots: 7
• Power Supply Type: 170mm ATX

Product specifications are subject to change without notice.

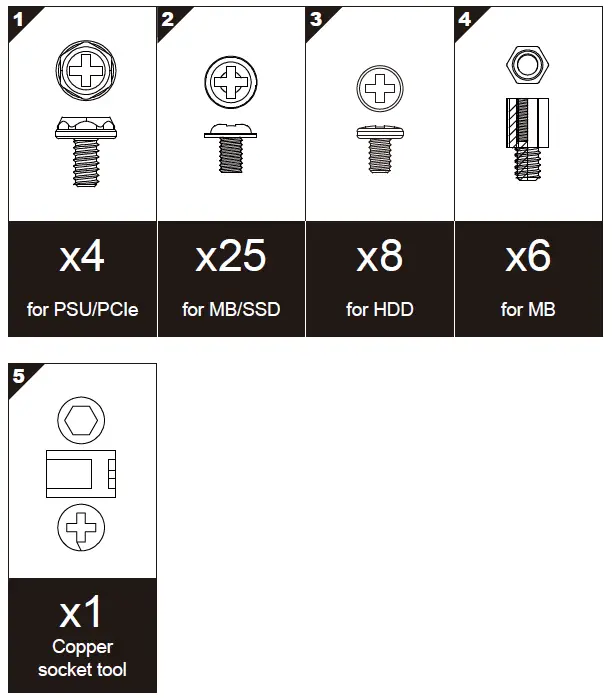

Accessory

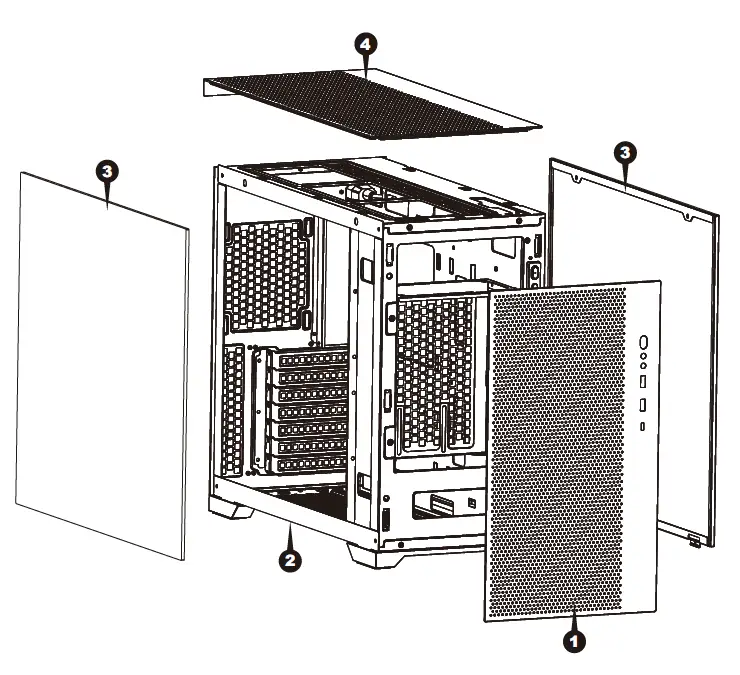

Fan & Radiator Support

1. Front Panel
2. Bottom Plate
3. Side Cover
4. Top Cover

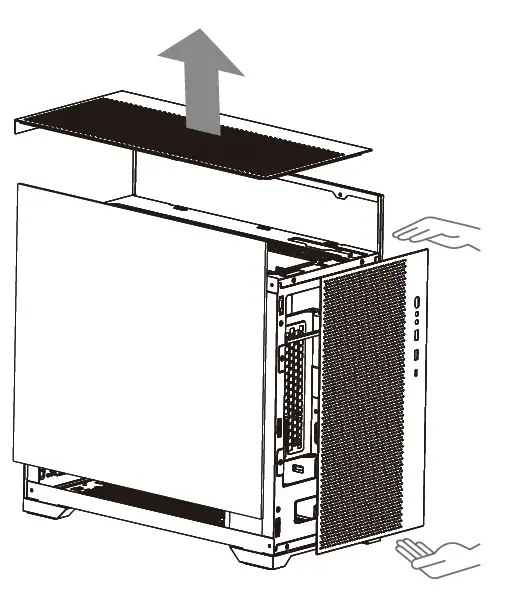

Side Panel Disassembly

Unscrew the screws of the upper cover, and the front & side panel can be opened.

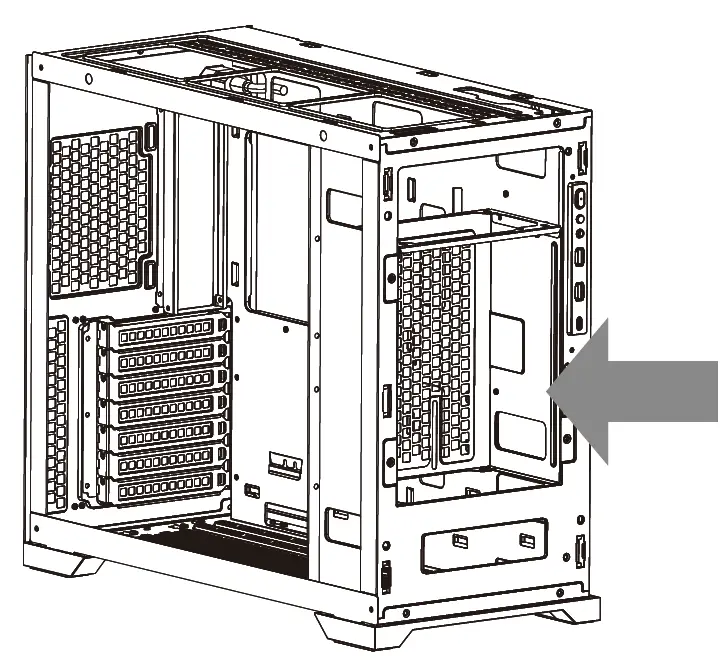

Power Supply Unit(PSU) Installation

Open the front panel, put in the power supply and lock the screws.

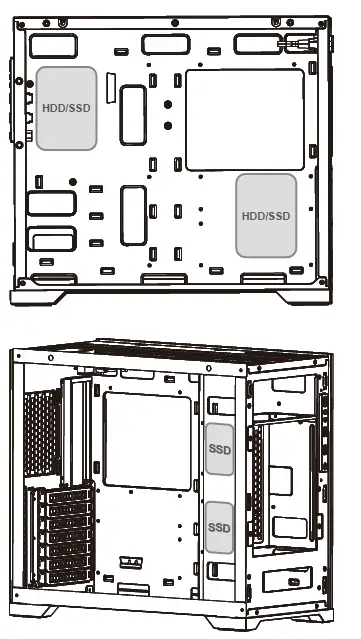

3.5″ HDD & 2.5″ SSD Installation

HDD/SSD 2 can be installed on the back of the motherboard. SSD 2 can be installed on the side of the PSU cover.

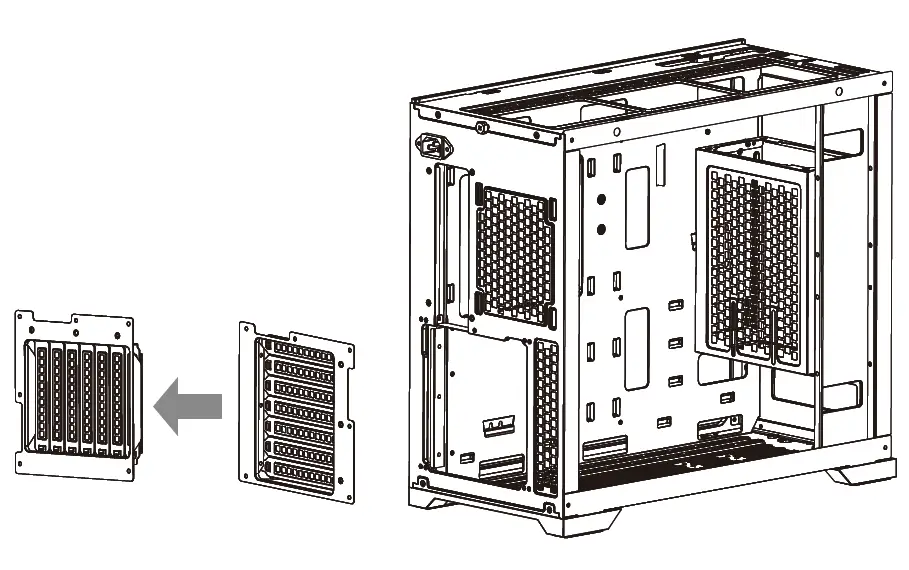

Two-way PCle slot

Unscrew the 4 screws to take out the PCle slot module. Rotate it to install VGA card vertically.

Product Warranty Policy

Thank you for purchasing FSP product! FSP warrants that the product will be free of defects in material and workmanship, and provides the warranty period-identified on the product package from the power supply on the date of purchase. In the event that warranty policy might be different in certain regions; please contact local authorized FSP reseller where the product is purchased.

The warranty is applied to damages caused through normal use and is void if it is resulted from, but not limited to, the following situations:

• Wear and tear associated with normal use
• Any modification, abuse, accident, disassembly, misapplication, or unauthorized repair
• Removal of any manufacturer label(s) or sticker(s)
• Any improper operation, including any use not in accordance with any supplied product instructions
• Any other cause which does not relate to a product defect in materials or workmanship
