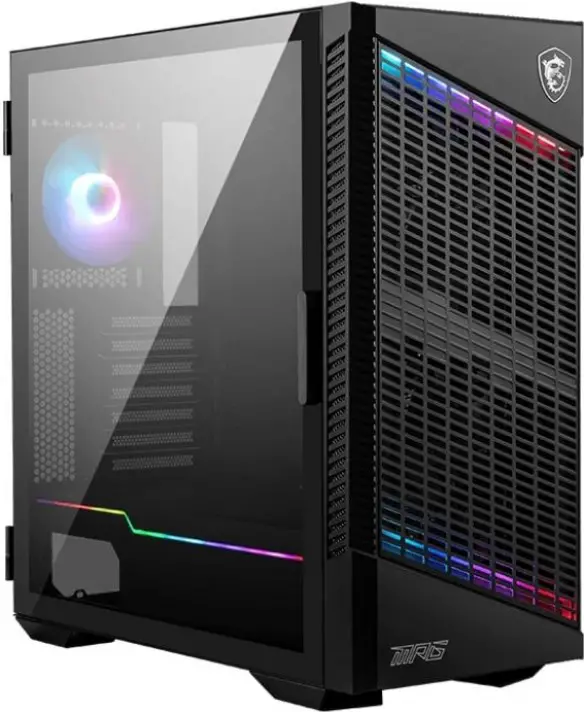

msi Velox 100P Airflow Mid Tower Computer Case User Guide

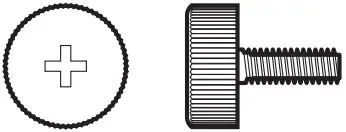

ITEMS
Specification
| Fan LED Controller | 1 to 6 ARGB (3 pin) Control Board |
Pre-Installed Fan | MPG VELOX 100P AIRFLOWFront: 3x 120 mm black fansRear: 1x 120 mm ARGB fanMPG VELOX 100RFront: 3x 120 mm ARGB fansRear: 1x 120 mm ARGB fan |
| Case Dimensions | 474(D) x 231(W) x 490(H) mm18.67(D) x 9.09(W) x 19.29(H) inch |
| Motherboard Support | ATX/ M-ATX/ ITX |
| Drive Bays | 2x 2.5″ SSD trays 2x 3.5” HDD trays |
IO PanelIO | 1x LED switch button1x USB 3.2 Gen2 Type C port 2x USB 3.2 Gen1 Type A ports 1x Mic in jack1x Audio out jack 1x Reset button 1x Power button |
| Fan Support | Top: 120 mm x3 / 140 mm x2 Front: 120mm x 3 / 140mm x 3 Rear: 120 mm x 1Side: 120 mm x 2 |
| Radiator Support | Top: 120/ 140/ 240/ 280/ 360 mm Front: 120 / 140 / 240 / 280 / 360 mmRear: 120 mm Side: 120/ 240 mm |
| Clearance | CPU Cooler Height: Max 175 mm / 6.89 inch Graphics Card Length: Max 380 mm / 14.96 inchPSU Length: Max 220 mm / 8.66 inch (without 3.5’’ HDD tray installed, |
Material | Chassis: SPCC 0.6 mmLeft Panel: Tempered glass Right Panel: Metal MPG VELOX 100P AIRFLOWFront Bezel: Plastic + MeshMPG VELOX 100RFront Bezel: Plastic + Glass |
Dust Filters | Right side dust filter Bottom dust filter MPG VELOX 100P AIRFLOWFront: Metal vents + Dust filterTop: Metal vents + Magnetic frame dust filter PVC mesh MPG VELOX 100RFront: Tempered glass without dust filterTop: Magnetic frame dust filter PVC mesh |

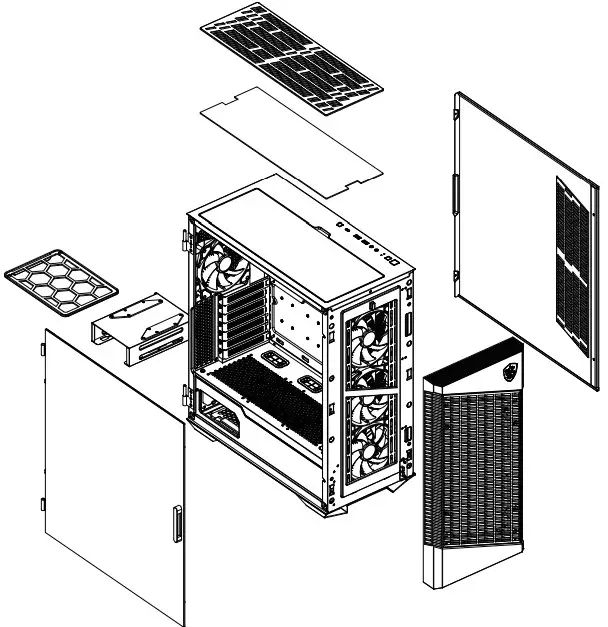

Case Features

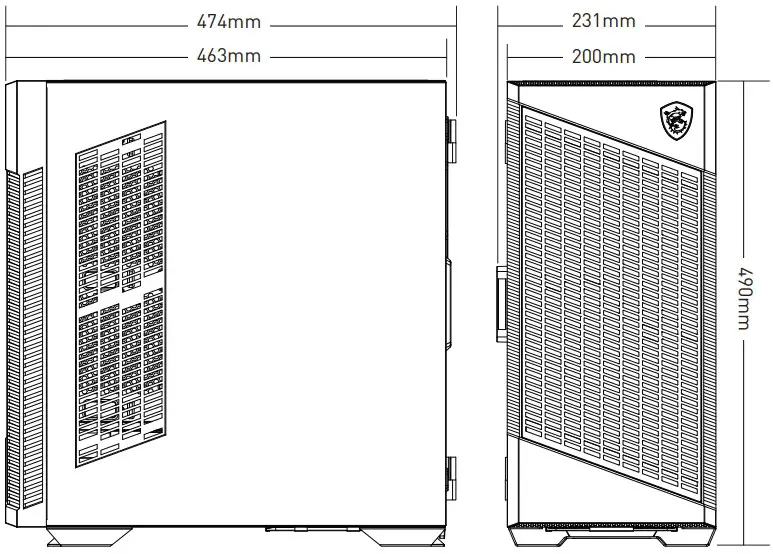

Side & Front View

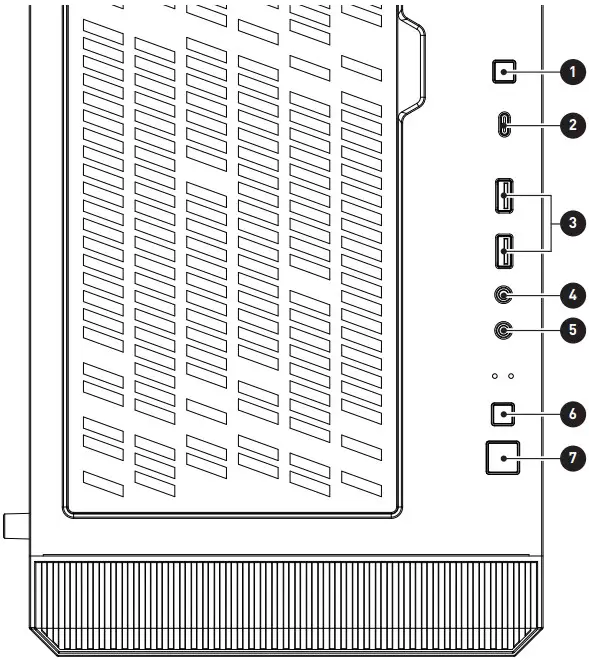

IO Panel
- LED switch button
- USB 3.2 Gen 2 Type-C
- USB 3.2 Gen 1 Type-A
- Mic in
- Audio out
- Reset button
- Power button

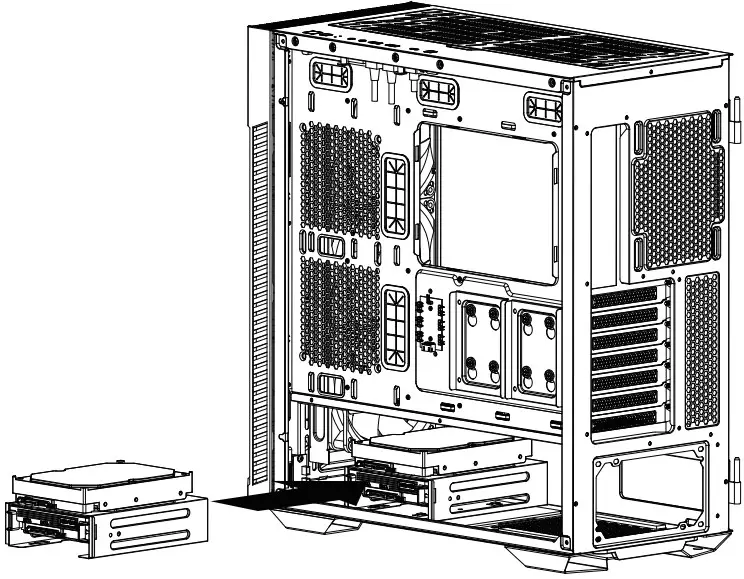

HDD Installation

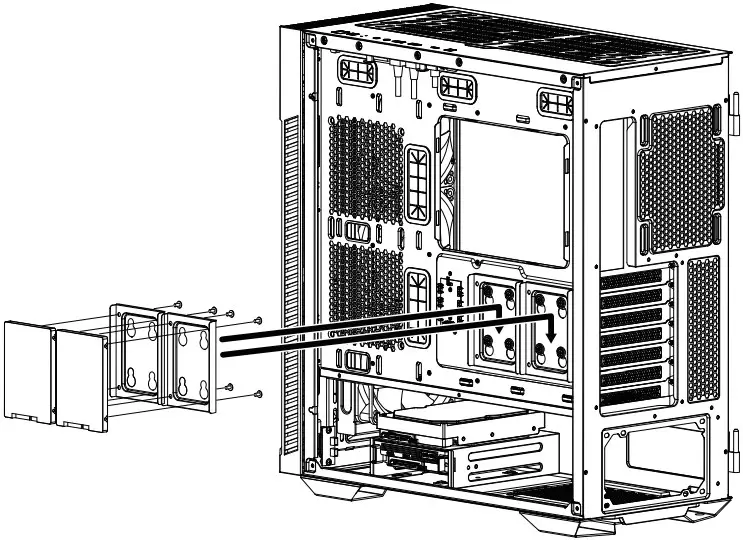

SSD , HDD Installation

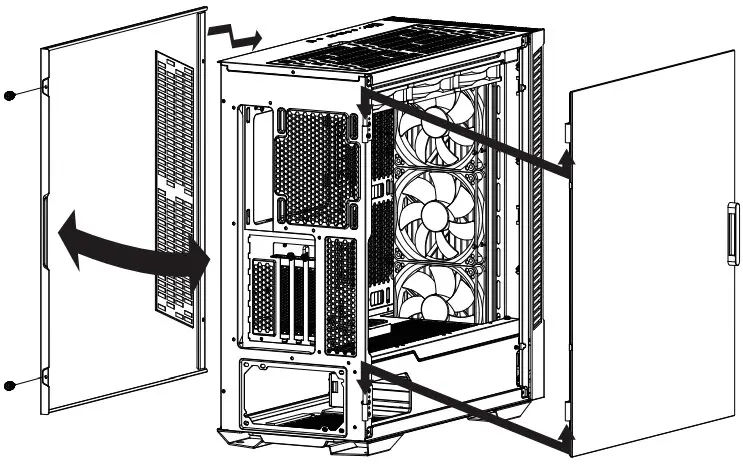

Opening the Left & Right Side Cover

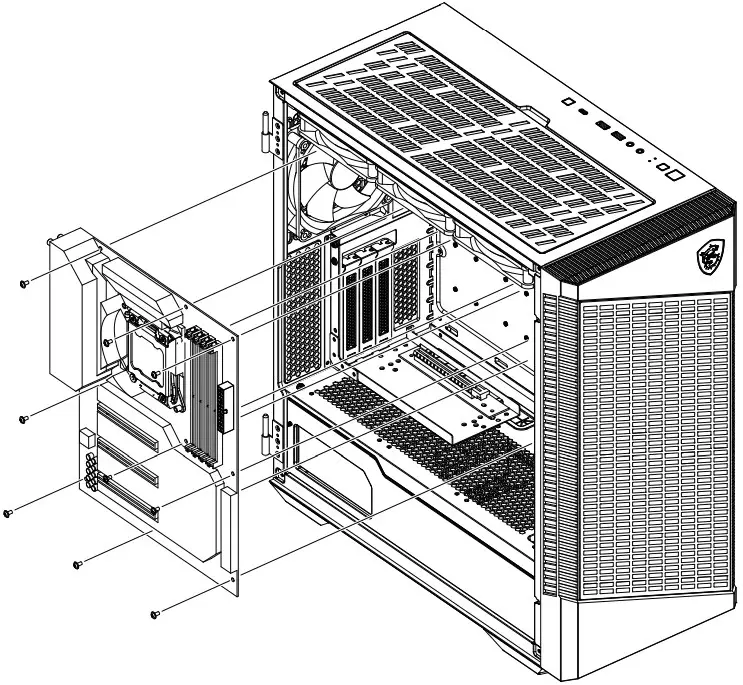

Motherboard Installation

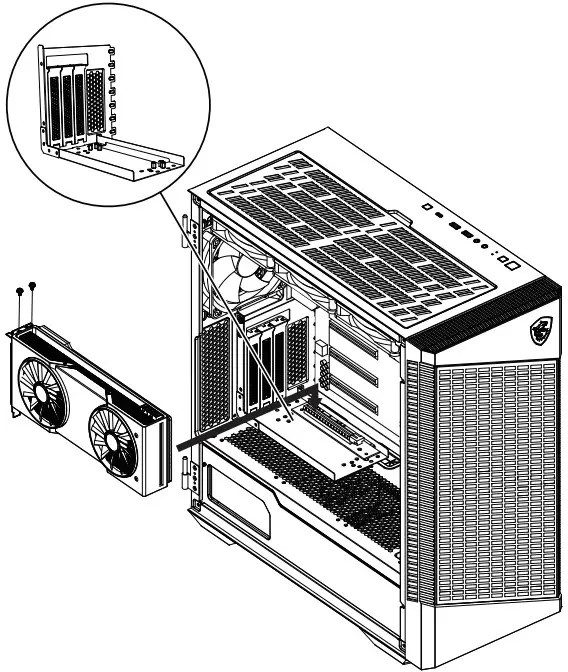

Graphics Card Vertical Installation

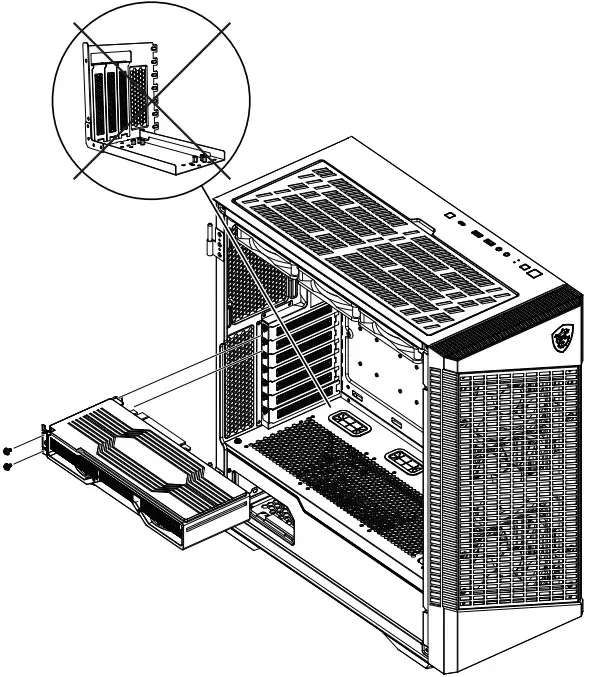

Graphics Card horizontal Installation

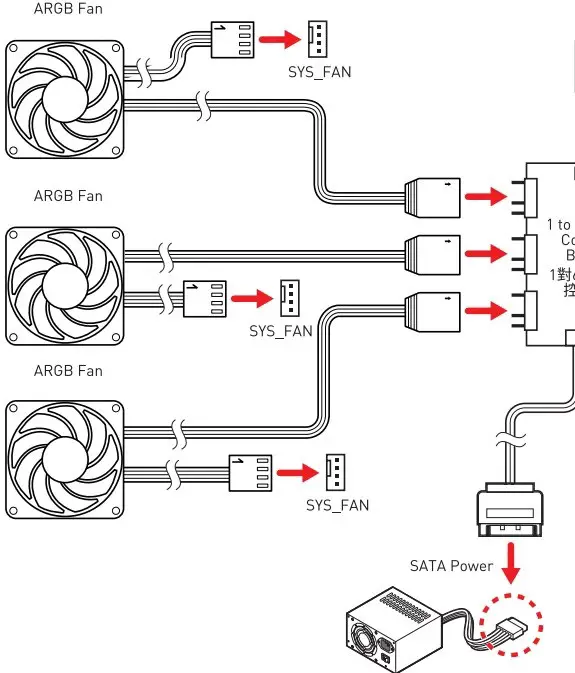

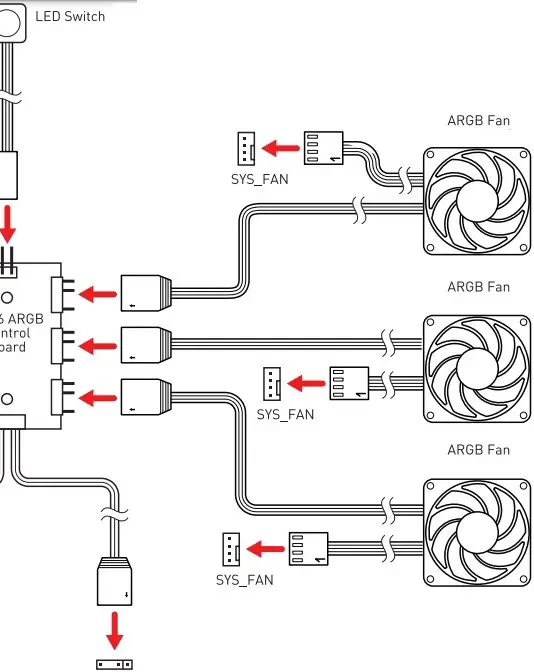

ARGB Fan Connection
Support up to 128 LEDs, Exceeding this limit will lead to overheating, abnormal color or no light.
Control Board Specification
| Dimensions (mm) | 50 x 30 |
| Support LED Type | DC5V Addressable RGB LED |
| Connectors | 1x LED switch connector SATA power connector 1x MSI motherboard JRAINBOW connector6x 3-pin ARGB LED connectors |
| ARGB Pin Definition | Ground Data +5V |
LED Effects(1 short press the LED switch) | LED effect cycle:
|
PSU Installation
