Aerocool Cs-105 Mini Tower Case User Guide

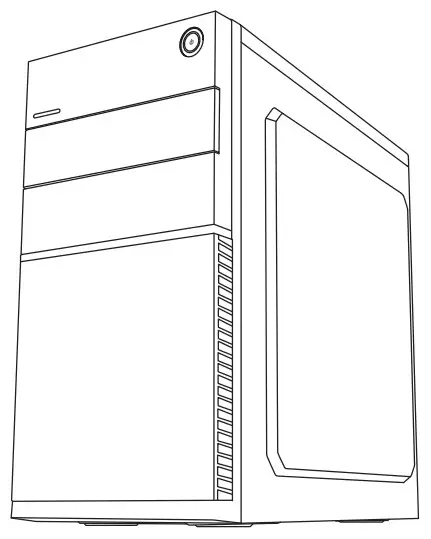

CS-105 Mini Tower Case
User Guide

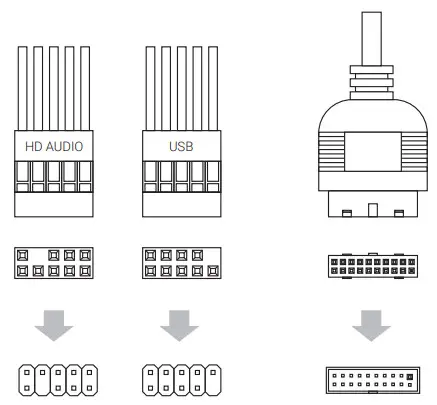

Front I/O Panel Cable Connection

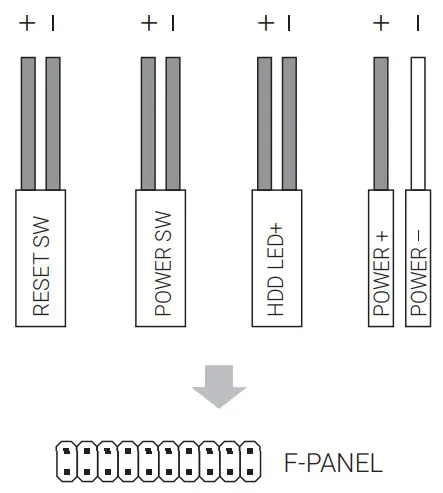

Front Panel Connector

Accessory Bag Contents

	MB Standoff
	MB Screw SSD Screw ODD Screw
	3.5″ HDD Thumb Screw
	PSU Screw PCI Screw

How to Install Guide

(1) Motherboard

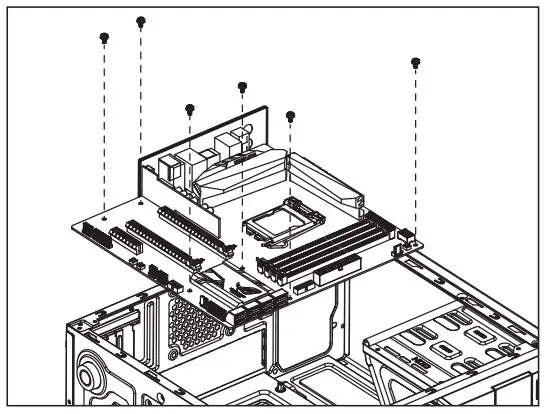

Install Motherboard

PSU

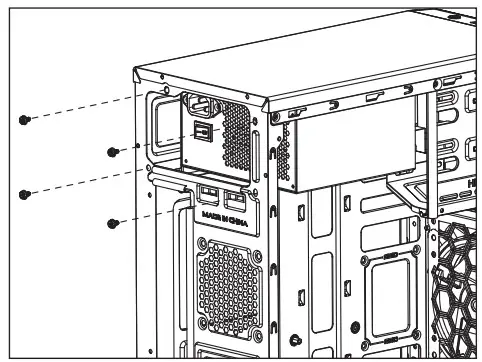

Install PSU

(3) 5.25” ODD x 1

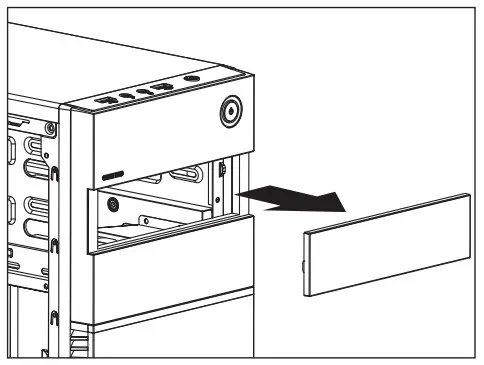

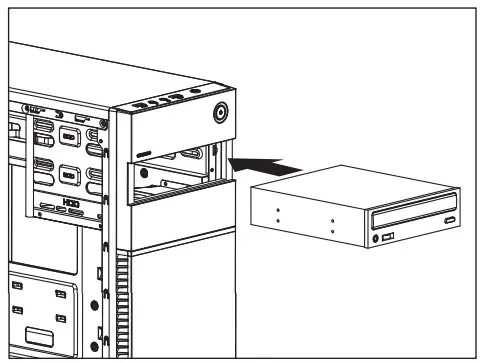

Install ODD

(4) 3.5” HDD x 2

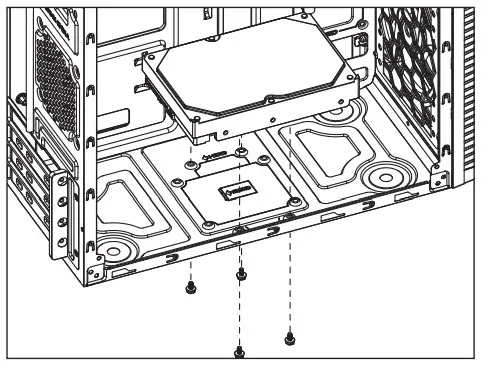

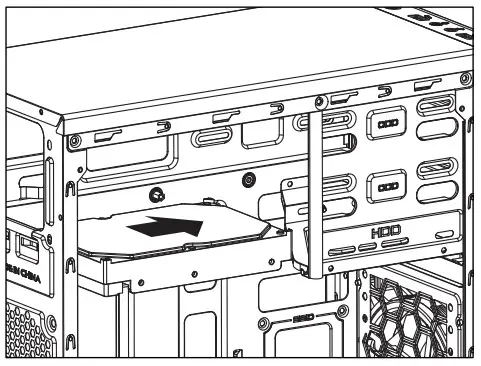

Install 3.5″ HDD

(5) 2.5” SSD x 2

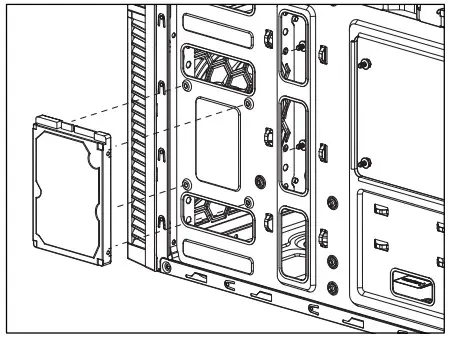

Install 2.5″ SSD

(6) Add-on Card

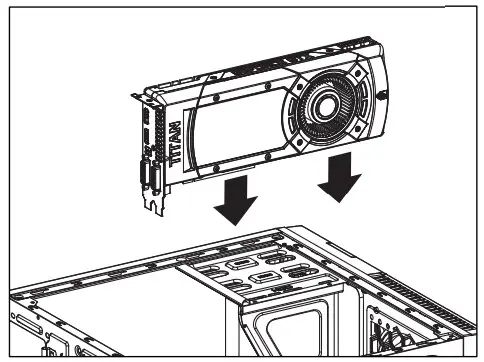

Install Add-on Card

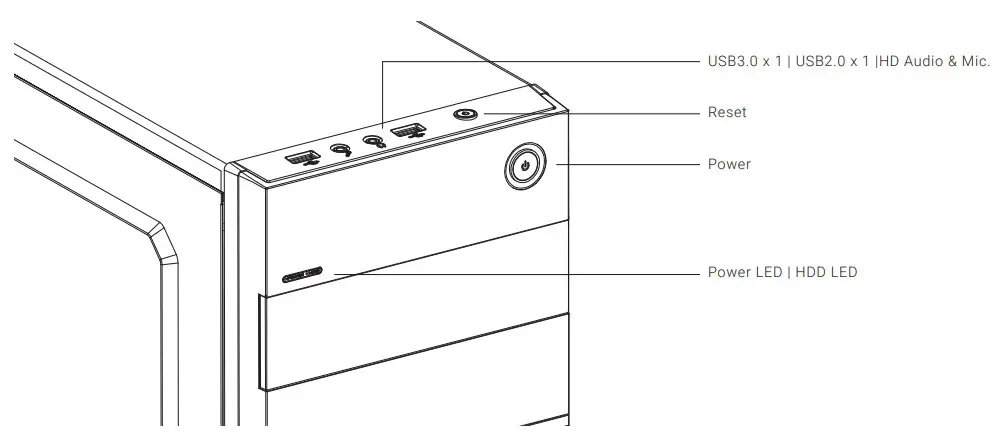

I/O Panel
