Aerocool Cylon Mini Rgb Mini Tower Case Installation Guide

Cylon Mini RGB Mini Tower Case
Installation Guide

Front I/O Panel Cable Connection

Front Panel Connector

(Please refer to the motherboard’s manual for further instructions).

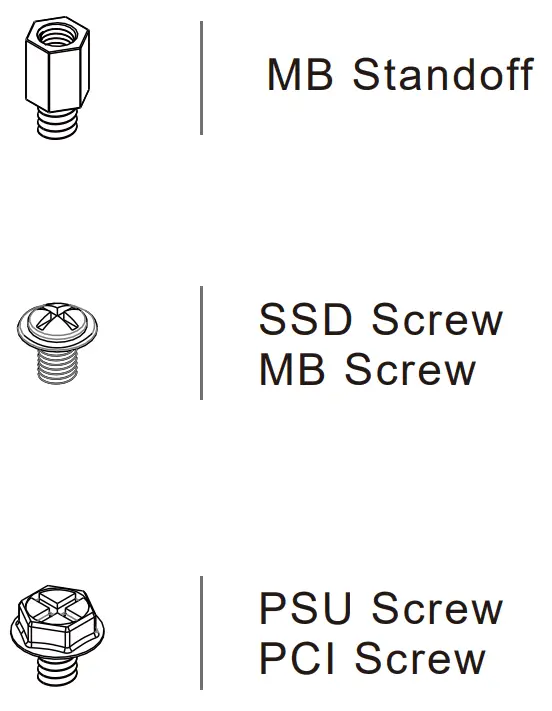

Accessory Bag Contents

How to install Guide

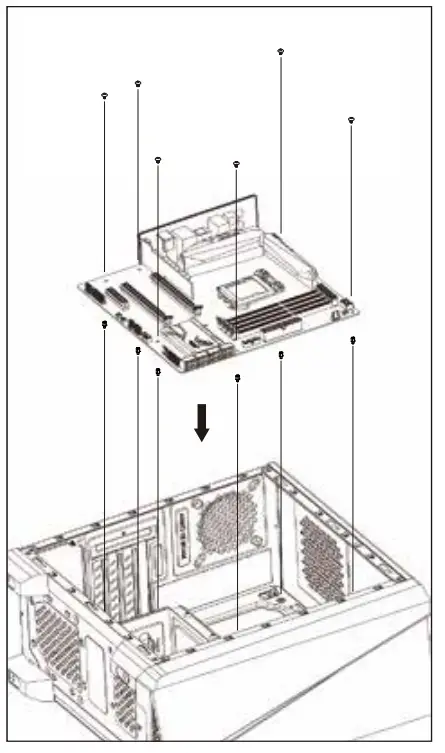

(1) Motherboard

Install Motherboard

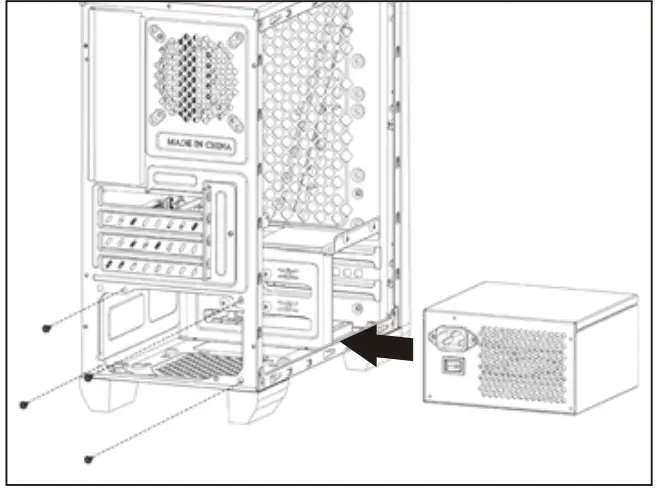

(2) PSUInstall PSU

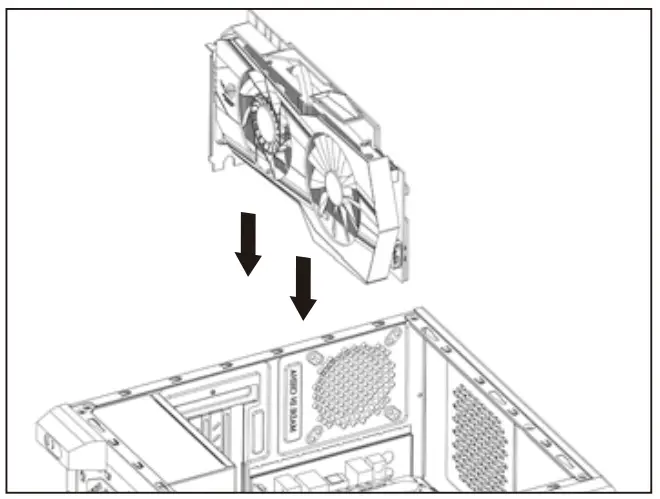

(3) Add-on Card

Install Add-on Card

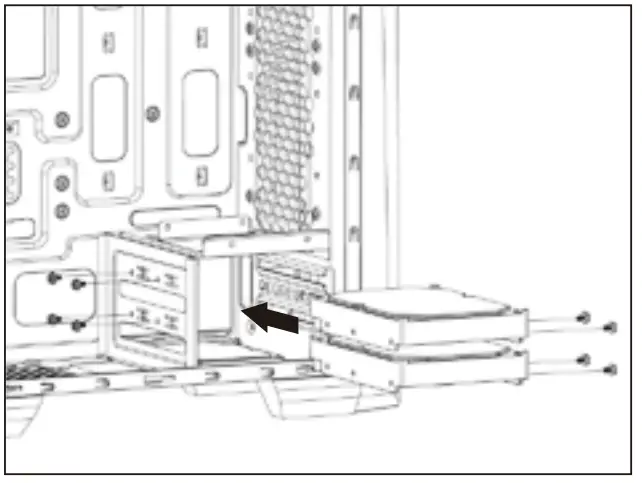

(4) 3.5” HDD x 2

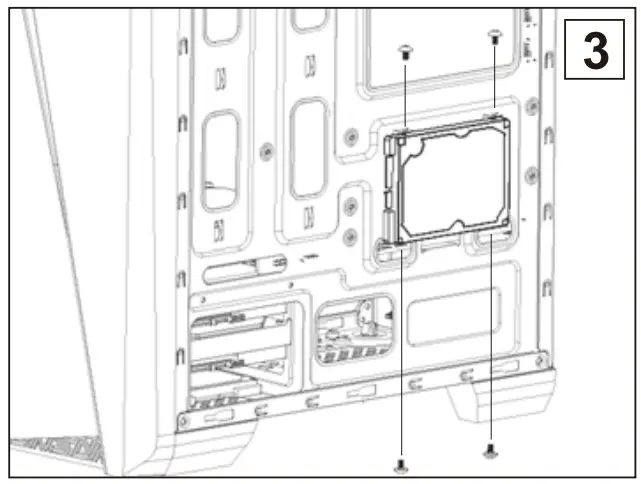

Install 3.5″ HDD

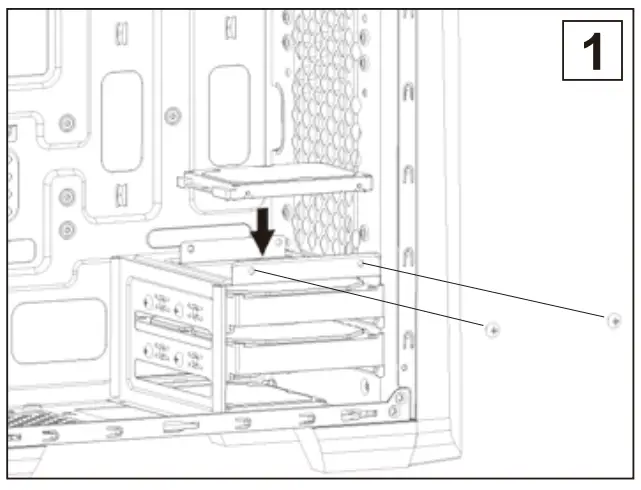

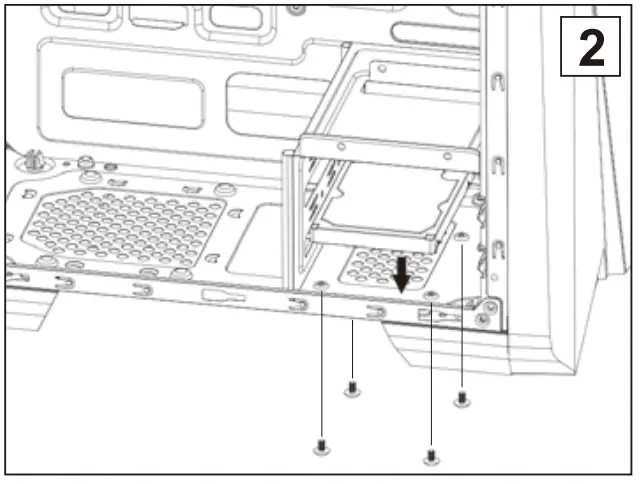

(5) 2.5” SSD x 3

Install 2.5″ HDD

Install 2.5″ HDD

Install 2.5″ HDD

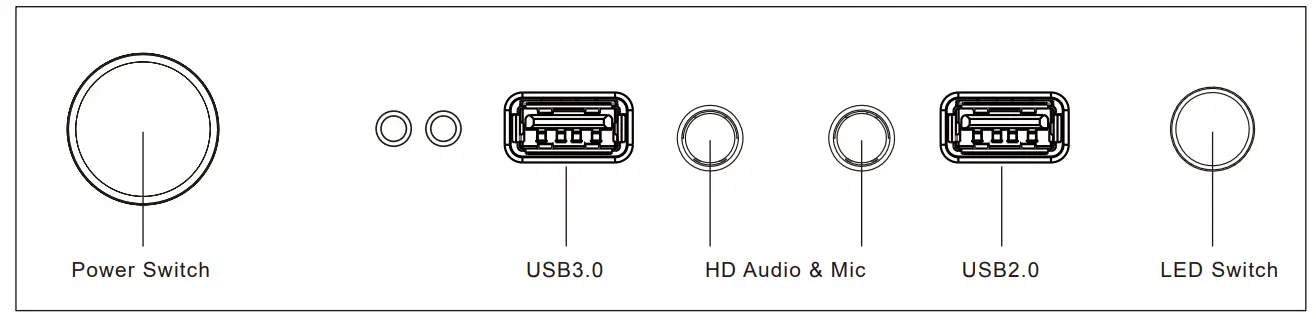

I/O Panel

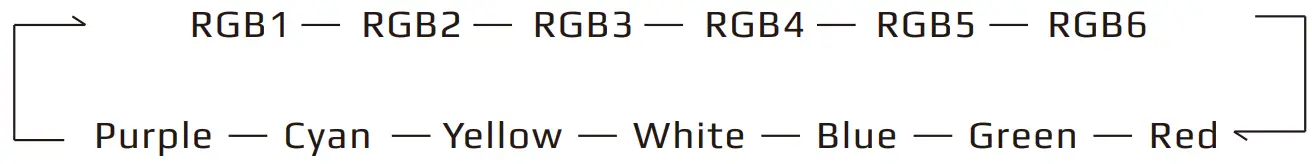

LED Mode Switch

Hold switch for 2 secs to turn off LED
