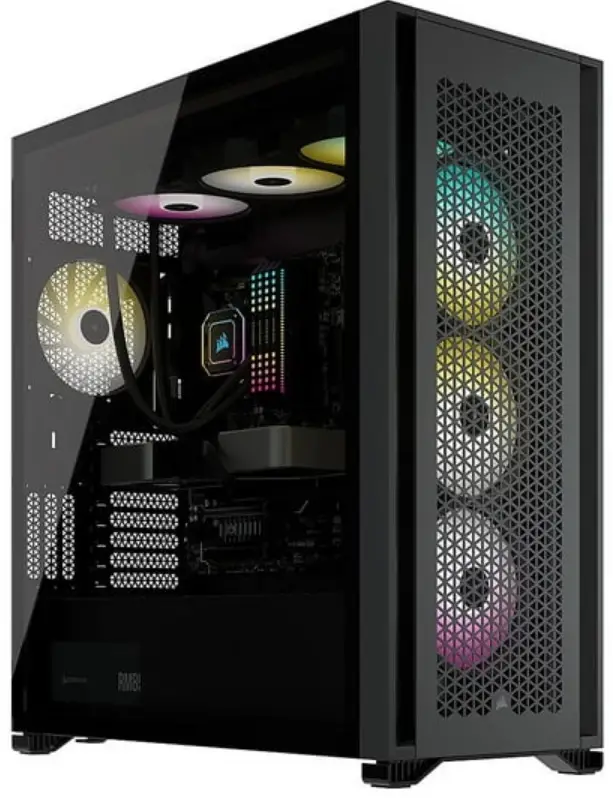

CORSAIR 7000D AIRFLOW Full-Tower PC Case

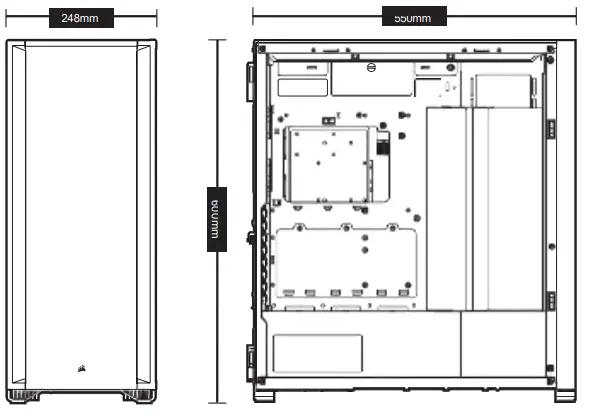

CASE SPECIFICATIONS
- Length ………………………………………………………………………………………………………………………………………….. 550mm
- Width…………………………………………………………………………………………………………………………………………….. 248mm
- Height …………………………………………………………………………………………………………………………………………… 600mm
- Maximum GPU length …………………………………………………………………………………………………………………….. 330mm
- Maximum CPU height …………………………………………………………………………………………………………………….. 175mm
- Maximum PSU length …………………………………………………………………………………………………………………….. 225mm
- Fan locations:
- Front ……………………………………………………………………………………….. 4x 120mm / 3x 140mm (2x 140mm Included)
- Top ………………………………………………………………………………………………………………………… 3x 120mm / 3x 140mm
- Rear …………………………………………………………………………………………………. 120mm / 140mm (1x 140mm Included)
- Motherboard tray ………………………………………………………………………. 4x 120mm (Requires removal of cable cover)
- Radiator compatibility:
- Front……………………………………………………………………………………………………………………………….. 480mm / 420mm
- Top …………………………………………………………………………………………………………………………………. 420mm / 360mm
- Rear ……………………………………………………………………………………………………………………………….. 140mm / 120mm
- Motherboard tray ……………………………………………………………………………………………………………… 480mm / 420mm

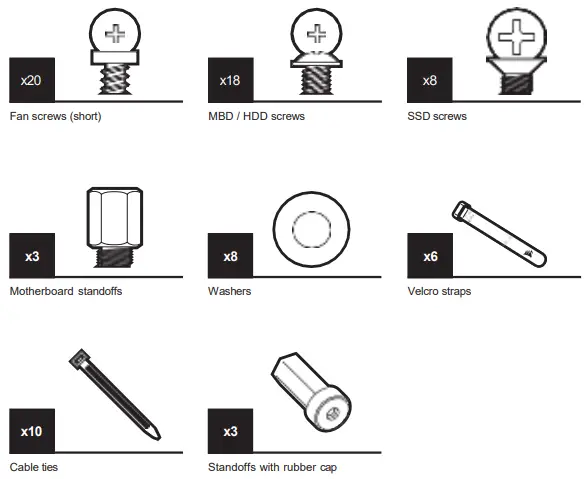

ACCESSORY KIT CONTENTS

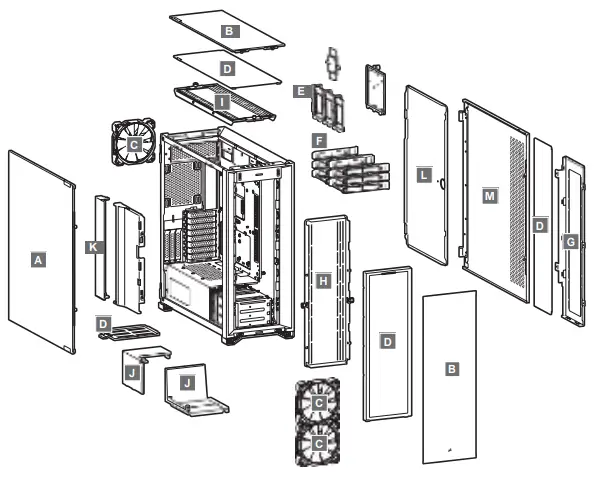

CASE FEATURES
- A — TEMPERED GLASS SIDE PANEL
- B — SOLID STEEL FRONT AND TOP PANELS
- C — 3x 140MM FANS
- D — 4x DUST FILTERS
- E — 3x SSD TRAYS
- F — 6x HDD TRAYS
- G — MOTHERBOARD TRAY FAN BRACKET
- H — FRONT FAN BRACKET
- I — TOP FAN BRACKET

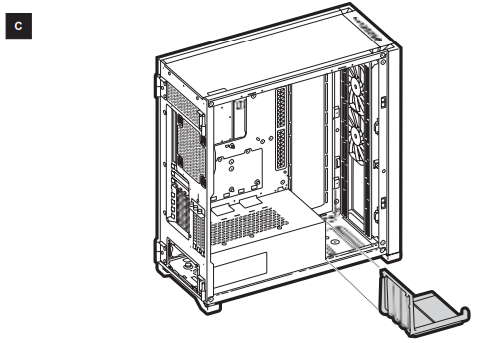

- J — PSU SHROUD COVER (ALTERNATE)
- K — CABLE COVER
- L — MOTHERBOARD STEEL HINGED DOOR
- M — SOLID SIDE PANEL
HINGED SIDE PANELS

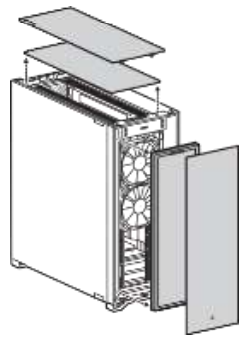

REMOVING THE FRONT AND TOP BEZEL
REMOVING THE CABLE BAR
INSTALLATION

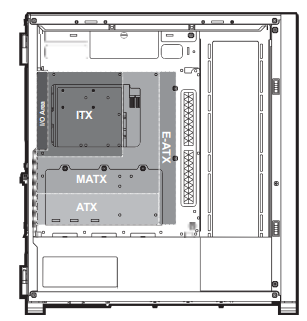

INSTALLING THE MOTHERBOARD

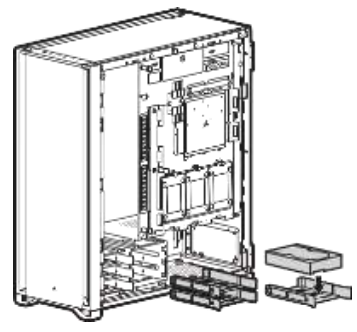

INSTALLING HDDS

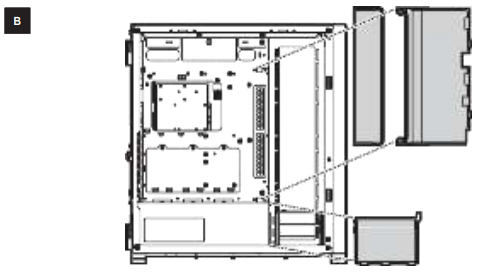

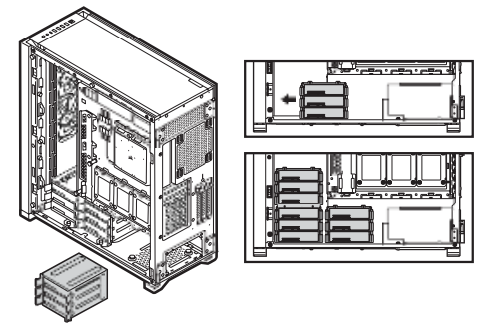

MOVING THE HDD CAGE

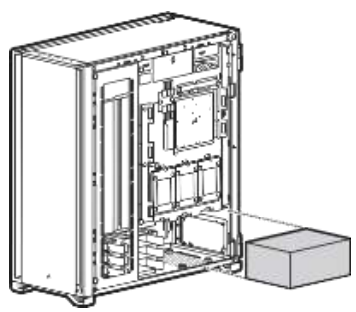

INSTALLING PSU
INSTALLING SSDS

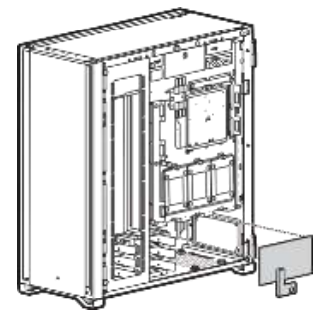

REMOVABLE PSU WINDOW

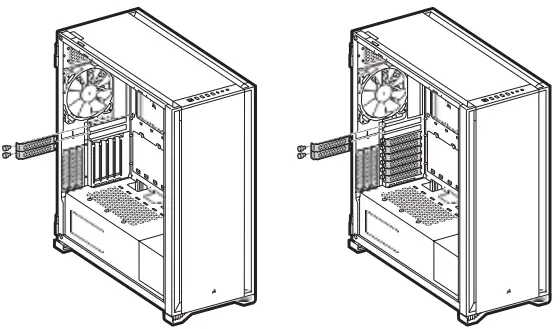

INSTALLING PCI-e CARDS

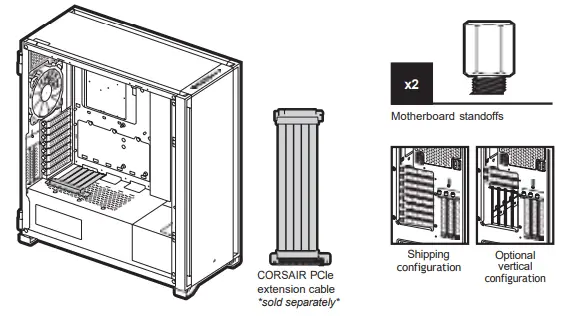

VERTICAL MOUNT GPU

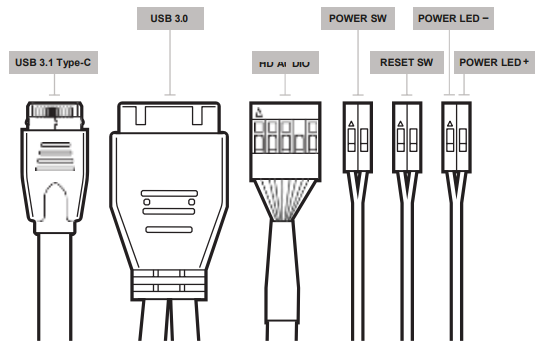

INSTALLING THE FRONT I/O CONNECTORS

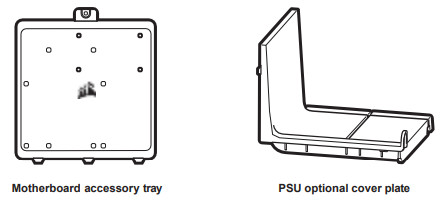

ACCESSORIES IN THE BOX
FREQUENTLY ASKED QUESTIONS
- Does the polarity matter with the I/O panel’s power and reset header?
No, only the LED headers. - Who should I contact if I received my case damaged or one of the fans is no longer working? Please go to support.corsair.com and request an RMA so that we can replace
the damaged part(s). - Where can I mount a fan?
| Fan mount locations | |
| Front | 4x 120mm / 3x 140mm |
| Top | 3x 120mm / 3x 140mm |
| Rear | 120mm / 140mm |
| Motherboard tray | 4x 120mm |
To learn more about this case visit the product page at corsair.com.
