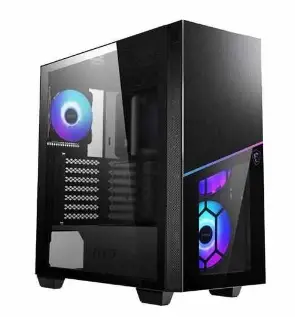

msi MPG Sekira 100R Mid-Tower Computer Case

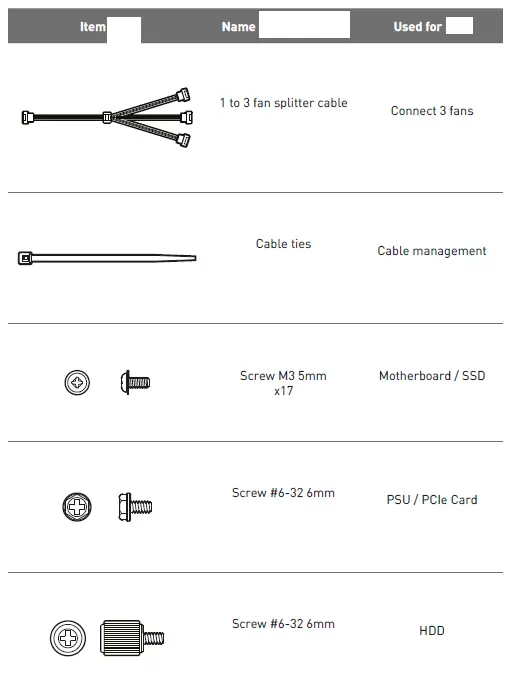

Accessories
Specification
| MPG SEKIRA 100R | MPG SEKIRA 100P | |
| Pre-installed | Front: 3x 120 mm ARGB fans Rear: 1x 120 mm ARGB fan | Front: 3x 120 mm Black fans Rear: 1x 120 mm Black fan |

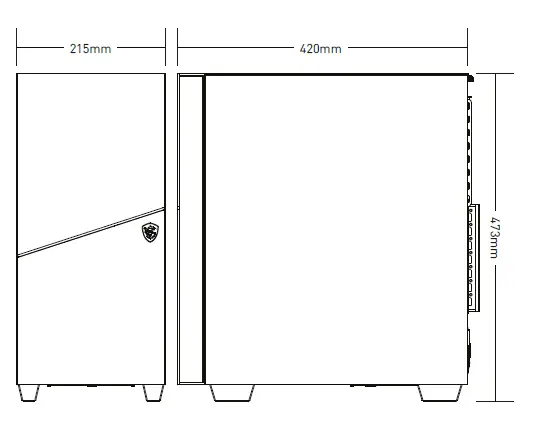

| Case Dimensions (mm) | 420(D) x 215(W) x 473(H) | |
| Motherboard Support | E-ATX/ ATX / Micro-ATX / Mini-ITX | |
| Drive Bays | 2x 2.5″ SSD trays 2x 3.5” + 2.5” combo tray s | |
|
IO Panel | 1x Power button 1x Reset button 1x Power indicator 1x USB 3.2 Gen 2 Type-C port 2x USB 3.2 Gen 1 Type-A ports 1x Mic in jack 1x Audio out jack 1x LED switch button | |
| Clearance | CPU Cooler Hight: Max 170 mm Graphics Card Length: Max 340 mm PSU Length: Standard ATX 250 mm | |
| Fan Support | Front: Up to 3x 120 mm or 2x 140 mm Top: Up to 2x 120 mm or 2x 140 mm Rear: Up to 1x 120 mm | |
| Radiator Support | Front: Up to 360 mm Top: Up to 240 mm Rear: Up to 120 mm | |
| Material | Left Side: Tempered Glass Right Side: Metel Front: Aluminum+Tempered Glass / Aluminum Top: Metel | |
Case Features

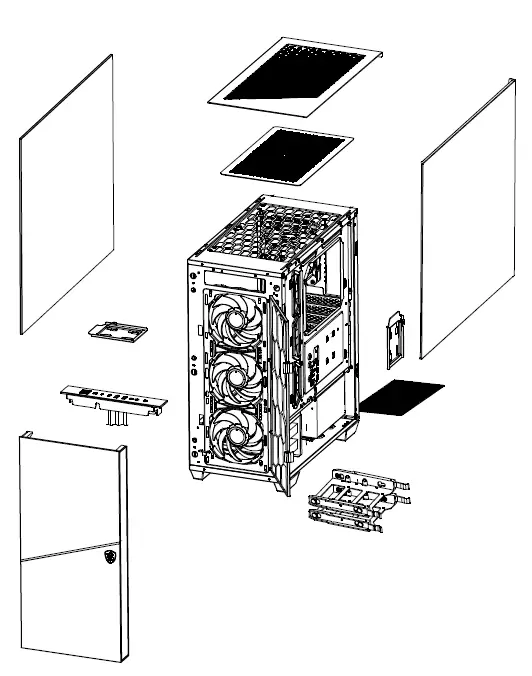

Side & Front View

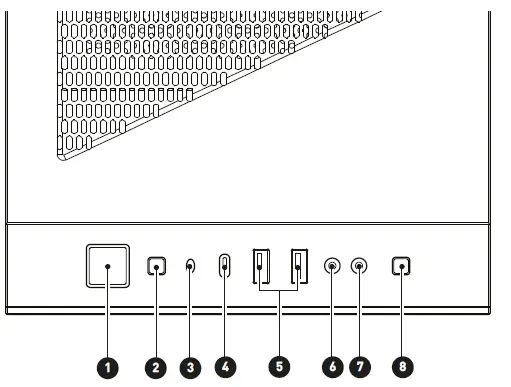

IO Panel / IO
- Power button
- Reset button
- Power indicator
- USB 3.2 Gen 1 Type-C
- USB 3.2 Gen 1 Type-A
- Mic in
- Audio out
- LED switch button / LED
- Short press the LED switch button to change mode.
- Long press the LED switch button for 3 seconds to turn LED off.

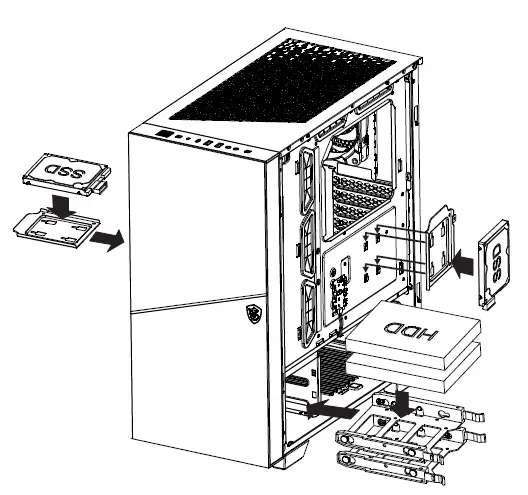

SSD , HDD Installation/ SSD

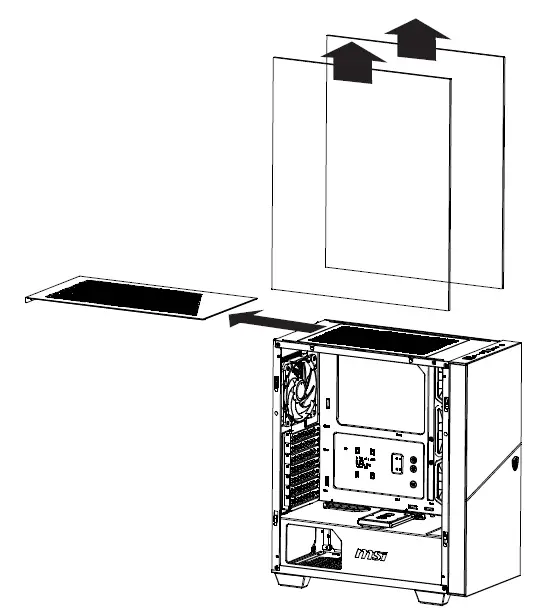

Opening the Top Cover, Left & Right Side Cover
Motherboard Installation

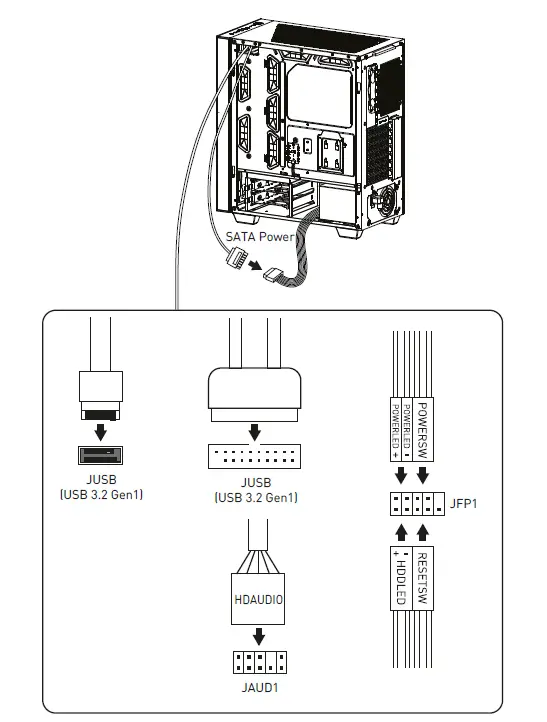

Cables Connection

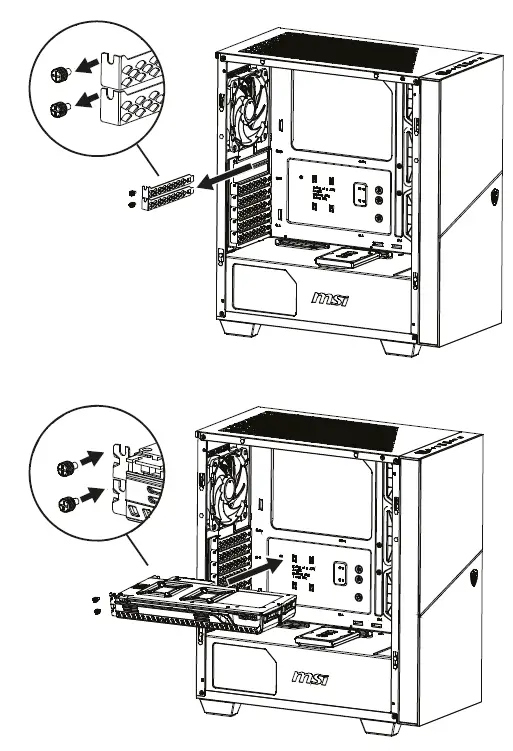

Graphics Card Installation

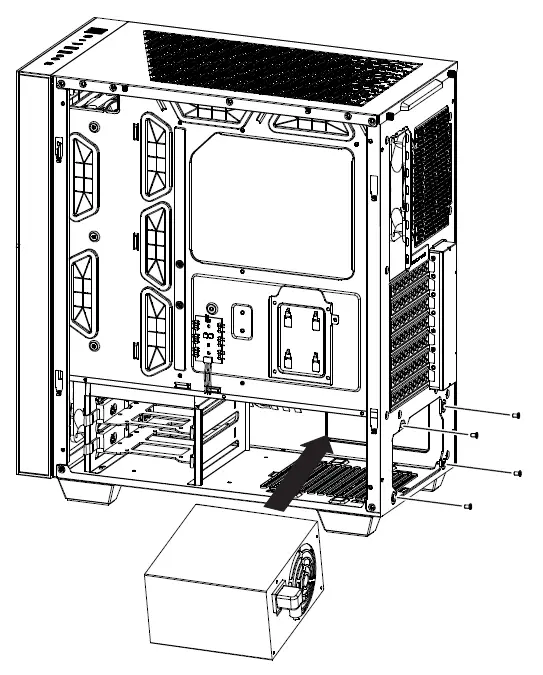

PSU Installation
