Msi Ms-1581 Laptop Case User Guide

msi MS-1581 Laptop Case

PRODUCT OVERVIEW

1. 1.Webcam/ Webcam LED/ Internal Microphone
2. Power Key/ Power LED
3.  Touchpad
4. Status LED
   Caps Lock
5.  Keyboard
6. Status LED
   Battery Status
   Continuously blinking if the battery fails. If the problem persists, please contact your local authorized retailer or service center.
7. USB 3.2 Gen 1 Port
8. HDMI Connector
9. Audio Port Connectors
10. USB 3.2 Gen 1 Port (Type-C)
11. RJ-45 Connector
12.  Power Connector 13.Ventilator
13. USB 3.2 Gen 1 Port 15.USB 2.0 Port
14. Stereo Speakers
15. Ventilator
16. Ventilator
17. Battery Reset Hole
18. 20.Stereo Speakers

GETTING STARTED for reference only

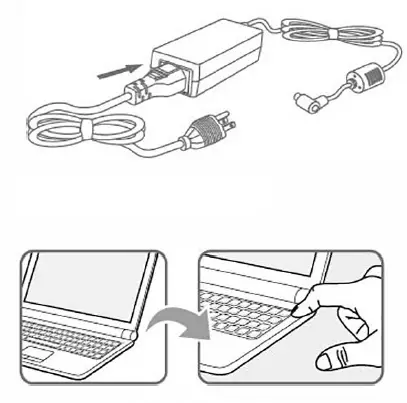

• Connect the AC Power
• Power On the Notebook Connect the AC Power
  It is strongly recommended to connect the AC/ DC adapter to the notebook and use the AC power while using this notebook for the first time since some models may require the AC/DC adapter to be connected in order to power on the notebook safely and properly.

1. i. Unpack the package to find the AC/DC adapter and power cord.
2. Attach the power cord to the connector of the AC/DC adapter.
3. Plug the DC end of the adapter to the notebook, and the male end of the power cord to the electrical outlet.

Power On the Notebook
When the AC power is connected, press the power button to turn the notebook on.

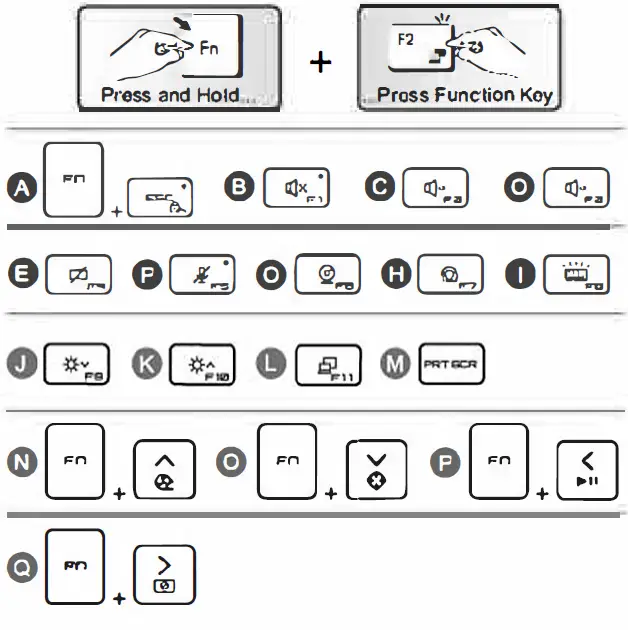

FUNCTION KEYS

Function Keys

• Enable or disable the default FN function keys.
• Mute the built-in speakers.
• Decrease the built-in speaker’s volume.
• Increase the built-in speaker’s volume.
•  Enable or disable the touchpad function.
• Enable or disable the microphone function. G. Enable or disable the Webcam function.
•  Select a proper user scenario between Extreme Performance/ Balanced/ Silent/ Super Battery/ User provided by MSI Center.
• Select a keyboard back.light LED level.
• Decrease the LCD brightness.
•  Increase the LCD brightness.
• Switch the display output mode.
• Take a screen capture.
• Maicimize the fan speed.
• Use this button to switch ON/ OFF of the front sight function.
• Use this button to switch PLAYi PAUSE of the media.
• Use this button to tum OFF the screen.
