Deepcool Macube 310 Atx Mid Tower Case User Guide

MACUBE 310 ATX Mid Tower Case
User Guide

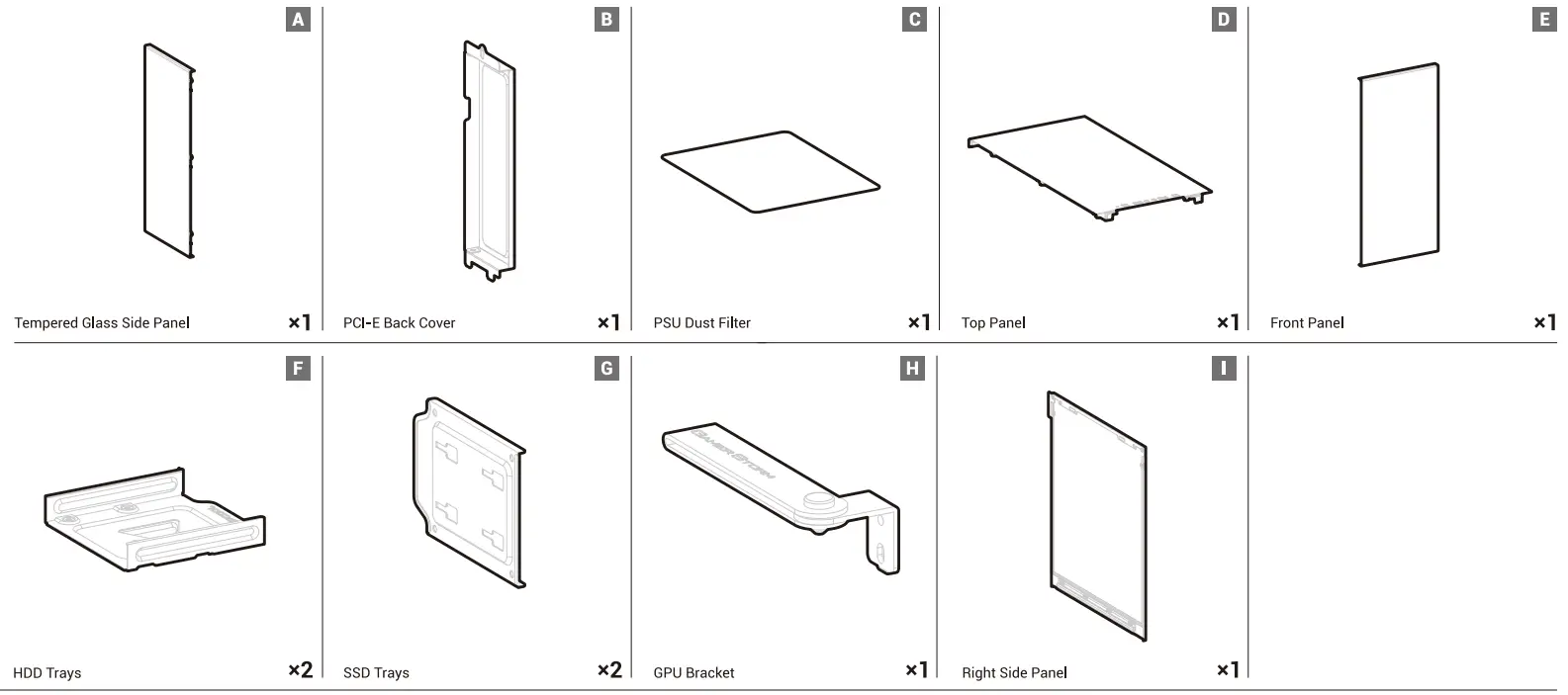

Case Features

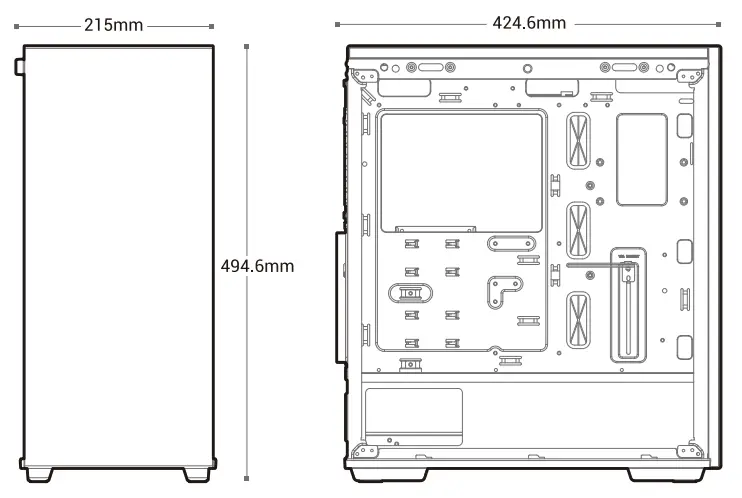

Case Specifications

Length: 424.6mm
Width: 215mm
Height: 494.6mm
Maximum GPU length: 330mm
Maximum PSU length: 160mm
Maximum CPU cooler height: 165mm

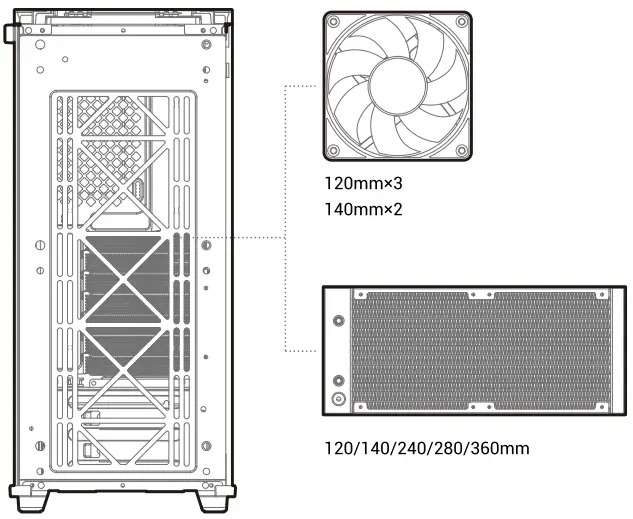

Radiator compatibility: Front 120/140/240/280/360mm

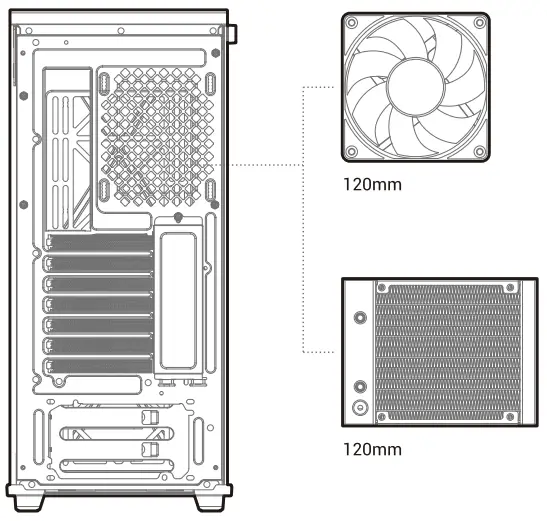

Rear: 120mm

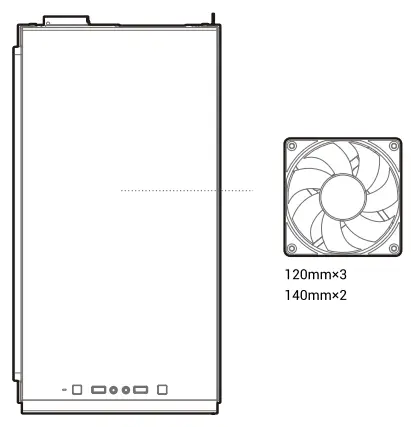

Fan locations:
Front: 3×120/2x140mm
Top: 3×120/2x140mm
Rear: 1×1 20mm

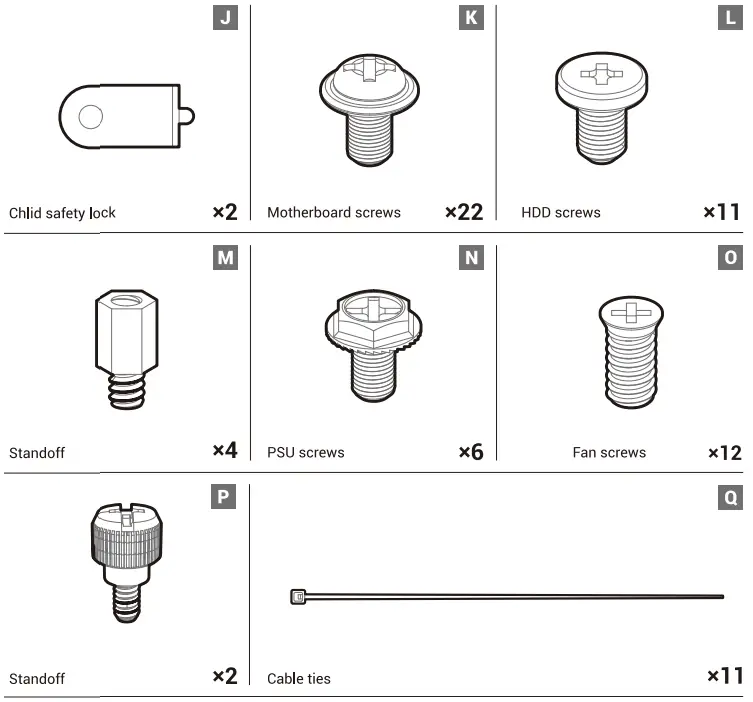

Accessory Kit Contents

Specifications

Removing the Tempered Glass Side Panel

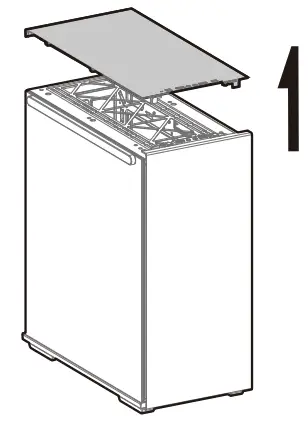

Removing the Top Panel

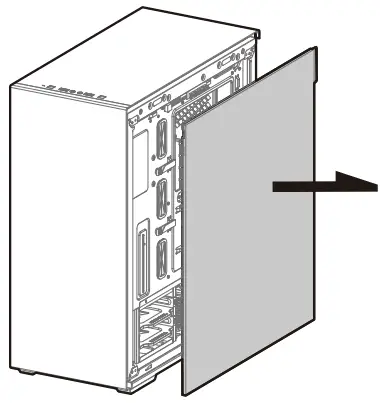

Removing the Metal Side Panel

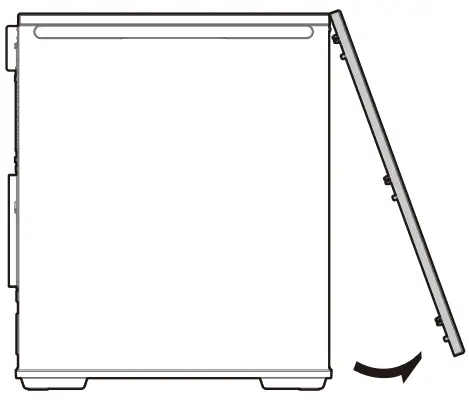

Removing the Front Panel

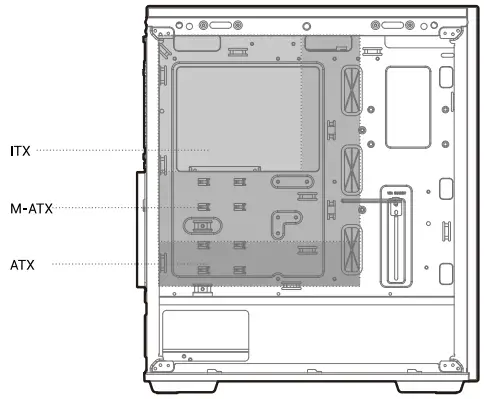

Installing the Motherboard

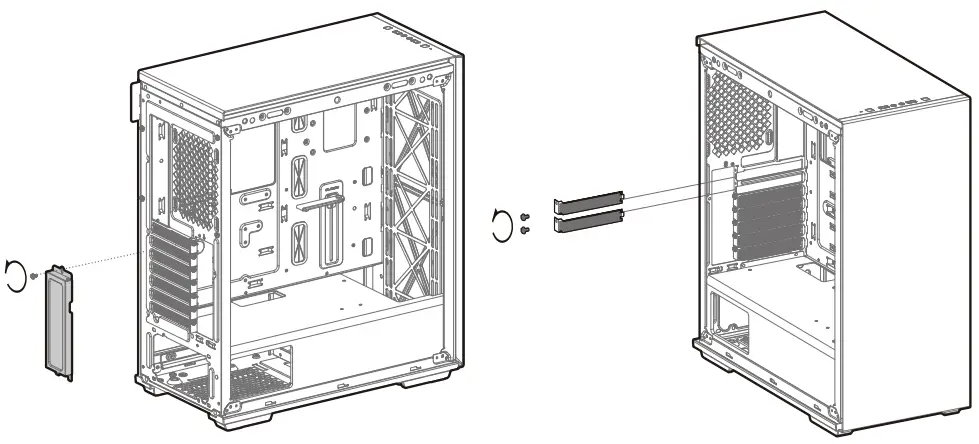

Installing the GPU

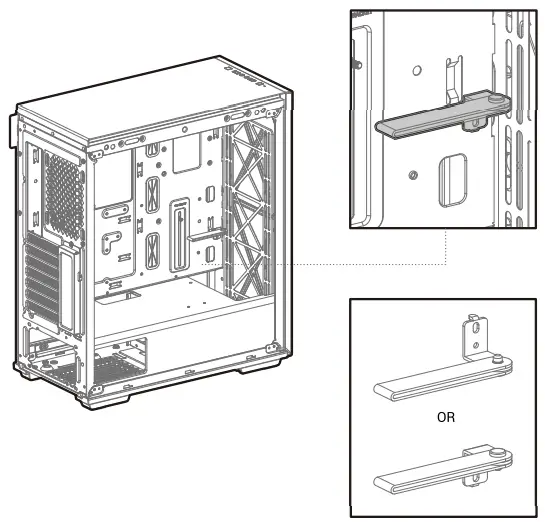

Installing the GPU Bracket

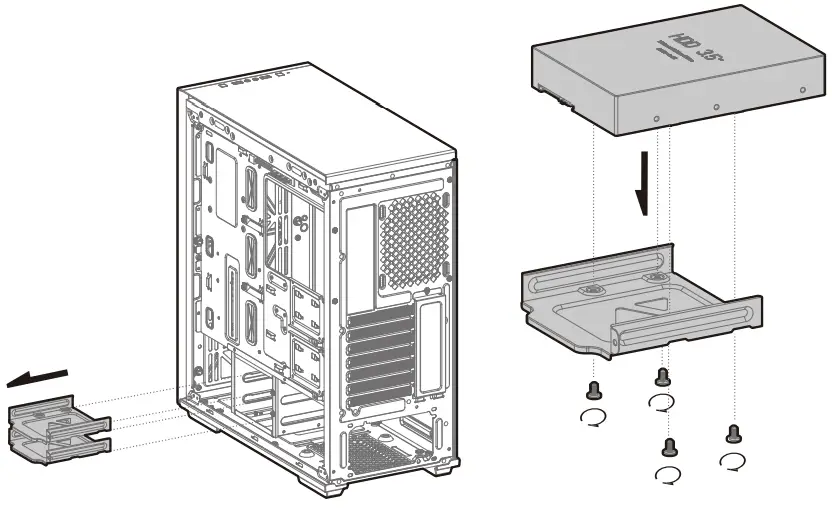

Installing HDDs

Installing SSDs

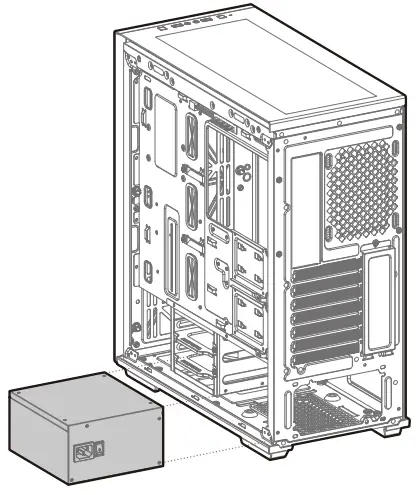

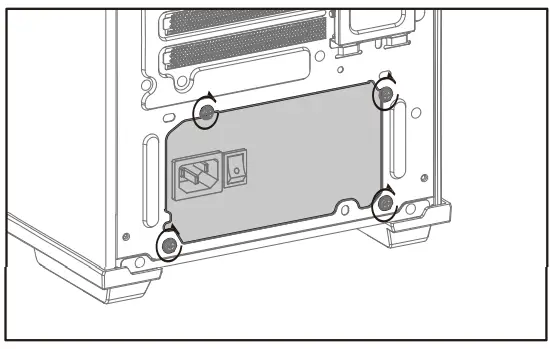

Installing the Power Supply

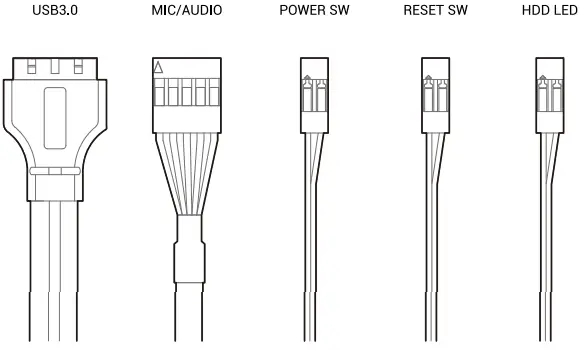

Installing the Front I/O Connectors

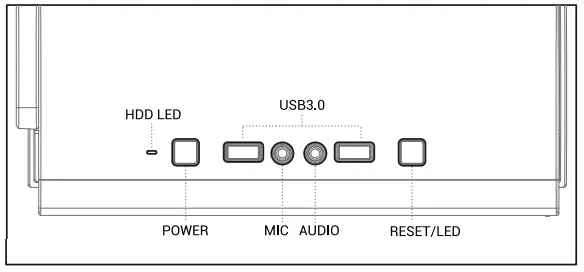

I/O Introduction

Manual RGB Wiring

Motherboard RGB Synchronization

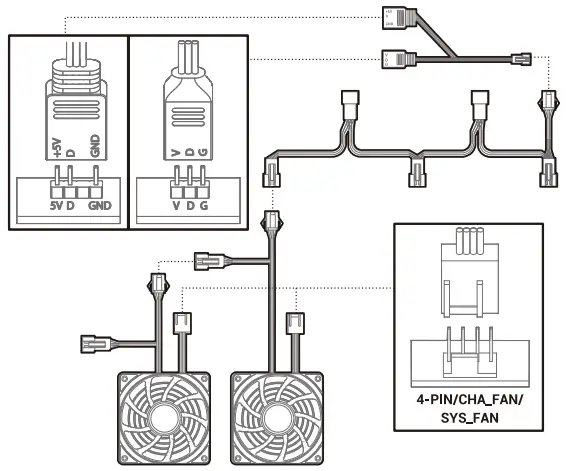

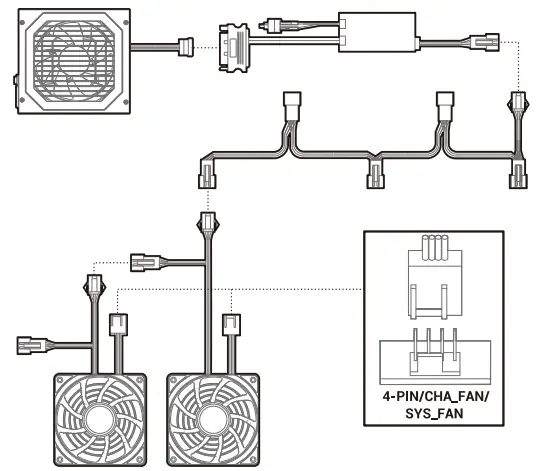

Fan Power Line Wiring

For reference only, please refer to the real product.
