Deepcool Ch510 Mesh Digital Mid-tower Atx Case Instruction Manual

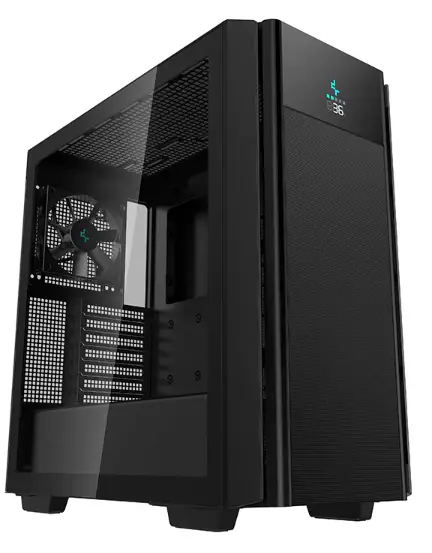

DEEPCOOL CH510 Mesh Digital Mid-Tower ATX Case

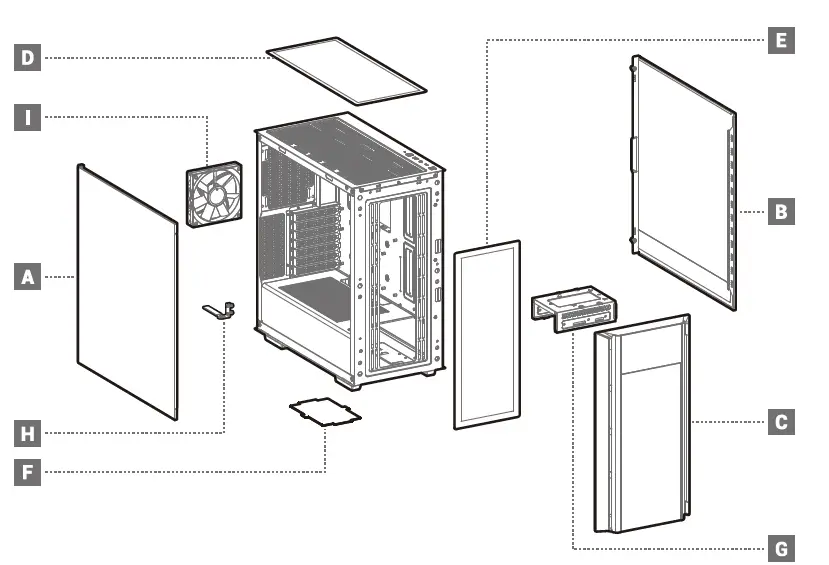

Case Features

Case Specifications

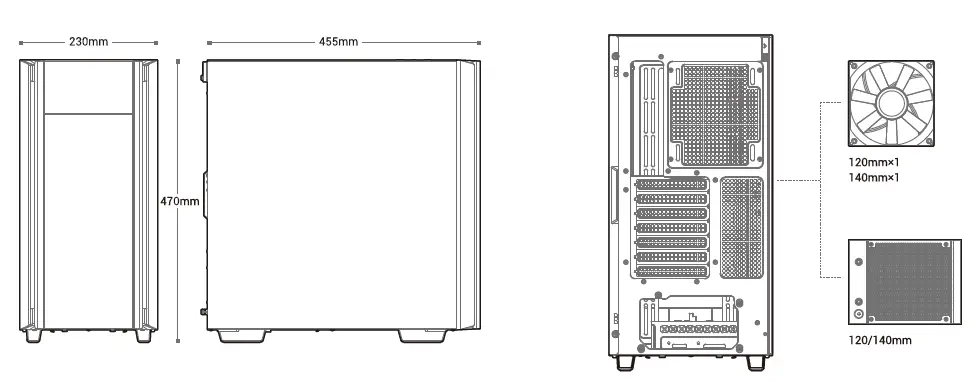

• Length: 455mm
  Maximum GPU length: 380mm
• Width: 230mm
  Maximum PSU length: 170mmn
• Height: 470mm
  Maximum CPU cooler height: 175mm

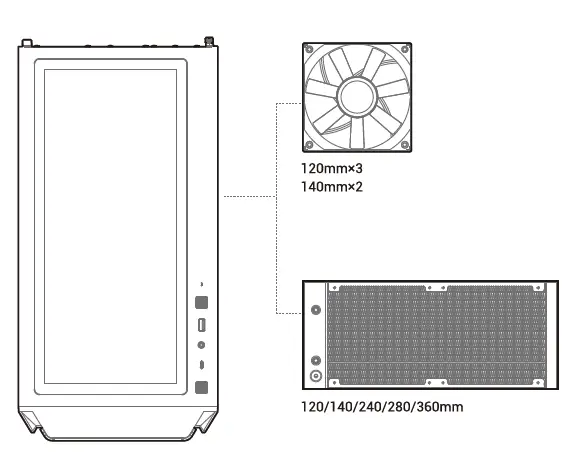

Radiator compatibility

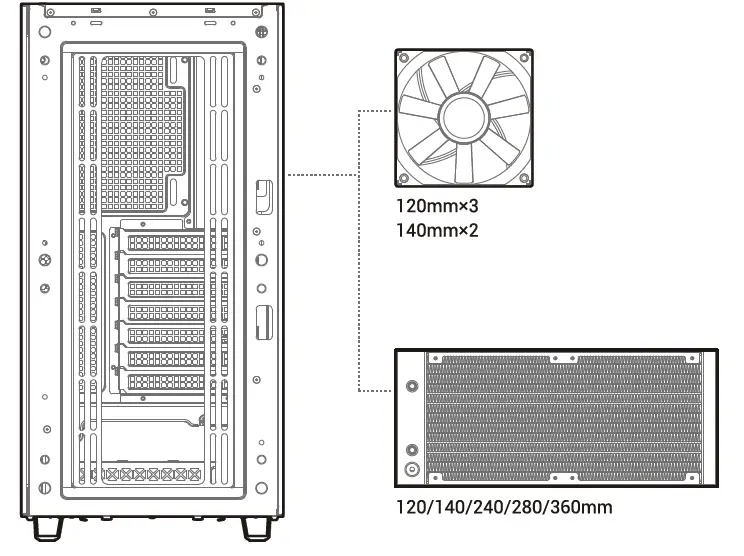

• Front: 120/140/240/280/360mm
• Top: 120/140/240/280/360mm
• Rear: 120/140mm

Fan locations:

• Front: 3×120/2x140Omm
• Top: 3×120/2x140mm
• Rear: 1×120/1x140mm

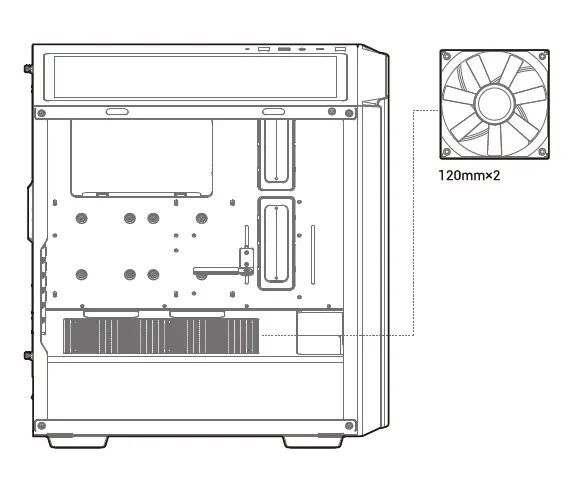

• PSU Shrouded: 2×1 20mm

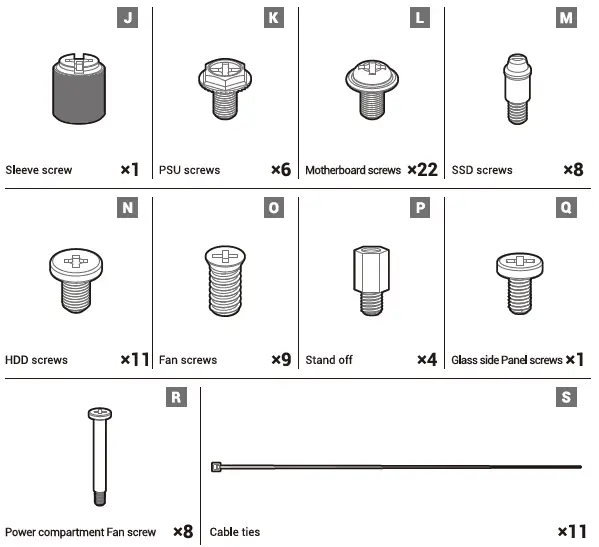

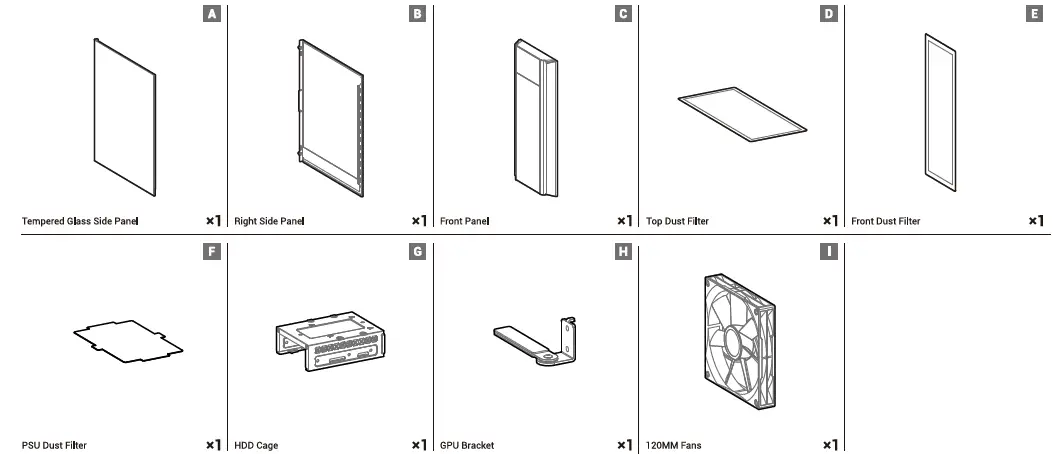

Accessories kit installation

Specifications

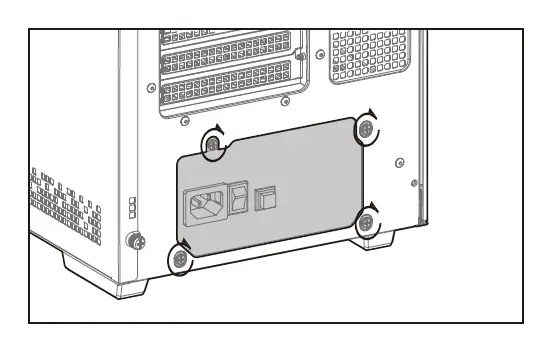

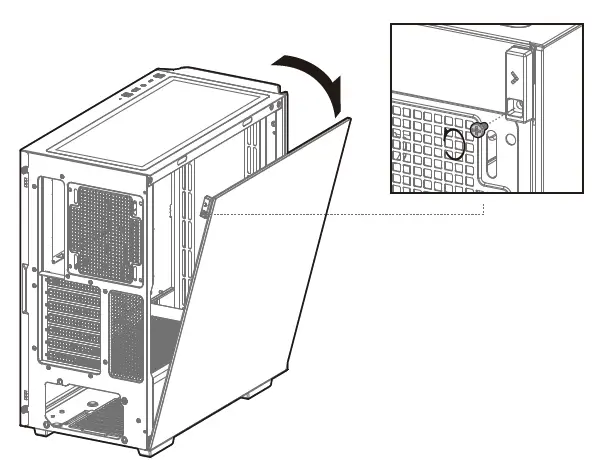

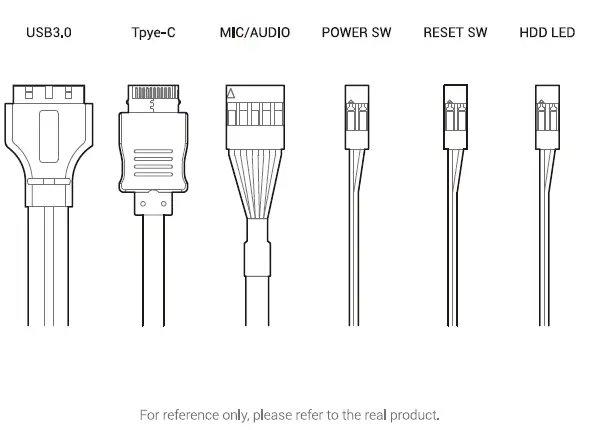

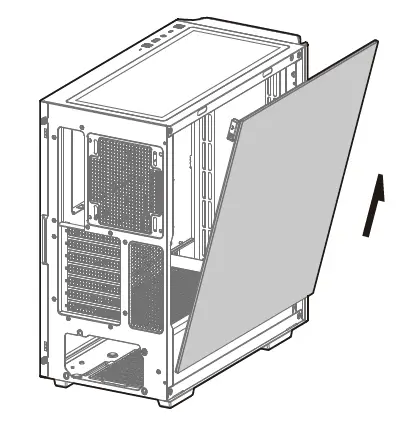

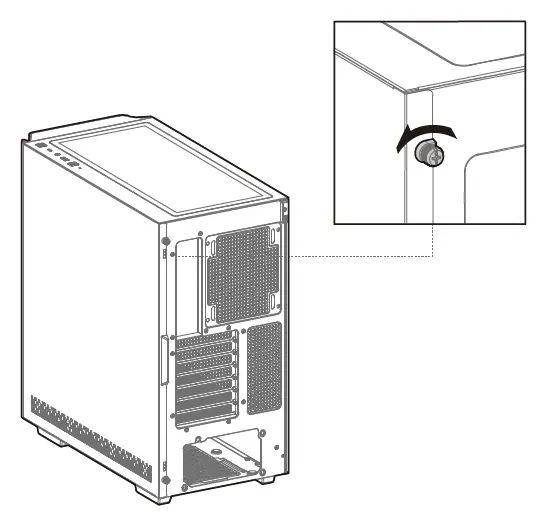

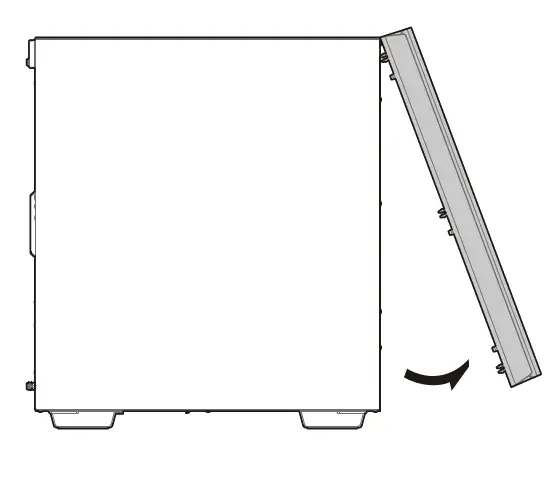

Removing the Tempered Glass Side Panel Removing the Metal Side Panel Removing the Front Panel Installing the I/O Connectors

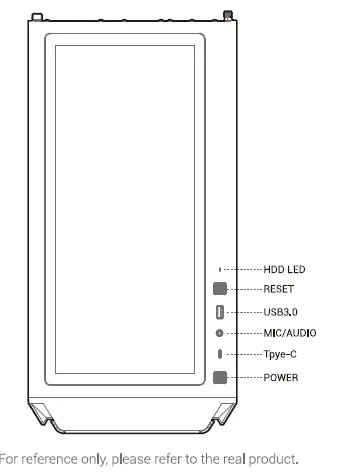

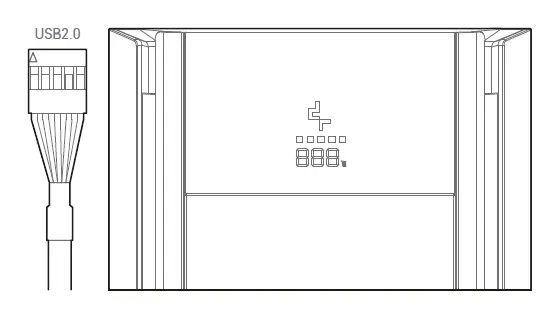

I/O PANEL INTRODUCTION

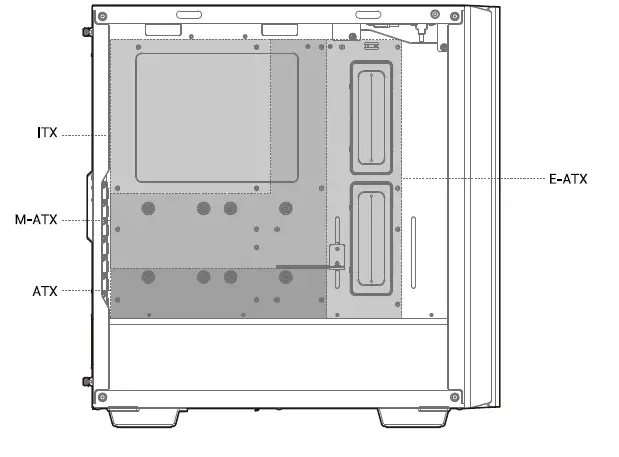

Installing the Motherboard

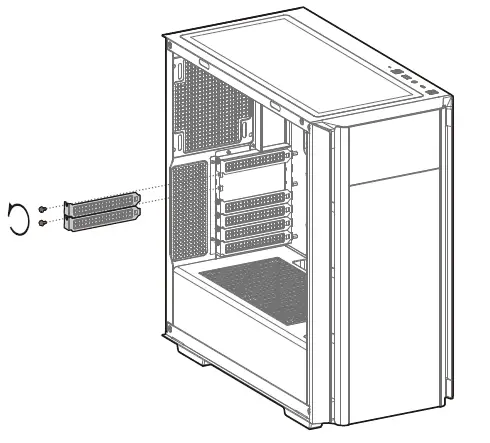

Installing the GPU

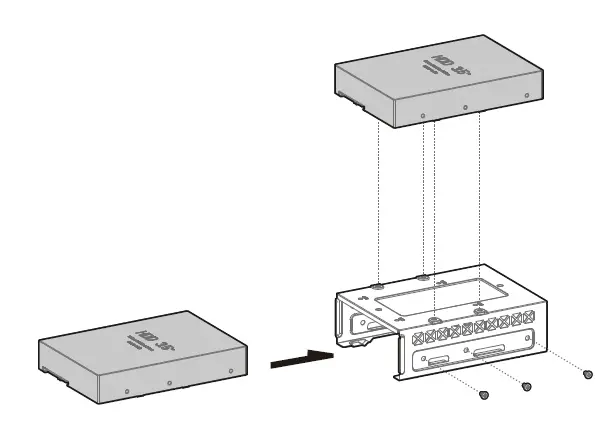

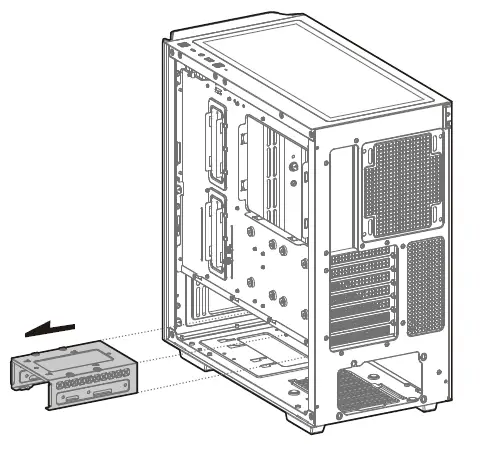

Installing HDDs

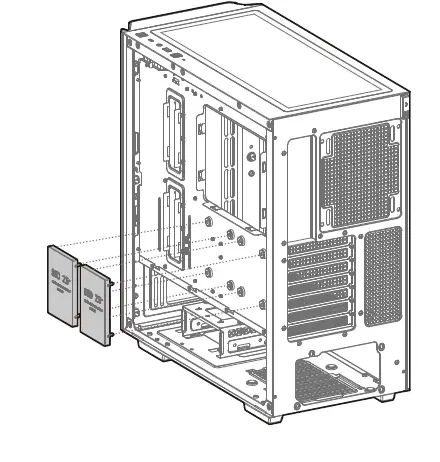

Installing SSDs

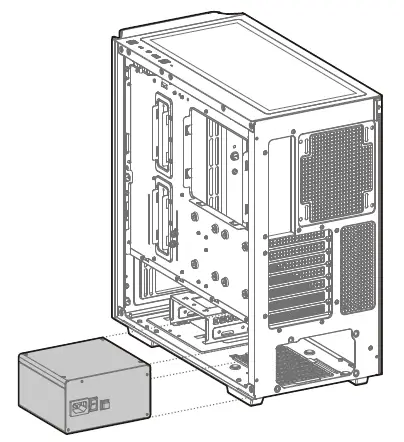

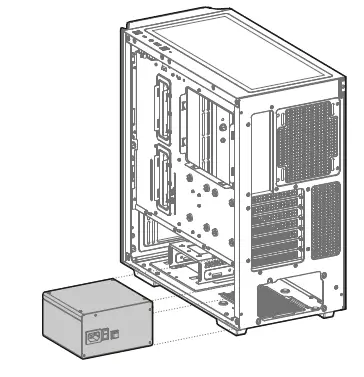

Installing the Power Supply

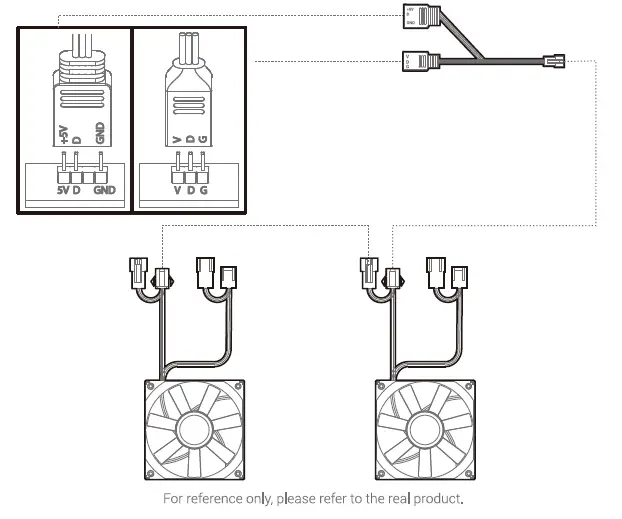

Manual RGB Wiring

Motherboard RGB Synchronization|

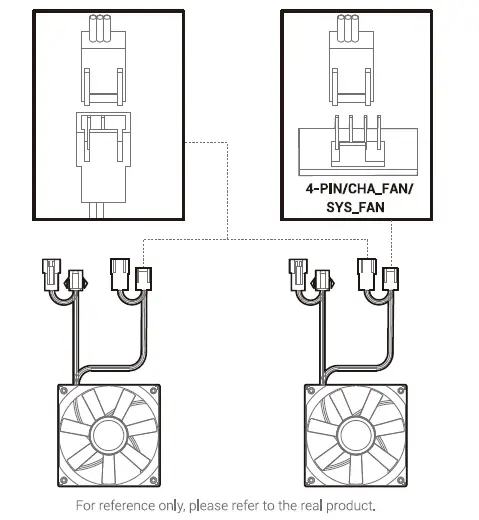

Fan power live wiring

Instruction of the Monitor
