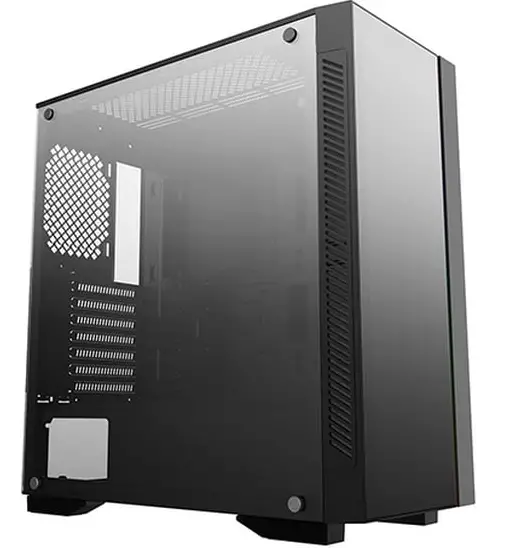

DEEPCOOL Matrexx 55 V3 Mid Tower Case
DEEPCOOL Matrexx 55 V3 Mid Tower Case

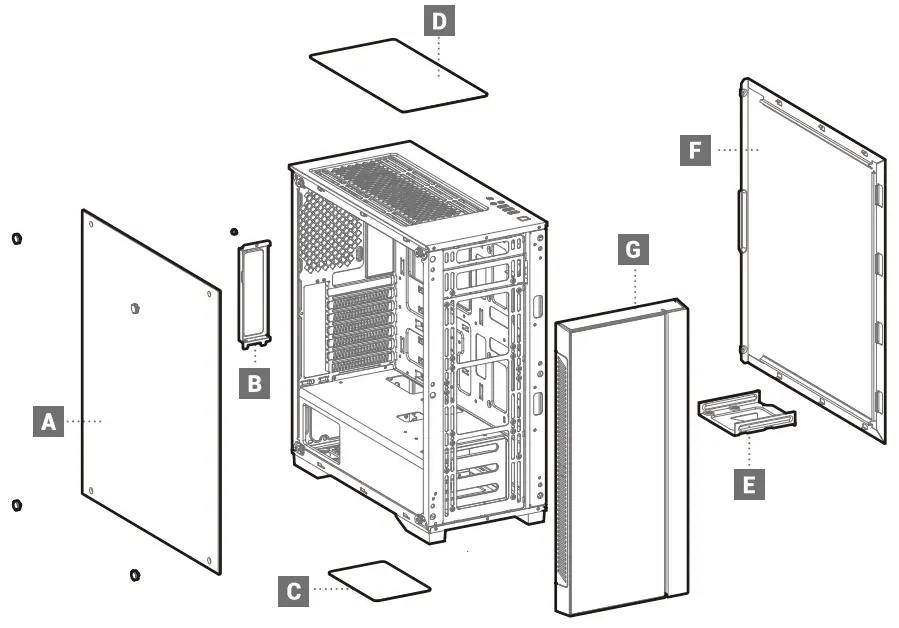

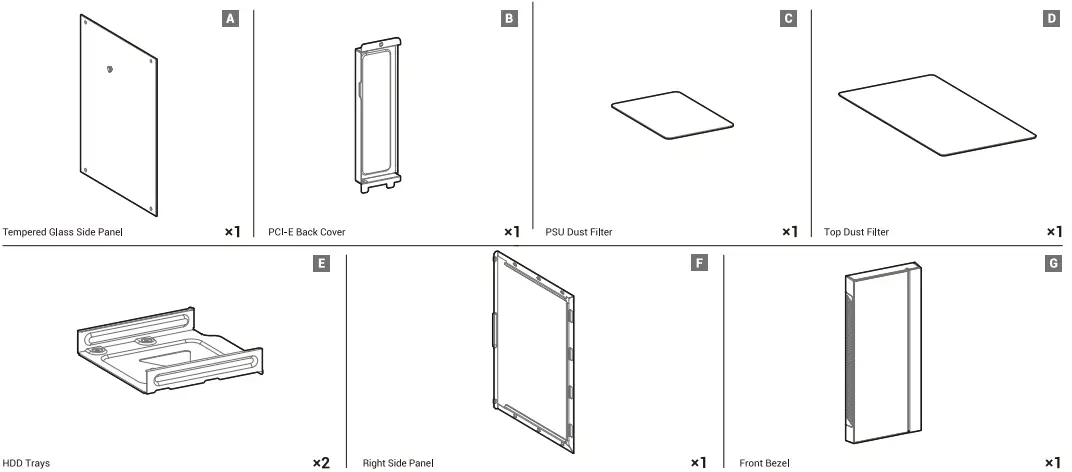

Case Features

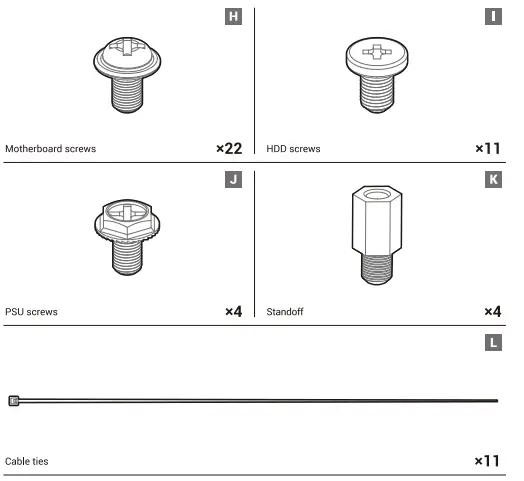

Accessory Kit Contents
Specifications

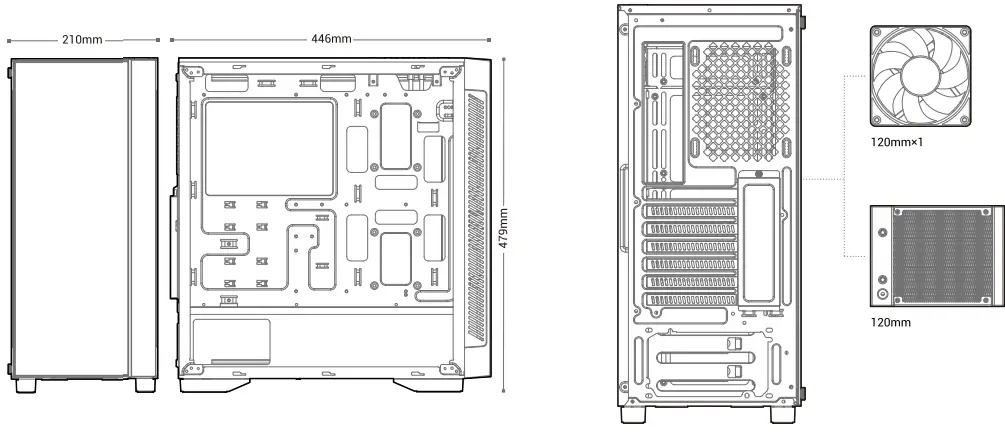

Case Specifications
- Length: 446mm Maximum
- GPU length: 370mm
- Width: 21Omm Maximum
- PSU length: 170mm
- Height: 479mm Maximum
- CPU cooler height: 160mm
- Top: 120/140/240mm
- Radiator compatibility:
- Front:120/140/240/280/360mm
- Front: 3×120/3x140mm
- Fan locations:
- Top: 2×120/2x140mm
- Rear: 120mm
- Rear: 1x120mm
Removing

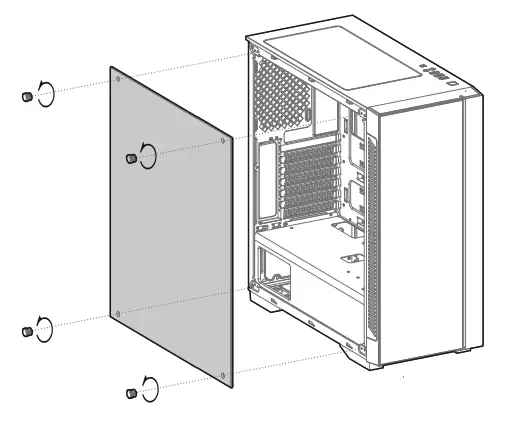

Removing the Tempered Glass Side Panel

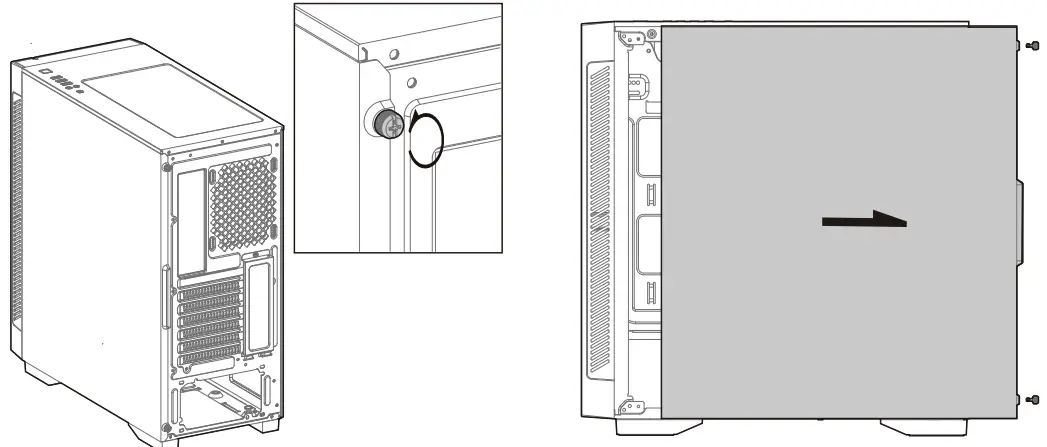

Removing the Metal Side Panel

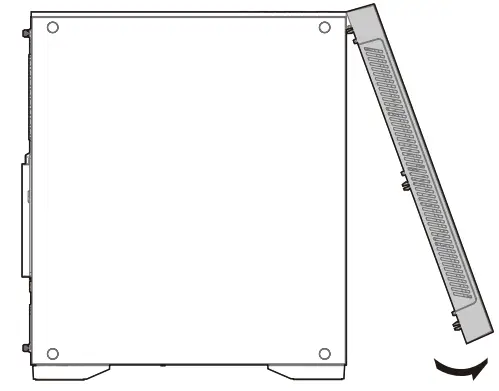

Removing the Front Panel
INSTALLATION

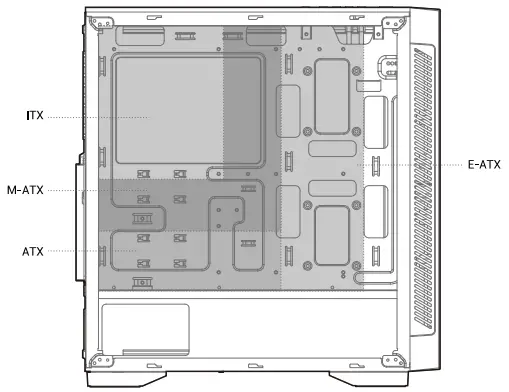

Installing the Motherboard

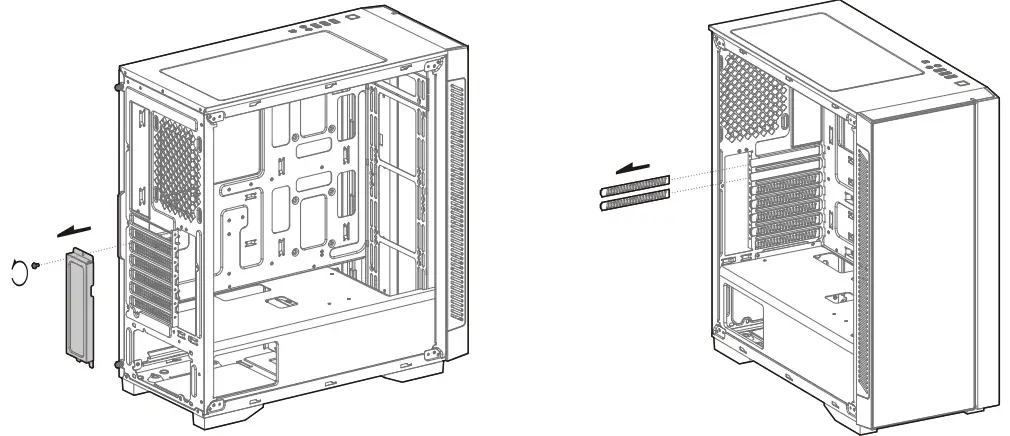

Installing the GPU

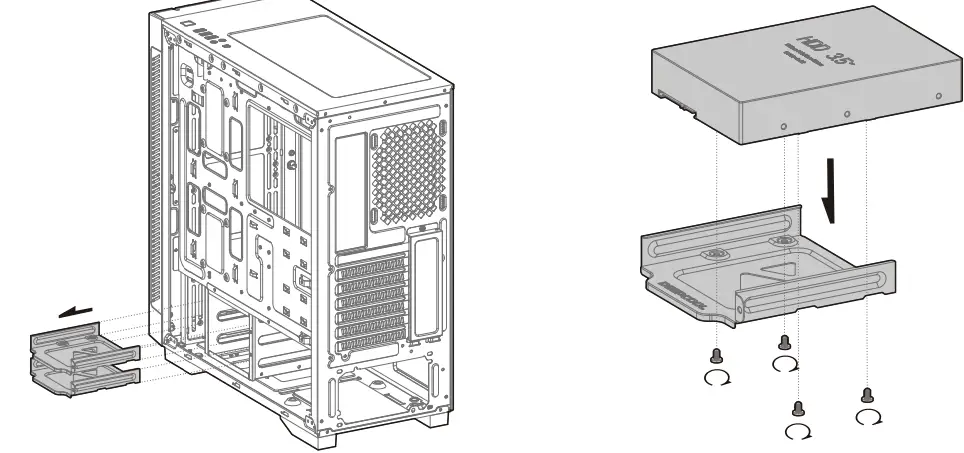

Installing HDDs

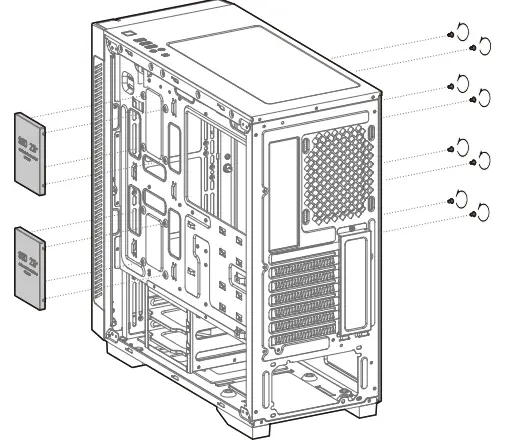

Installing SSDs

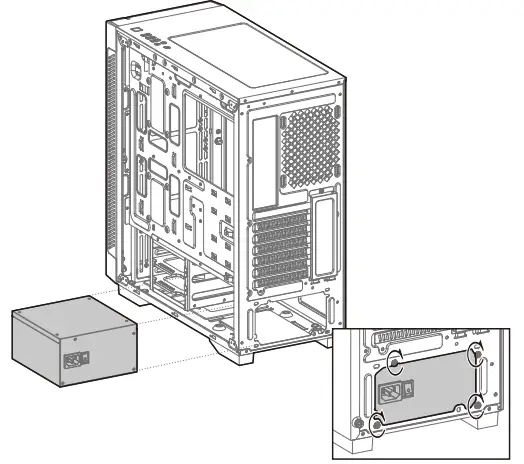

Installing the Power Supply

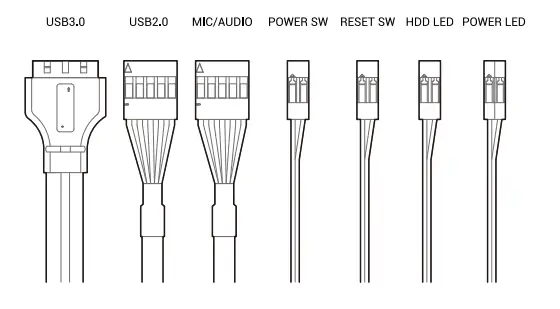

Installing the Front I/O Connectors

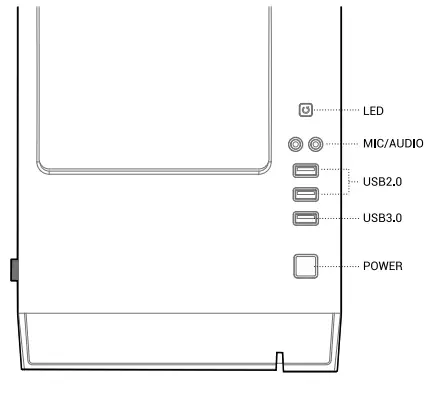

I/O Panel Introductionl

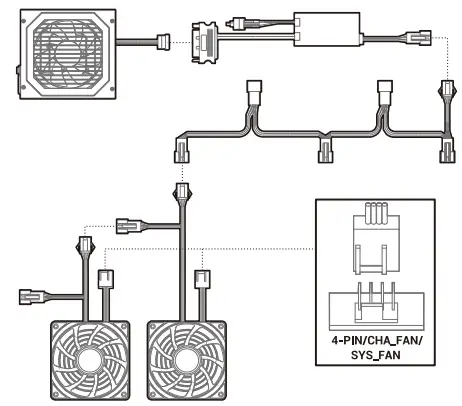

Manual RGB Wiring
Motherboard RGB SynchronizationL

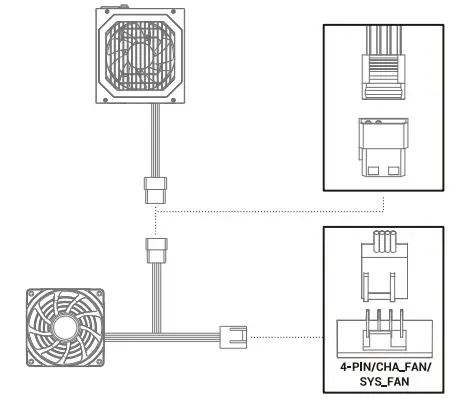

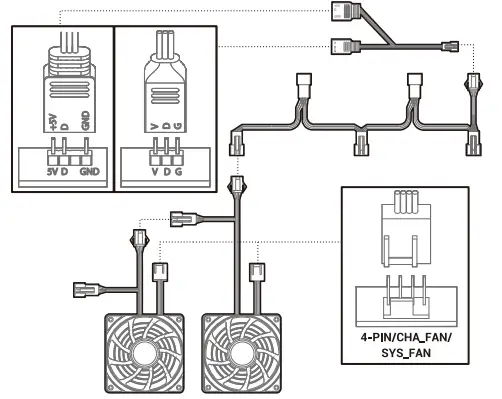

Fan Power Line Wiring
For more information, please check our website at: www.deepcool.com
