AS-01B-OP Mid-Tower Case
Product manual

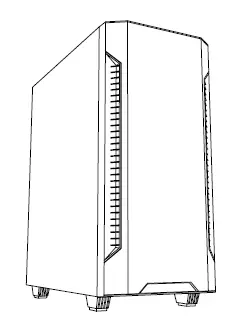

Elox Series / A S-01B-OP
I/O PORTS
- Power Switch
- Reset button
- HD Audio
- USB 2.0
- USB 3.0

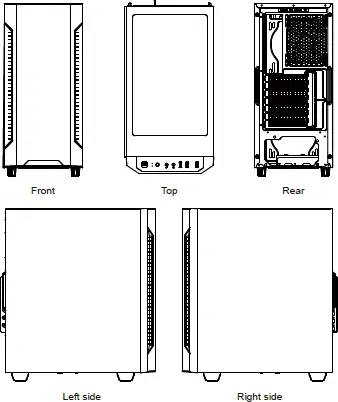

SPECIFICATION
| Model No. | AS-01B-OP |
| Materials | SPCC 0.5mm mixed thickness black inner chassis |
| Motherboard support | ATX/M-ATX/ITX |
| PSU type | ATX PSU (Bottom located) |
| TOP panel I/O ports | USB3.0*1+USB2.0*2, HD Audio |
| Drive Bays | 3.5” HDD*1 + 2.5” SSD*3 or 3.5” HDD*2 + 2.5” SSD*2 |
| Expansion Slots | 7 slots , Support up to 340mm (Max.) VGA card |
| CPU Cooler Height | 170mm |
Fan Cooling | Front: 3*12cm or 2*14cm Fans(Optional) |
Top: 2*12cm or 2*14cm Fans(Optional) | |
Rear: 1*12cm Fan(Optional) | |
PSU Cover: 2*12cm Fans(Optional) | |
Liquid Cooling | Front: 120/140/240/280mm liquid cooling(Optional) |
Top: 120/140/240mm liquid cooling(Optional) | |
Rear: 120mm liquid cooling(Optional) | |
| Chassis size | (L)360 x (W)210 x (H)440mm |
| Case size | (L)408 x (W)210 x (H)460mm |
REMOVE THE SIDE PANELS AND FRONT PANEL
Loose the drop-proof screws, pull out the side panel toward to the arrowhead direction.
Put hand into bottom of front panel , then you can pull up it.

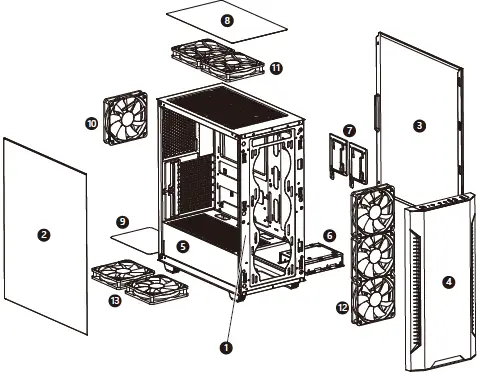

EXPLOSIVE VIEW
Chassis- Left side panel
- Right side panel
- Front panel
- PSU cover
- HDD bracket
- SSD bracket
- Magnetic dust filter on the top
- Dust filter on the bottom
- 1*120mm fan on the rear(included)
- 2*120mm fans on the top(optional)
- 3*120mm fans on the front(optional)
- 2*120mm fans on the PSU cover(optional)
ChassisPOWER SUPPLY INSTALLATION
Insert PSU from left side
Secure with screws
MOTHERBOARD INSTALLATION
Put M/B on right position of chassis which preinstalled iron screws.
Use the provided standoffs and screws to secure the motherboard
VGA CARD INSTALLATION
HDD AND SSD INSTALLATION
HDD installation
LIQUID COOLING INSTALLATION
SSD installation
Take off SSD bracket, then fix SSD on bracket and lock bracket to previous place
Front: 120/140/240/280mm liquid cooling (optional)
Top: 120/140/240mm liquid cooling (optional)
Rear: 120mm liquid cooling (optional)

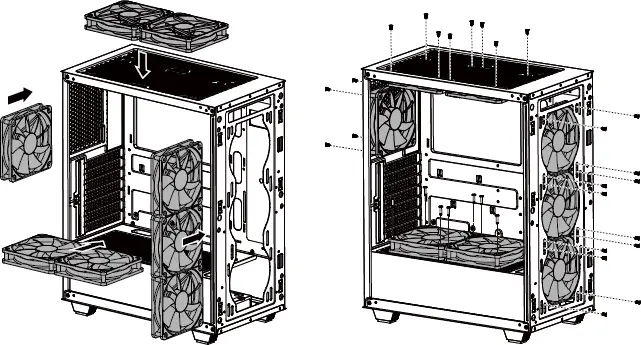

FAN INSTALLATION
Front: 120mm x3 or 140mm x2(optional)
Top: 120mm x2 or 140mm x2(optional)
Rear: 120mm x1 (included)
PSU Cover: 120mm x2 (optional)
