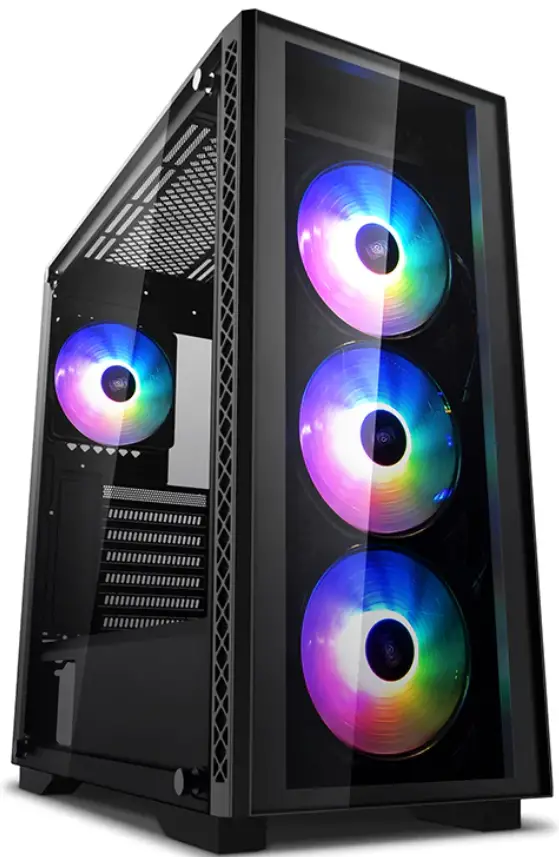

DeepCool MATREXX 50 Illuminated Middle Case
Contents hide

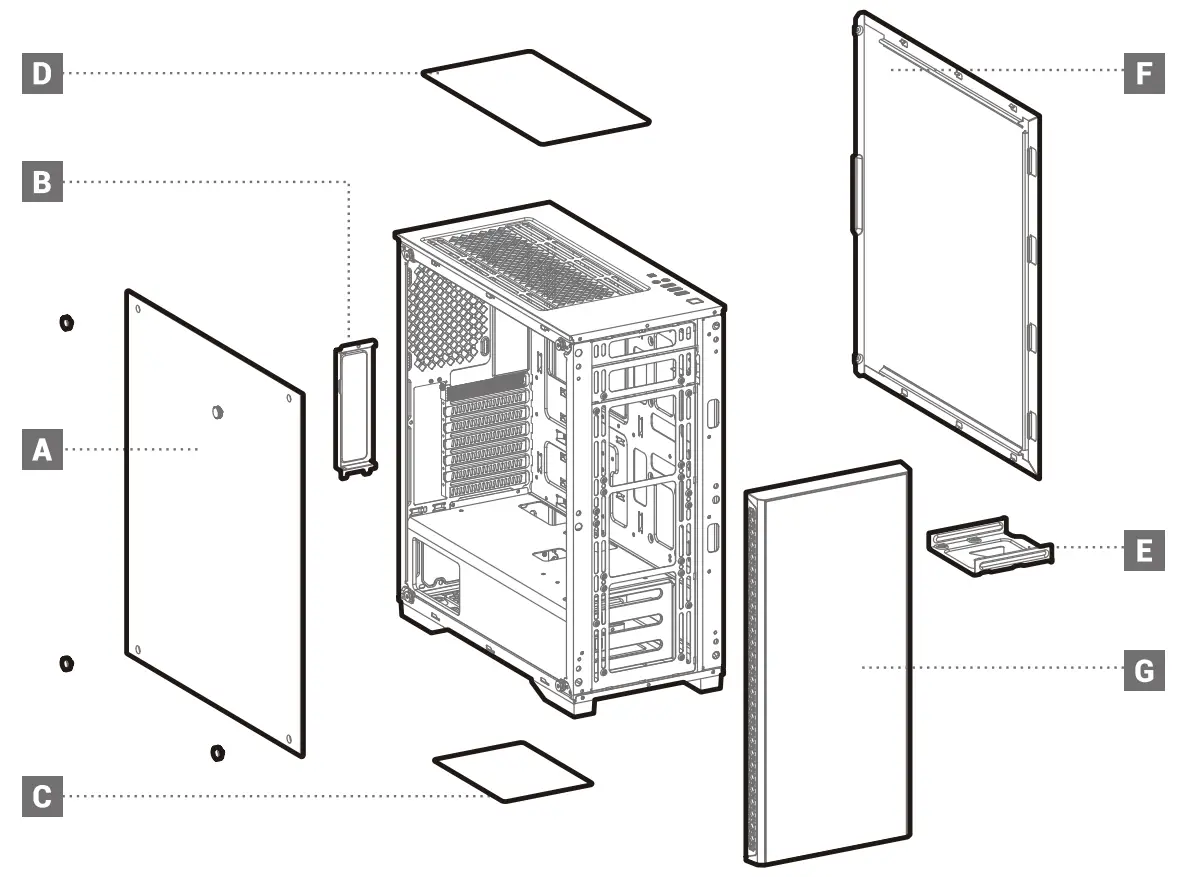

Case Features

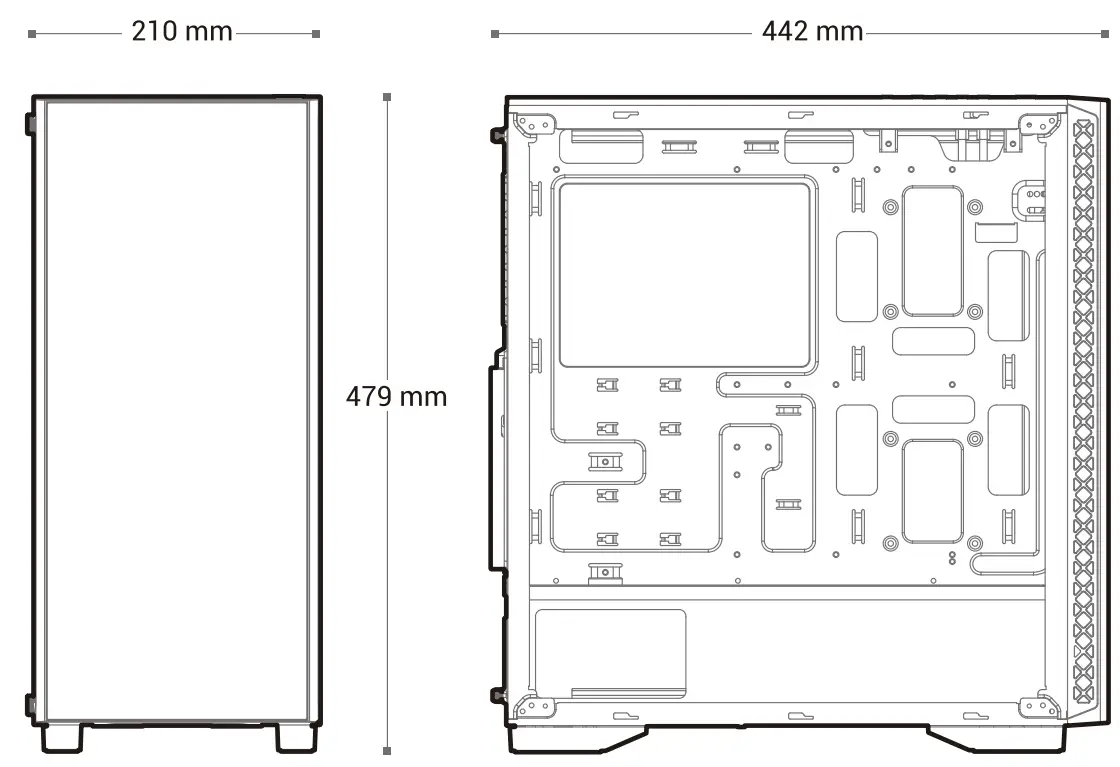

Case Specifications
- Length: 442mm
- Width: 210mm
- Height: 479mm
- Maximum GPU length: 370mm
- Maximum PSU length: 170mm
- Maximum CPU cooler height: 160mm
- Radiator compatibility:

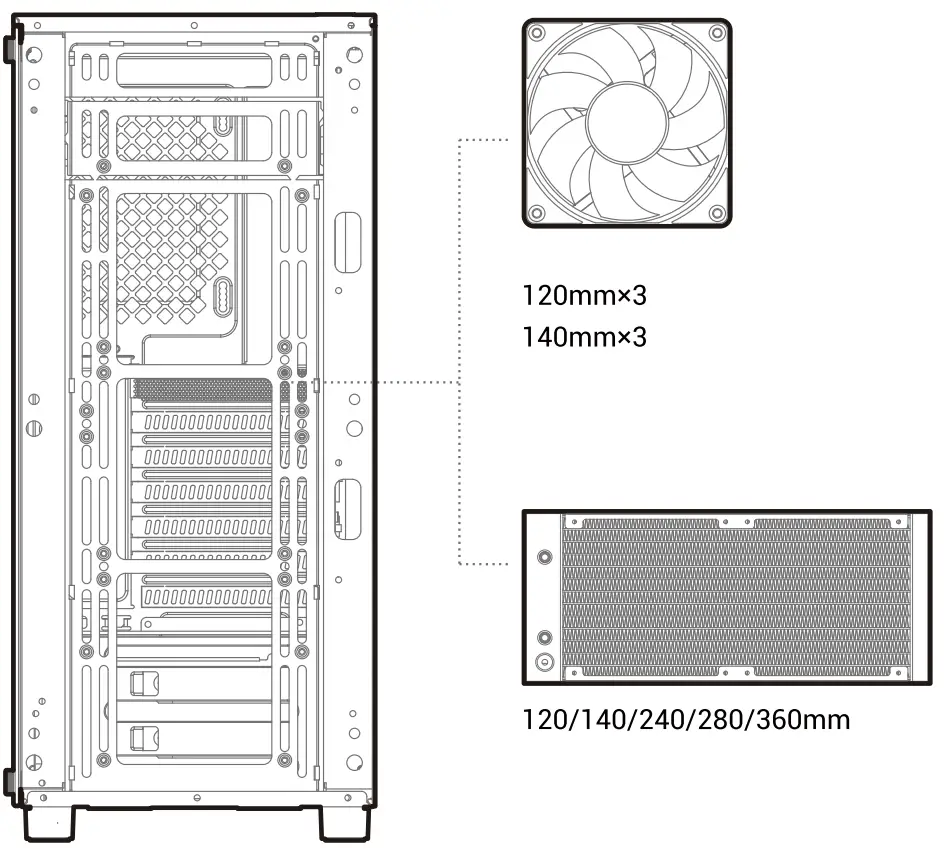

- Front: 120/1 40/240/280/360mm

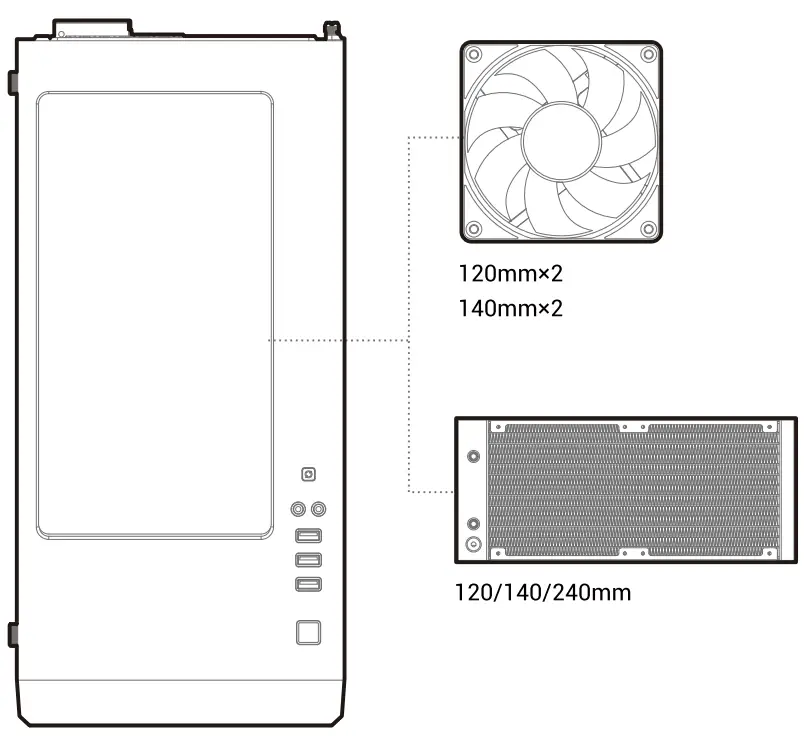

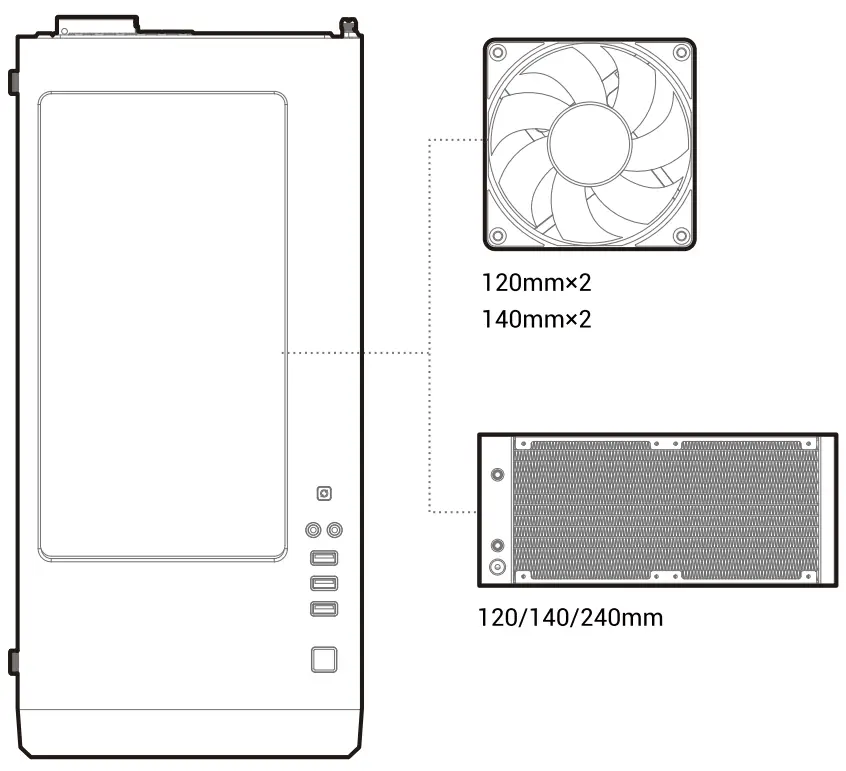

- Top: l20/140/240mm
- Rear:720mm
- Fan locations:
- Front: 3xl 20/3xl 40mm
- Top: 2xl 20/2xl 40mm
- Rear: lxl 20m

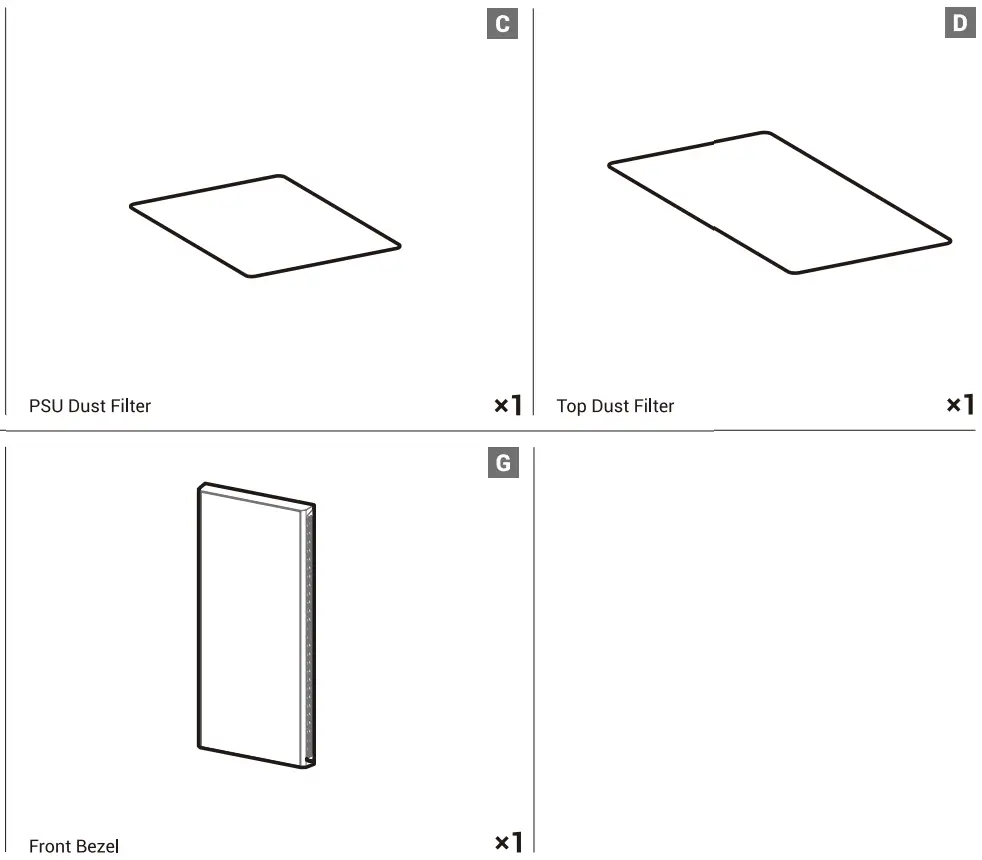

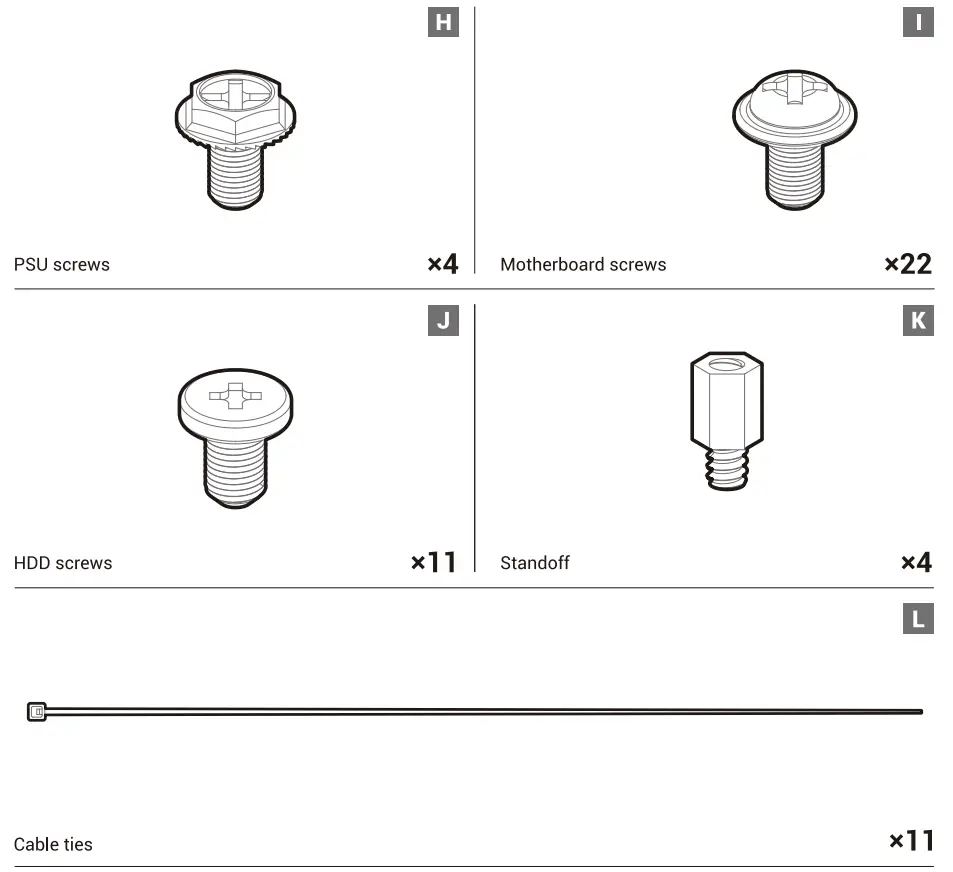

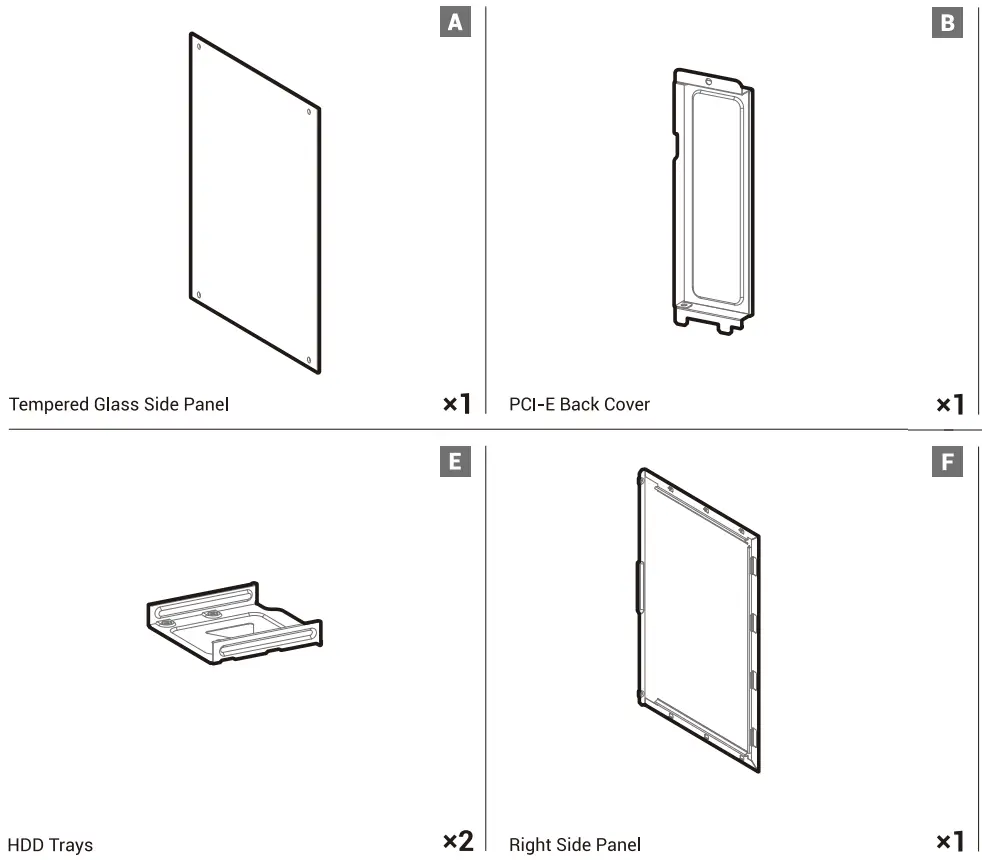

Accessory Kit Contents
Specifications

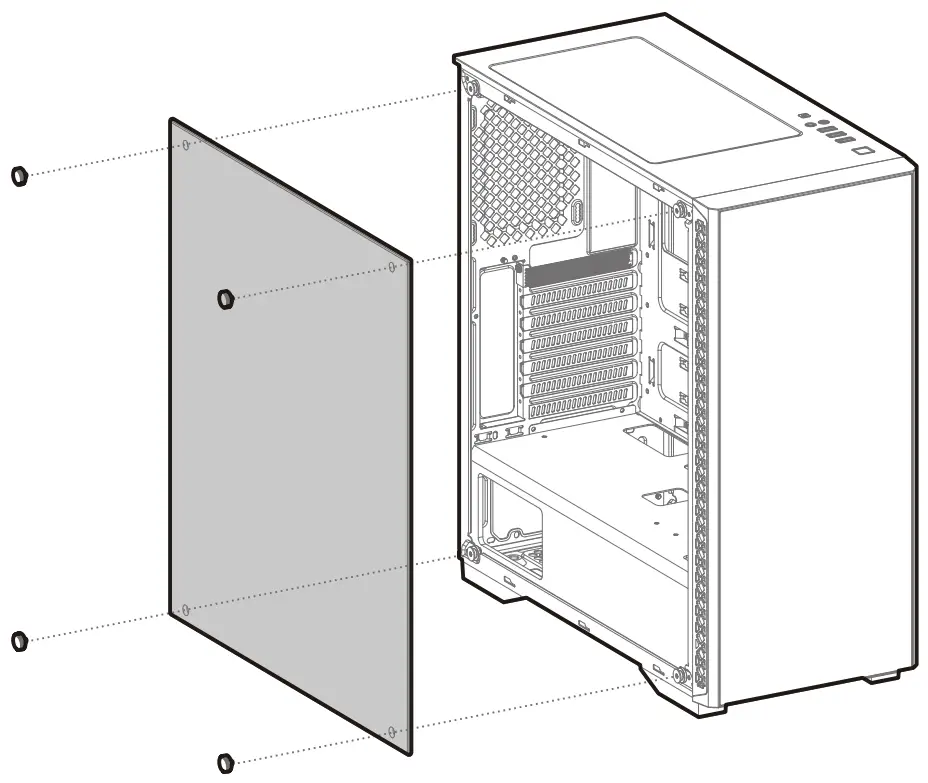

Removing The Tempered Glassy Side Panel

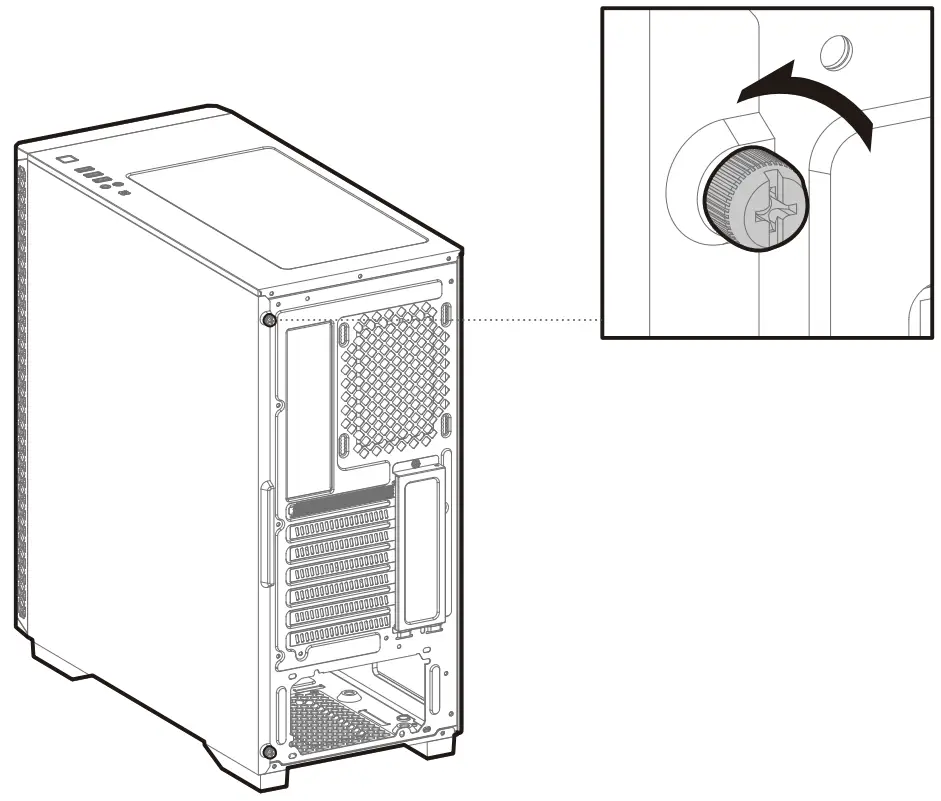

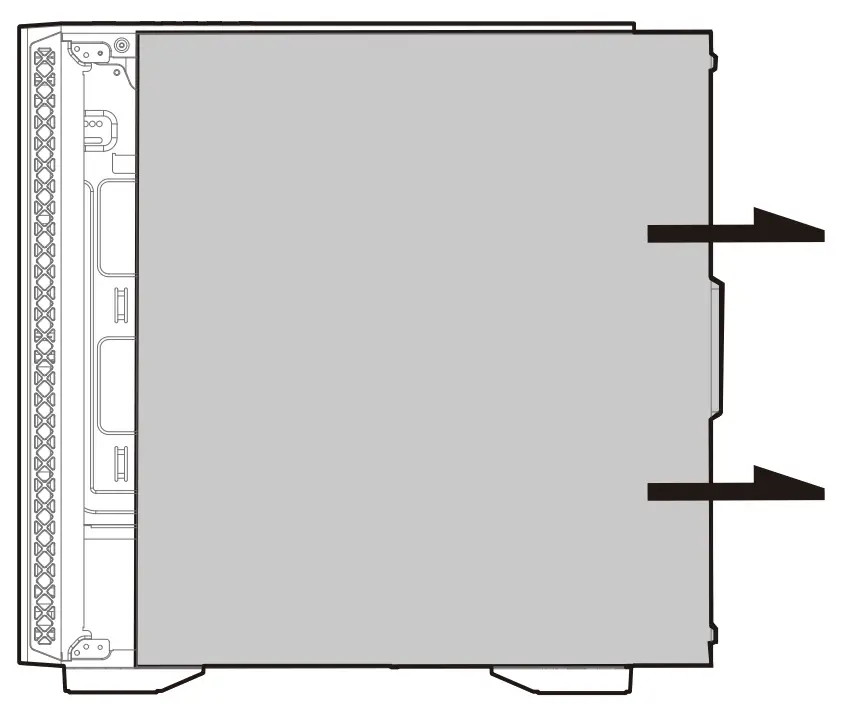

Removing The Metal Side Panel

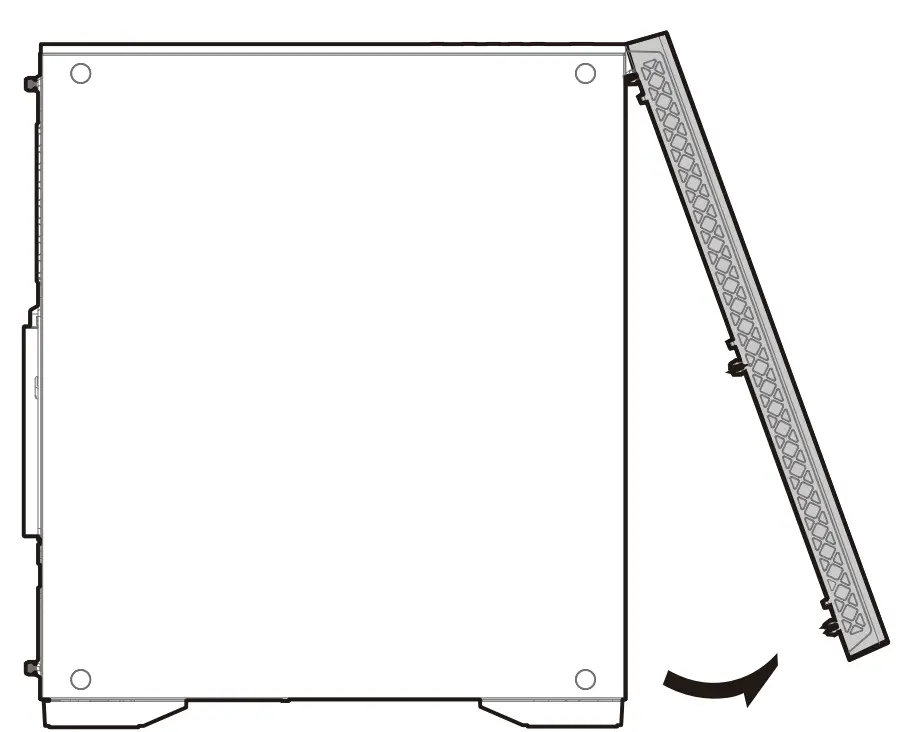

Removing The Front Panel

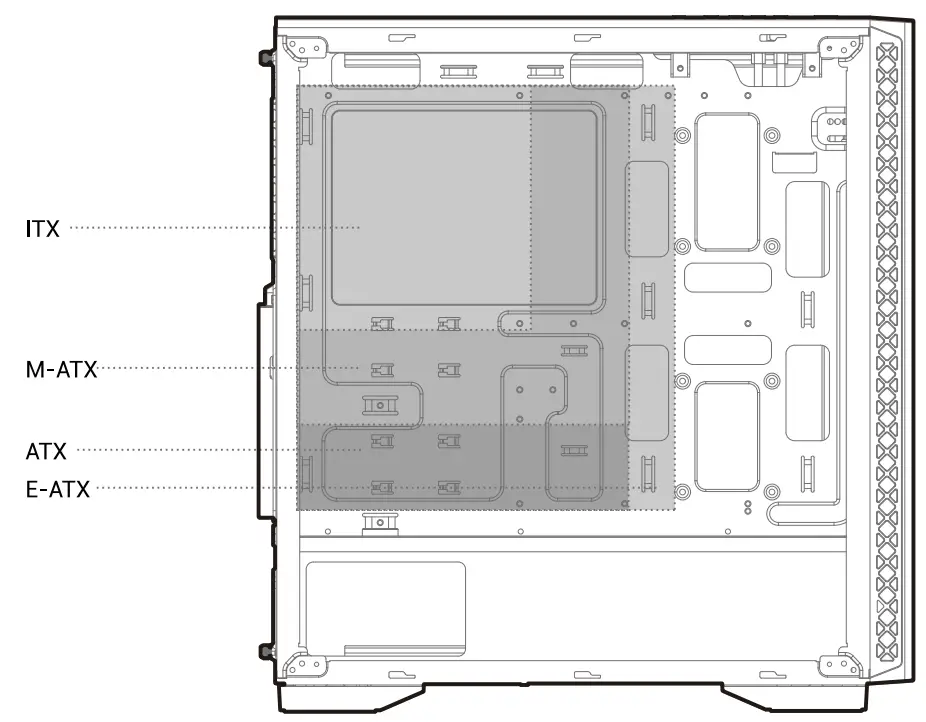

Installation the Motherboard

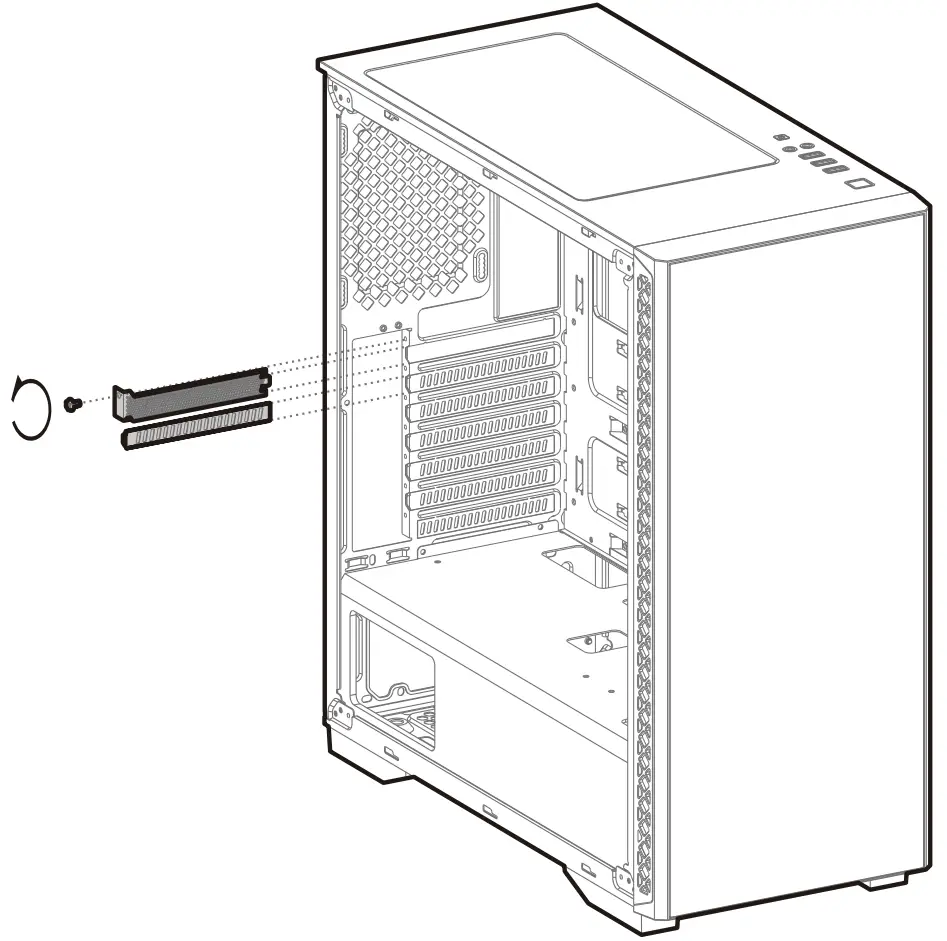

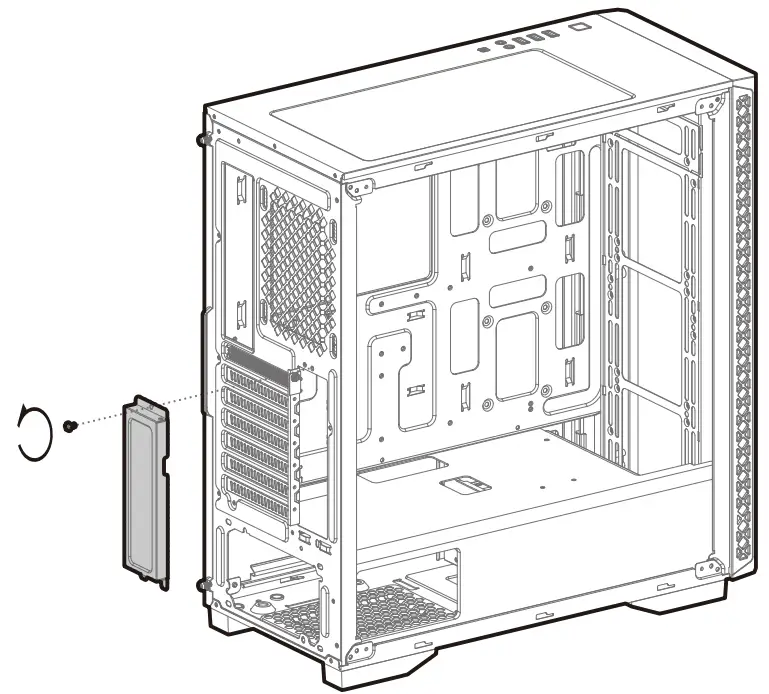

Installation the GPU

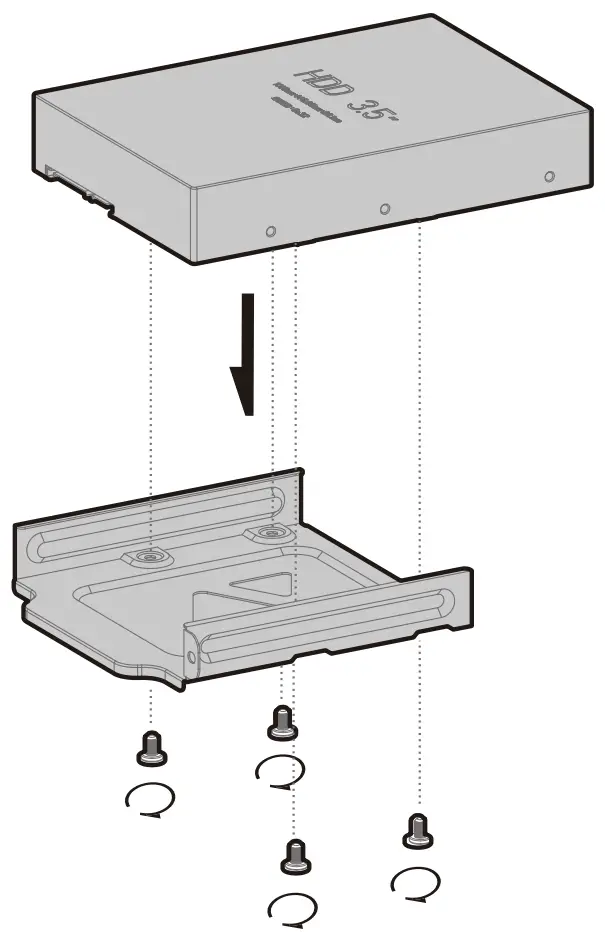

Installation HDDs

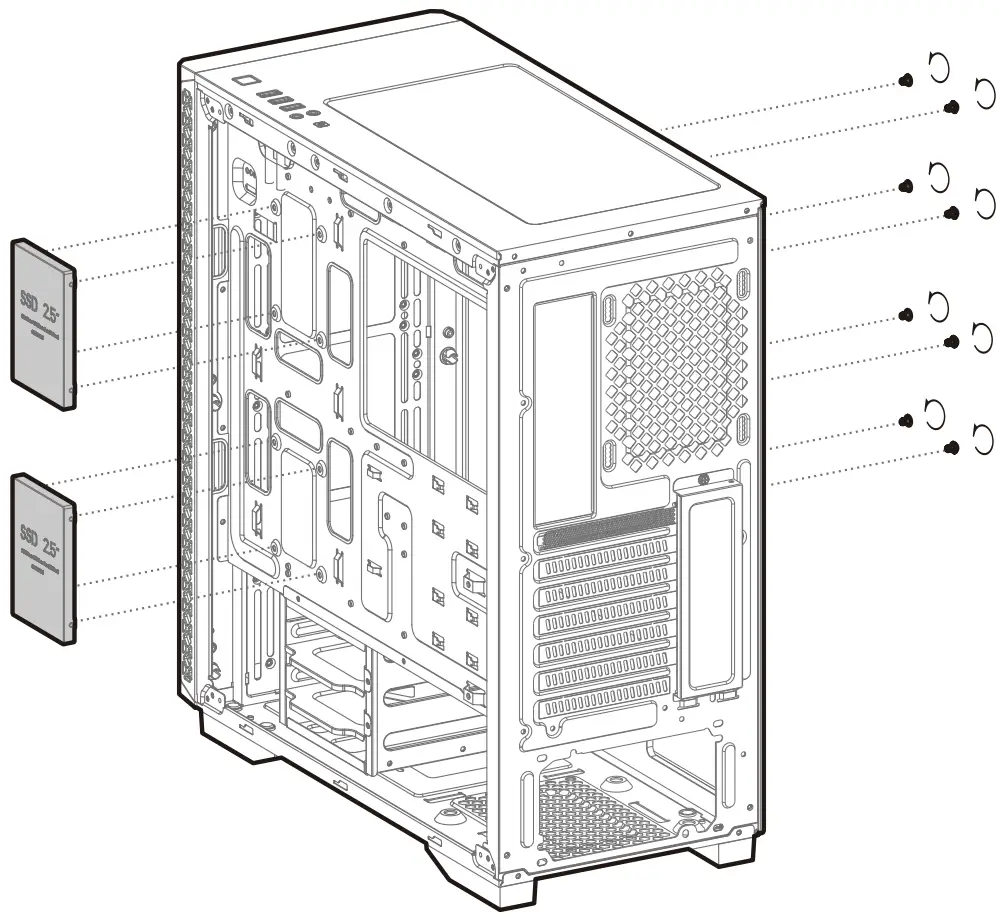

Installation SSDs

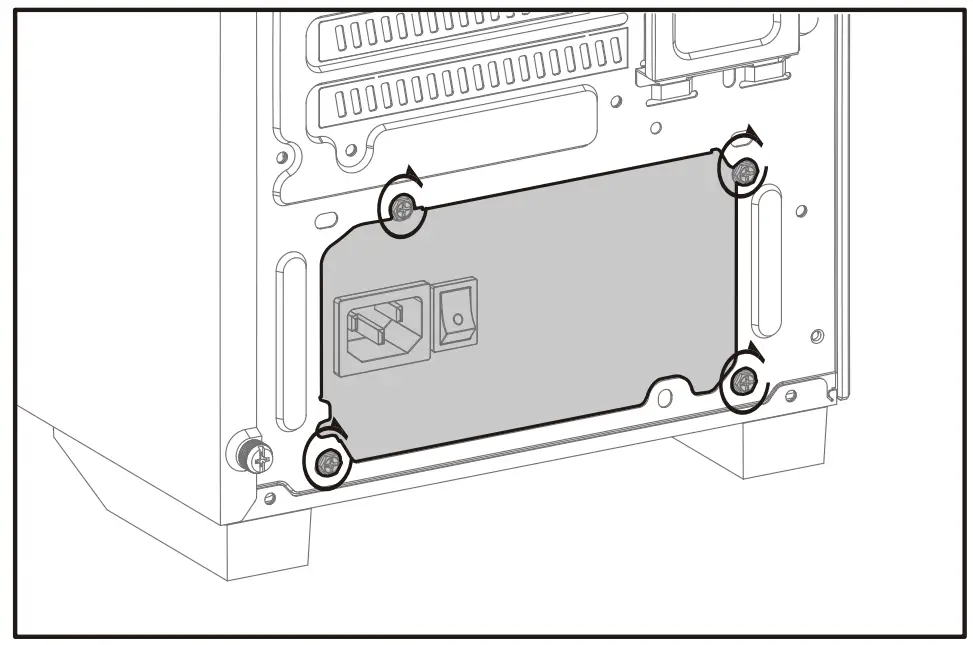

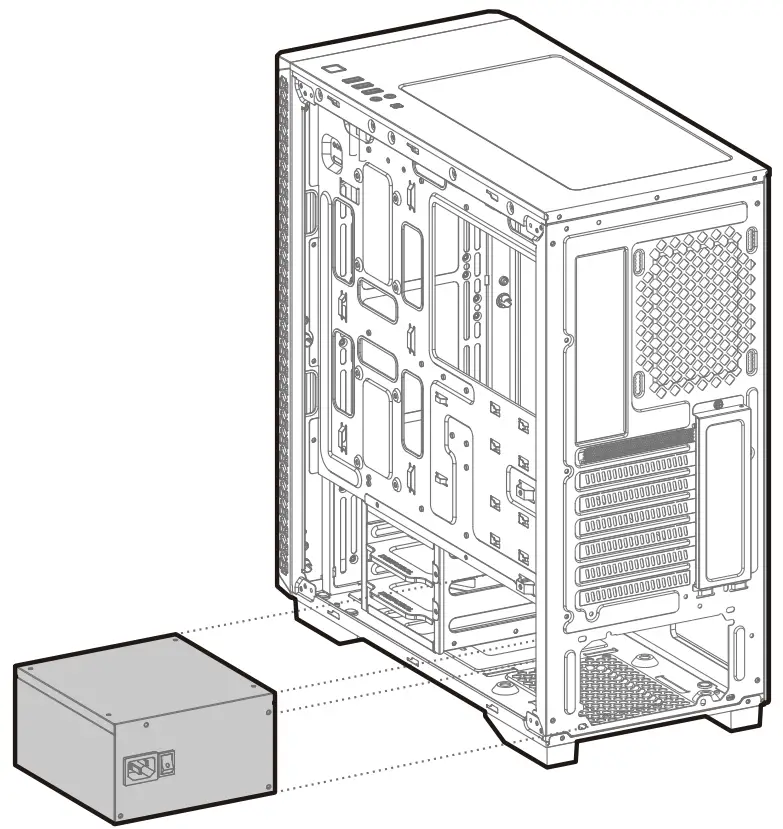

Installation the Power Supply

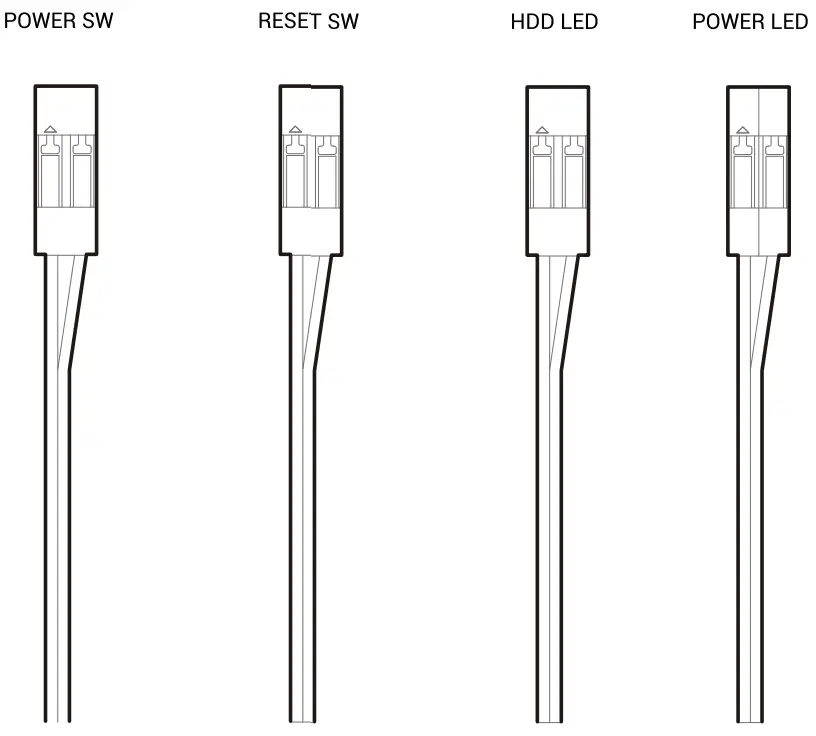

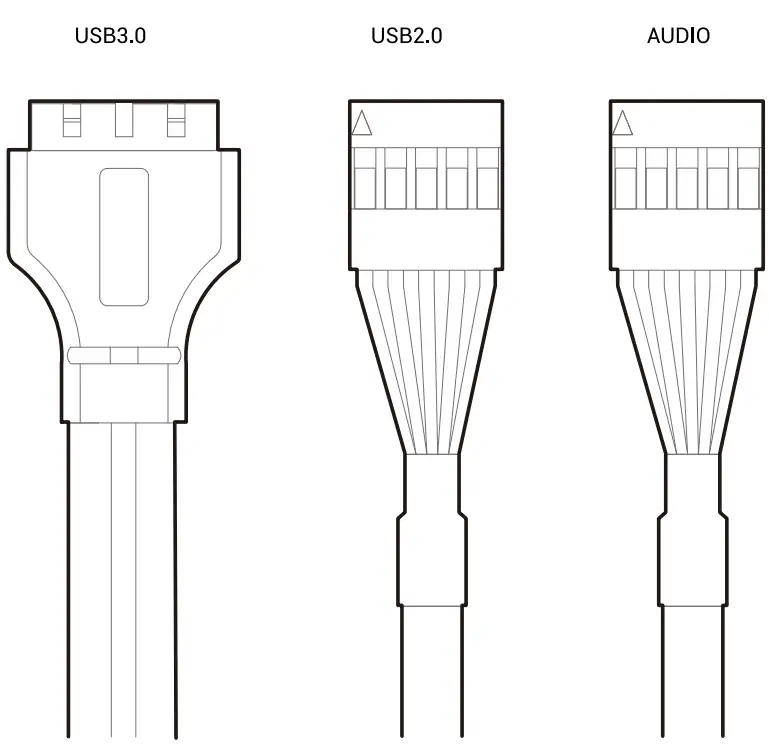

I/O Panel Introduction

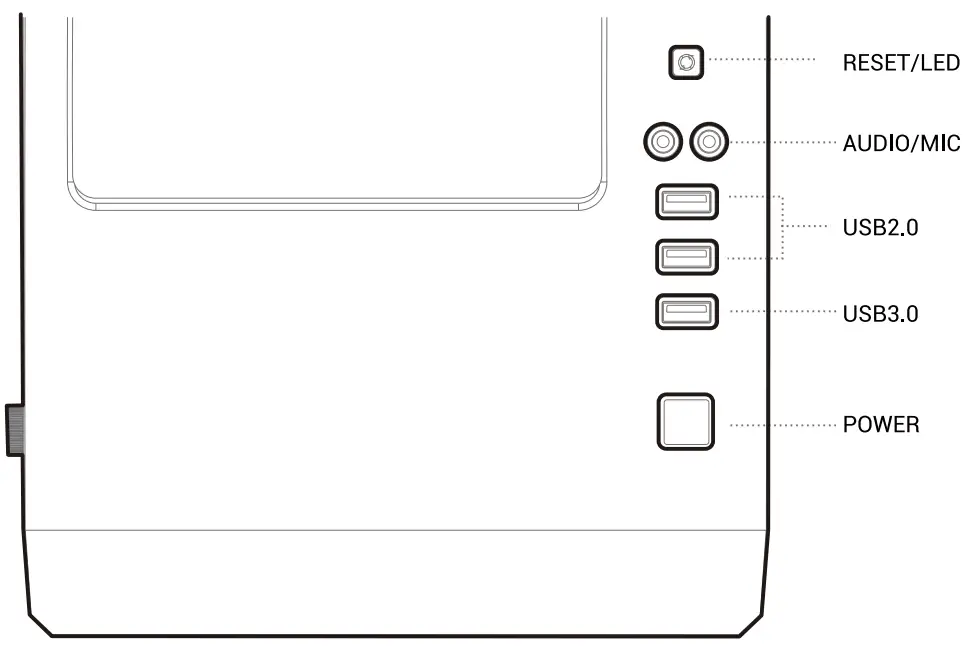

Installation the Front I/O connection
For reference only, please refer to the real product.

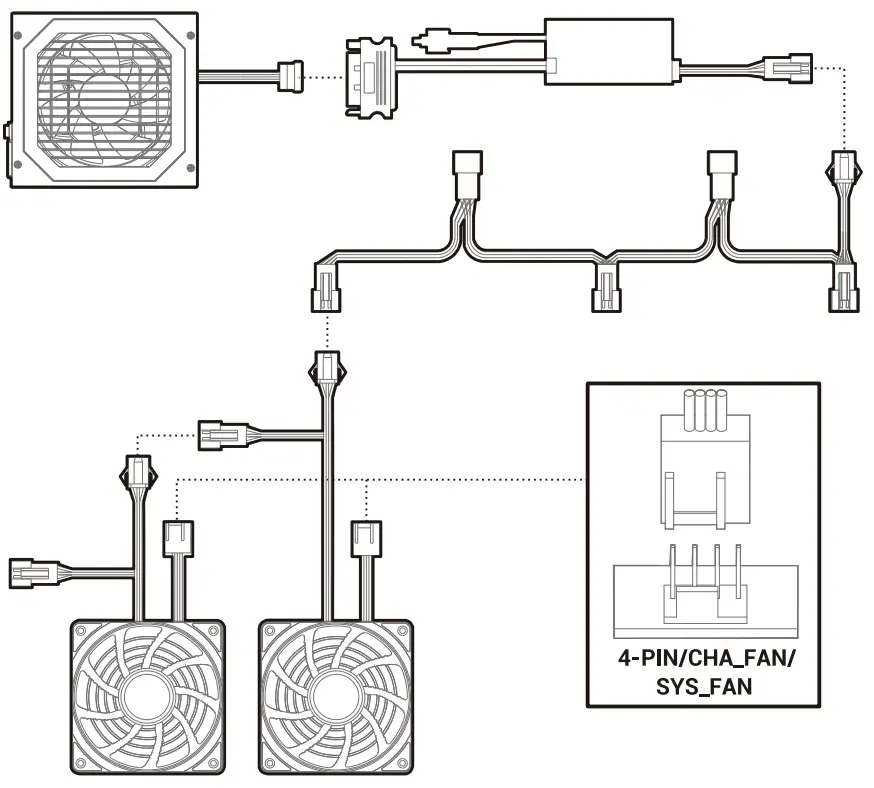

Manual RGB Wiring
For reference only, please refer to the real product.

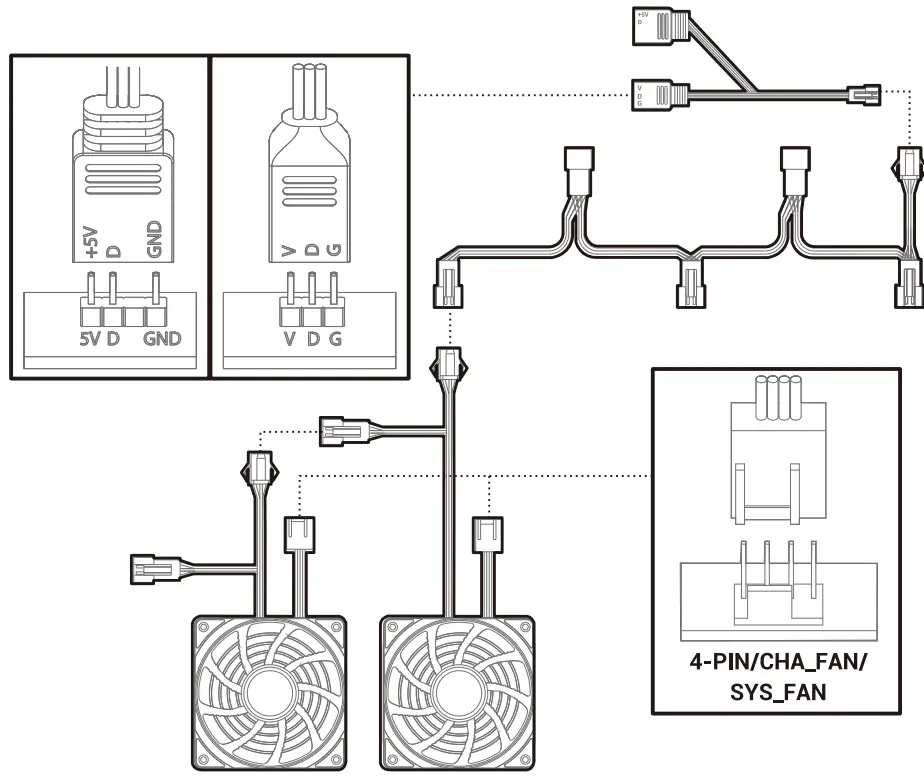

Motherboard RGB Synchronization
For reference only, please refer to the real product.

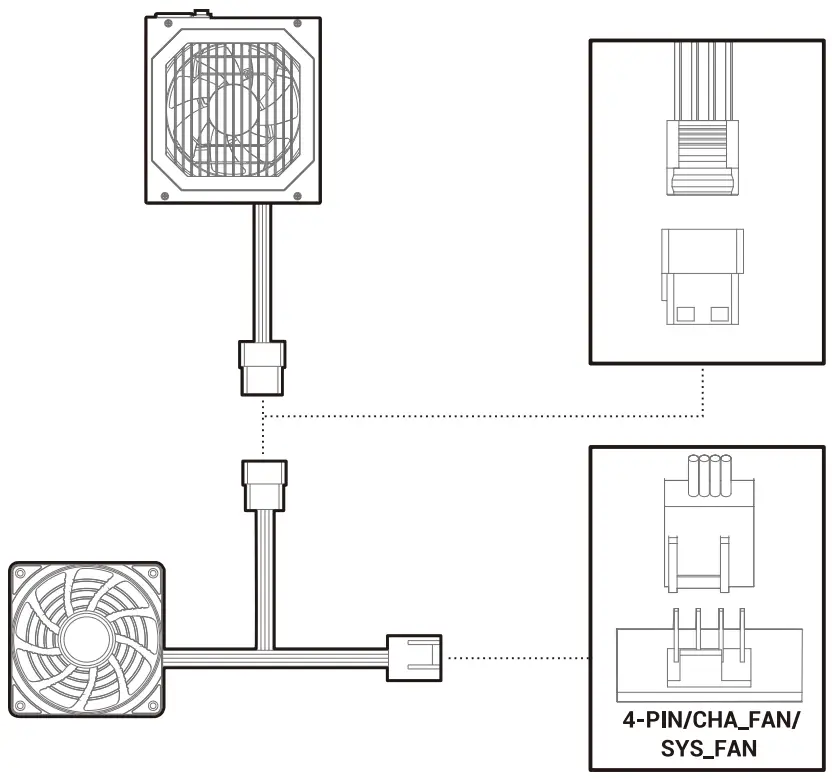

Fan Power Line Wiring
For reference only, please refer to the real product.
