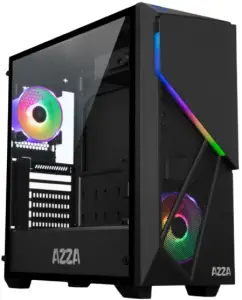

AZZA Inferno 310 DH Mid Tower Case User Manual
Contents hide
Installation instructions
- Specifications
- Chassis Parts
- Control Panel Functions
- 3.5″/2.5″ HDD Installation
- Cooling System Installation
- AZZA Hurricane II Digital RGB Fan Installation For Motherboard / Digital RF Remote
Specifications
Model | |
| Model Name | Inferno |
| Model Number | CSAZ-310DH |
Specifications | |
| Type: | ATX Mid-Tower |
| Color: | Black (exterior)/Black (interior) |
| Side Panel Window: | Tempered Glass with Rubber Mounts |
| Max CPU Cooler Height | Up to 155mm |
| With Power Supply: | No |
| Motherboard Compatibility: | ATX, Micro ATX |
Expansion | |
| External 5.25″ Drive Bays: | 1 |
| Internal 2.5″ Drive Bays: | Up to 6 (2 with metal tray) |
| Internal 3.5″ Drive Bays: | Up to 2 |
| Expansion slots: | 7 |
| Front Ports | 2xUSB 3.0. HD Audio |
Cooling System | |
| Fans Installed | Front 1x120mm AZZA HURRICANE II Digital RGB fan. Rear 1x120mm AZZA HURRICANE II Digital RGB fan |
Physical Specs | |
| Dimensions(HxWxD) | 480X205X475mm / 18.9X8.1X18.7 inches |
| Weight | 6.7 kg / 14.8 lb |
Features | |
| Digital RGB Light Effects | Digital RGB Light on Front, 2x120mm Digital RGB fans All Digital RGB light devices controlled by Digital RGB RF Remote |
| Max video Card Length | Supports up to 380mm long video cards |
| Tempered Glass Side Window | High-quality tempered glass with rubber mounted side window allows for clear visuals to inner components. |
| Available Fan Ports | 3x120mm or 2x140mm ports on the Top 3x120mm or 2x140mm ports in the front (1x120mm AZZA Hurricane II Digital RGB Fan included) 1x120mm Fan port in the rear (1x120mm AZZA Hurricane II Digital RGB Fan included) |
| Water Cooling | Supports radiators up to 360mm on top/280mm in front |
| Isolated Chamber | Power supply is housed inside its own isolated chamber, preventing its heat from affecting other components. |
| Easy installation Cooler | A precut hole for easy installation of CPU cooler, eliminating the need to remove the motherboard |
Chassis Parts
| 1 | Dust filter |
| 2 | Right side panel |
| 3 | Door |
| 4 | SSD brackets |
| 5 | HDD/SSD tray |
| 6 | Front bezel |
| 7 | HURRICANE II Digital RGB fans x2 |
| 8 | Hand screw |
| 9 | Left side panel |
| 10 | ODD bay |

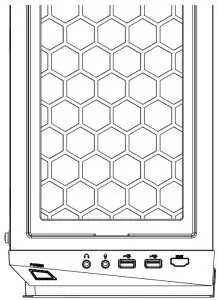

Control panel functions
Power |  |
| USB3.0 (Blue) |
|
USB3.0 (Blue) |  |
| Mic |
|
Audio |  |
| (Optional) |
|
3.5 “/2.5” HDD Installation

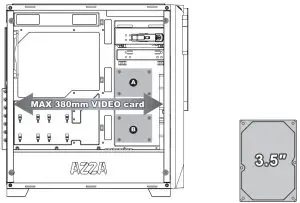

- Supports up to 380mm long video cards.
OR

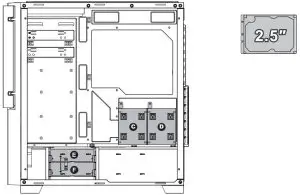

- Two mounting holes support 2.5″ devices. (A B)
- Two brackets support 2.5″ devices. (C D)
- Two multifunctional trays support 3.5″ HDD or 2.5″ SSD. (E F)

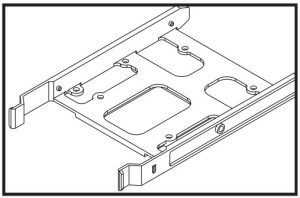

- Multifunctional bracket.

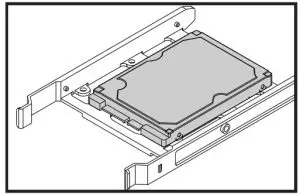

- Secure 2.5″ SSD / HDD with screws.

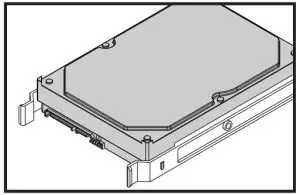

- Screw 3.5″ HDD with screws.
Cooling System Installation

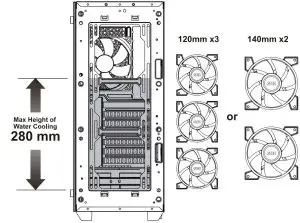

- Front

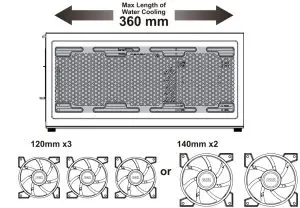

- Top
RF Remote (Model Number: RF-DRGB-X300)

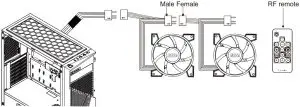

AZZA Hurricane II Digital RGB Fan Installation For Digital RF Remote
The first Digital RGB fan is to be connected to the Digital RGB LED RF remote in the chassis, while the rest of them can be daisy chained to the first one with their own male and female plugs.
