AZZA LOGO

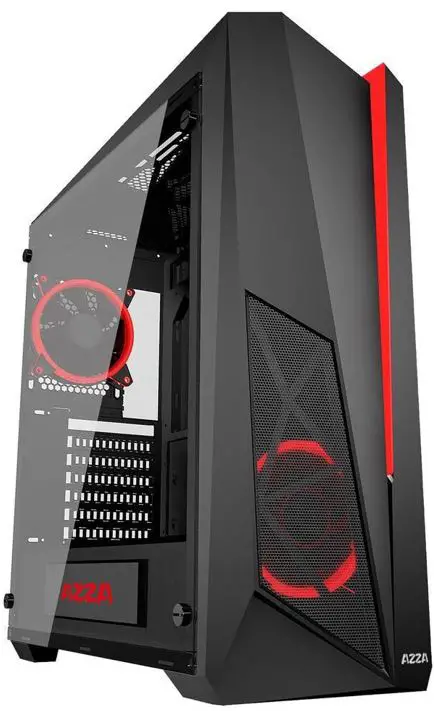

AZZA CSAZ-320 Thor ATX Mid TowerAZZA CSAZ-320 Thor ATX Mid Tower PRODUCT

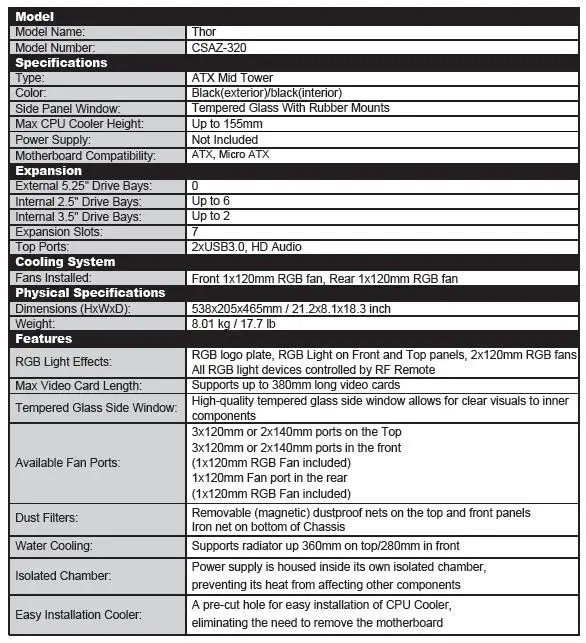

SpecificationsAZZA CSAZ-320 Thor ATX Mid Tower FIG-1

AZZA CSAZ-320 Thor ATX Mid Tower FIG-2

  1. Top cover
  2. Right side panel
  3. Front bezel
  4. SSD brackets
  5. HDD/SSD tray
  6. RGB fan x2
  7. Logo plate with backlit RGB
  8. Hand screw
  9. Left side panel
  10. Removable (magnetic) dustproof nets

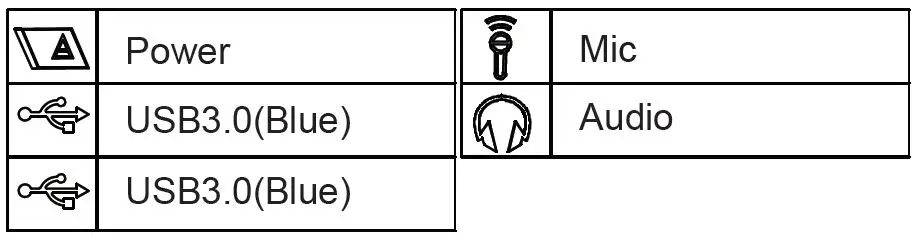

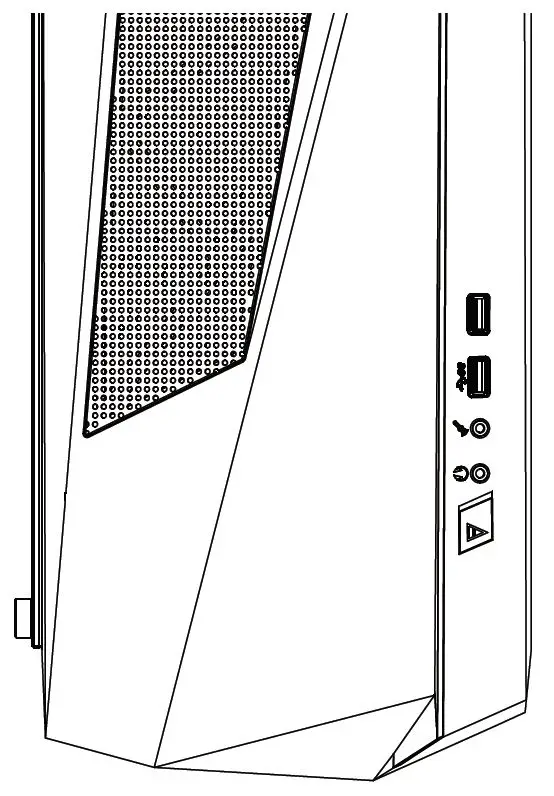

Control panel functions

AZZA CSAZ-320 Thor ATX Mid Tower FIG-3AZZA CSAZ-320 Thor ATX Mid Tower FIG-4

Installation

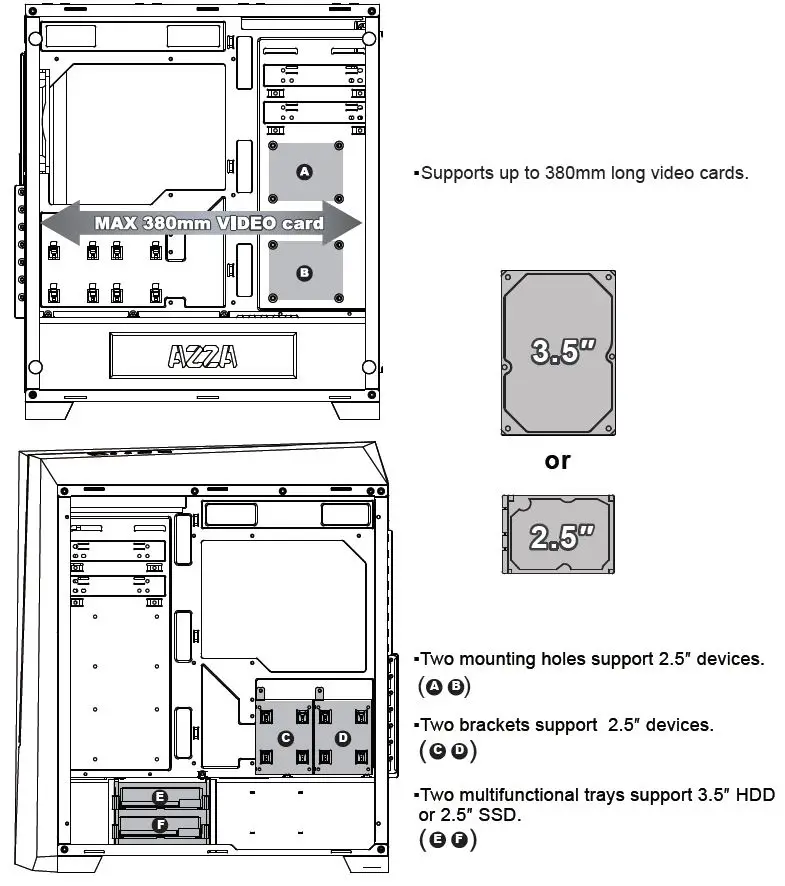

3.5 ˝/ 2.5˝ HDD

AZZA CSAZ-320 Thor ATX Mid Tower FIG-5

AZZA CSAZ-320 Thor ATX Mid Tower FIG-6

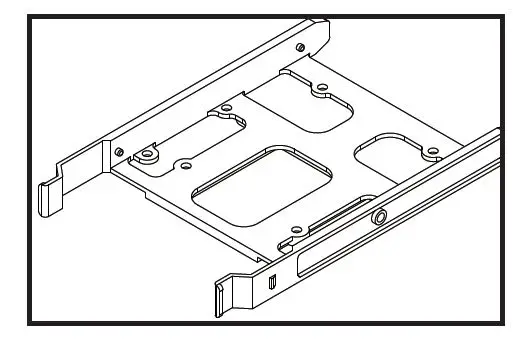

Multifunctional bracket

AZZA CSAZ-320 Thor ATX Mid Tower FIG-7

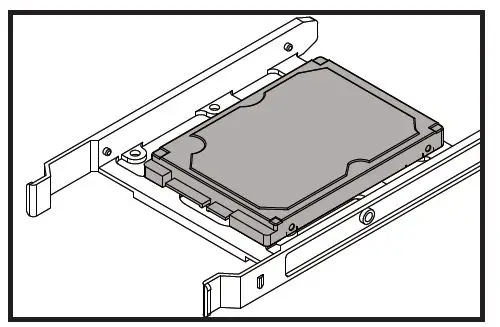

Secure 2.5˝ SSD / HDD with screws.

AZZA CSAZ-320 Thor ATX Mid Tower FIG-8

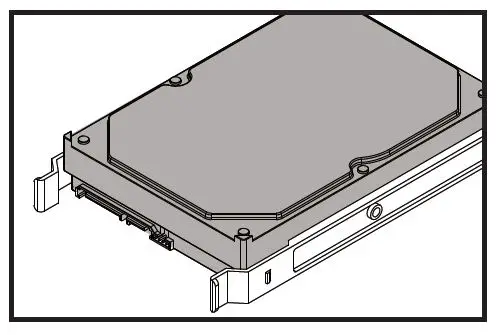

Secure 3.5˝ HDD with screws.

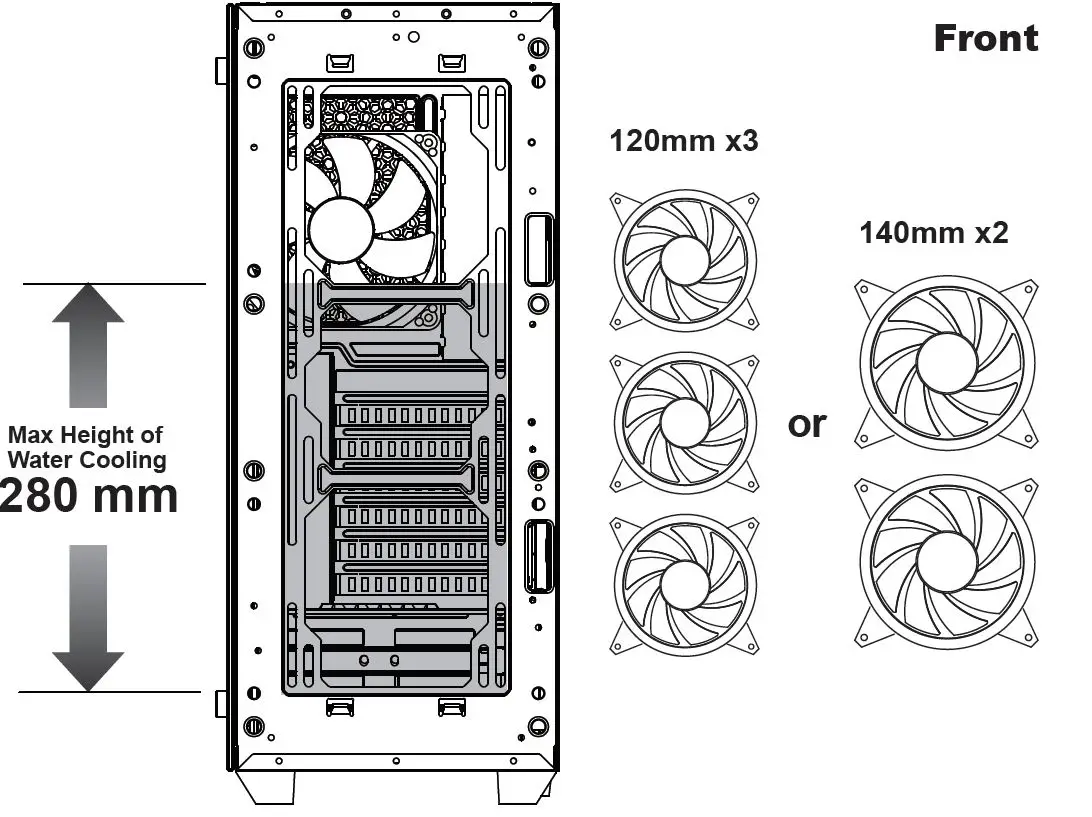

Cooling System Installation

AZZA CSAZ-320 Thor ATX Mid Tower FIG-9AZZA CSAZ-320 Thor ATX Mid Tower FIG-10

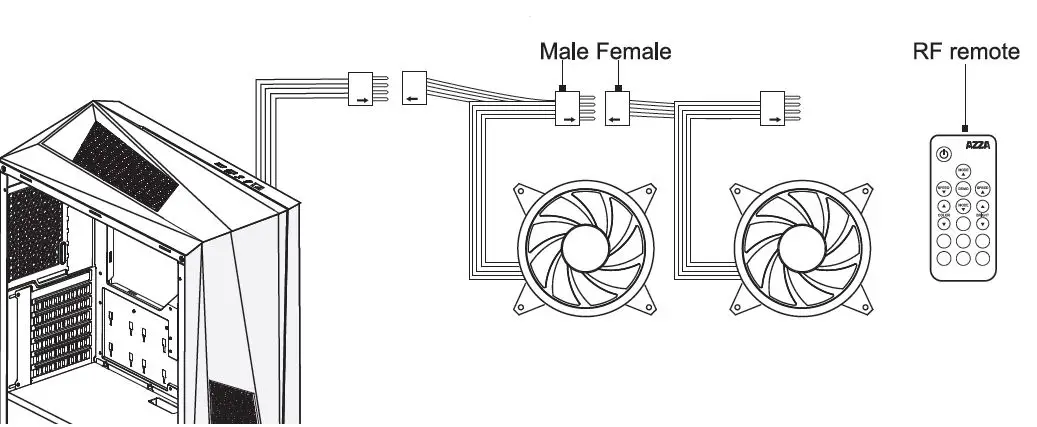

AZZA RGB Fan

AZZA CSAZ-320 Thor ATX Mid Tower FIG-11

AZZA CSAZ-320 Thor ATX Mid Tower FIG-12

Documents / Resouces

Download manual
Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.
