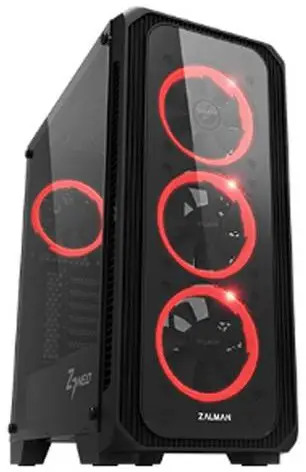

Zalman Z7 Neo Atx Mid Tower User Manual (+ PDF)

Read this manual carefully before installing.
Check the product and components before installing. If you find any abnormality, contact the location where you purchased the product for a replacement or refund.
Wear gloves to prevent accidents when installing the product.
Severe damage may occur when mounting the system, so do not apply excessive force.
Connecting the cable incorrectly may cause a fire due to a short circuit. Make sure to refer to the manual when connecting the cable.
Be careful not to block the ventilation hole of the product when using the system.
Avoid locations with direct sunlight, water, moisture, oil, and excessive dust. Store and use the product in a well-ventilated location.
Do not wipe the surface of the product using chemicals. (organic solvents such as alcohol or acetone)
Do not insert your hand or other object into the product during operation, as this may injure your hand or damage the object.
Store and use the product out of children’s reach.
Our company assumes no responsibility for any problem that occurs due to the use of the product for purposes other than its designated purposes and/or the carelessness of the consumer.
The exterior design and specifications of the product are subject to change without prior notice to consumers for quality improvement.

Features

Model		Z7 NEO
Case Form Factor		ATX Mid-Tower

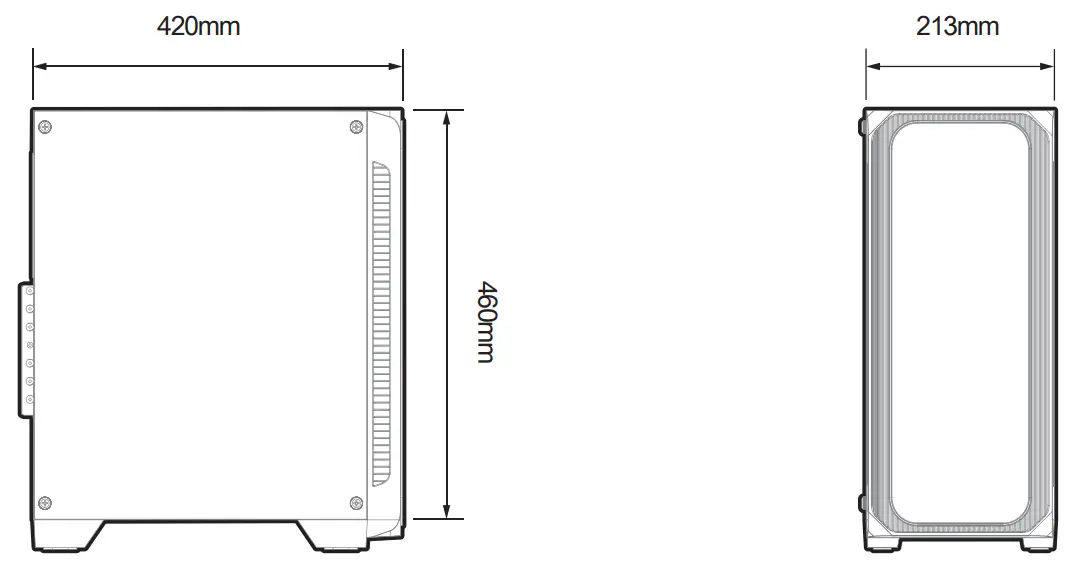

Dimensions		420 x 213 x 460(H)mm
Weight		7.2kg
Case Materials		Plastic, Steel, Tempered Glass
Motherboard Support		ATX / mATX / Mini-ITX
Maximum VGA Length		355mm
Maximum CPU Cooler Height		165mm
Maximum PSU Length		180mm
PCI Expansion Slots		7
Drive Bays		2 x Combo (3.5” or 2.5″), 2 x 2.5”
Fan Support	Top	2 x 120mm, 2 x 140mm(RGB LED Lighting Sync Unsupported)
	Front	3 x 120mm
	Rear	1 x 120mm
Pre-Installed Fan(s)	Front	3 x 120mm (with RGB LED Effect)
	Rear	1 x 120mm (with RGB LED Effect)
Radiator Support	Top	120mm / 240mm / 280mm
	Front	120mm / 240mm / 360mm
I/O Ports		1 x USB 3.0, 2 x USB 2.0, 1 x Headphone Jack, 1 x Microphone Jack, LED Control Button, Reset Button, Power Button

Caution (Radiator Support)
※ Limited fitment to memory equipped with heatsinks.
※ Some motherboards with tall heat sink will cause interference on the installation of the 280mm radiator.

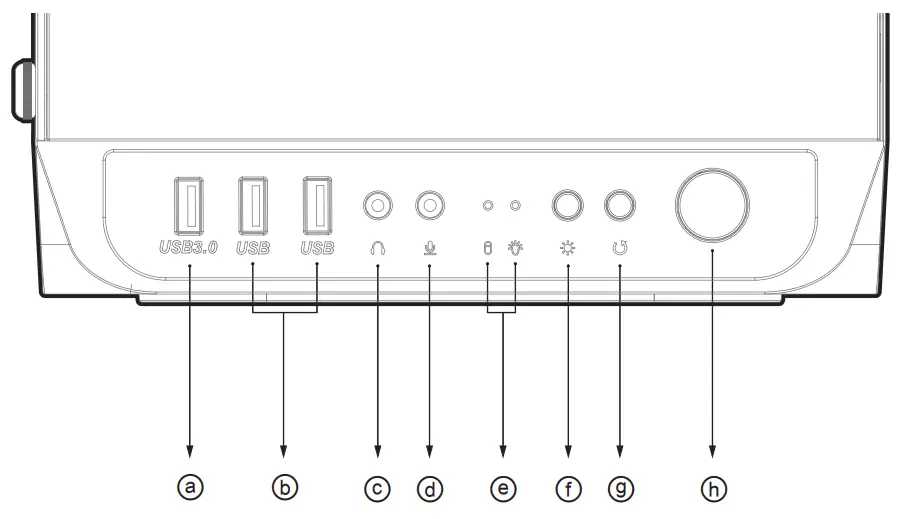

I/O Ports

#	Part	#	Part	#	Part	#	Part
a	USB 3.0 Port	b	USB 2.0 Ports	c	Headphone Jack	d	Microphone Jack
e	HDD / Power LED	f	LED Control Button	g	Reset Button	h	Power Button

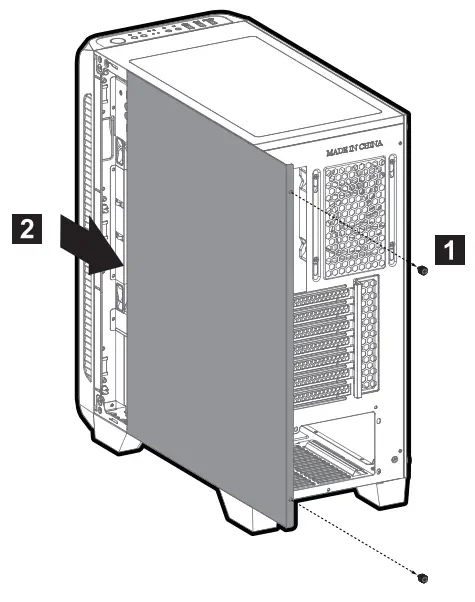

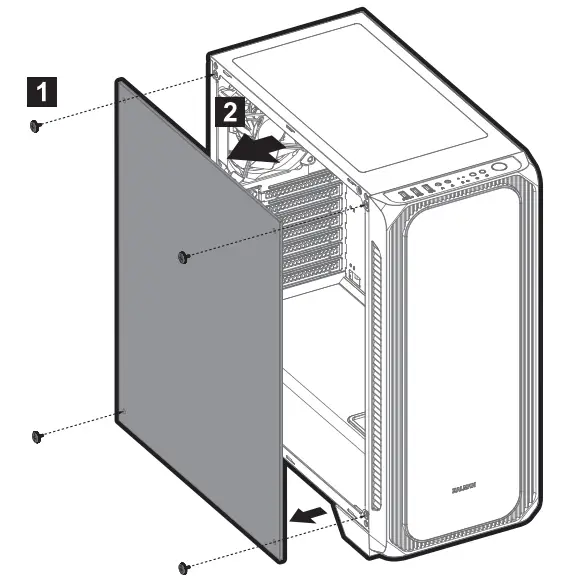

Dismantling the side panels

Tempered Glass
Steel Panel

Dismantling the front panel

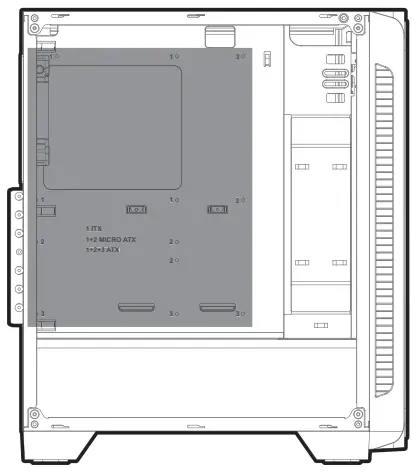

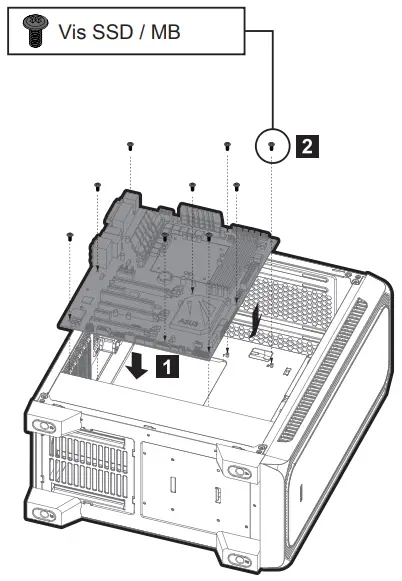

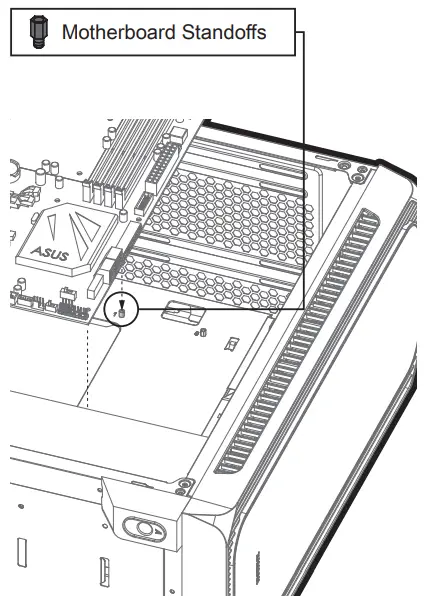

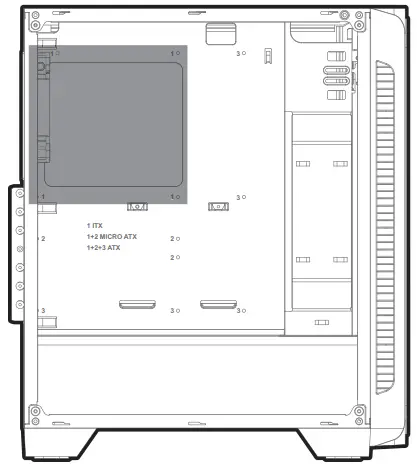

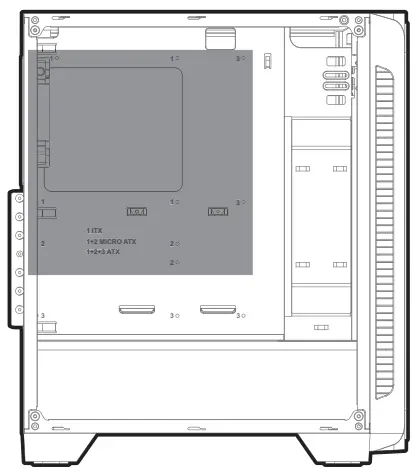

Mounting the motherboard

ATX
mATX
Mini-ITX

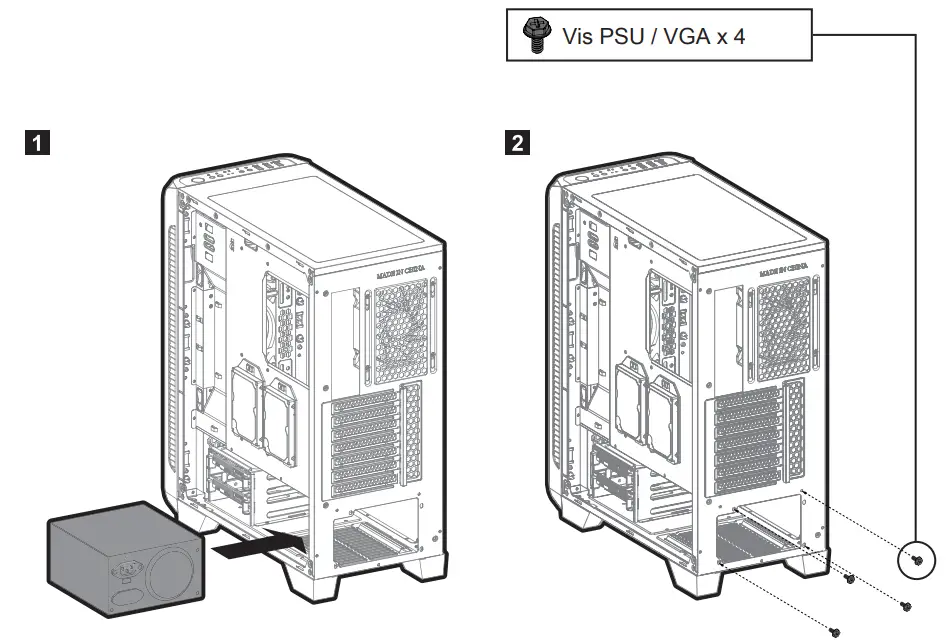

Mounting the power supply

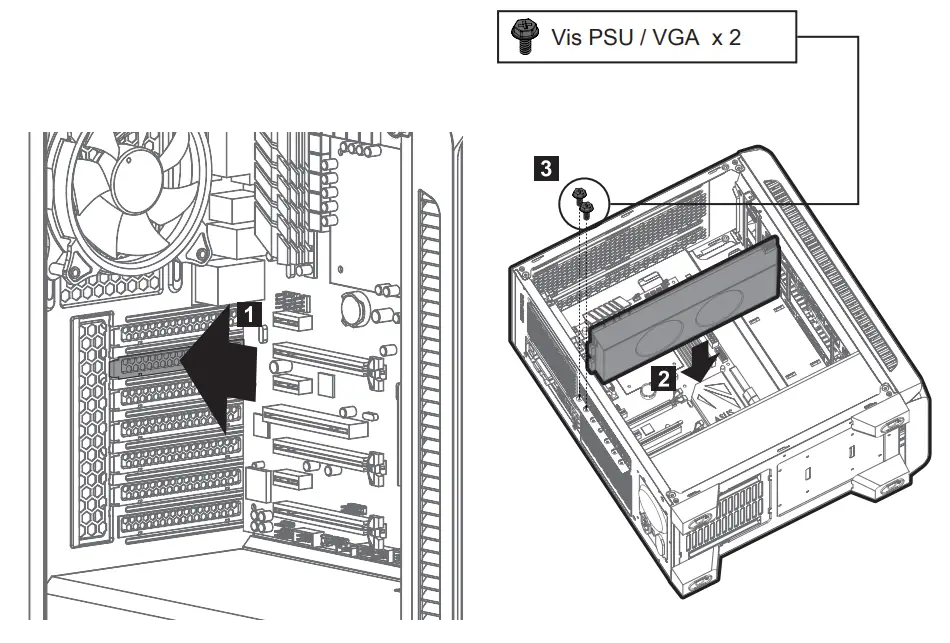

Mounting the PCI-E (VGA) Card

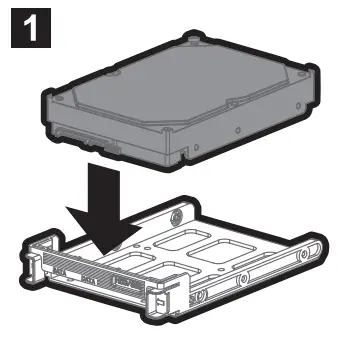

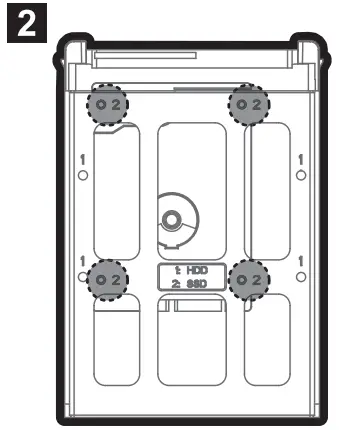

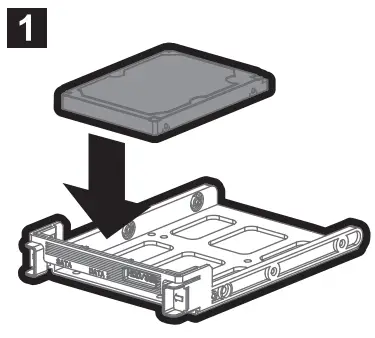

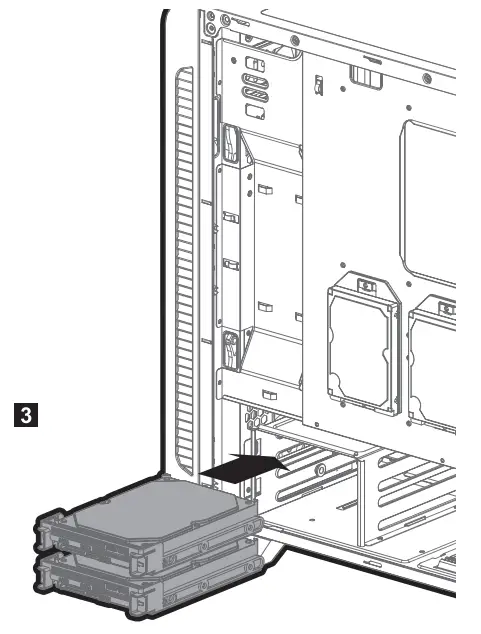

Mounting 3.5” and 2.5” SSD / HDD

HDD

SSD

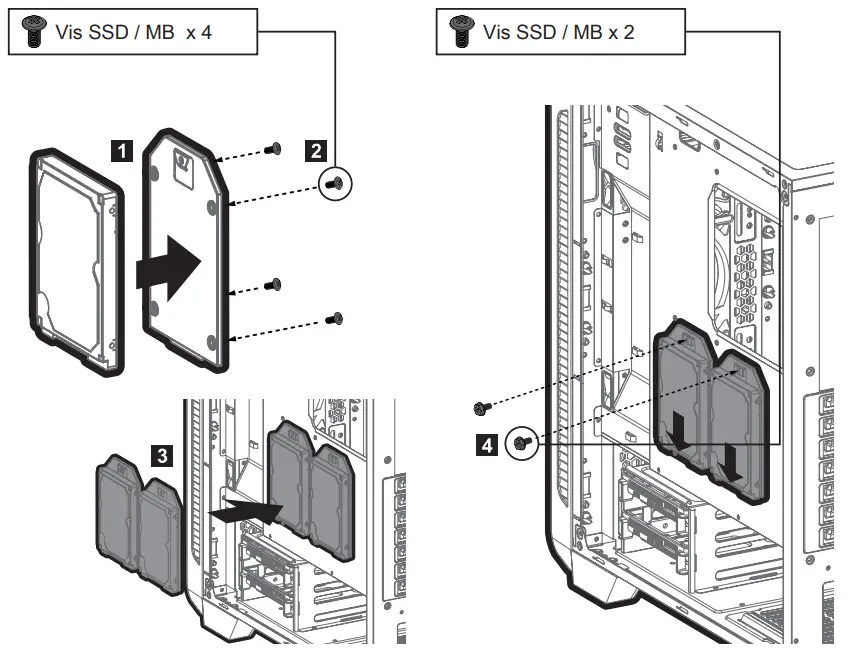

Mounting 3.5” and 2.5” SSD / HDD

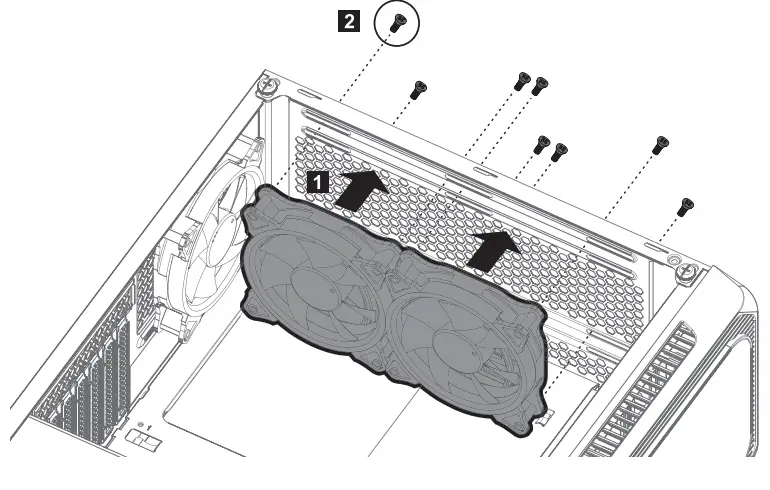

Assembly of the upper fans

Mounting the front radiator

Caution
※ Limited fitment to memory equipped with heatsinks.
※ Some motherboards with tall heat sink will cause interference on the installation of the 280mm radiator

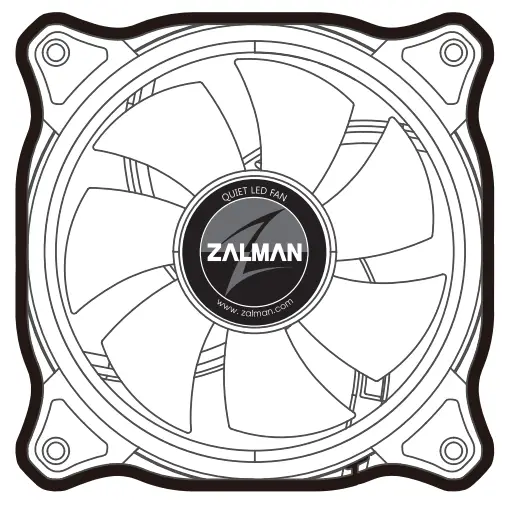

Fan Features

RPM : 1200± 10%
Input : 12V 0.6A

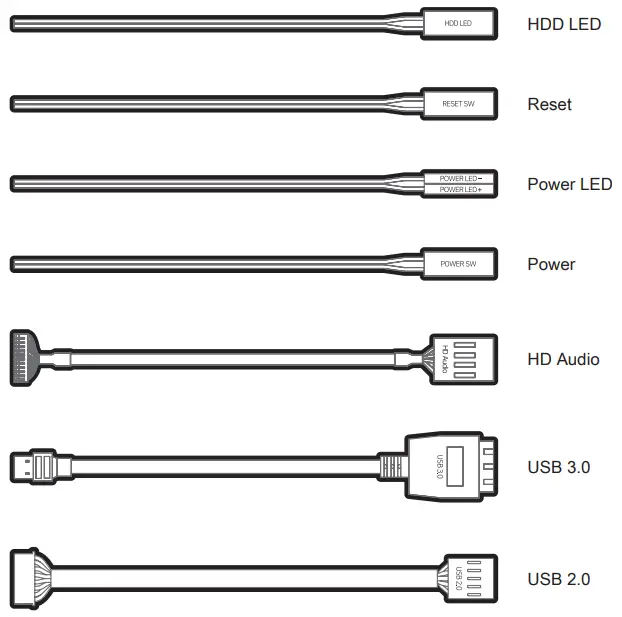

I/O connectors

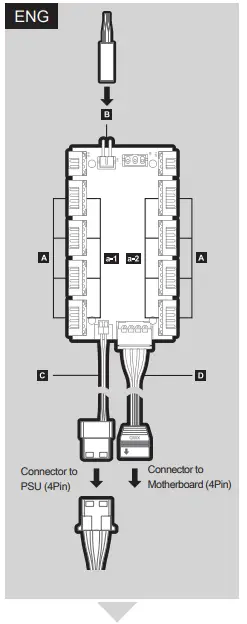

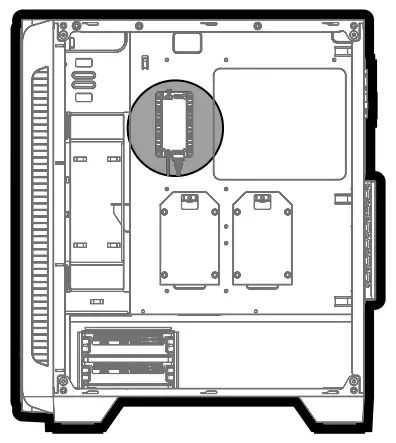

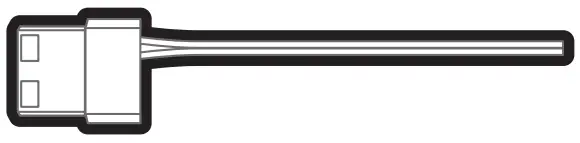

RGB LED Controller

RGB LED Controller Position SW IR LE01 LE02

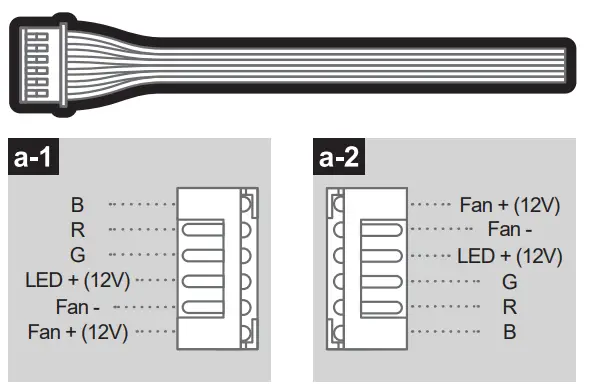

A. Fan 1~8 / 6Pin
- Connector to RGB LED fans (Four pre-installed)
- RGB LED Fans I/O port 8ea
B. LED Control Button / 2Pin
- Connector to LED control button
- RGB LED Lighting effects & 7 Colors
C. DC Power / 4Pin
- Connector to PSU
- Input : 12V
D. Motherboard Sync / 4Pin
- Connector to motherboard
- Requires motherboard that supports RGB sync

※ Caution

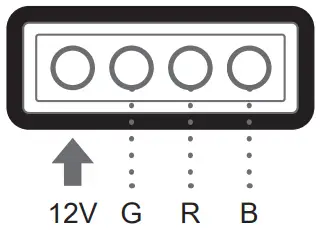

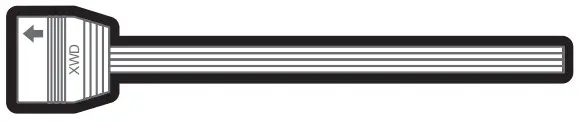

Please be sure to check the arrow of the female cable, it indicates where 12V needs to be connected when you are connecting it to motherboard.

www.zalman.com
