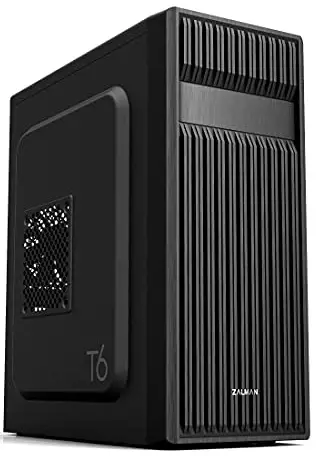

ZALMAN T6 ATX MID TOWER Computer Case User Manual

Read this manual carefully before installing.
Check the product and components before installing. If you find any abnormality, contact the location where you purchased the product for a replacement or refund.
Wear gloves to prevent accidents when installing the product.
Severe damage may occur when mounting the system, so do not apply excessive force.
Connecting the cable incorrectly may cause a fire due to a short circuit. Make sure to refer to the manual when connecting the cable.
Be careful not to block the ventilation hole of the product when using the system.
Avoid locations with direct sunlight, water, moisture, oil, and excessive dust. Store and use the product in a well-ventilated location.
Do not wipe the surface of the product using chemicals. (organic solvents such as alcohol or acetone)
Do not insert your hand or other object into the product during operation, as this may injure your hand or damage the object.
Store and use the product out of children’s reach.
Our company assumes no responsibility for any problem that occurs due to the use of the product for purposes other than its designated purposes and/or the carelessness of the consumer.
The exterior design and specifications of the product are subject to change without prior notice to consumers for quality improvement.

Model		T6
Case Form Factor		ATX Mid Tower

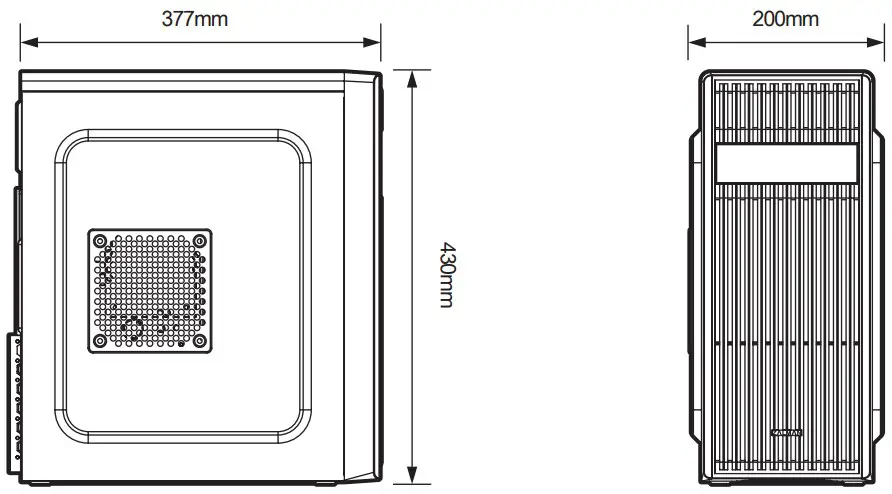

Dimensions		377(D) x 200(W) x 430(H) mm
Weight		2.82 kg
Case Materials		Steel, Plastic

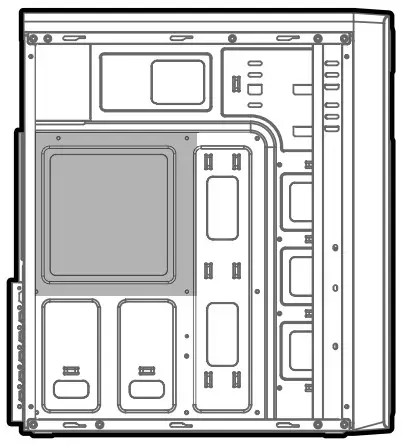

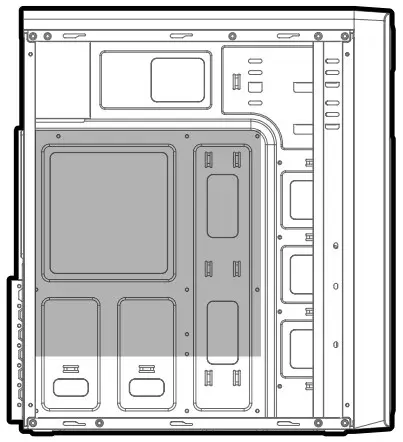

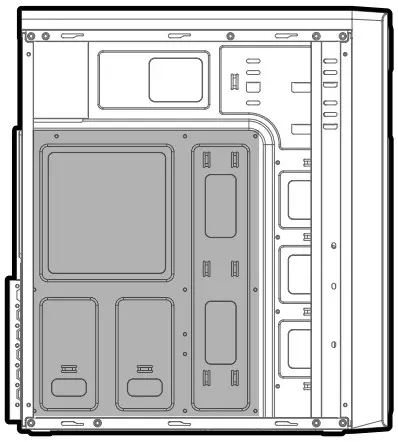

Motherboard Support		ATX / mATX / Mini-ITX

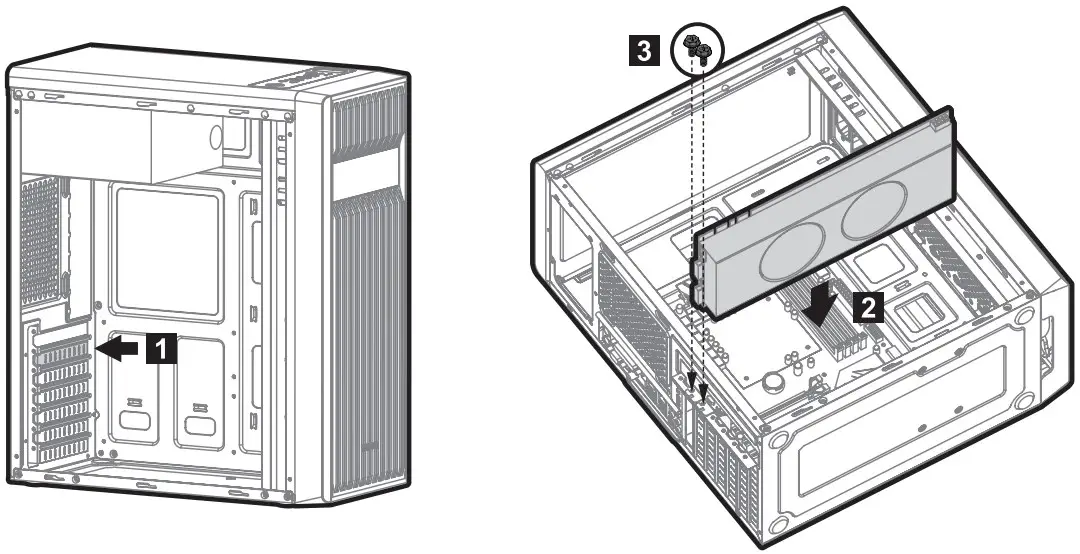

Maximum VGA Length		280mm (But, 260mm or less when front HDD is installed)
Maximum CPU Cooler Height		165mm (But, 140mm or less when Side fan is installed)
Maximum PSU Length		160mm
PCI Expansion Slots		7

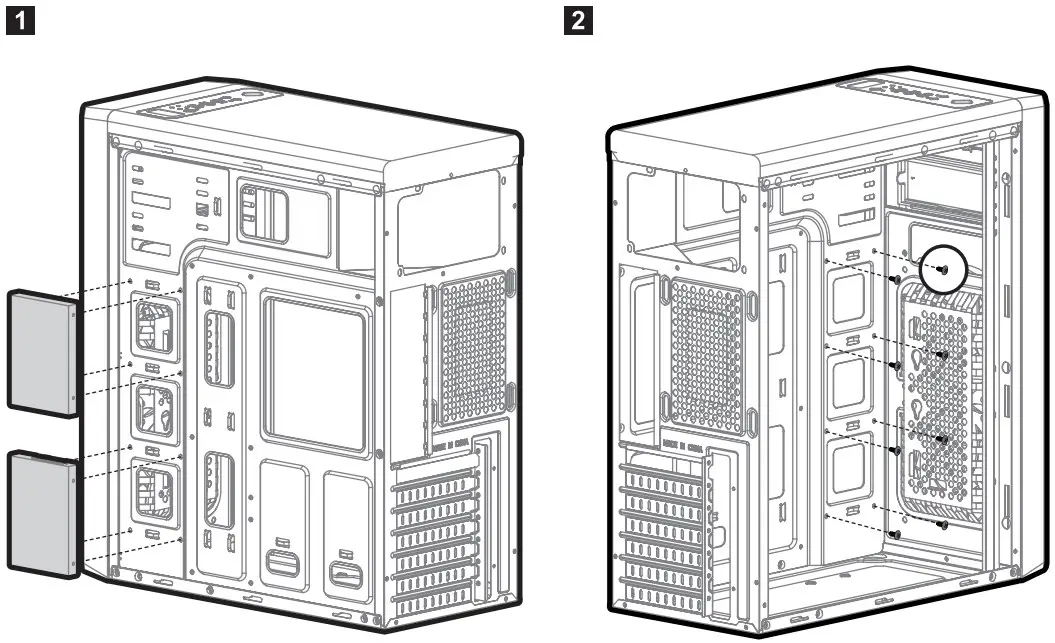

Case Drive Bays		2 x 3.5”, 2 x 2.5”, 1 x 5.25”
Fans Mount Locations	Front	2 x 120mm
	Rear	1 x 120mm
	Side	1 x 120mm
Fan Included	Rear	1 x 120mm

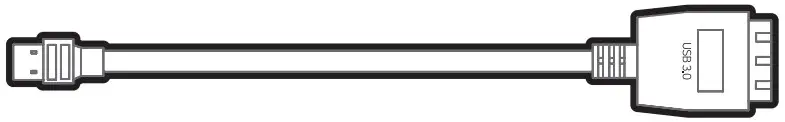

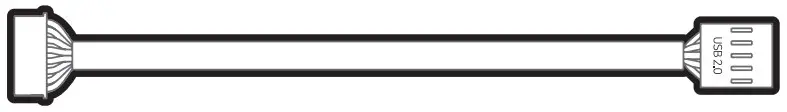

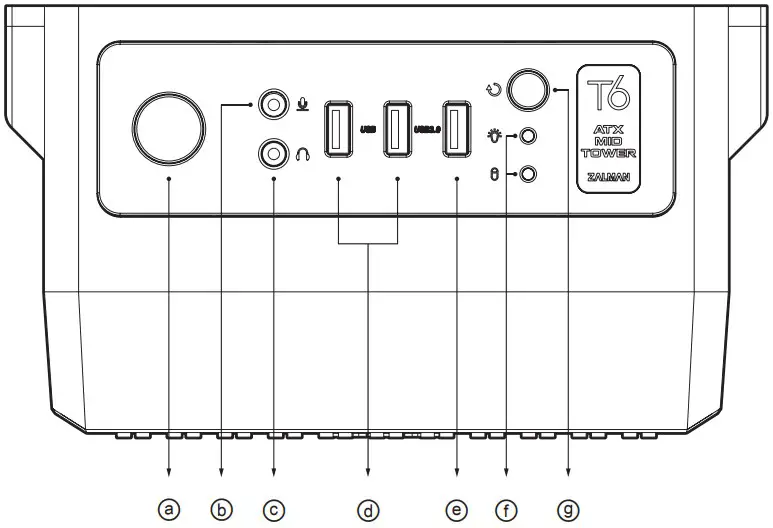

I/O Ports		1 x Headphone, 1 x Mic, 2 x USB 2.0, 1 x USB 3.0
