Zalman T8 Atx Mid Tower Computer Case User Manual

ZALMAN T8 ATX Mid Tower Computer Case

Precautions

• Read this manual carefully before installing.
• Check the product and components before installing. If you find any abnormality, contact the location where you purchased the product for a replacement or refund.
• Wear gloves to prevent accidents when installing the product.
• Severe damage may occur when mounting the system, so do not apply excessive force.
• Connecting the cable incorrectly may cause a fire due to a short circuit. Make sure to refer to the manual when connecting the cable.
• Be careful not to block the ventilation hole of the product when using the system.
• Avoid locations with direct sunlight, water, moisture, oil, and excessive dust. Store and use the product in a well-ventilated location.
• Do not wipe the surface of the product using chemicals. (organic solvents such as alcohol or acetone)
• Do not insert your hand or another object into the product during operation, as this may injure your hand or damage the object.
• Store and use the product out of children’s reach.
• Our company assumes no responsibility for any problem that occurs due to the use of the product for purposes other than its designated purposes and/or the carelessness of the consumer.
• The exterior design and specifications of the product are subject to change without prior notice to consumers for quality improvement.

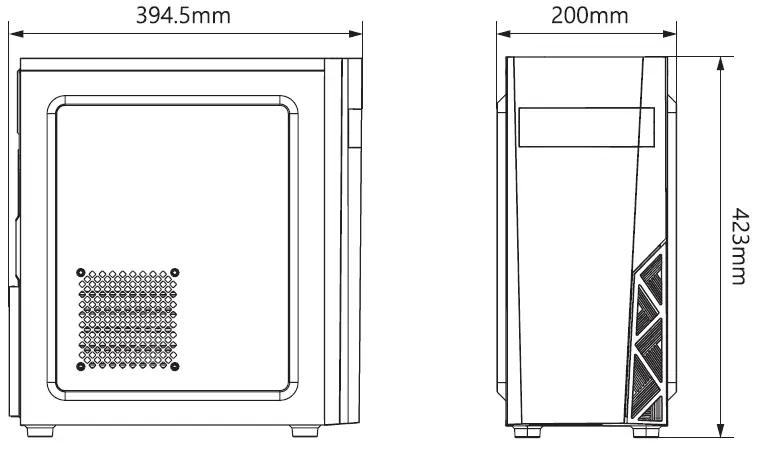

Specifications

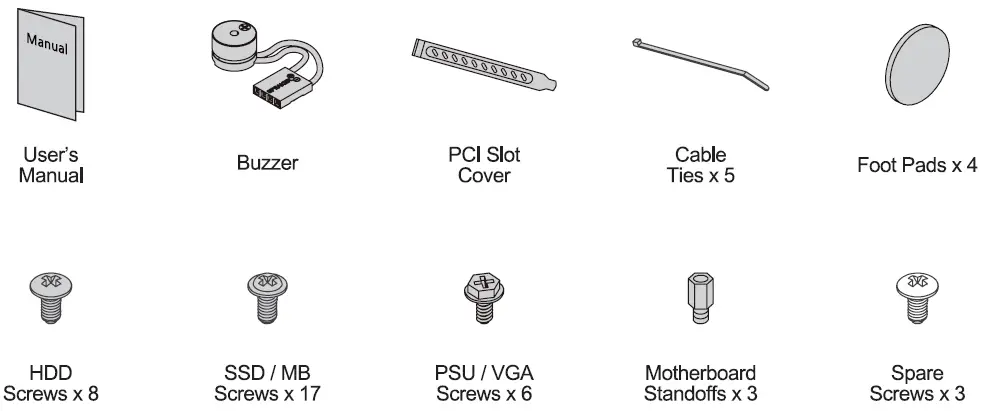

Accessories component

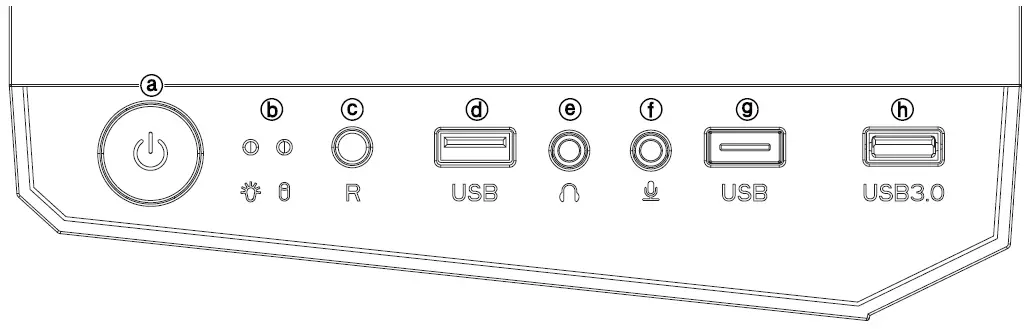

1/O Ports

Installations

1. Removing the side panels

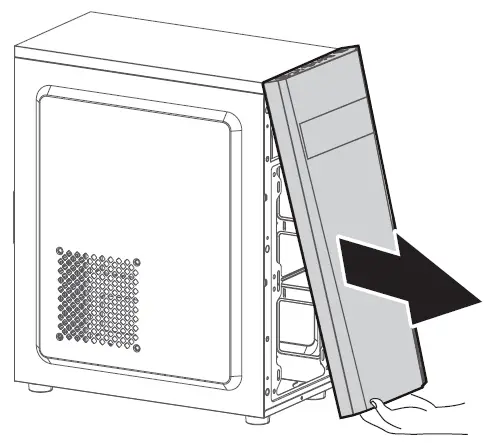

2. Removing the front panel

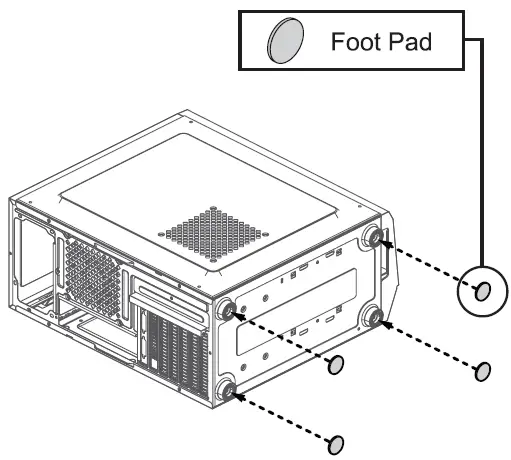

3. Foot Pads Installation

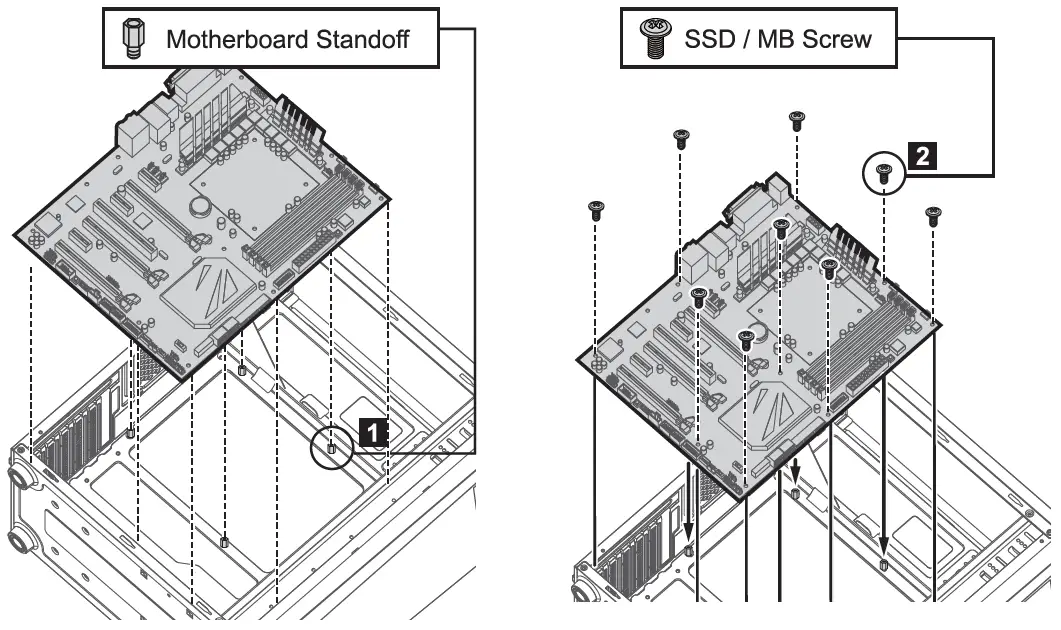

4. Mounting the motherboard

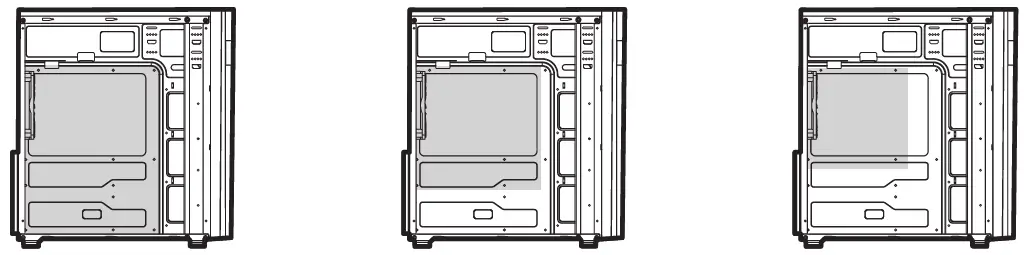

   1. Motherboard size
      1. ATX
      2. mATX
      3. Mini-lTX

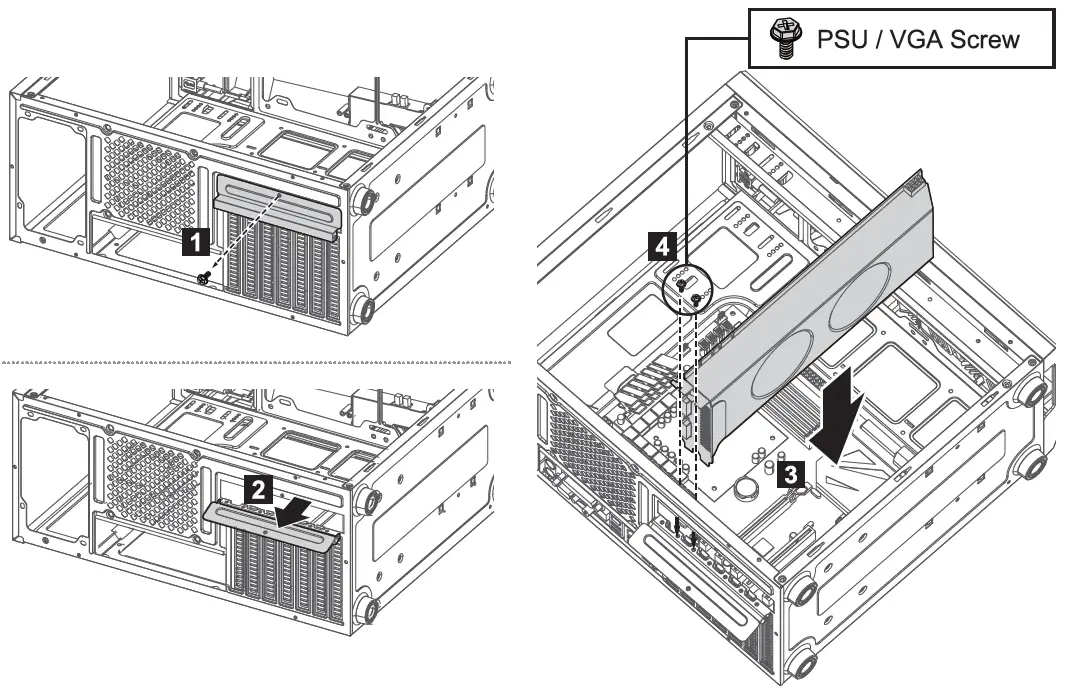

5. Mounting PCI-E(VGA) card

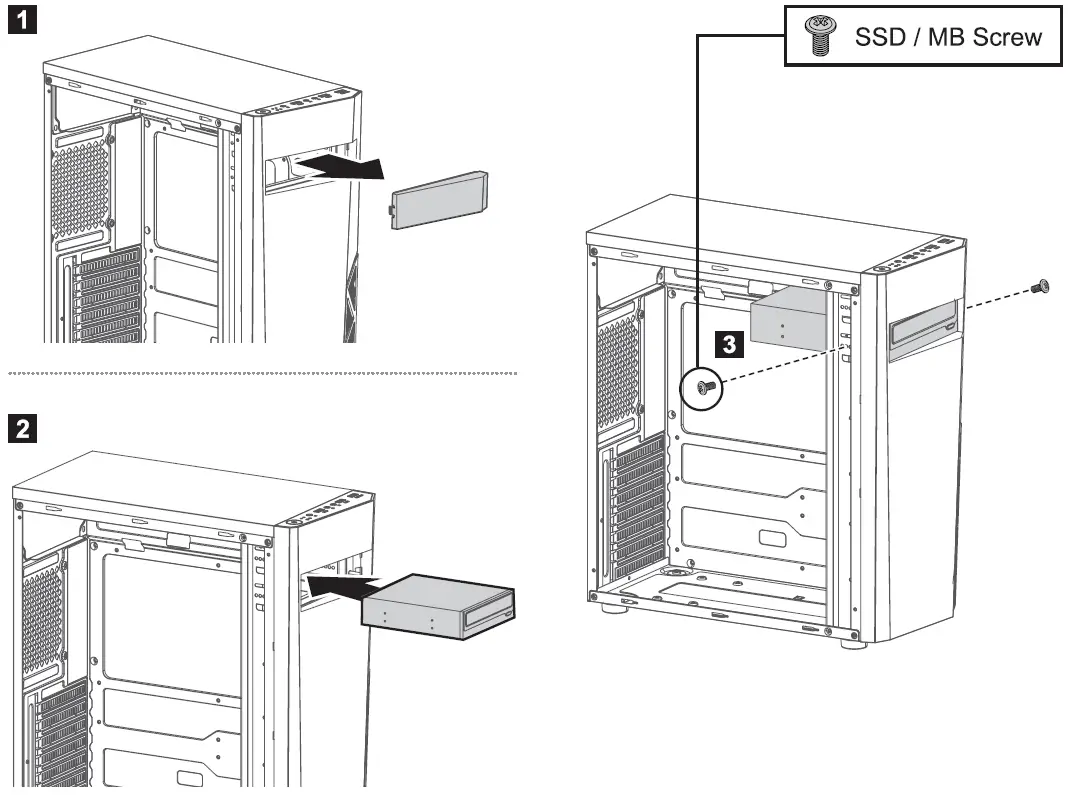

6. Mounting the ODD

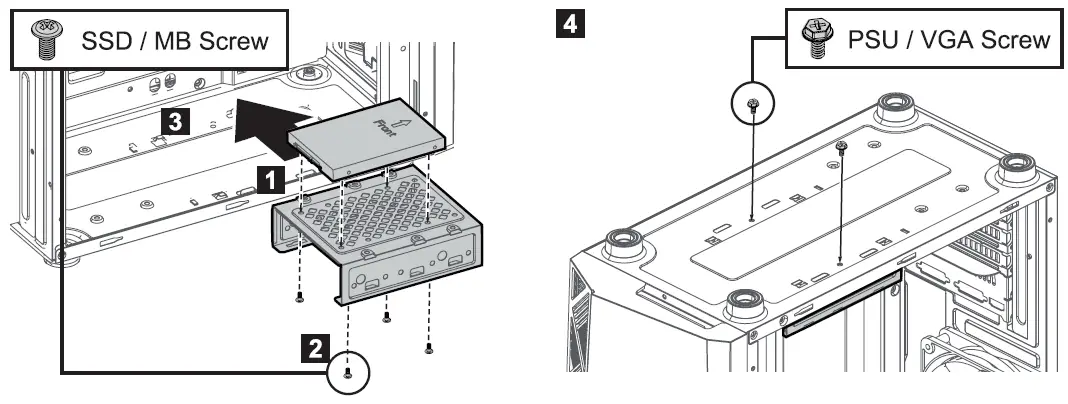

7. Mounting the 2.5″ SSD
8. Mounting the 2.5″ SSD

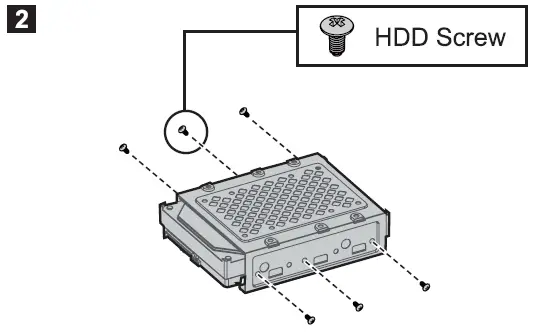

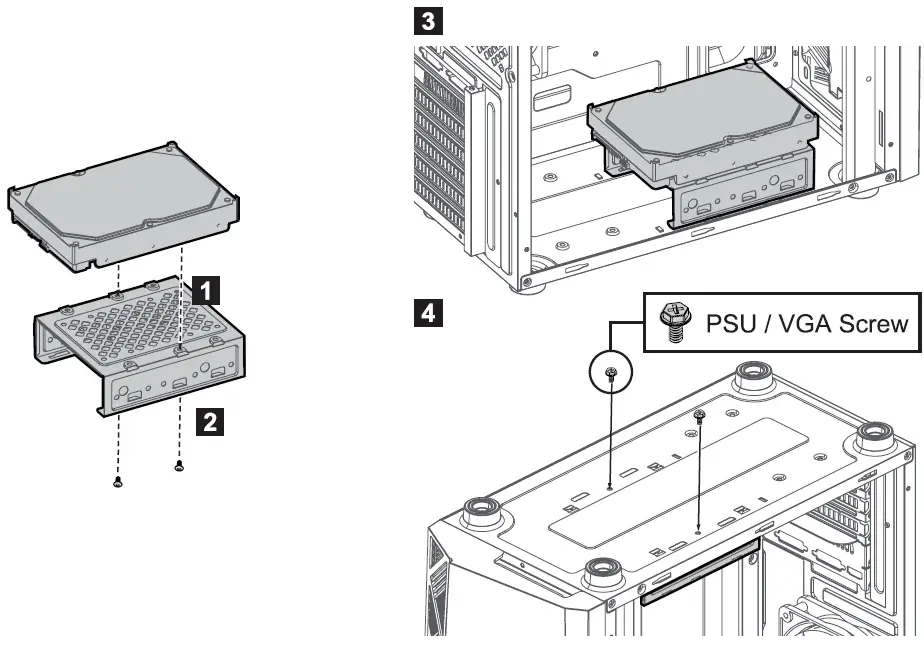

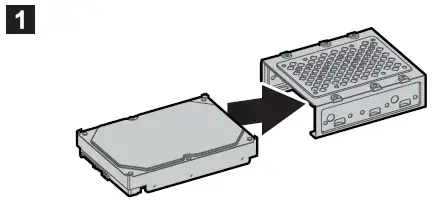

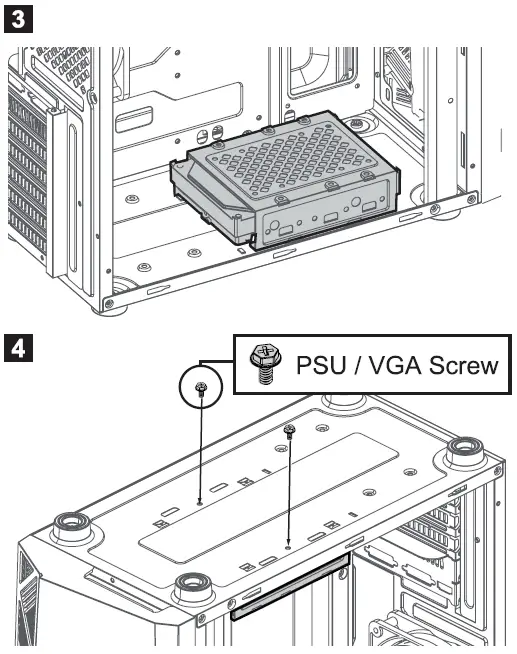

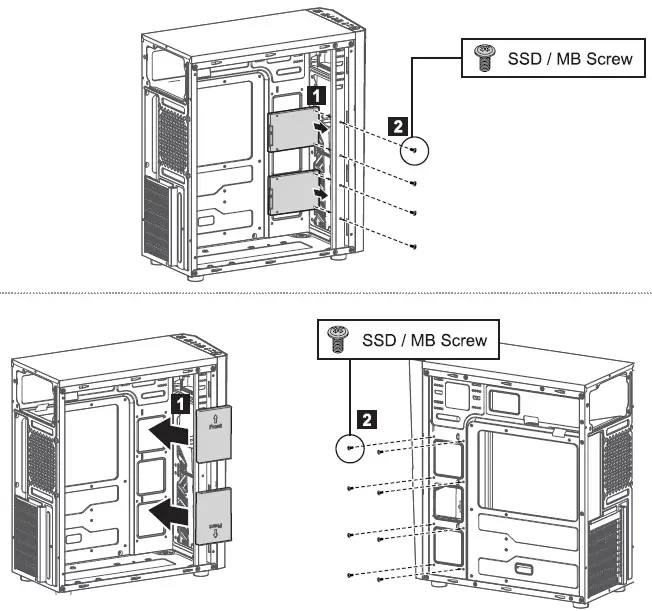

9. Mounting the 3.5″ and 2.5″ SSD / HDD
   Note
   Please check the HOD size before installing. HOD higher than 25.4mm may not be properly installed in the HDD cage.

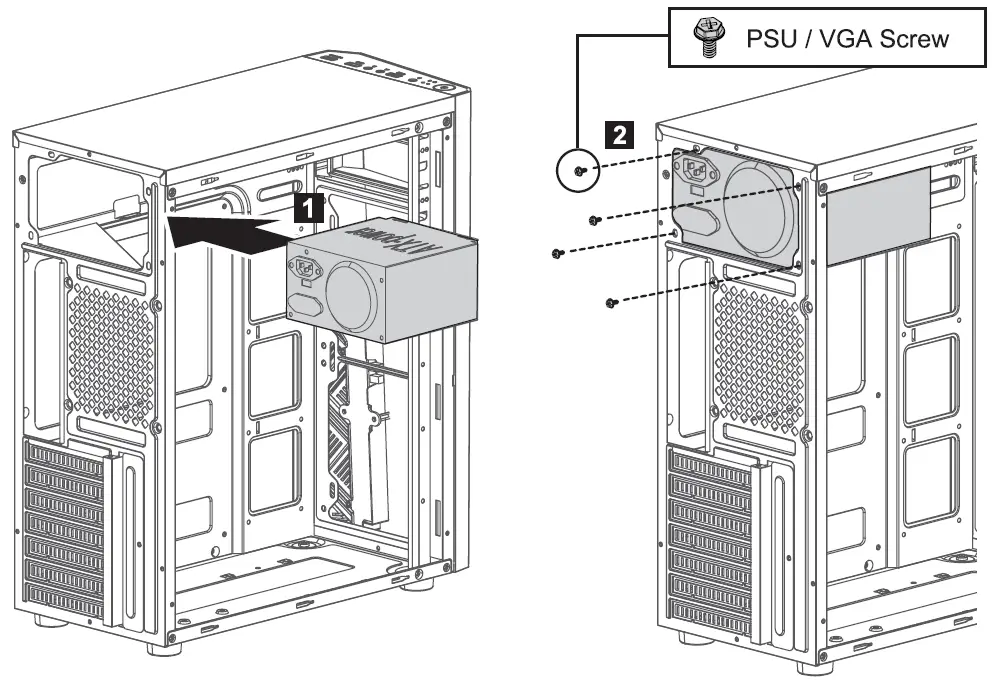

10. Mounting the PSU
11. Mounting the radiator
    1. Mounting the front radiator
       • 120mm / 240mm
    2. Mounting the rear radiator
       • 120mm
12. Mounting the fans
    1. Mounting the front fans
       • 120mmx2/140mmx2
    2. Mounting the rear fan
       • 120mm

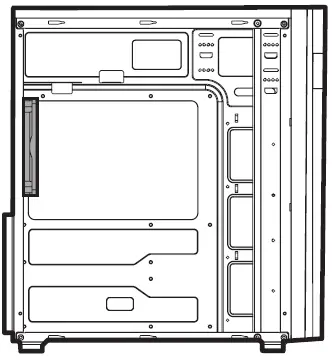

    3. Mounting the side fan
       • 120mm

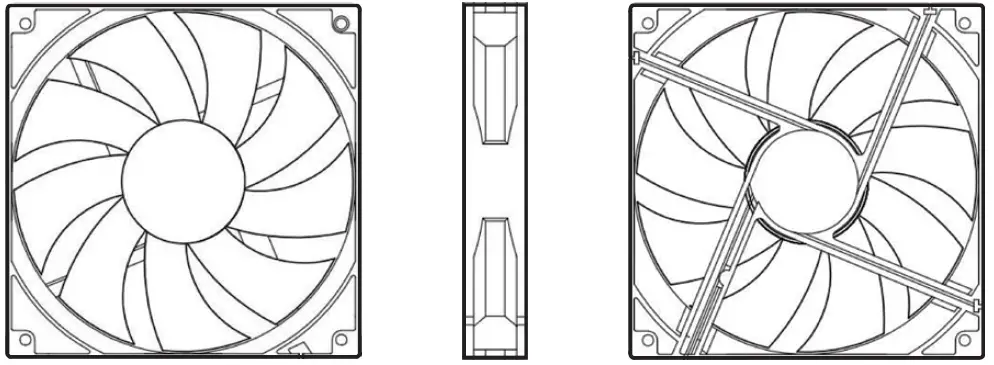

13. Fan(s) Included / Fan Specifications
    Rear
    • Dimensions: 120 x 120 x 25(H)mm
    • RPM: 1,100 ±15%
    • Fan: DC 12V 0.15A±20%
    • Sleeve Bearing
    • Power Connector: FAN-3PIN
14. I/O Connectors

Certification

This mark, designed by Zalman, indicates product compliance with the European Union’s RoHS (Restriction of Hazardous Substances) Directive.

Disposal of Old Electrical & Electronic Equipment
(Applicable in the European Union and other European countries with separate collection systems). www.zalman.com.

References

• zalman.com
• zalmansvc.com
