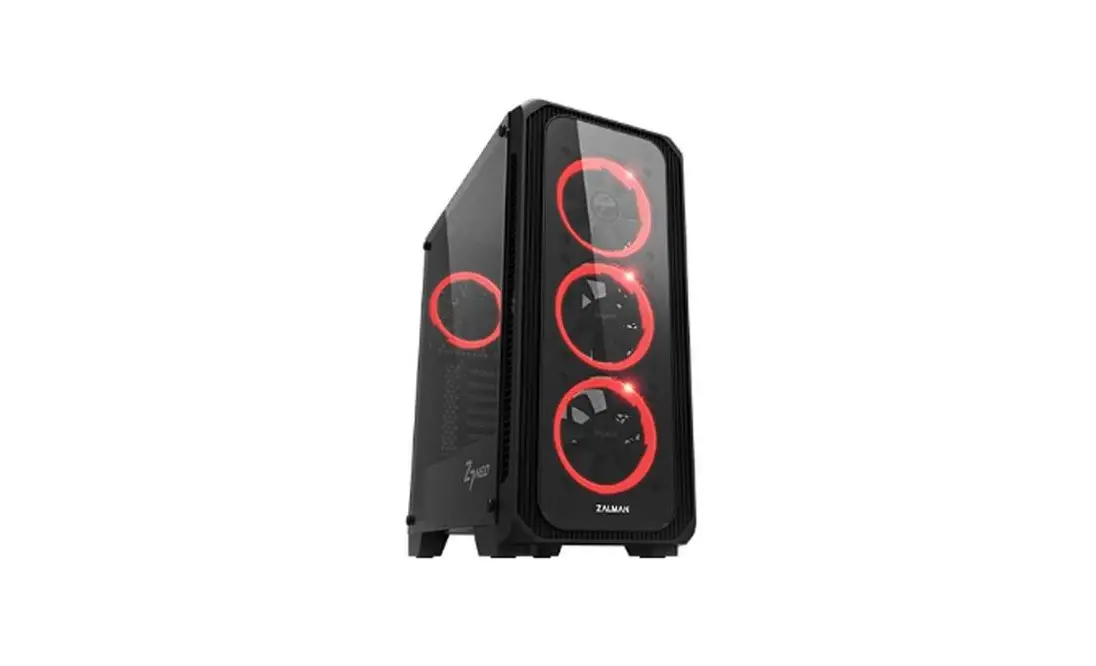

Z7NEO ATX Mid Tower

To ensure safe and easy installation, please read the following precaution.
Product design and specifications may be revised to improve quality and performance without notice.

Developed and designed by ZALMAN in Korea.
This product is protected by ZALMAN’s pending or registered patents.

www.zalman.com

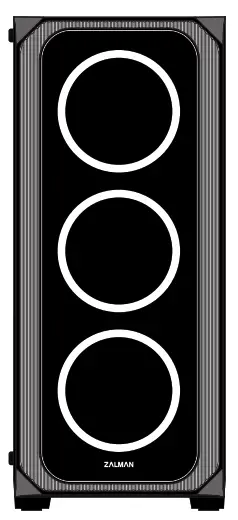

Z7 NEO

Precautions

Read this manual carefully before installing.
Check the product and components before installing. If you find any abnormality, contact the location where you purchased the product for a replacement or refund.
Wear gloves to prevent accidents when installing the product.
Severe damage may occur when mounting the system, so do not apply excessive force.
Connecting the cable incorrectly may cause a fire due to a short circuit. Make sure to refer to the manual when connecting the cable.
Be careful not to block the ventilation hole of the product when using the system.
Avoid locations with direct sunlight, water, moisture, oil, and excessive dust. Store and use the product in a well-ventilated location.
Do not wipe the surface of the product using chemicals. (organic solvents such as alcohol or acetone)
Do not insert your hand or another object into the product during operation, as this may injure your hand or damage the object.
Store and use the product out of children’s reach.
Our company assumes no responsibility for any problem that occurs due to the use of the product for purposes other than its designated purposes and/or the carelessness of the consumer.
The exterior design and specifications of the product are subject to change without prior notice to consumers for quality improvement.

Specifications

Model		Z7 NEO
Case Form Factor		ATX Mid-Tower

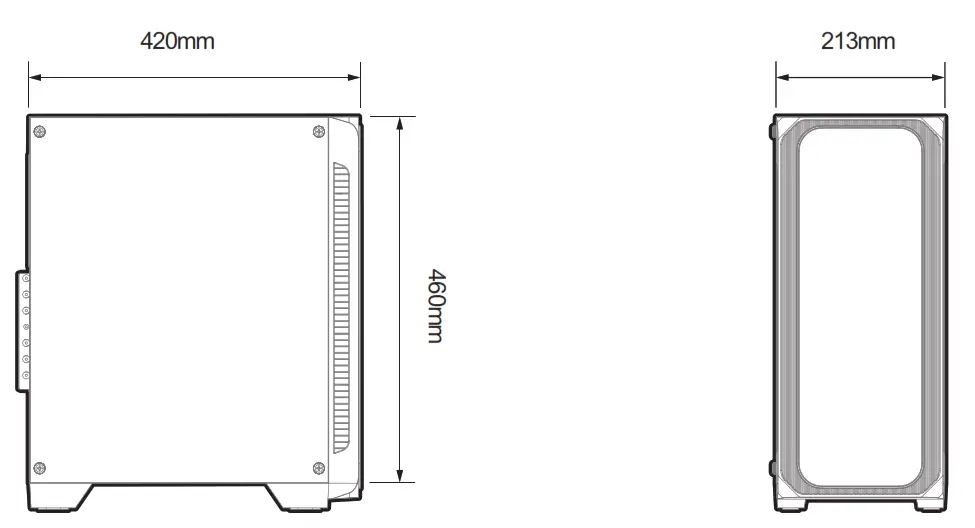

Dimensions		420 x 213 x 460(H)mm
Weight		7.2kg
Case Materials		Plastic, Steel, Tempered Glass
Motherboard Support		ATX / mATX / Mini-ITX
Maximum VGA Length		355mm
Maximum CPU Cooler Height		165mm
Maximum PSU Length		180mm
PCI Expansion Slots		7
Drive Bays		2 x Combo (3.5″ or 2.5″), 2 x 2.5°
Fan Support	Top	2 x 120mm. 2 x 140mm(RGB LED Lighting Sync Unsupported)
	Front	3 x 120mm
	Rear	1 x 120mm
Pre-Installed Fan(s)	Front	3 x 120mm (with RGB LED Effect)
	Rear	1 x 120mm (with RGB LED Effect)
Radiator Support	Top	120mm / 240mm / 280mm
	Front	120mm / 240mm / 360mm
I/O Ports		1 x USB 3.0, 2 x USB 2.0, 1 x Headphone Jack, 1 x Microphone Jack LED Control Button, Reset Button, Power Button

Caution (Radiator Support)
※ Limited fitment to memory equipped with heatsinks.
※ Some motherboards with tall heat sink will cause interference on the installation of the 280mm radiator.

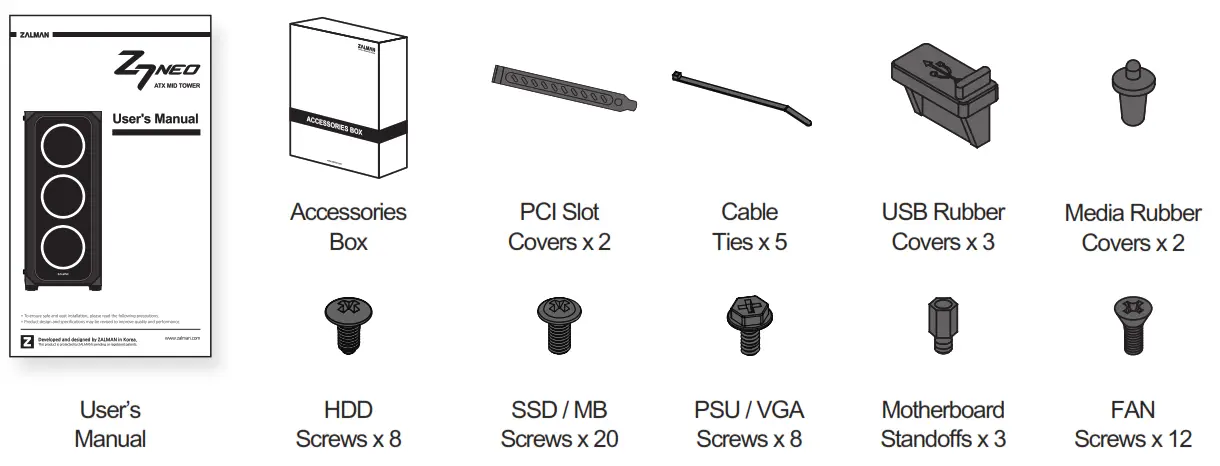

Accessories

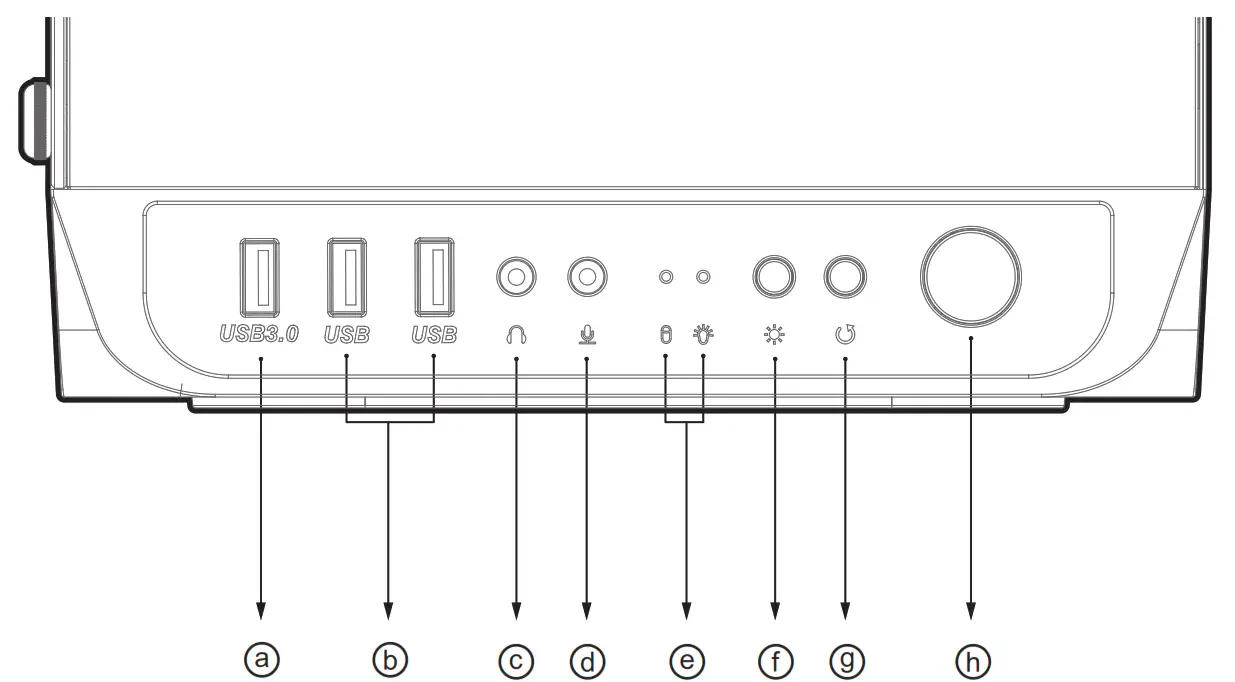

I/O Ports

#	Part	#	Part	#	Part	#	Part
ⓐ	USB 3.0 Port	ⓑ	USB 2.0 Ports	ⓒ	Headphone Jack	ⓓ	Microphone Jack
ⓔ	HDD / Power LED	ⓕ	LED Control Button	ⓖ	Reset Button	ⓗ	Power Button

• LED Control Button

Short Press : 1st ~ 10th RGB LED Lighting Mode (Effects & Colors)11th RGB LED Lighting Mode Off
Long Press : RGB LED Lighting Mode Change (LED Control Button Motherboard Sync)

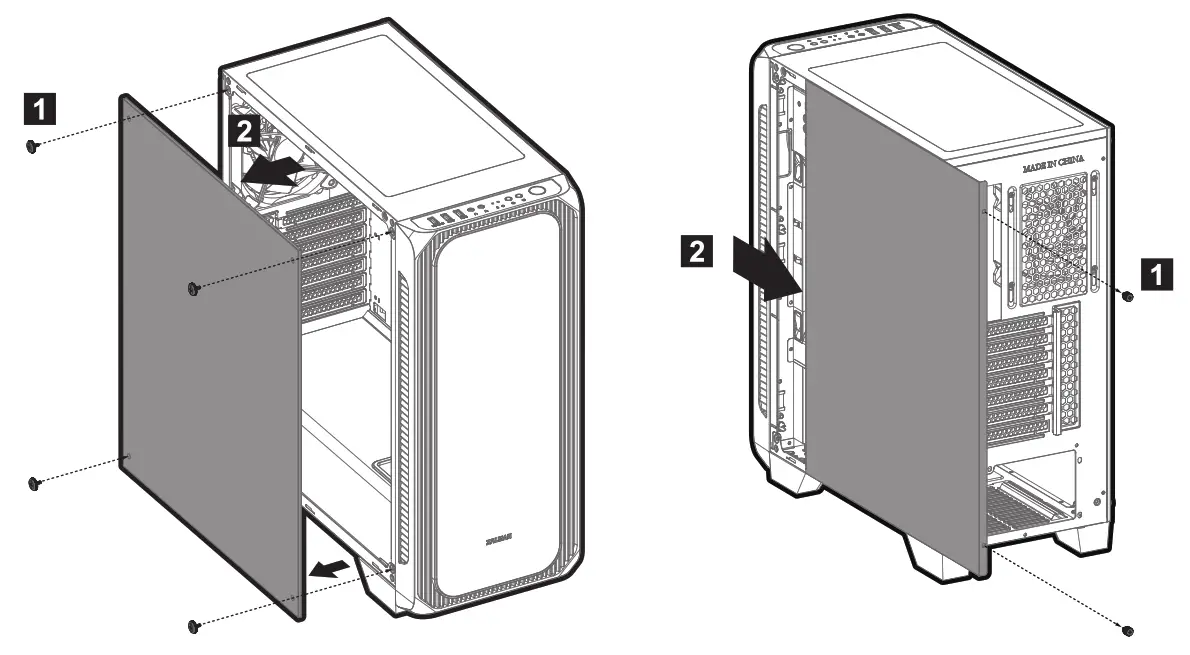

Removing the side panels

Tempered Glass
Steel Panel

Mounting the motherboard

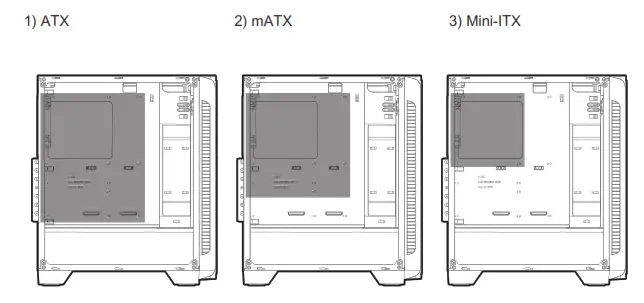

2-1. Motherboard size

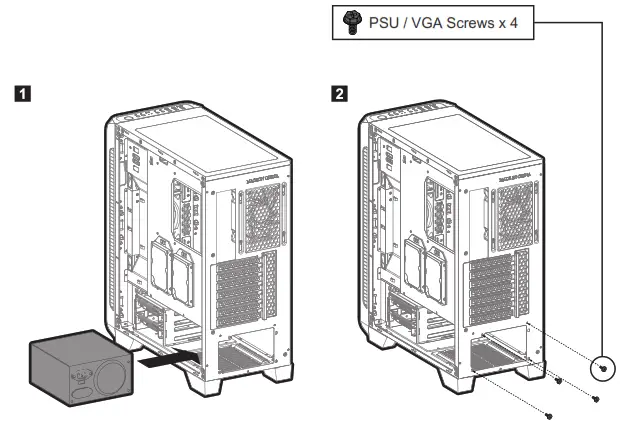

Mounting the PSU

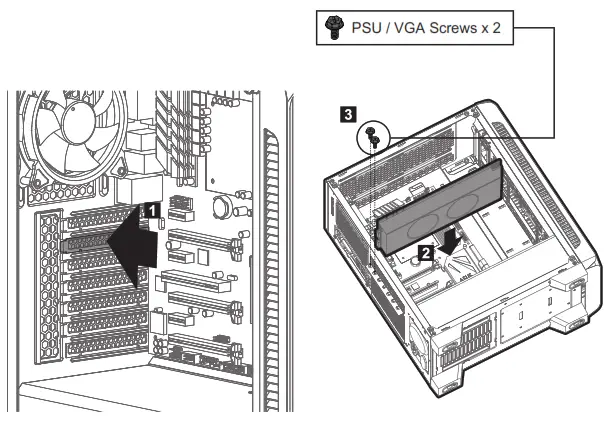

4. Mounting the PCI-E(VGA) card

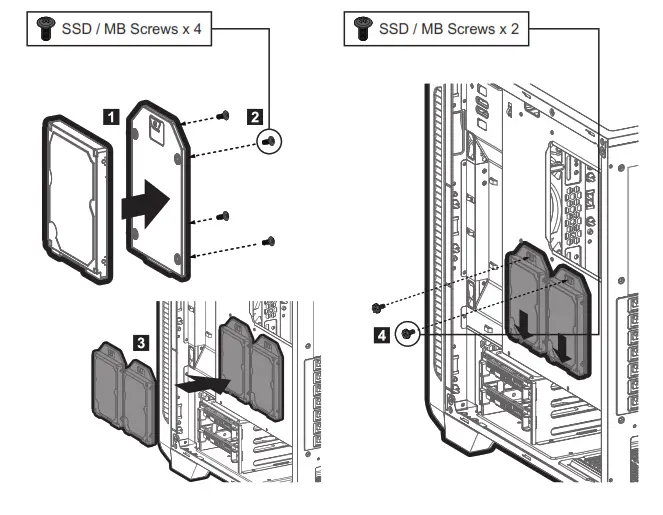

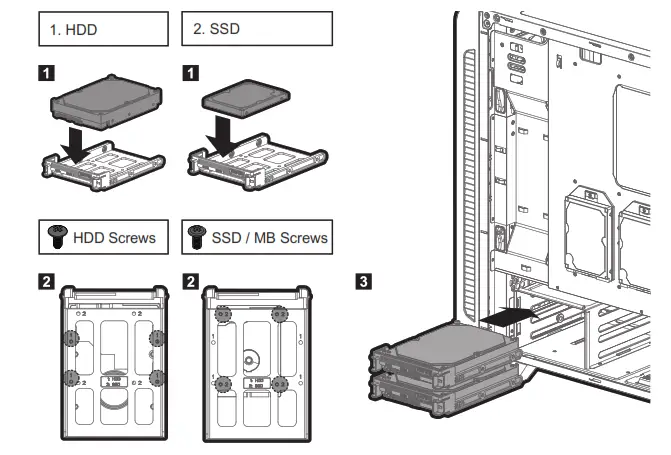

5. Mounting the 3.5″ and 2.5″ SSD / HDD

6. Mounting the 2.5” SSD / HDD

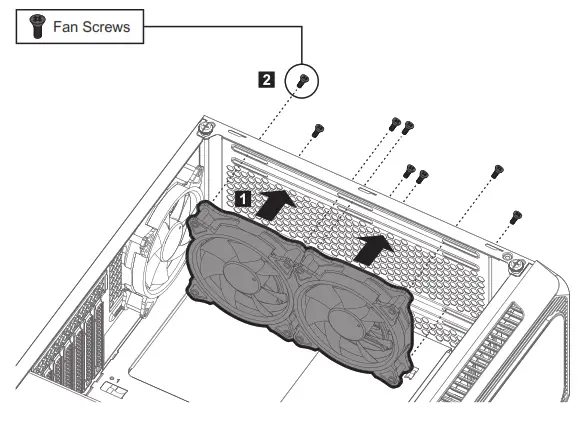

7. Mounting the top fans

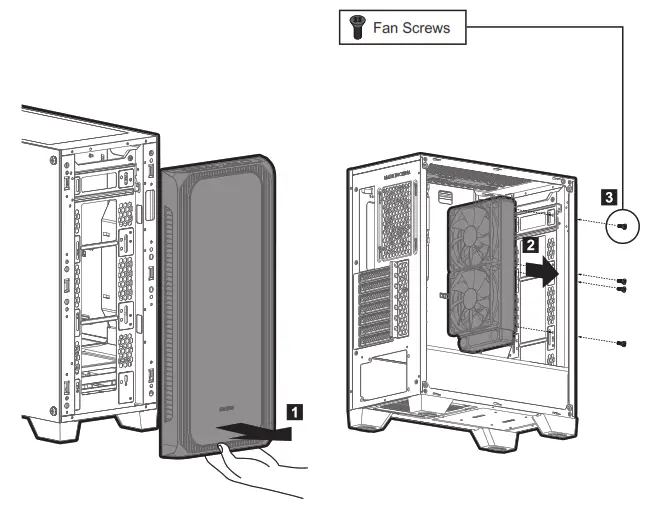

8. Mounting the front radiator

Caution
※ Limited fitment to memory equipped with heatsinks.
※ Some motherboards with tall heat sink will cause interference on the installation of the 280mm radiator.

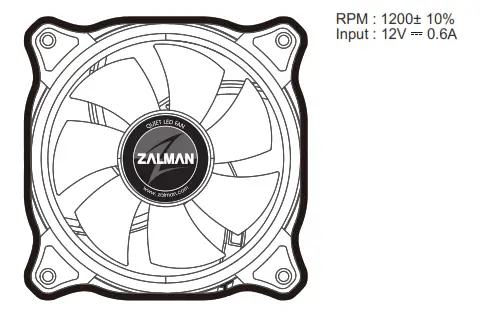

Fan specifications

I/O Connectors

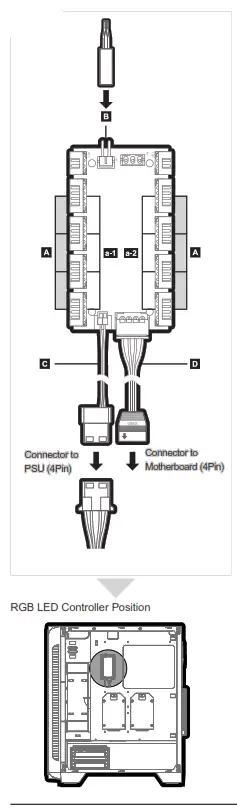

RGB LED Controller

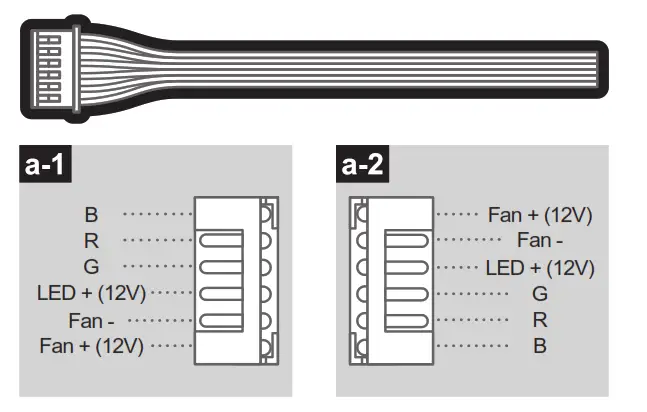

Fan 1~8 / 6Pin
– Connector to RGB LED fans (Four pre-installed)
– RGB LED Fans I/O port 8eaB LED Control Button / 2Pin
– Connector to LED control button

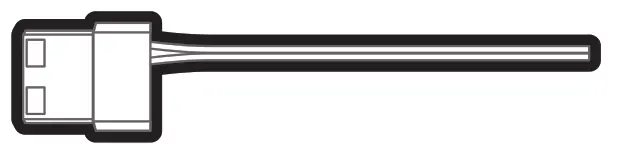

– RGB LED Lighting effects & 7 ColorsC DC Power / 4Pin
– Connector to PSU

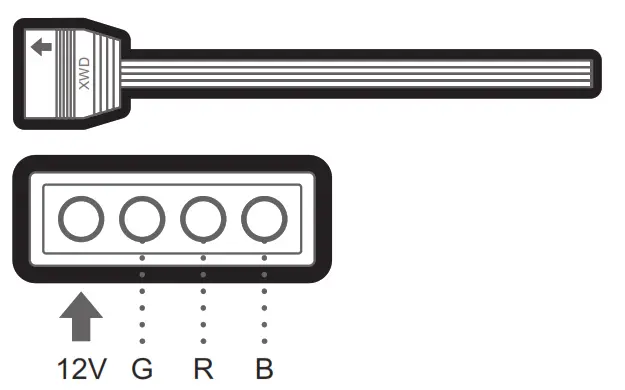

– Input: 12VD Motherboard Sync / 4Pin
– Connector to the motherboard
– Requires a motherboard that supports RGB sync※ Caution
Please be sure to check the arrow of the female cable, it indicates where 12V needs to be connected when you are connecting it to the motherboard.

Certification

RGB LED Controller

RGB LED Controller

1) : ZM-RGB8P-4AS
2) KC EMC : R-R-ZMT-ZM-RGB8P-4AS
MEMO
