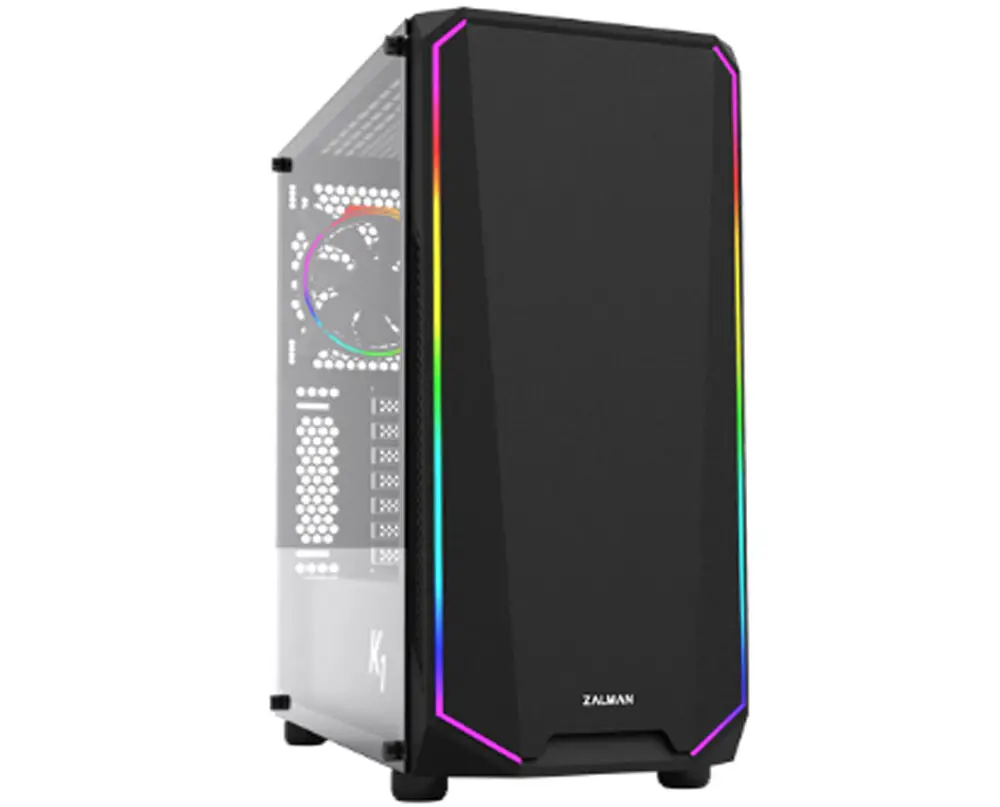

ZALMAN K1 ATX Mid Tower Computer Case

To ensure safe and easy installation, please read the following precautions.
Product design and specifications may be revised to improve quality and performance without notice.

Developed and designed by ZALMAN in Korea.
This product is protected by ZALMAN’s pending or registered patents.

www.zalman.com

Precautions

Read this manual carefully before installing.
Check the product and components before installing. If you find any abnormality, contact the location where you purchased the product for a replacement or refund.
Wear gloves to prevent accidents when installing the product.
Severe damage may occur when mounting the system, so do not apply excessive force.
Connecting the cable incorrectly may cause a fire due to a short circuit. Make sure to refer to the manual when connecting the cable.
Be careful not to block the ventilation hole of the product when using the system.
Avoid locations with direct sunlight, water, moisture, oil, and excessive dust. Store and use the product in a well-ventilated location.
Do not wipe the surface of the product using chemicals. (organic solvents such as alcohol or acetone)
Do not insert your hand or other object into the product during operation, as this may injure your hand or damage the object.
Store and use the product out of children’s reach.
Our company assumes no responsibility for any problem that occurs due to the use of the product for purposes other than its designated purposes and/or the carelessness of the consumer.
The exterior design and specifications of the product are subject to change without prior notice to consumers for quality improvement.

Specifications

Model		K1 Rev.B
Case Form Factor		ATX Mid-Tower

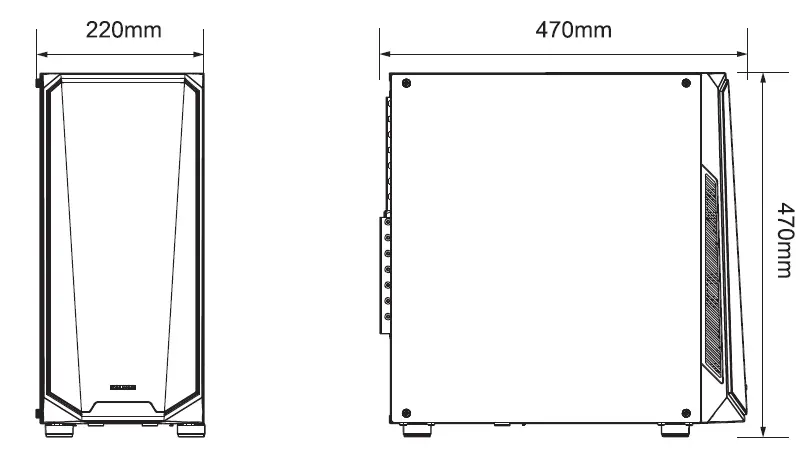

Dimensions		470 x 220 x 470(H)mm
Weight		6.4kg
Case Materials		Plastic, Steel, Tempered Glass
Motherboard Support		ATX I mATX / Mini-lTX
Maximum VGA Length		380mm
Maximum CPU Cooler Height		178mm
Maxi mum PSU Length		190mm
PCI Expansion Slots
Drive Bays		2 x Combo (3.5″ or 2.5″), 2 x 2.5″

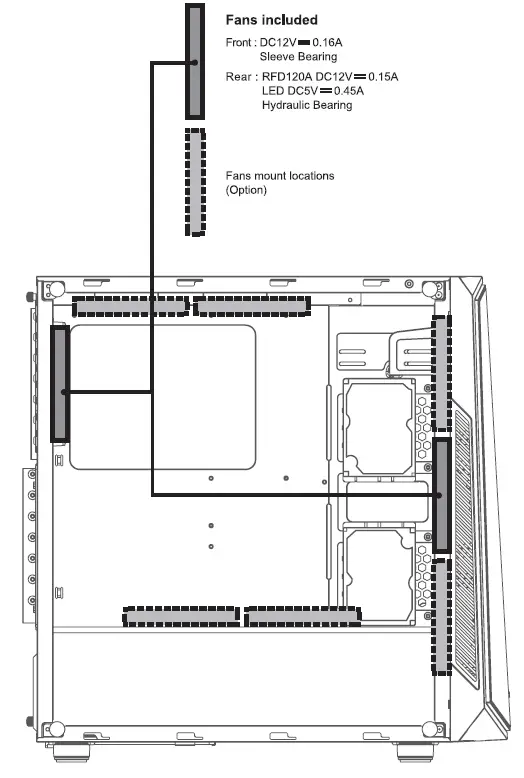

Fan Support	2 x 120mm / 2 x 140mm 3 x 120mm / 2 x 140mm 1 x 120mm / 1 x 140mm 2 x 120mm 1 x 120mm , 1 x Addressable RGB LED Bar 1 x 120mm (ARGB Fan ZM-RFD120A) essable RGB Controller Included 120mm I 240mm 120mm / 240mm / 280mm I 360mm Rear 120mm
Fan(s) Included
Radiator Support

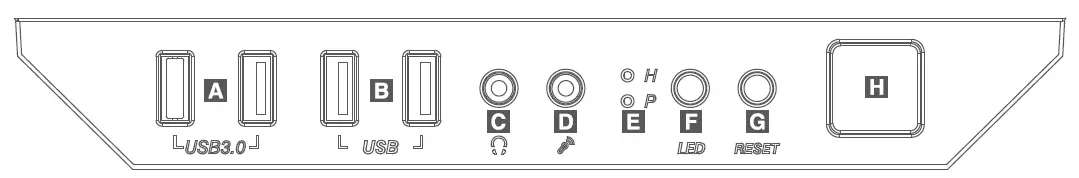

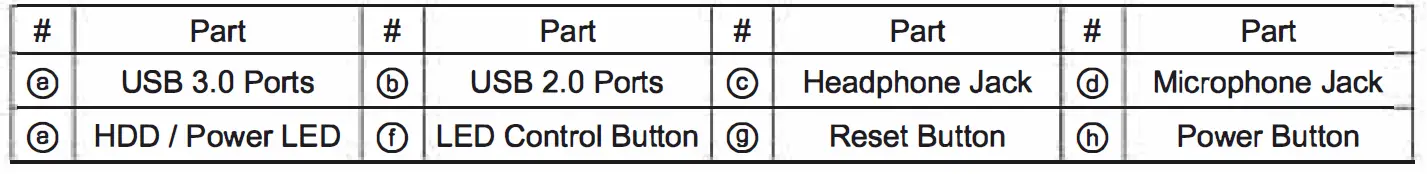

1/0 Ports 1 x Headphone , 1 x Mic, 2 x USS 2.0, 2 x USB 3.0, 1 x LED Contro l Bu tton, Power Button, Reset Button

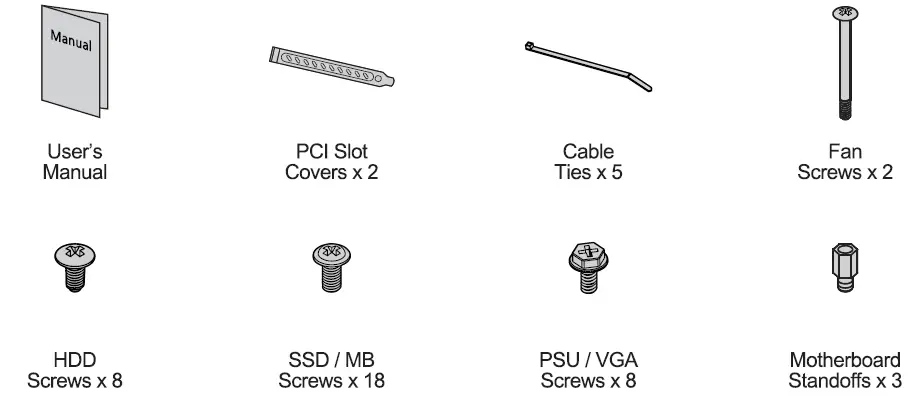

Accessories component

1/0 Ports

Caution: Please do not connect ARGB fans more than Bpcs, otherwise it may cause malfunction

How to control RGB LED

LED Colors & patterns can be changed by pressing the LED Button on /O ports.
Long pressing on the LED Button for 6 seconds, RGB LED will be turn off after blinking twice in white.
Long pressing on the LED Button for 3 seconds, RGB will be synchronized with the motherboard after blinking once in white.
Press the LED BUtton again to desynchronize with the motherboard.

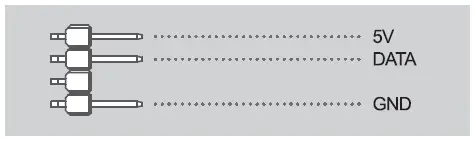

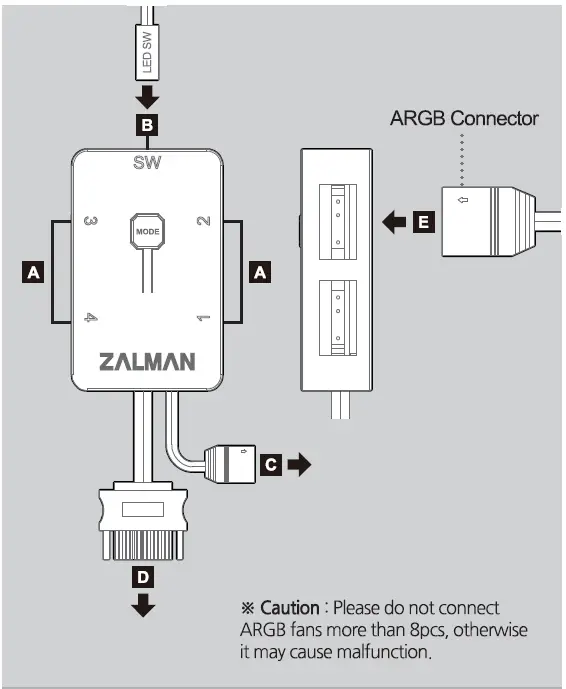

A ARGB LED 1-4 /3-Pin
B ARGB LED Control Button /2-Pin

Connector to ARGB LED Control Button

C Other Motherboards Sync/ 3-Pin

Connector to Motherboard
Requires Motherboard that Supports RGB Sync

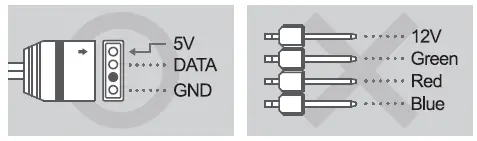

Caution: if Addressable 3 Pin connects to 12V header instead of 5V header improperly, It may cause fatal damages to the product by the overvoltage.

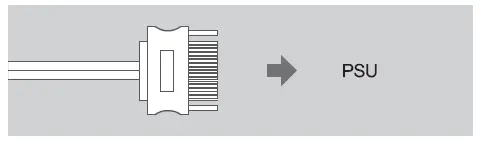

D SATA Power/ 15-Pin

Connector to PSU
Input: 5V

E Connect the ARGB connector to the RGB hub

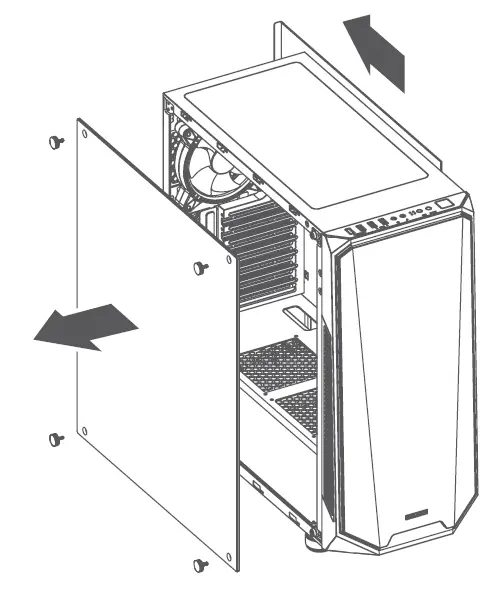

Removing the side panels

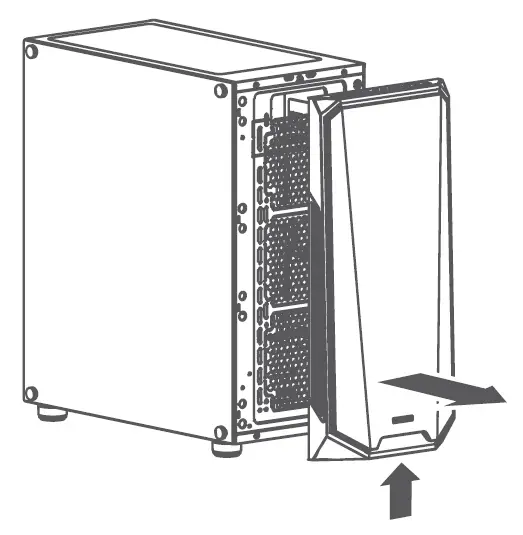

Removing the front panel

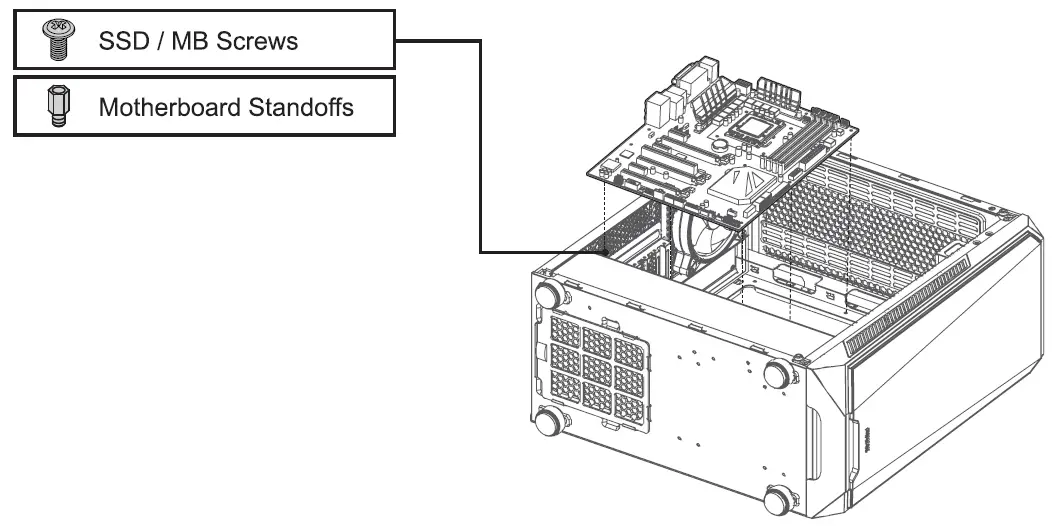

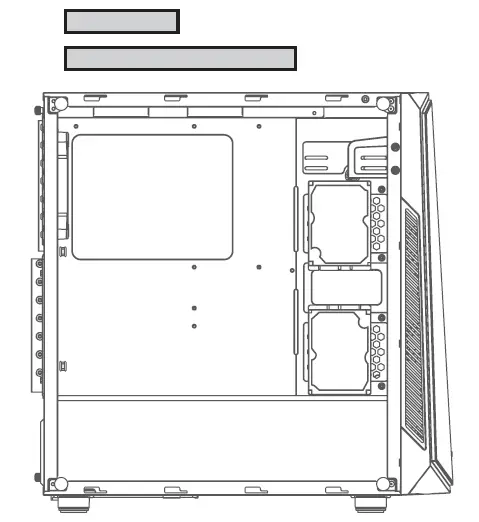

Mounting the motherboard

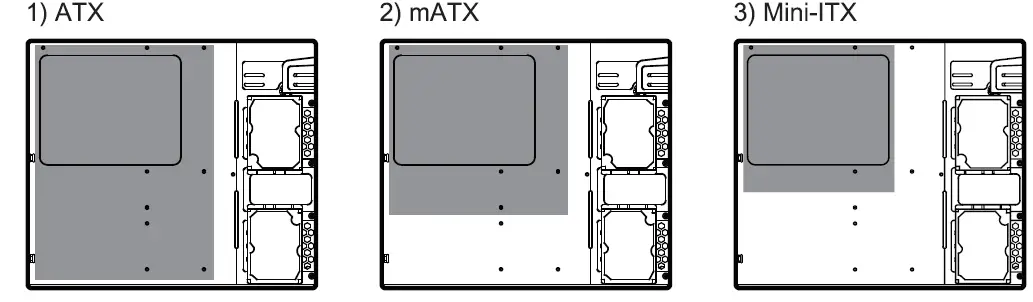

1. Motherboard size

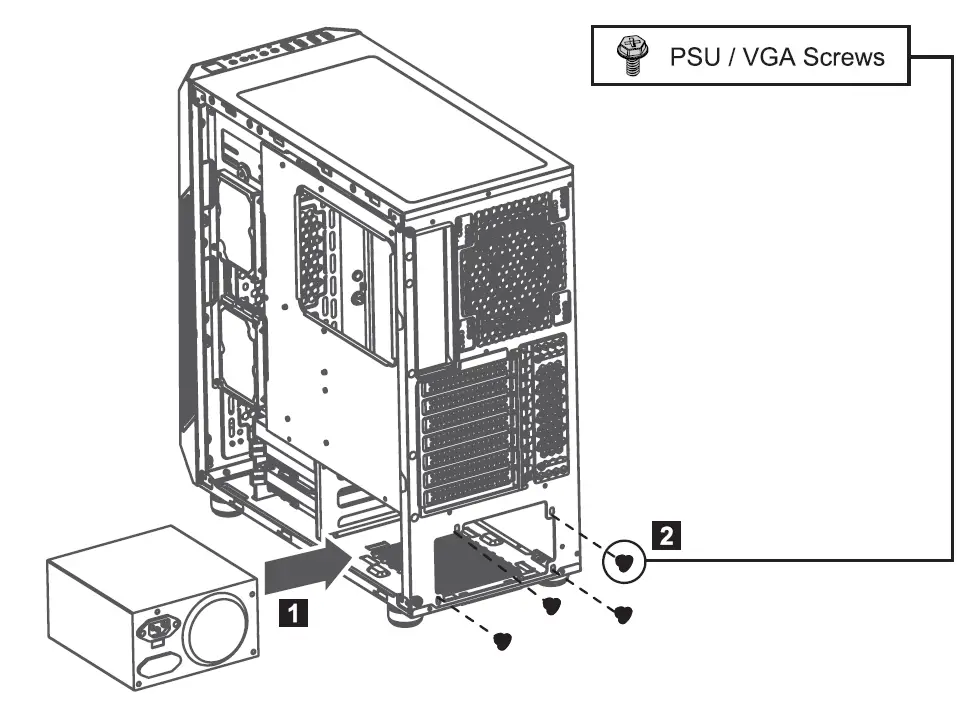

Mounting the PSU

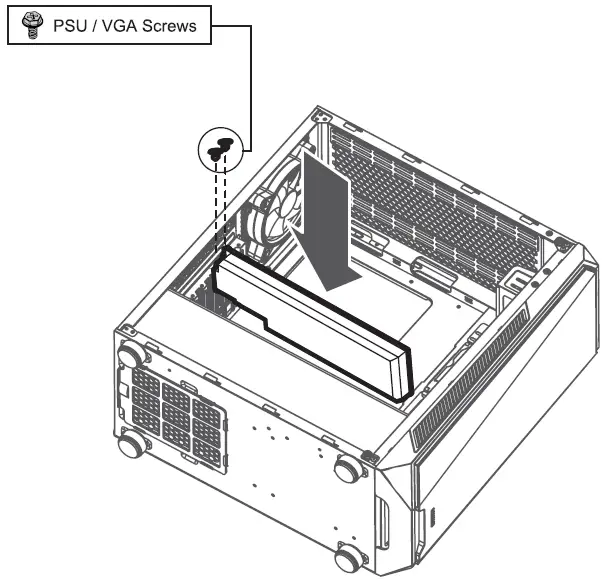

Mounting PCI-E(VGA) card

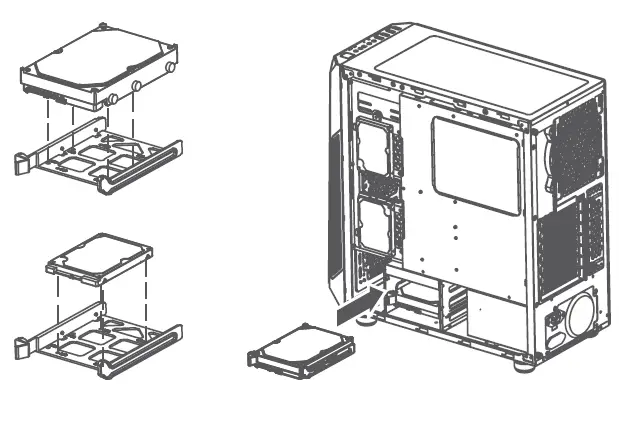

Mounting the 3.5″ and 2.5″ SSD / HDD

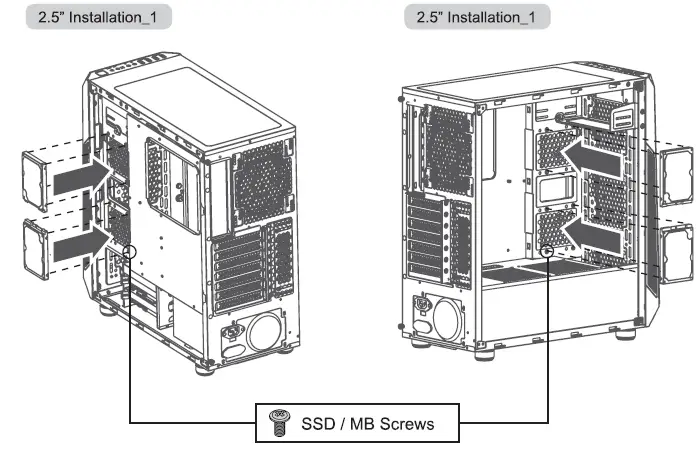

Mounting the 2.5″ SSD
Mounting guide the fans

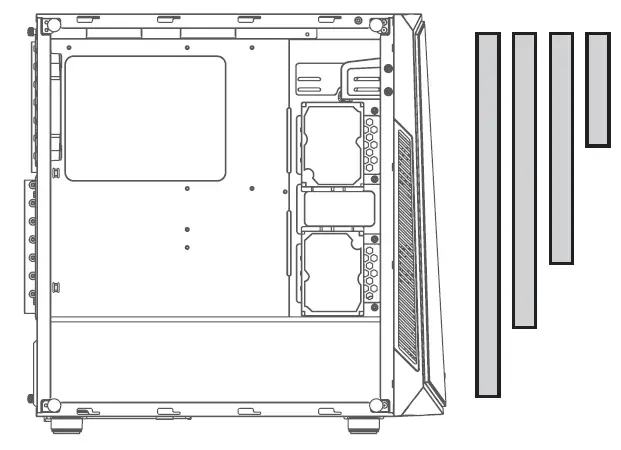

Mounting the radiator
1. Mounting the front radiator
  120mm/ 240mm/ 280mm / 360mm
2. Mounting the top radiator
  120mm/240mm
3. Mounting the rear radiator
  120mm

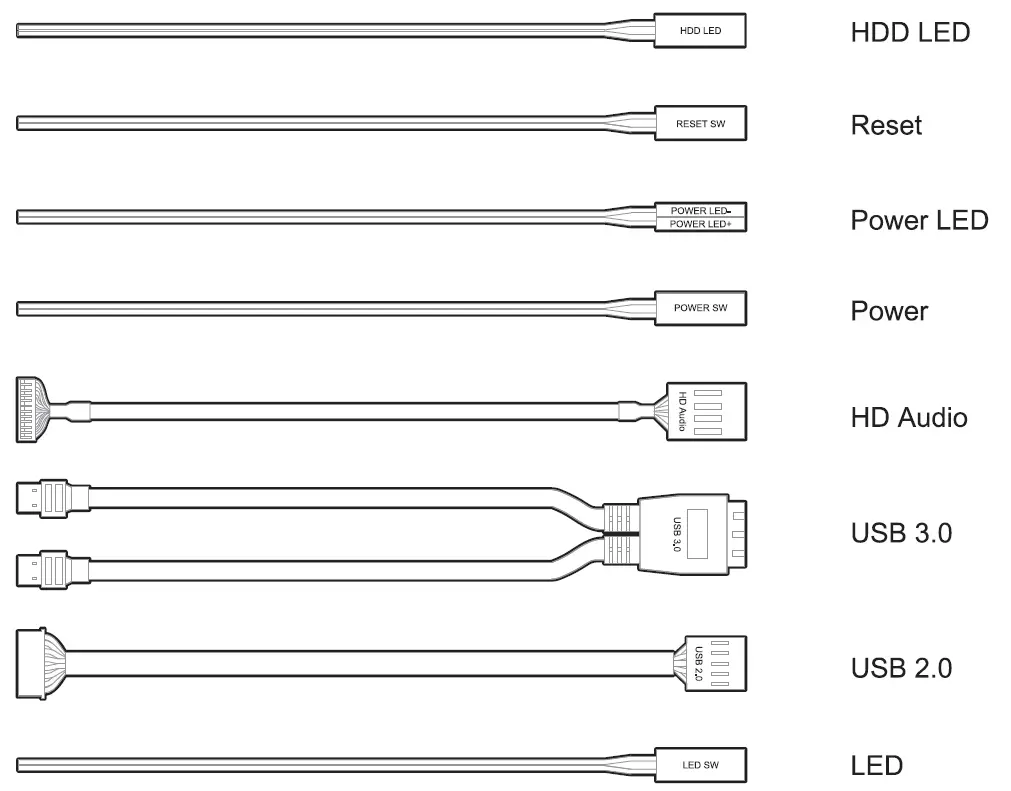

L/O Connectors

Certification

CE
RoHS
This mark, designed by Zalman, indicates product Compliance with the European Union’s RoHS (Restriction of Hazardous Substances) Directive.

Disposal of Old Electrical & Electronic Equipment Applicable in the European Union and other European countries with separate collection systems)

www.zalman.com
