Single Voice Coil Car Subwoofer – 3.5 Inches, 20 Watts at 4-Ohm Car Audio Powered Subwoofer
Specifications
- Product Dimensions
4.5 x 4.5 x 2.2 inches - Item Weight
13.3 ounces - Speaker Type
Subwoofer - Mounting Type
Car Mount - Controller Type
Voice Control - Brand
Pyle
Introduction
A speaker that reproduces low-frequency sounds is called a subwoofer. To create a whole music system, it is often used in conjunction with additional speakers. If you’re searching for a single hook up, single-voice-coil subwoofers are made to have one, and we’ve got you covered.

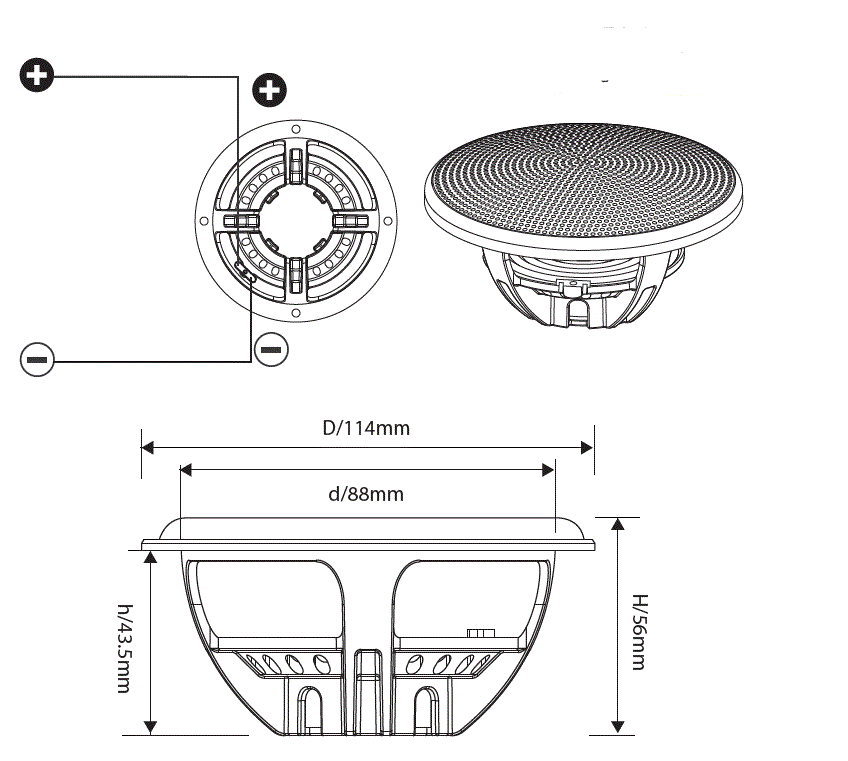

WIRING CONNECTION
Connect the power amplifier to the positive and negative terminals accordingly as shown
Features
- PP Cone with Rubber Edge
- High-Powered Car Subwoofer
- Lab Tested Pro Audio Woofer Performance
- SVC: Single Voice Coil Sub Speaker Design
- Massive Butyl Rubber Surround
- High Strength Engineering Plastic Basket
- Quick Connect Speaker Terminal Plate
- Compatible with Sealed Enclosure Speaker Box Audio Setup
- Impressive Bass Response, Low-Resonance Frequency Output
- Designed for Custom Audio Car, Truck, and Mobile Vehicle Applications
What’s in the Box
- SVC Subwoofer with Grill
Technical Specs
- Construction Materials: Engineered ABS
- Power Handing: 20 Watts MAX, 10 Watts RMS
- Impedance: 4 Ohm
- Voice Coil: 1.0” -in
- Voice Coil Type: High-Temp Aluminum
- Magnet Size: 25*6mm
- Magnet Type: NdFeb Magnet
- Frequency Response: 110Hz-156kHz
- Sensitivity: 85 dB (1w/1m)
SIMPLE INSTALLATION
Quickly install this single voice coil subwoofer in your car! It would be easier to attach this to your automobile because it has a quick connect speaker terminal plate. The speaker measures 4.5 by 4.5 by 2.2 inches.
AWESOME POWER HANDING
This single voice coil subwoofer has a maximum power handling of 20 watts, a peak RMS of 10 watts, and a 4-ohm impedance. It can produce a bassy sound for any music you play in your car.
MADE TO LAST
This subwoofer is made of engineered ABS and intended for use in custom audio vehicle applications. Additionally, this subwoofer has a substantial butyl rubber surround and a high-strength engineering plastic basket for long-term use.
PERFORMANCE OF PRO WOOFER
This subwoofer can minimize distortion and do away with the requirement for in-car acoustic speakers. The speaker’s diaphragm might distort when a full-range speaker produces bass at a low frequency.
AWESOME POWER HANDING
This single voice coil subwoofer has a maximum power handling of 20 watts, a peak RMS of 10 watts, and a 4-ohm impedance. It can produce a bassy sound for any music you play in your car.
Frequently Asked Questions
A single length of copper wire is wrapped around the former of a single voice coil subwoofer. The wire terminals are positive and negative.
The wire coil fastened to the top of a loudspeaker cone is known as a voice coil and is made up of a former, collar, and winding. By responding with a magnetic field to the current flowing through it, it gives the cone its driving force.
With both coils engaged, all subwoofer manufacturers offer these specs. Using just one coil is not an option, to put it simply. Utilizing a single coil changes the subwoofer’s ability to handle thermal power, as well as the magnetic field’s intensity and the Thiele/Small parameters.
The RMS value, SPL, frequency range, and ohms are the specifications you should pay attention to, even though the subwoofer’s size and kind of enclosure are crucial. The subwoofer’s power handling characteristics are described by the power level (RMS). Greater RMS values equate to more bass.
In contrast to all other flaws, a burned or melted voice coil is an undeniable indication that an electrical surge has damaged the loudspeaker.
The subwoofer in question’s wattage determines its power; a higher wattage indicates a more potent subwoofer.
A copper coil that has been activated by an electric current and put inside of a magnetic field typically supplied by permanent magnets is the basis of a voice coil. The magnetic field, as well as the direction and strength of the electric current, all influence how much force the coil produces.
The speaker driver is powered by the internal amplifier, which is the vital component of your subwoofer. The secret to picking a good sub is to comprehend that power, which is expressed in watts. RMS and Peak power are typically provided on the specifications of subwoofers.
