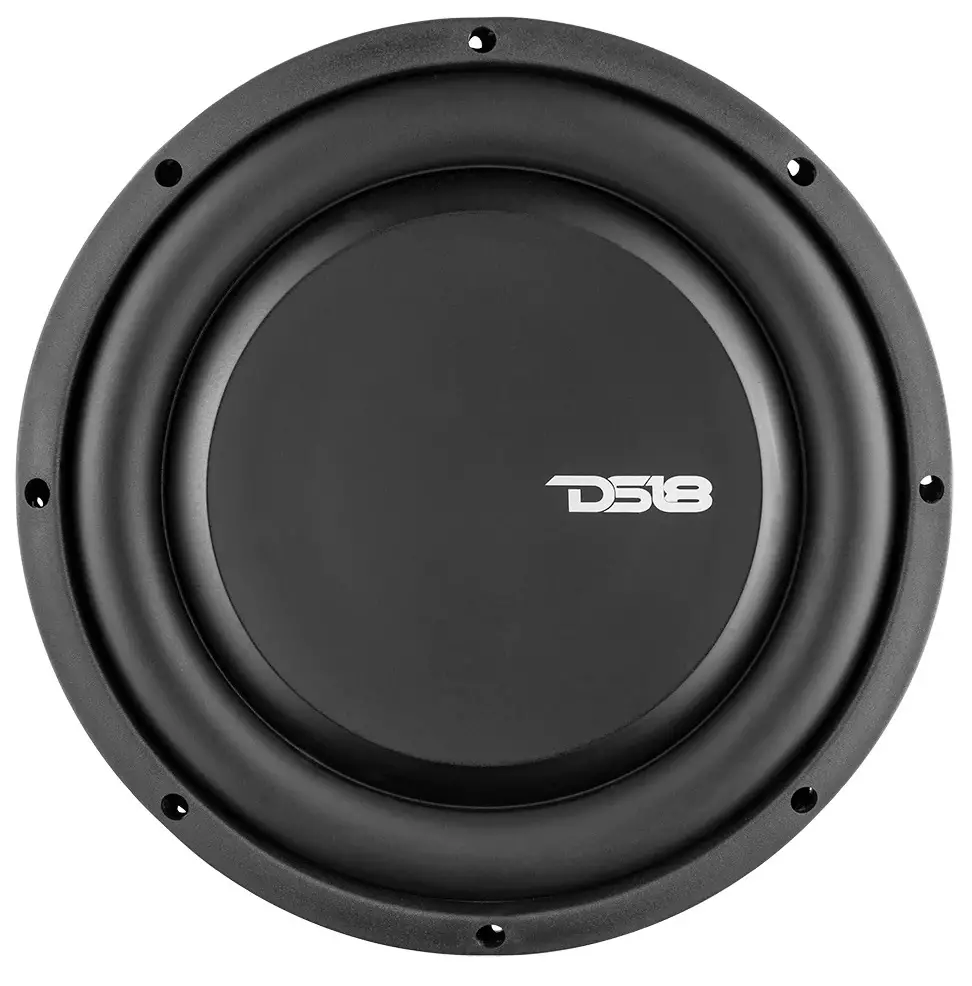

DS18 PSW10.4D 10 Inch Dual Voice Coil Shallow Subwoofer
SPECIFICATIONS
| Nominal Diameter: | 10″ / 254 mm |
| Nominal Impedance: | 4+4 OHMS |
| RMS Power Handling: | 500 Watts |
| MAX Power Handling: | 1000 Watts |
| Sensitivity (1w/1m) : | 84 Db |
| Frequency Response : | 20-800 Hz |
| Recommended Lo Pass Crossover: | 90 Hz |
MOTOR
| Voice Coil Diameter | 2.5″ / 63.5 mm |
| VC Former Material: | Aluminum |
| Winding Material: | Copper |
| Cone Material : | Water Resistant PPI |
| Surround Material : | Rubber |
| Basket Material : | Steel |
| Basket Color: | Matte Black |
| Magnet Material : | Ferrite |
| Magnet Weight: | 58 Oz |
| Displacement Volume: | 0.8 L / 0.028 ft3 |
THIELE & SMALL PARAMETERS
| Equivalent Volume | Vas | 25.6 L / 0.9 ft3 |
| Excursion (one way) | Xmax | 9.5 mm |
| Free Air Resonance | Fs | 32 Hz |
| Mechanical Factor | Qms | 3.612 |
| Electrical Factor | Qes | 0.76 |
| Total Factor | Qts | 0.63 |
| Moving Mass | Mms | 154 g |
| Compliance | Cms | 0.161 mm/N |
| Bl Factor | Bl | 8.57 |
| Voice Coil Inductance | Le | 2.1 mH |
| Diaphragm Area | Sd | 336.54 cm² |
| DC Resistance | Re | 3.6 + 3.6 OHMS |
| Efficiency Bandwidth Product | EBP | 42 |
RECOMMENDED ENCLOSURE
| Sealed Internal Volume (minimum) | 14.2 L / 0.5 ft3 |
| Sealed Box Output Response (F3) | 44 Hz |

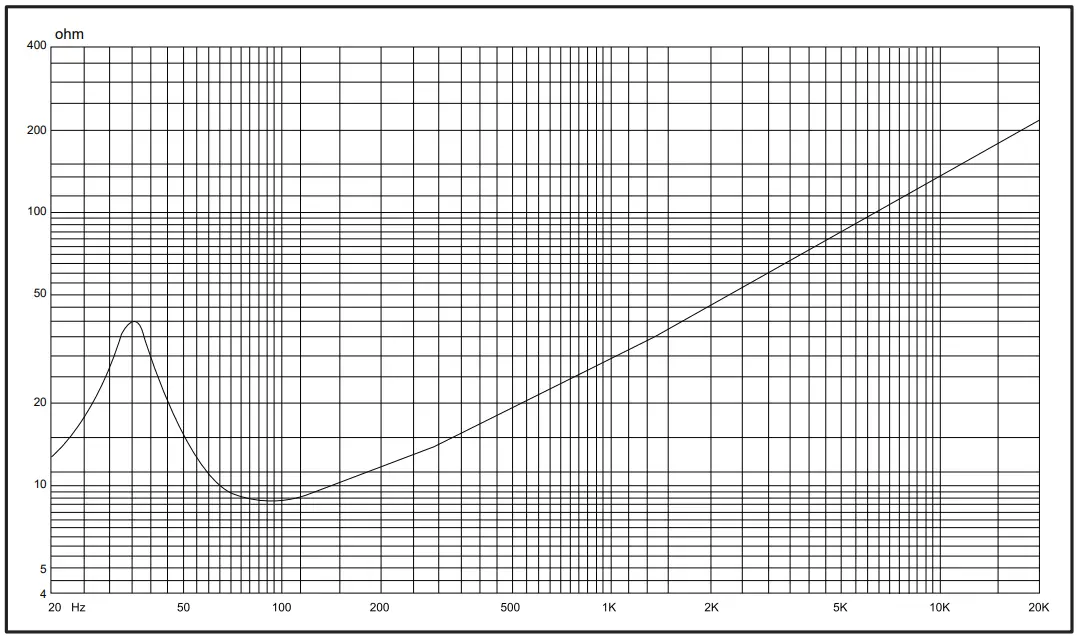

MEASUREMENT
| Overall Diameter | 10.23″ / 260 mm |
| Overall Depth | 3.6″ / 92 mm |
| Front Mount Baffle Cutout | 9.2″ / 234 mm |
| Mounting Depth | 3″ / 78 mm |
| Motor Diameter | 6.5″ / 165 mm |

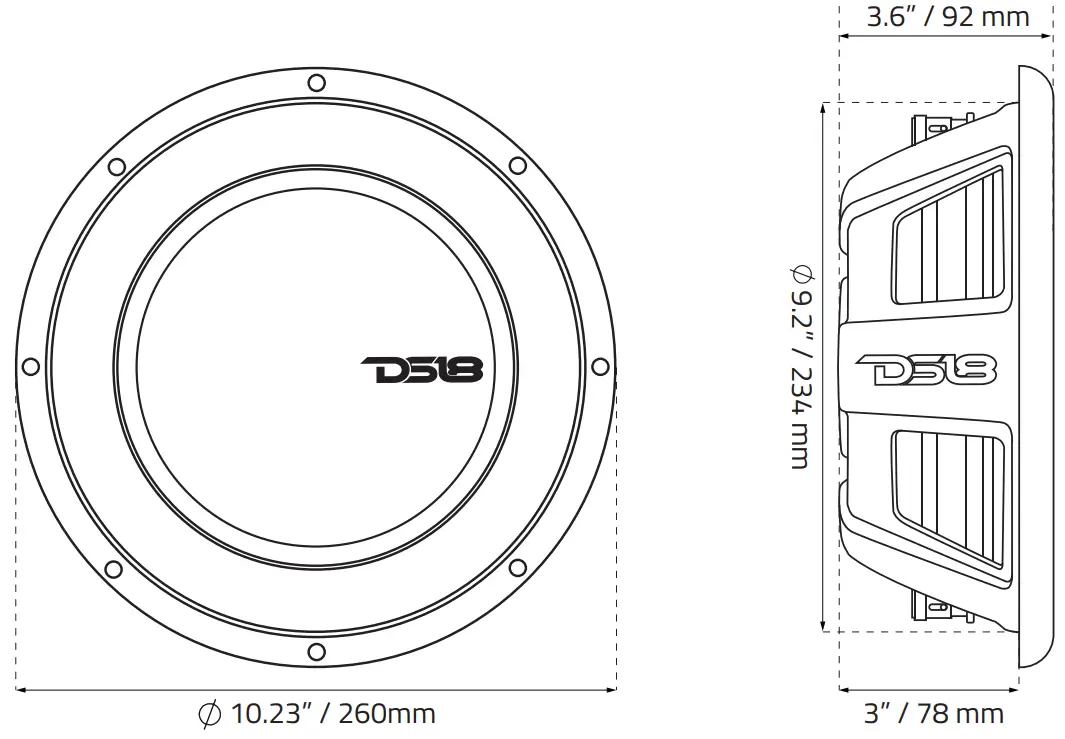

MEASUREMENTS
WARRANTY
Please visit our website DS18.com for more information on our warranty policy.
We reserve the right to change products and specifications at any time without notice.
Images may or may not included optional equipment.
WARNING:
Cancer and Reproductive Harm.
www.P65Warning.ca.gov

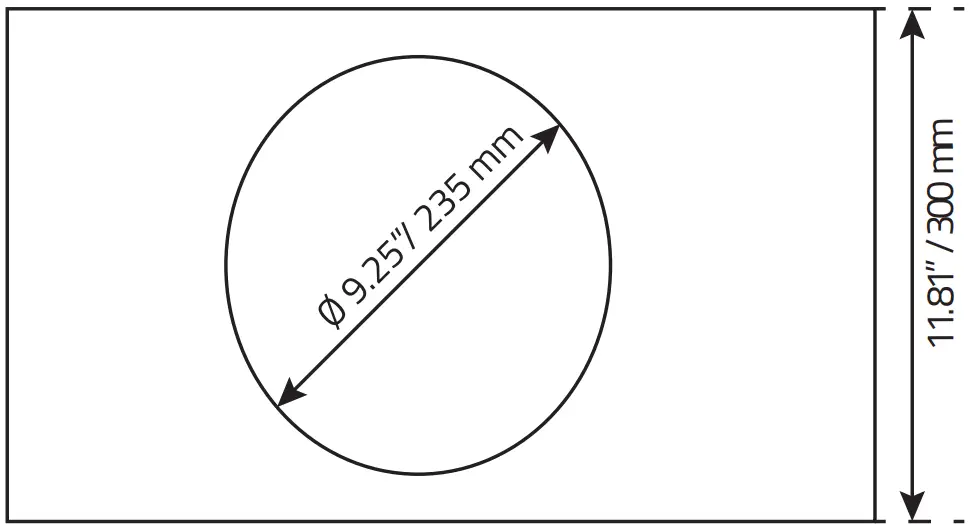

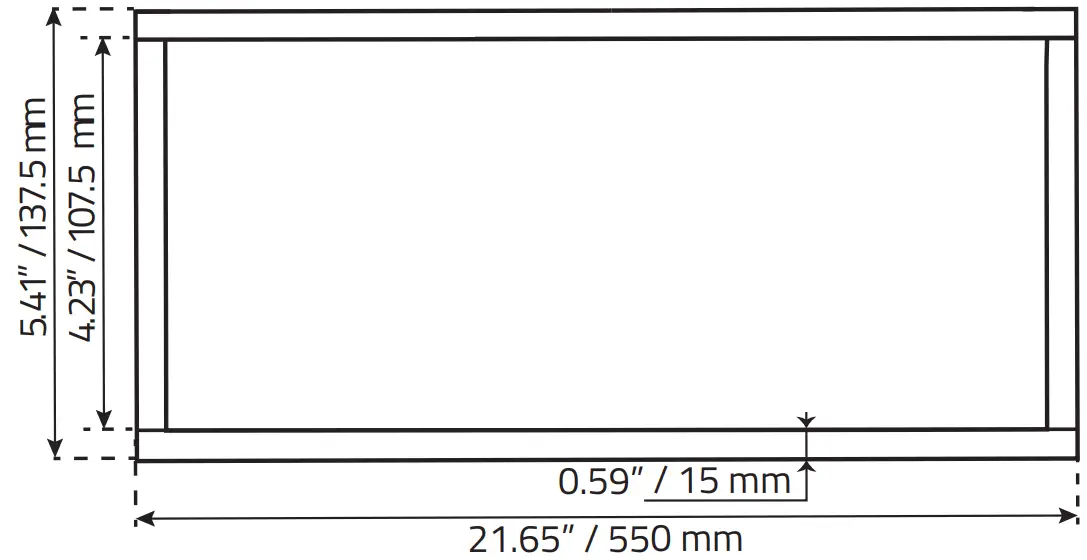

Recommended Box Dimension
PARAMETERS
- Box External Dimensions
(WxHxD): 21.65” x 11.81” x 5.41“ /
550 mm x 300 mm x 137.5 mm - Material Thickness: 1/2” / 15 mm
- Net Internal Volume: 14.2L / 0.5ft3
WOOD CUTS: QTY
- Top – Bottom
(WxH): 21.65” x 5.41” / 550 x 137.5 mm 2 - Front – Rear
(WxH): 21.65” x 10.63” / 550 x 270 mm 2 - Left – Right
(WxH): 4.23” x 10.63” / 107.5 x 270 mm 2
