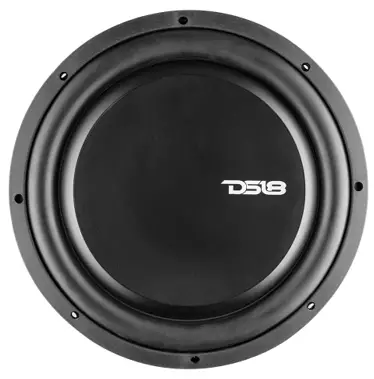

PSW12.2D 12 Inch Dual Voice Coil Shallow Subwoofer
Owner’s Manual
SPECIFICATIONS
| Nominal Diameter | 12″ / 304.8 mm |
| Nominal Impedance | 2+2 OHMS |
| RMS Power Handling | 600 Watts |
| MAX Power Handling | 1200 Watts |
| Sensitivity (1w/1m) | 85 dB |
| Frequency Response | 20-600 Hz |
| Recommended Lo Pass Crossover | 80 Hz |
MOTOR
| Voice Coil Diameter | 3″ / 76.2 mm |
| VC Former Material | Aluminium |
| Winding Material | Copper |
| Cone Material | Water Resistant PPI |
| Surround Material | Rubber |
| Basket Material | Steel |
| Basket Color | Matte Black |
| Magnet Material | Ferrite |
| Magnet Weight | 68 Oz |
| Displacement Volume | 0.95 L / 0.033 ft3 |

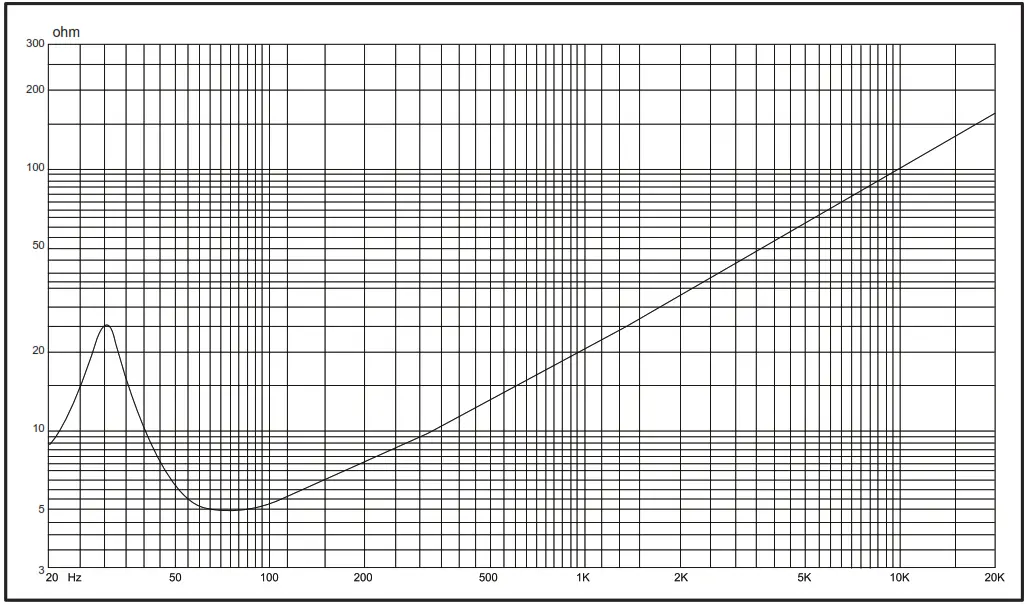

THIELE & SMALL PARAMETERS
| Equivalent Volume | Vas | 46 L / 1.62 ft3 |
| Excursion (one way) | Xmax | 9.5 mm |
| Air Resonance | Fs | 31 Hz |
| Mechanical Factor | Qms | 3.97 |
| Electrical Factor | Qes | 0.67 |
| Total Factor | Qts | 0.57 |
| Moving Mass | Mms | 216 g |
| Compliance | Cms | 124 mm/N |
| Factor | Bl | 14.96 |
| Voice Coil Inductance | Le | 1.6 mH |
| Diaphragm Area | Sd | 510.71 cm² |
| DC Resistance | Re | 1.8+1.8 OHMS |
| Efficiency Bandwidth Product | EBP | 46.2 |
RECOMMENDED ENCLOSURE
| Sealed Internal Volume (minimum) | 28 L / 1 ft3 |
| Sealed Box Output Response (F3) | 40 Hz |

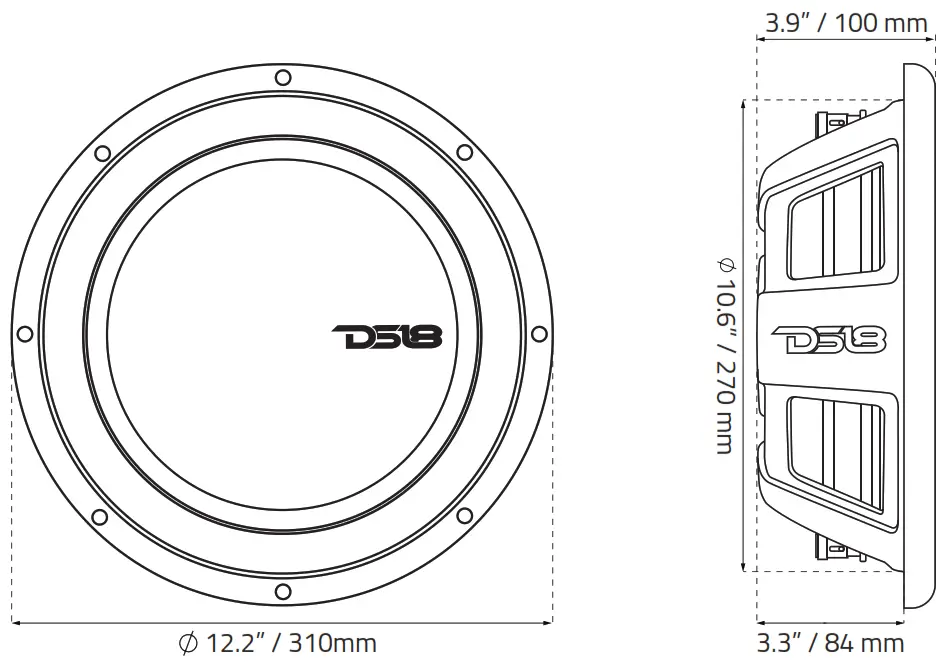

MEASUREMENT
| Overall Diameter | 12.2″ / 310 mm |
| Overall Depth | 3.9″ / 100 mm |
| Front Mount Baffle Cutout | 10.6″ / 270 mm |
| Mounting Depth | 3.3″ / 84 mm |
| Motor Diameter | 8″ / 203 mm |
MEASUREMENTS
WARRANTY
Please visit our website DS18.com for more information on our warranty policy.
We reserve the right to change products and specifications at any time without notice.
Images may or may not included optional equipment.
WARNING:
Cancer and Reproductive Harm.
www.P65Warning.ca.gov

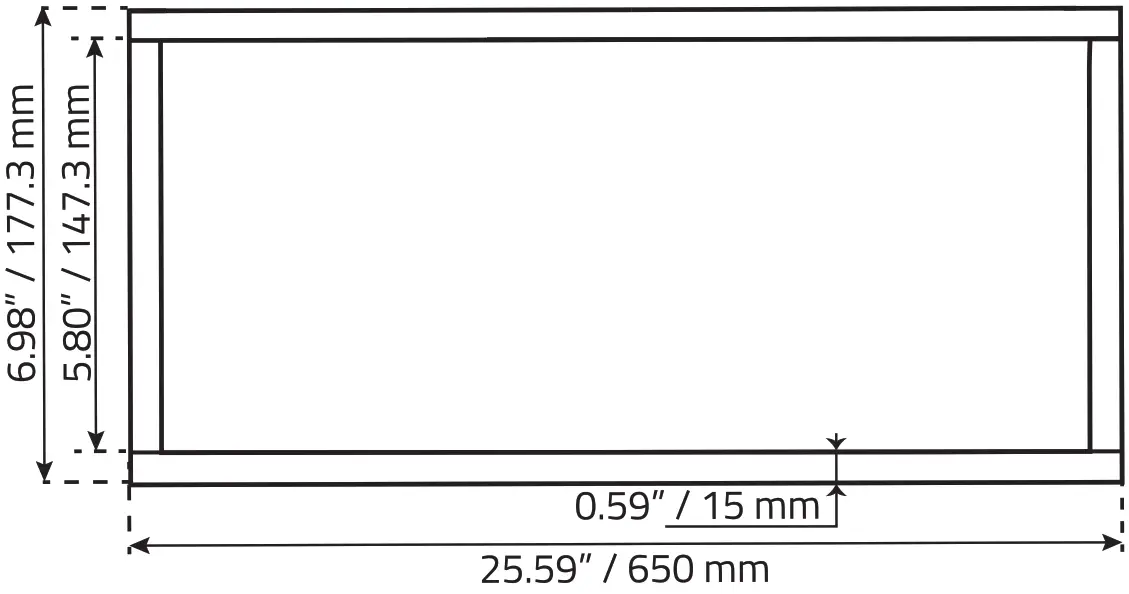

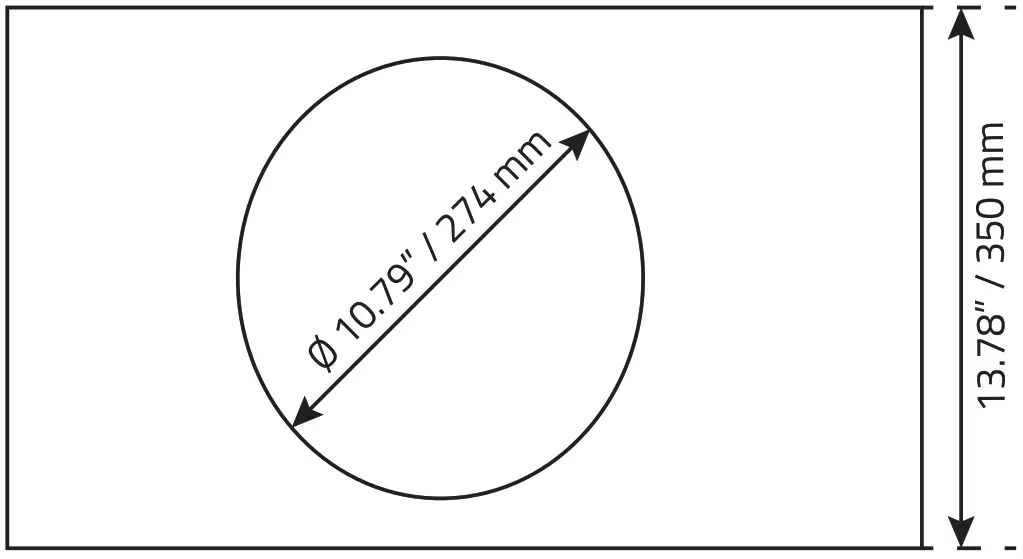

Recommended Box Dimension
PARAMETERS
- Box External Dimensions
(W x H x D): 25.59” x 13.78” x 6.98“/650 mm x 350 mm x 177.3 mm - Material Thickness: 1/2” / 15 mm
- Net Internal Volume: 28.3 L / 1 ft3
| WOOD CUTS | QTY |
| Top – Bottom (W x H): 25.59” x 6.98”/650 x 177.3 mm | 2 |
| Front – Rear (W x H): 25.59” x 10.31”/650 x 262 mm | 2 |
| Left – Right (W x H): 5.80” x 12.60” / 147.3 x 320 mm | 2 |
