IXS12.2D 12 Inch Dual Voice Coil Shallow Subwoofer
Owner’s Manual
SPECIFICATIONS
| Nominal Diameter | 12″ / 304,8 mm |
| Nominal Impedance | 2+2 OHMS |
| RMS Power Handling | 800 Watts |
| MAX Power Handling | 1600 Watts |
| Sensitivity (1w/1m) | 85 dB |
| Frequency Response | 20-600 Hz |
| Recommended Lo Pass Crossover | 80 Hz |
MOTOR
| Voice Coil Diameter | 2.5″ / 63.5mm |
| VC Former Material | Aluminum |
| Winding Material | Copper |
| Cone Material | Paper |
| Dust Cap Material | Fiberglass |
| Surround Material | Stitched Rubber |
| Basket Material | Aluminum |
| Basket Color | Corrugated Black |
| Magnet Material | Ferrite |
| Magnet Weight | 62 Oz |
| Displacement Volume | 0.93L / 0.033 ft3 |
THIELE & SMALL PARAMETERS
| Equivalent Volume | Vas | 38L / 1.34 ft3 |
| Excursion (one way) | Xmax | 10.3 mm |
| Free Air Resonance | Fs | 33 Hz |
| Mechanical Factor | Qms | 4.83 |
| Electrical Factor | Qes | 0.82 |
| Total Factor | Qts | 0.7 |
| Moving Mass | Mms | 261.6 g |
| Compliance | Cms | 106.15 mm/N |
| Bl Factor | Bl | 14 |
| Factor Bl Voice Coil Inductance | Le | 14.72 mH |
| Diaphragm Area | Sd | 494.81 cm² |
| DC Resistance | Re | 1.6 + 1.6 OHMS |
| Efficiency Bandwidth Product | EBP | 36.5 |
RECOMMENDED ENCLOSURE
| Sealed Internal Volume (minimum) | 28L / 1 ft3 |
| Sealed Box Output Response (F3) | 40 Hz |
MEASUREMENT
| Overall Diameter | 12.6″ / 320 mm |
| Overall Depth | 5″ / 129 mm |
| Front Mount Baffle Cutout | 10.79″ / 274 mm |
| Mounting Depth | 4.33″ / 110 mm |
| Motor Diameter | 6.3″ / 160 mm |
MEASUREMENTS
WARRANTY
Please visit our website DS18.com for more information on our warranty policy.
We reserve the right to change products and specifications at any time without notice.
Images may or may not included optional equipment.
WARNING:
Cancer and Reproductive Harm. www.P65Warning.ca.gov

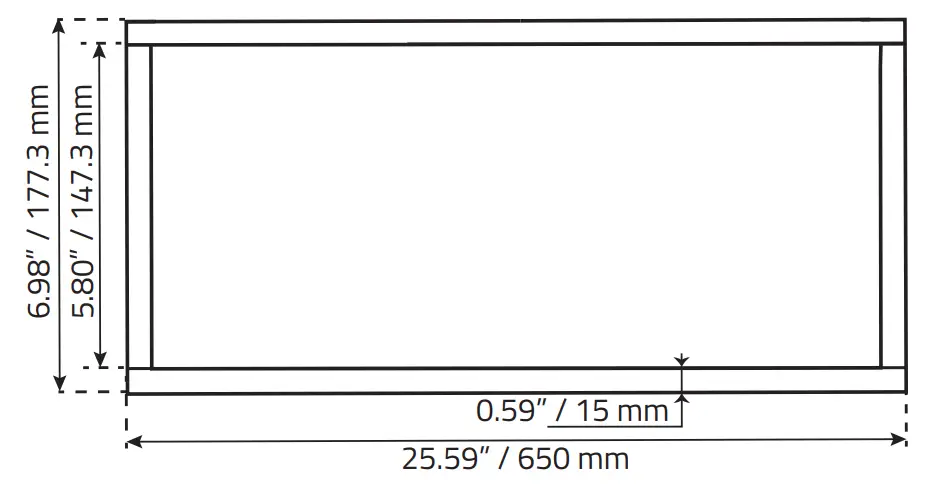

Recommended Box Dimension
PARAMETERS
- Box External Dimensions
(WxHxD): 25.59” x 13.78” x 6.98“ / 650 mm x 350 mm x 177.3 mm - Material Thickness: 1/2” / 15 mm
- Net Internal Volume: 28.3 L / 1 ft3
WOOD CUTS
- Top – Bottom (WxH): 25.59” x 6.98” / 650 x 177.3 mm 2
- Front – Rear (WxH): 25.59” x 10.31” / 650 x 262 mm 2
- Left – Right (WxH): 5.80” x 12.60” / 147.3 x 320 mm 2
