Ds18 Ixs12.4s 12-inch Shallow Subwoofer Owner's Manual

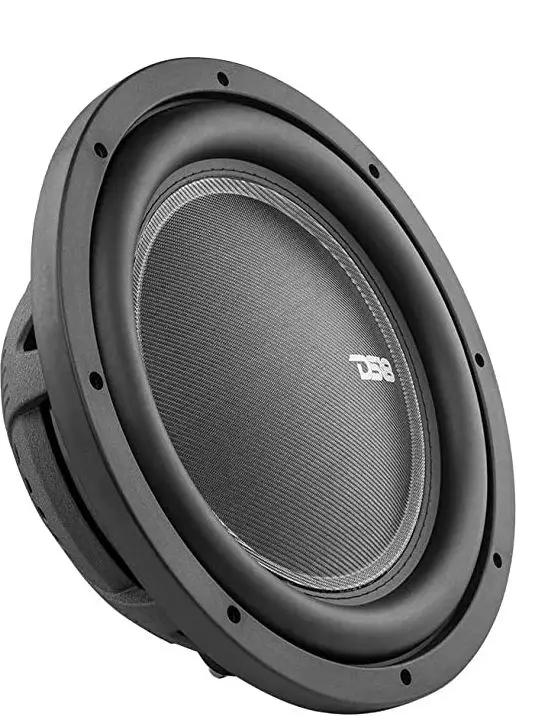

DS18 IXS12.4S 12-Inch Shallow Subwoofer

IXS12.4S

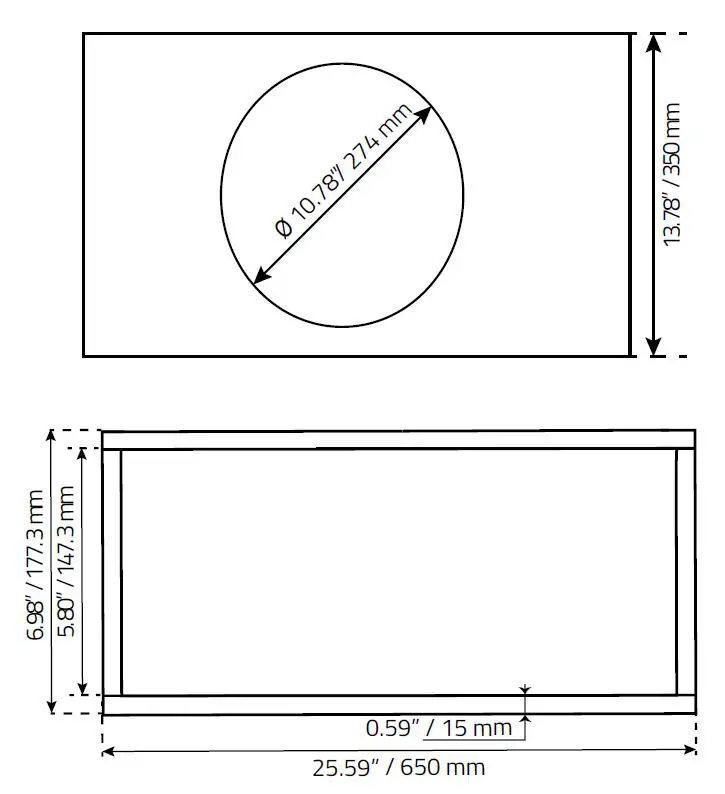

Recommended Box Dimension

• Parameters
• Box External Dimensions  (WxHxD): 25.59”x13.78”x6.98”
• Material Thickness  0.59” / 15 mm
• Net Internal Volume  1.00 ft3
• Wood Cuts  Qty
• Top-Bottom  (WxH): 25.59”x6.98”
• Front-Rear  (WxH): 25.59”x12.60”
• Left-Right  (WxH): 5.80”x12.60”
