PLPW6D
6.5” 600 Watt Dual Voice Coil 4 Ohm Subwoofer
PRODUCT DESCRIPTION
• UNMATCHED PERFORMANCE:
Built with 30 oz. magnet that will enhance car stereo or radio by producing powerful audio and unmatched performance. It comes with a sensitivity or SPL of 89dB to resonate perfect clarity
• DUAL VOICE COIL: The speaker subwoofer comes with a dual 4 Ohm impedance that can be wired as 4 or 8 Ohm. The 1.5” 4-layer dual voice coil can resist corrosion and ensure a longer life span.
• TREATED FOAM SURROUND:
Made entirely of specially treated foam surround for durability. Designed with this non-fatiguing suspension to keep equipment safe. It is a clean-cut car subwoofer that boasts a non-pressed paper cone and black steel basket
• 2.9” MOUNTING DEPTH: Easy to install with its 2.9” mounting depth and its most audio system for cars, boats or RVs. The overall diameter is 6 inch.

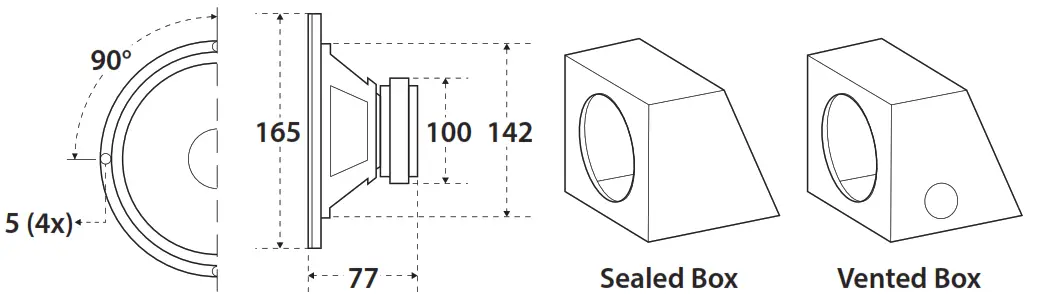

| Suggested Enclosure Parameters | Sealed | Vented | ||
| Small | Large | Small | Large | |
| Vent volume, cult. | 0.53 | NA | 0.53 | NA |
| Vent length, inches | – | – | 8. | – |
| Vent diameter, inches | – | – | 2. | – |
| Enclosure Frequency, Hz | 74 | – | – | – |
| Fb Tuning Frequency of Vented Enclosure, Hz | NA | – | 50 | – |
| F3 Systems 3dB Down point (Sealed), Hz | 53 | – | – | – |
GENERAL SPECIFICATIONS
• Nominal Diameter: 6 inch
• Rated Lmpedance: 4 ohms + 4 ohms
• Operating Bandwidth: 70-6k hz (-3dB)
• Power Handling Capacity: 100 Watts
• Sensitivitv (1W/M): 89 dB (+-3dB)
• Voice Coil Diameter: 1. 0 inch
THIELE-SMALL PARAMETERS
• Resonance Frequency Fs: 52.2 HZ
• DC Resistance Re: 3.4 ohm + 3.4 ohm
• Mechanical Q Factor Qms: 3.6253
• Electrical Q Factor Qts: 0.4336
• Total Q Factor Qts: 0.3873
• Equivalent Cas air load Vas: 15.38 L
• Surface Area of Cone Sd: 0.0131 m2
• Efficiency Bandwidth Product EBP 120
• Voice Coil-Over Hang X-max 4mm
PHYSICAL INFORMATION
• Basket: Black Plastic
• Magnet Type: 20 oz
• Cone Material: Non-press Cone
• Surround: Foam
• Dust Cap: PP
• Damper: Cloth
