PYLE PLMW Series Single Voice Coil Car Subwoofer

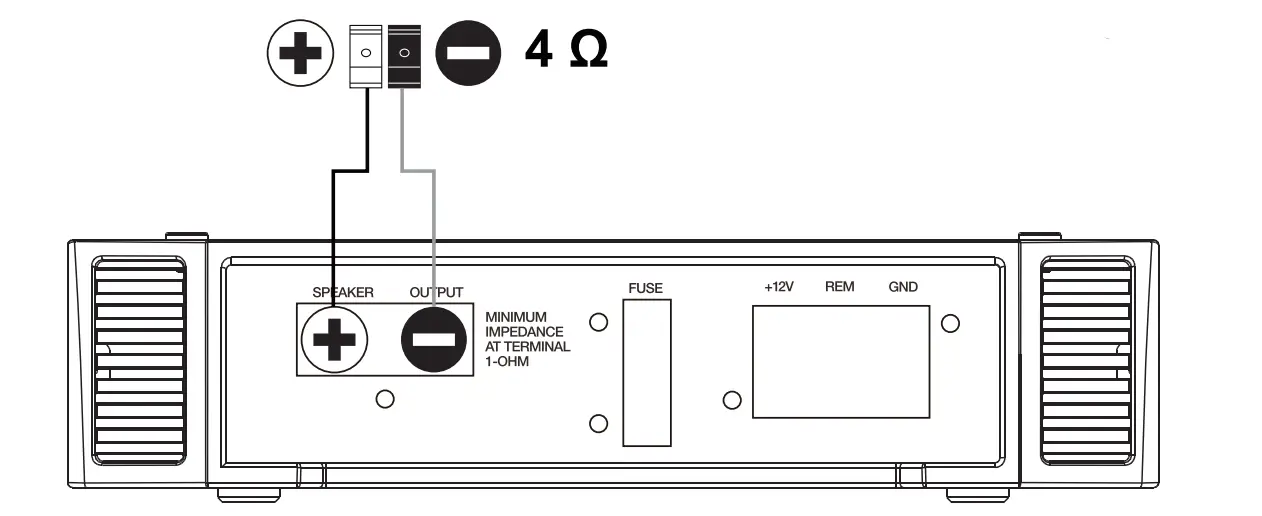

WIRING CONNECTION
Connect the power amplifier to the positive and negative terminals accordingly as shown.
Features
• Injection Cone with Rubber Edge
• High-Powered Car Subwoofer
• Lab Tested Pro Audio Woofer Performance
• SVC: Single Voice Coil Sub Speaker Design
• Massive Butyl Rubber Surround
• High Strength Engineering Plastic Basket
• Quick Connect Speaker Terminal Plate
• Compatible with Sealed Enclosure Speaker Box Audio Setup
• Impressive Bass Response, Low-Resonance Frequency Output
• Designed for Custom Audio Car, Truck, Mobile Vehicle Applications
What’s in the Box
- SVC Subwoofer
PLMW63
6.5” Single Voice Coil Car Subwoofer
150 Watts at 4-Ohm Car Audio Powered Subwoofer, Injection Cone with Rubber Edge
Technical Specs:
- Construction Materials: Engineered ABS
- Power Handing: 150 Watts MAX 75 Watts RMS
- Impedance: 4 Ohm
- Voice Coil: 1.0” -in
- Voice Coil Type: High-Temp Aluminum
- Magnet Size: 20 Oz
- Magnet Type: Barium Ferrite Magnet
- Frequency Response: 50Hz-5000Hz
- Sensitivity: 91 dB (1w/1m)
- Product Dimensions: 6.6 ” x 6.6” x 2.6” –inches
PLMW83
8” Single Voice Coil Car Subwoofer
200 Watts at 4-Ohm Car Audio Powered Subwoofer, Injection Cone with Rubber Edge
Technical Specs:
- Construction Materials: Engineered ABS
- Power Handling: 200 Watts MAX, 100 Watts RMS
- Impedance: 4 Ohm
- Voice Coil: 1.5” -in
- Voice Coil Type: High-Temp Aluminum
- Magnet Size: 25 Oz
- Magnet Type: Barium Ferrite Magnet
- Frequency Response: 40Hz-5000Hz
- Sensitivity: 91 dB (1w/1m)
- Product Dimensions: 8.3 ” x 8.3” x 2.9” –inches
California Prop 65 Warning
This product contains Nickel carbonate which is known to the state of California to cause cancer birth defects and other reproductive harm. Do not ingest. For more info go to: www.P65warnings.ca.gov
Questions? Issues?
We are here to help!
Phone: (1) 718-535-1800 Email: [email protected]
Pyle USA Electronics | Home Audio | Car Audio & More
