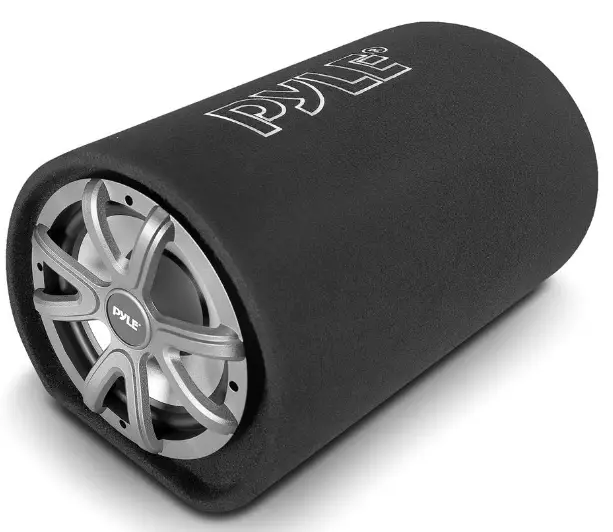

PYLE PLTB101 Subwoofer Box System
Subwoofer Box System
Carpeted Subwoofer Tube Enclosure System with Rear Vented Design

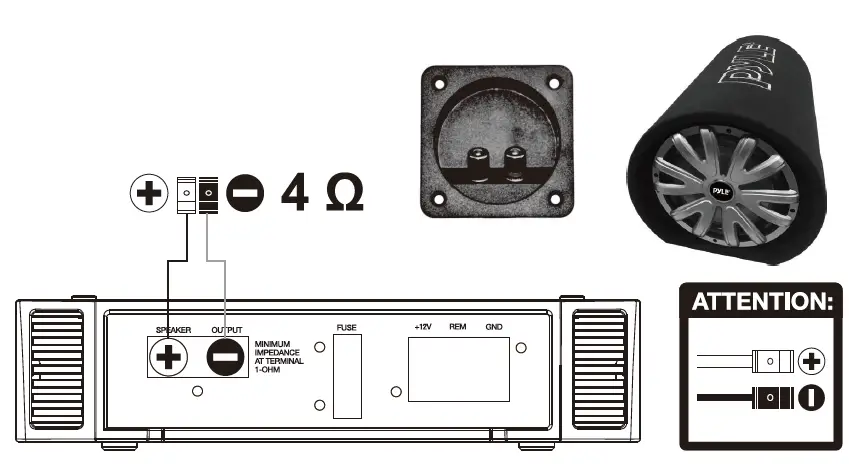

WIRING CONNECTION
Power amplifier for schematic diagram.
Connect the power amplifier to the positive and negative terminals accordingly as shown.
Features
- Subwoofer Box System
- Rear Vented Design
- Silver Paper Cone with Rubber Surround
- High Power 4 Ohm Subwoofer
- Specially Treated Black Rubber Edge Suspension
- 2” Aluminum Voice Coil
- Bass Reflex Vent for Added Sub-Bass Response
- High-Quality Carpeted Construction
What’s in the Box
- Subwoofer Box
PLTB101
- 10” 500-Watt Carpeted Subwoofer Tube Enclosure System with Rear Vented Design
Technical Specs
- Construction Materials: 15mm Particleboard
- Power Rating: 500 Watts Max Power
- Voice Coil: 2.0”
- Impedance: 4 Ohms
- Magnet: 40 Oz
- Sensitivity: 90 dB
- Frequency Response: 35-300 Hz
- Product Dimensions (L x W x H): 18.9” x 13.4” x 12.2” -inches

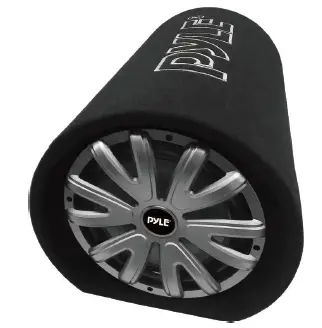

PLTB121
12” 500-Watt Carpeted Subwoofer Tube Enclosure System with Rear Vented Design
Technical Specs
- Construction Materials: 15mm Particleboard
- Power Rating: 500 Watts Max Power
- Voice Coil: 2.0”
- Impedance: 4 Ohms
- Magnet: 50 Oz
- Sensitivity: 91 dB
- Frequency Response: 25-200 Hz
- Product Dimensions (L x W x H): 18.9” x 16.4” x 15.2” -inches
