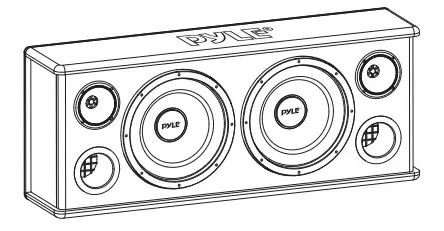

PL26BSL Dual Subwoofer Box System
User Guide
PL26BSL Dual Subwoofer Box System
WIRING CONNECTION
Power amplifier for schematic diagram.
Connect the power amplifier to the positive and negative terminals accordingly as shown.
Features
- Rear Vented Design
- Rubber Edge Suspension
- Two 4” Tweeters
- Smooth Carpet Finish
- 4 Layer Dual Voice Coil
- Binding Post Connectors
- Perfect for Truck and Behind the Seat
- High-Quality Construction
What’s in the Box:
- Subwoofer Box
Questions? Issues?
We are here to help!
Phone: (1) 718-535-1800
Email: [email protected]
PL26BSL

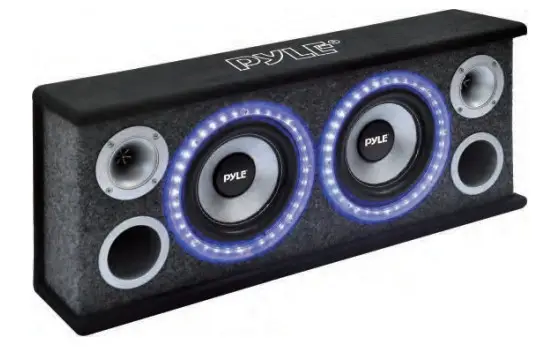

6” Dual Series Vented Subwoofer Enclosure
Rear Vented Design with Built-in Illuminating LED Lights
Technical Specs
- Construction Materials: 15mm Particle Board + Multilayer Board
- Power Rating: 2 x 200 Watts Max Power
- Voice Coil: 1.0”
- Impedance: 4 Ohms
- Magnet: 2 x 20 Oz
- Sensitivity: 90 dB
- Frequency Response: 65-18000 Hz
- Product Dimensions (L x W x H): 20.5” x 4.7” x 8.5” -inches
PL28BSL
8” Dual Series Vented Subwoofer Enclosure
Rear Vented Design with Built-in Illuminating LED Lights
Technical Specs:
- Construction Materials: 15mm Particle Board + Multilayer Board
- Power Rating: 2 x 300 Watts Max Power
- Voice Coil: 1.5”
- Impedance: 4 Ohms
- Magnet: 2 x 24 Oz
- Sensitivity: 91 dB
- Frequency Response: 50-18000 Hz
- Product Dimensions (L x W x H): 27.5” x 6.3” x 11.0” -inches
PL210BSL
10” Dual Series Vented Subwoofer Enclosure
Rear Vented Design with Built-in Illuminating LED Lights
Technical Specs:
- Construction Materials: 15mm Particle Board + Multilayer Board
- Power Rating: 2 x 400 Watts Max Power
- Voice Coil: 2.0”
- Impedance: 4 Ohms
- Magnet: 2 x 30 Oz
- Sensitivity: 91 dB
- Frequency Response: 40-18000 Hz
- Product Dimensions (L x W x H): 29.9” x 7.0” x 13.0” -inches
WARNING:
This product contains Nickel carbonate which is known to the state of California to cause cancer birth defects and other reproductive harm. Do not ingest.
For more info go to: www.P65warnings.ca.gov
