038128063Q Intake Flap Motor
Instruction Manual
Intake Flap Motor with Intake Manifold Runner Position Sensor → Removal and Installation → Fuel Injection and Ignition
The information in this article comes from a service manual containing information that applies to the following engine codes: AXX, BHZ, BPY, BWA, BZC, CDLA, and CDLC.
Section Info
- Multiport Fuel Injection
- 5 Removal and Installation
- 5.6 Intake Flap Motor with Intake Manifold Runner Position Sensor
For the installation location of the intake flap motor -V157- , see Intake Manifold, Assembly Overview. Refer to
⇒ “2.3 Intake Manifold Assembly Overview”, page 14.
Special tools and workshop equipment required
- Commercially available/4-inch ratchet
- TORX 30
Removing
- Remove the engine cover. Refer to

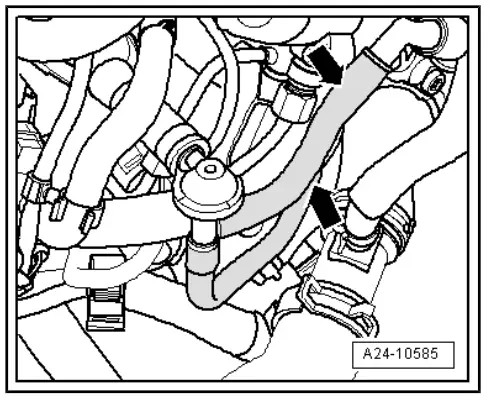

⇒ “5.1 Engine Cover with Air Filter Element”, page 28. - Disconnect the vacuum lines -arrows-.
- Remove the bracket -arrow- for the harness.

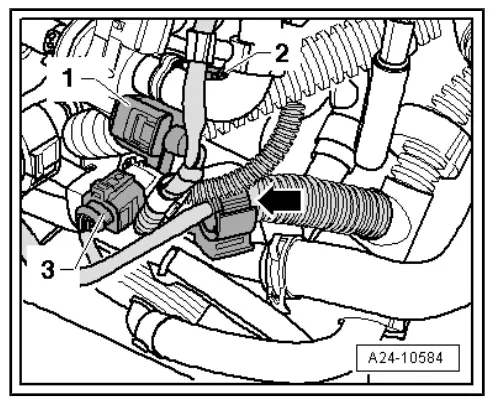

- Disconnect the electrical connections -1, 2, and 3-.

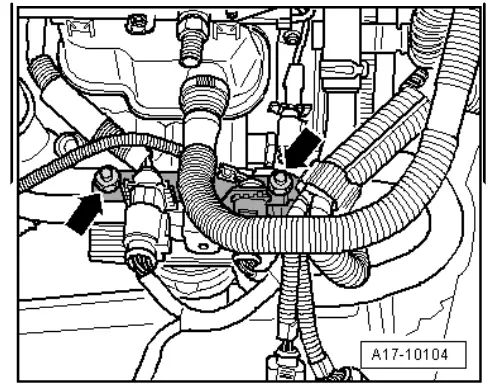

- Remove bracket for cable connector -arrows- from coolant pipe.
Note

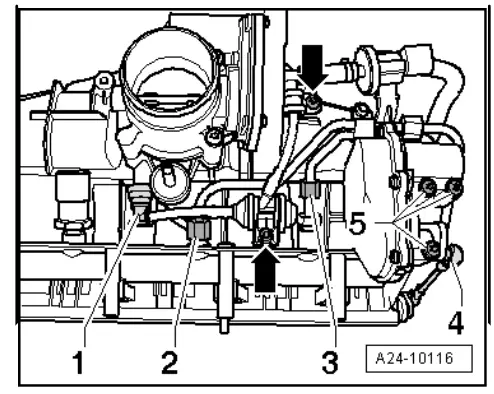

Open the nut with the left arrow just enough so that the bracket can be moved to the side. - Carefully pry off linkage from intake flap motor -4-.
- Remove intake flap motor -5- .
Note
The illustration shows the intake manifold removed.
Installing
Installation is in reverse order.
- Tightening specification, refer to
⇒ “2.3 Intake Manifold Assembly Overview”, page 14
