| SECTION 303-14: Electronic Engine Controls | 2008 Edge/MKX Workshop Manual |
| REMOVAL AND INSTALLATION | Procedure revision date: 09/14/2007 |
Crankshaft Position (CKP) Sensor

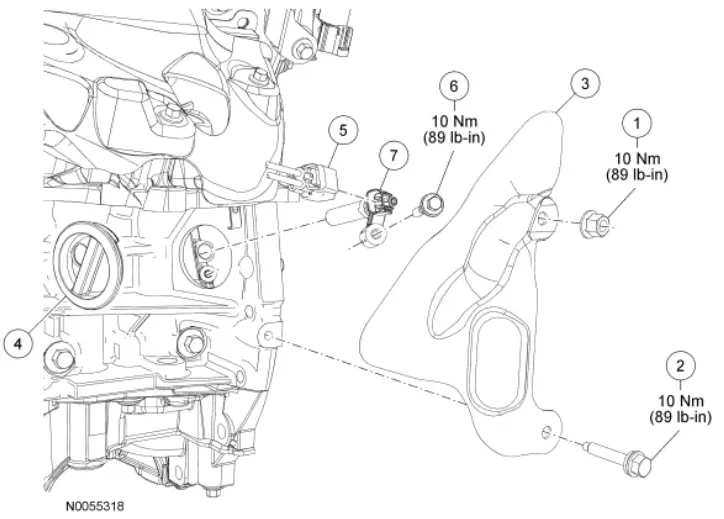

| Item | Part Number | Description |
| 1 | W701542 | Heat shield nut |
| 2 | W701669 | Heat shield bolt |
| 3 | 6K342 | Heat shield |
| 4 | 6C070 | Rubber grommet cover |
| 5 | 14A464 | Crankshaft Position (CKP) sensor electrical connector |
| 6 | 6D327 | CKP sensor bolt |
| 7 | 6C315 | CKP sensor |
Removal and Installation
- With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Section 100-02.
- Remove the LH catalytic converter. For additional information, refer to Section 309-00.
- Remove the bolt, nut and the heat shield.
• To install, tighten to 10 Nm (89 lb-in). - Remove the rubber grommet cover.
- Disconnect the Crankshaft Position (CKP) sensor electrical connector.
- Remove the bolt and the CKP sensor.
• To install, tighten to 10 Nm (89 lb-in). - To install, reverse the removal procedure.
